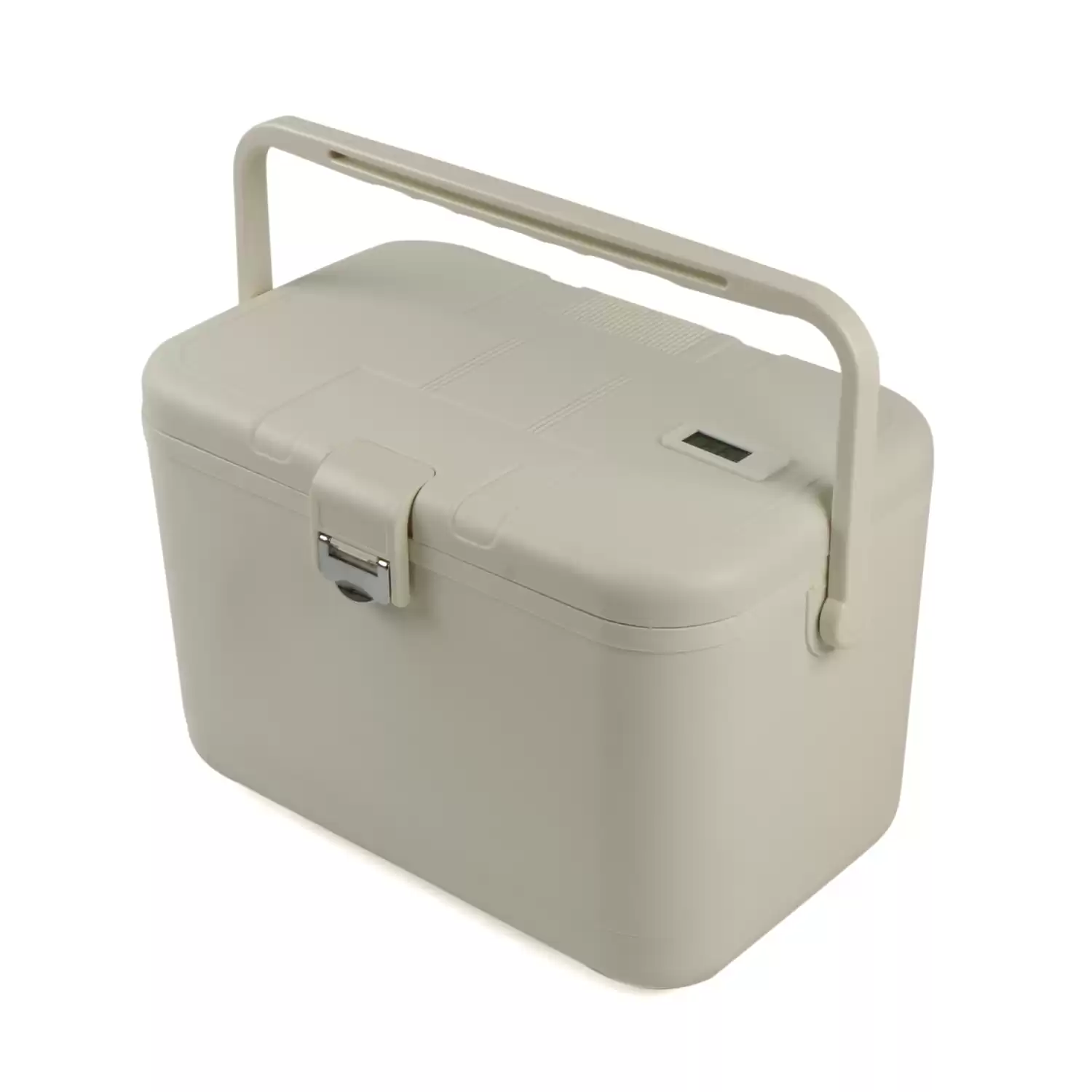

12L Cold Chain Box for Blood Sample Transportion and Carriers
12L cold chain box is with comfortable shape and size, easily carried, durable, waterproof outer and inner injection mouldings resist rough handling, and give a long service life. Polystyrene foam insulation provides longest cold life and allows for maximization of usable cold space according to cold source used.
|
Category
|
Medical cooler box
|
|
Main Material
|
PP,Insulation: PU foam &PP
|
|
Application
|
Medical, vaccine, blood storage and transport
|
|
Dimension
|

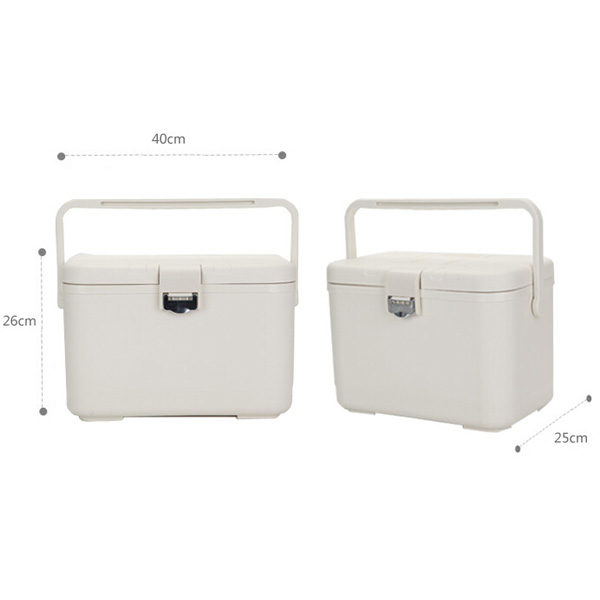

Outer Dimension:40*25*26cm
Inner Dimension:30*19*20cm
|
|
Capacity
|
Payload capacity:12L
|
|
Cold source
|
Ice Pack:10pcs of 21*8cm ice pack
Or 10pcs of 16.5*9.5*3cm ice brick
Or as your requirement
|
|
Cold life
|
>30 hours at 2°C to 8°C in an ambient temperature of 43°C
|
Application

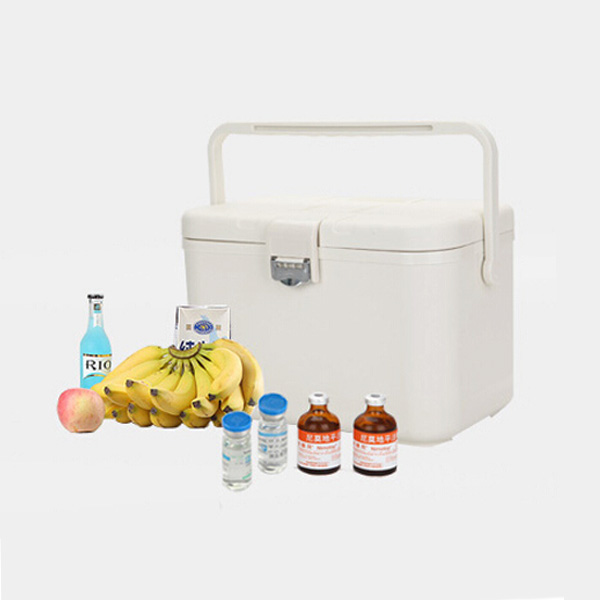

Cold Chain Bags and Boxes, specially designed to hold temperatures within essential safe temperature limits without electricity during transport or use for: Vaccines,Insulin,Biopharmaceutical, Life Science and other Medical Products,IVD products and biological specimens,Selected fresh food, drink and dairy products
Usage

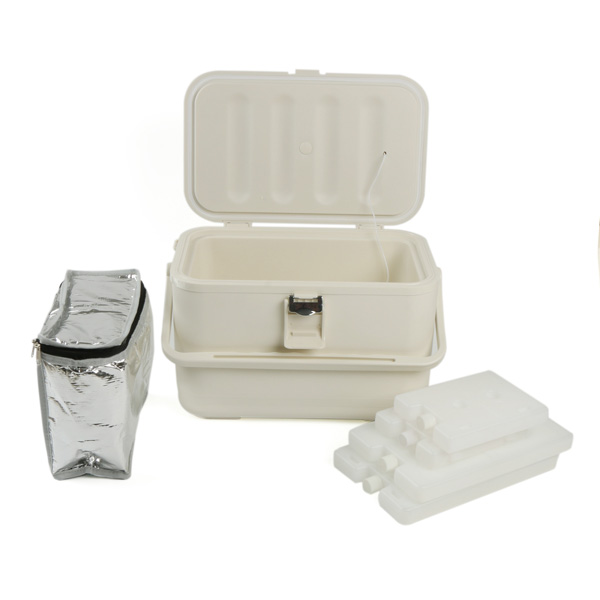

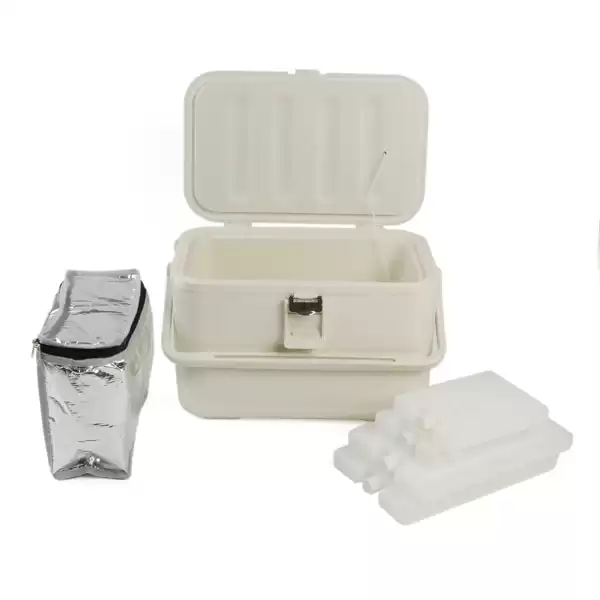

1. Before using, wipe the non toxic sealed HT Ice Bricks dry, and place into a freezer until they are fully frozen (about 10 hours). If using HT Ice Packs, fill with clean fresh water, firmly replace the screw cap, then follow the same procedure.

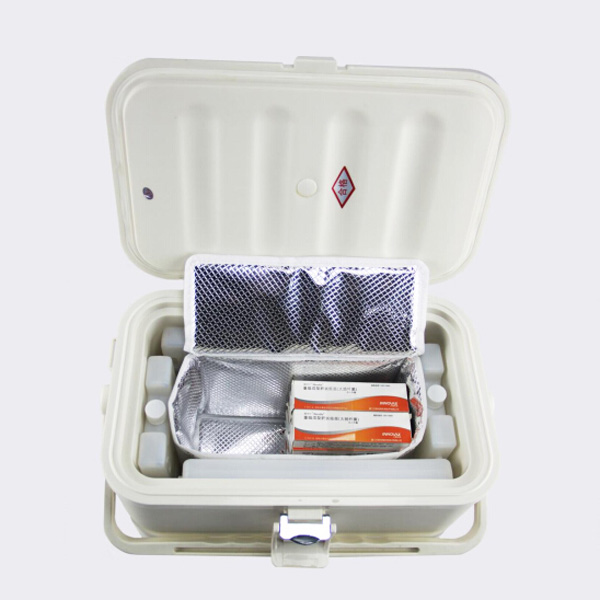

2. Remove the frozen packs from the freezer, and place every pack into the box in the positions indicated, and close the lid.
3. When the temperature of the box reduces to below 8°C, open the lid and place the contents to be kept cold in the cold transport container. Close the lid.
