12V 0.8GPM 70PSI agriculture battery self-priming sprayer pump automatic for sale

Automatic pressure sprayer pump has self-priming alibity.Mini & flexible agriculture pump use widely in ATv, Lawn.




 12V 0.8GPM 70PSI agriculture battery self-priming sprayer pump automatic for sale

Description:

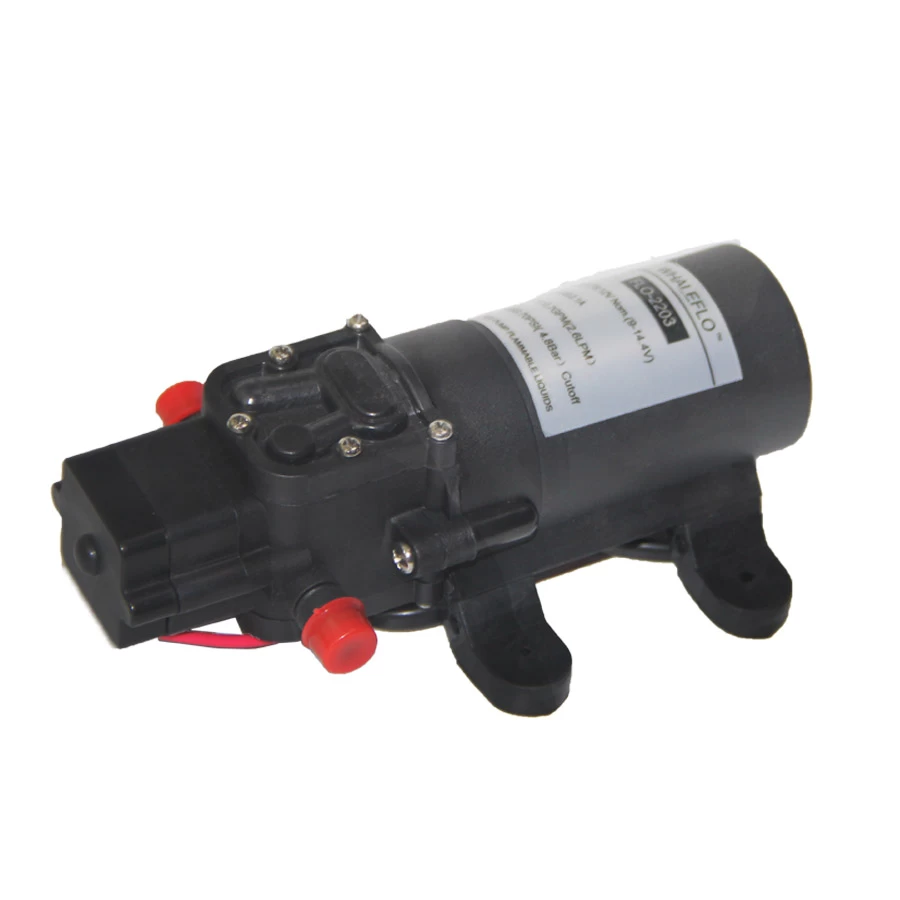

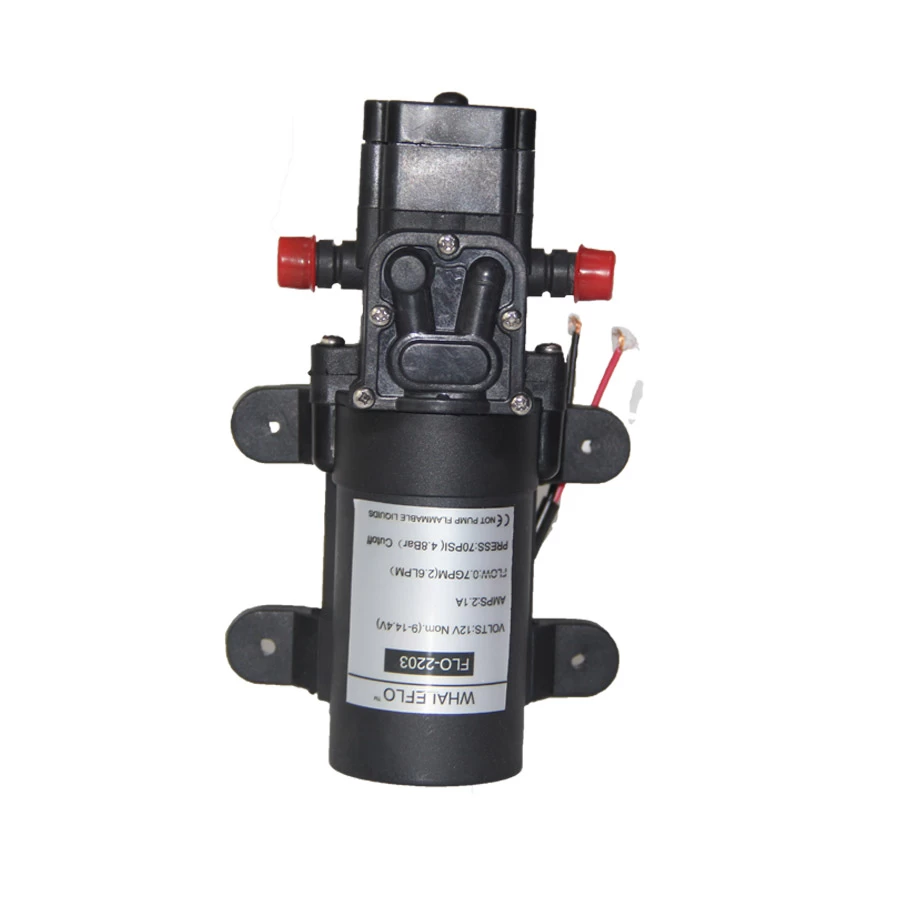

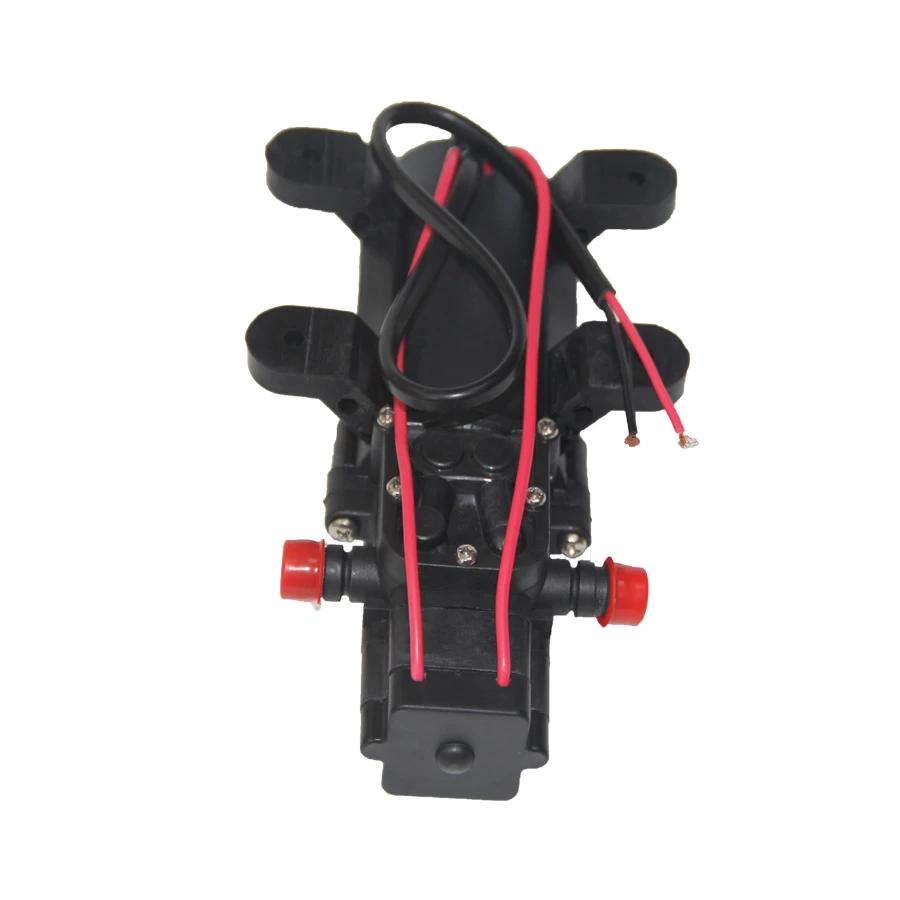

Whaleflo FLo22 series is ideal water dispensing for agriculture sprayer, marine RV,Lawn and outdoor. The Pump designed basing on two diaphragm. Each of them has self-priming with head about 1 Meter.

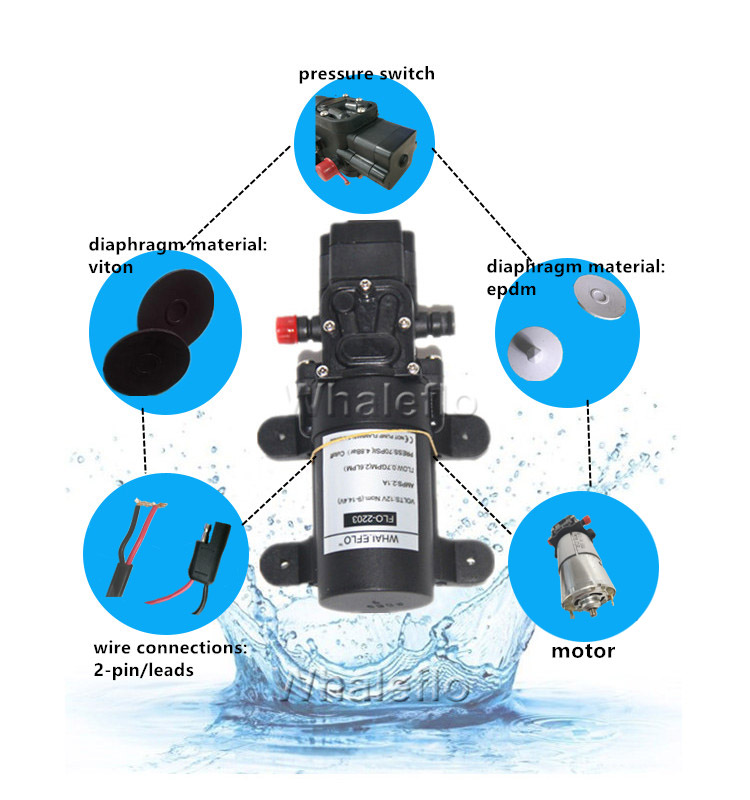

Pump chamber material made of Santoprene.The inside check value is EPDM(Ethylene Propylene Diene Monomer) and Viton use widely for liquid PH value vary from 4-11PH value.

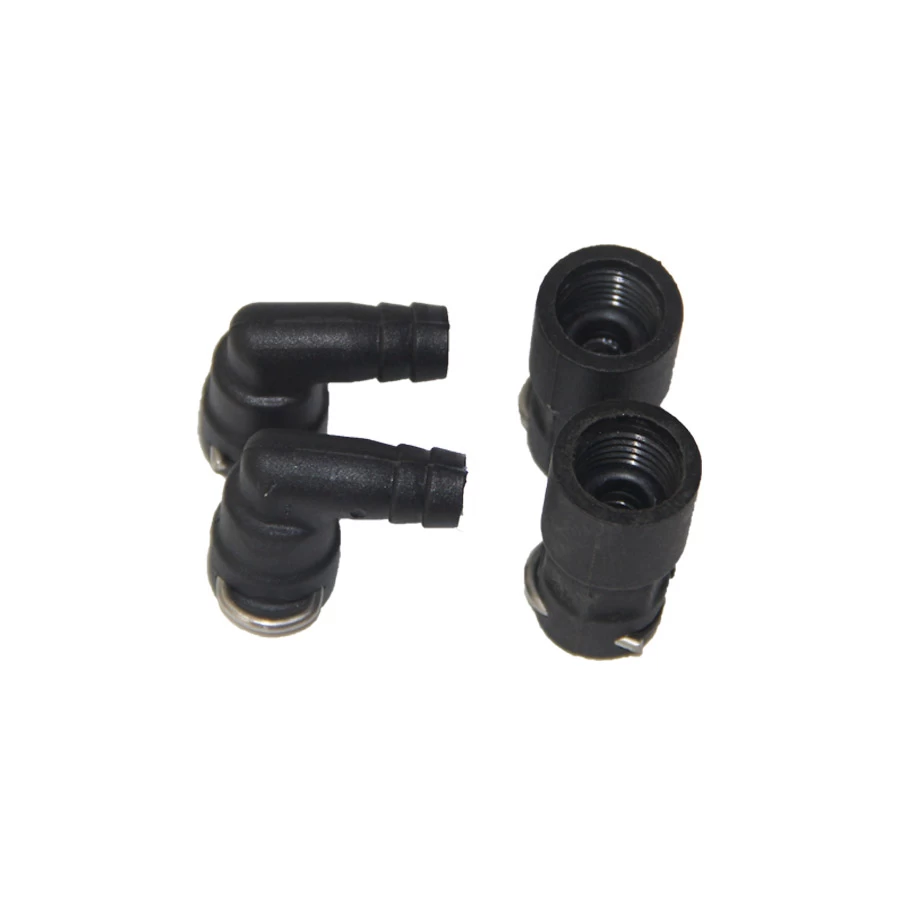

Whaleflo automatic pump pressure switch serves from 35PSi to 80PSI,and outlet port size is 3/8” (10mm)hose barb,female thread with 1/4’’BSPT(6mm) and male thread can match different requirement.

Pump duty working: working intermittent. Pump working power: battery, Sunshine energy via Solar panel.




Whaleflo pump

Whaleflo diaphragm pump



Performance

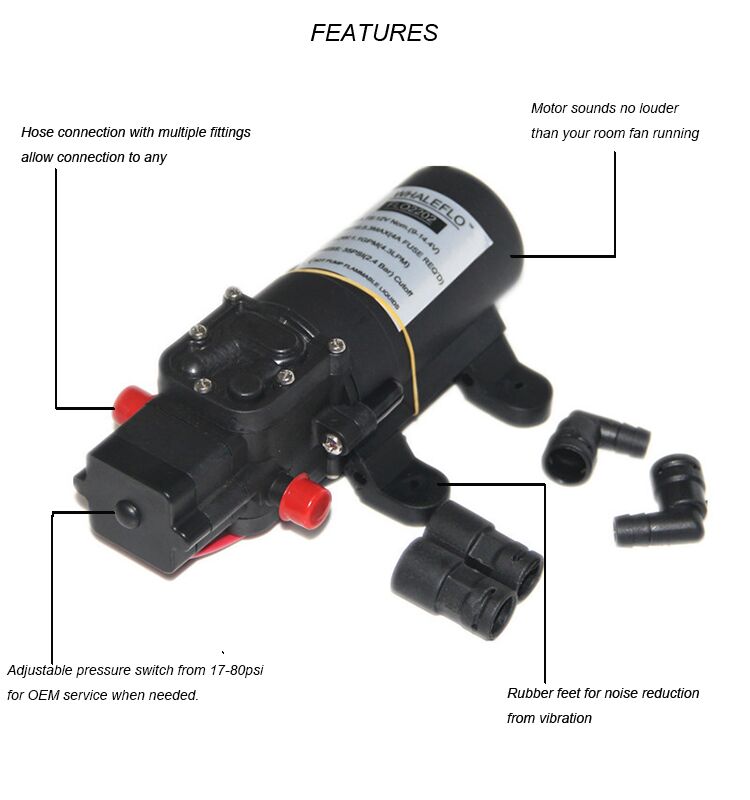

Self-priming abilityCan dry run with damage. Low noise, automatic pressure switch,mini and flexible, superior rubber feet with low noise.

Whaleflo pump application

TYPICAL APPLICATIONS:

Agriculture, electric sprayer system,Atv system, beverage water dispenser,industrial field,Marine, RV,Lawn,caravan, yatch, Outdoor shower, vehichle -mounted sprayer, Misting system.

Whaleflo pump application




Model Volt(V) Open Flow(LPM/GPM) Demend Pressure(PSI/Bar) Amps Draw(A) Check value Diaphragm  Ports Wire connections
FLO2201 12 2(0.52) 55(3.79) 1.8 EPDM/VITON Santoprene 3/8" barb 2-pin /Leads
FLO2202 12 3.8(1.0) 35(2.41) 3 EPDM/VITON Santoprene
3/8" barb
2-pin /Leads
FLO2202-1 12 4.3(1.13) 35(2.41) 3.5 EPDM/VITON
Santoprene
3/8" barb
2-pin /Leads
FLO2203 12 2.6(0.68) 70(4.83) 2.1 EPDM/VITON
Santoprene
3/8" barb
2-pin /Leads
FLO2203-1 12 3.1(0.82) 70(4.83) 2.2 EPDM/VITON
Santoprene
3/8" barb
2-pin /Leads
FLO2202A 12 4(1.05) 80(5.52) 2.6 EPDM/VITON
Santoprene
3/8" barb
2-pin /Leads
FLO2401 24 2(0.53) 55(3.79) 0.9 EPDM/VITON
Santoprene
3/8" barb
2-pin /Leads
FLO2402 24 3.8(1.0) 35(2.41) 1.5 EPDM/VITON
Santoprene
3/8" barb
2-pin /Leads
FLO2403 24 2.6(0.68) 70(4.83) 1 EPDM/VITON
Santoprene
3/8" barb
2-pin /Leads
FLO2402A 24 4(1.05) 80(5.5.2) 1.3 EPDM/VITON
Santoprene
3/8" barb
2-pin /Leads



Dimension/PC
18.5*11*6.5cm
Net Weight/pc
0.64KG
Gross Weight/pc
0.72kG
Carton Dimension(50pcs)
56.5*38.5*36.5cm
