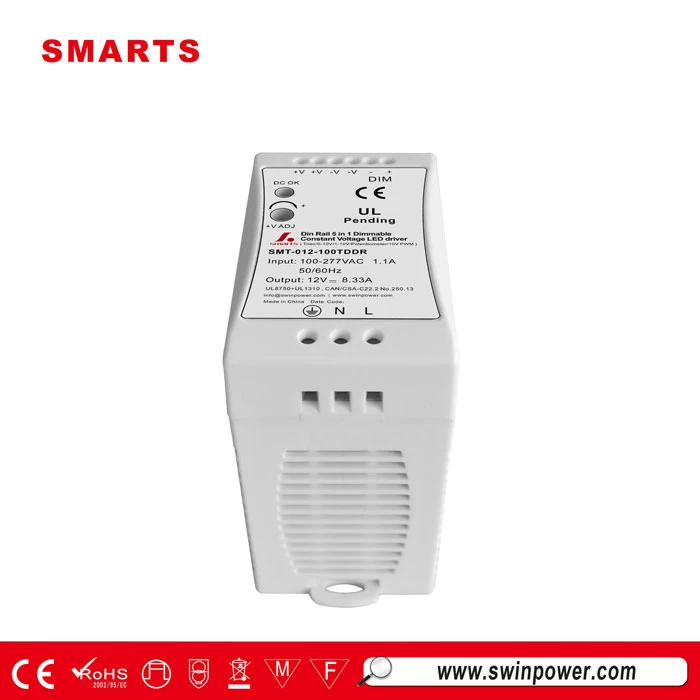

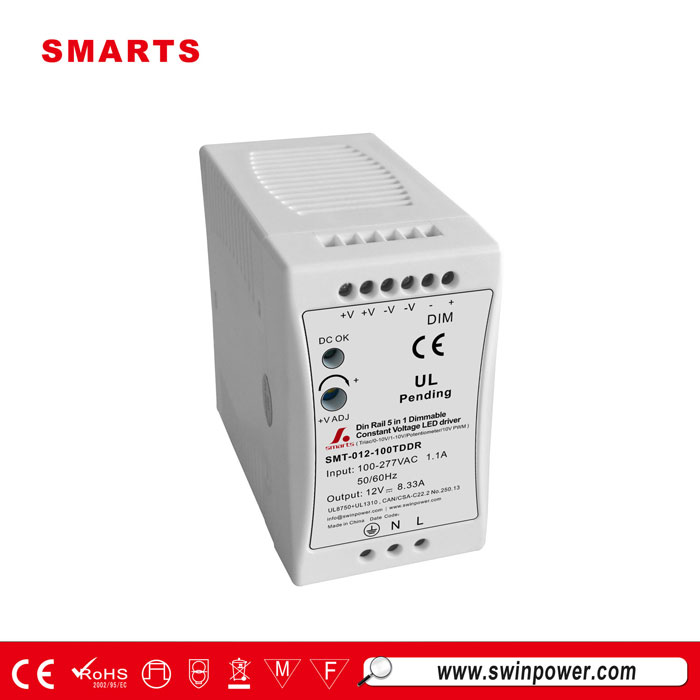

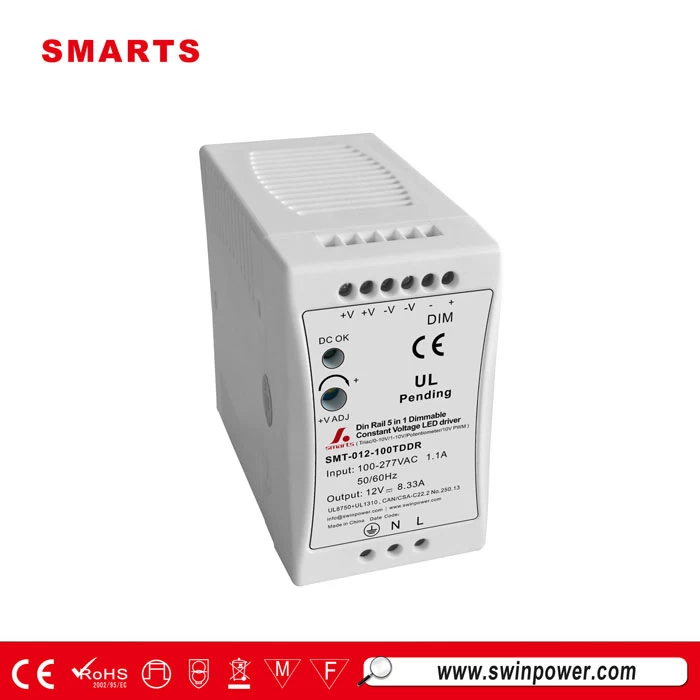

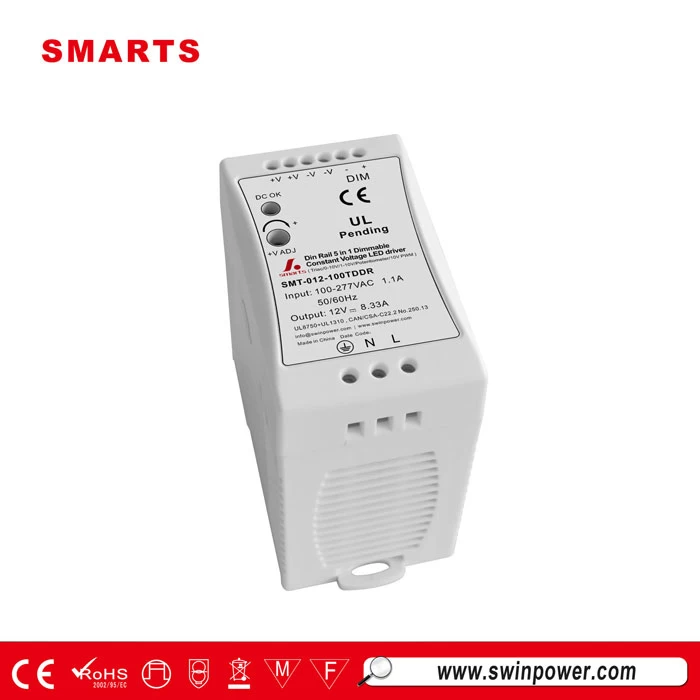

12v 100w 5 in 1 dimmable led driver with 5 years warranty
Smarts Electronics SMT-012- 100TDDR is Din Rail 5 in 1 (Triac/0-10V/1-10V/Potentiometer/10V PWM) Dimmable LED driver which could meet UL cUL. FCC Pending Class 2 .RoHs certificate with 5 years warranty.
Specification
model
|
SMT-012-100TDDR
|
SMT-024-096TDDR
|
Output
|
DC Voltage
|
12VDC
|
24VDC
|
Voltage Accuracy
|
±5%
|
±5%
|
Rated current
|
8.33Amp
|
4.0Amp
|
Rated power
|
100W
|
96W (Class 2)
|
Voltage Regulation
|
±0.5%
|
Load Regulation
|
±1%
±1%
|
Input
|
Voltage Range
|
100-277 VAC
|
Frequency Range
|
47~63HZ
|
Power Factor ( Typ.)
|
0.98@120VAC ,0.95@277VAC
|
0.98@120VAC ,0.95@277VAC
|
|
THD(Typ. ) @ full load
|
<20%@120VAC & 277VAC
|
Full Load Efficiency(Typ.)
|
83%@120VAC, 85%@277VAC
|
83%@120VAC, 86%@277VAC
|
AC Current(Typ.)
|
1.3A
|
Inrush Current(Typ.)
|
20A, 50%, 1.6ms @120VAC; 25A, 50% 1.2ms @277VAC
|
Leakage current
|
<0.5mA
|
Protection
|
Short Circuit
|
shut down o/p voltage, re-power on to recover after fault condition removed
|
Over Loading
|
≤120% Hiccup mode,recovers automatically after fault condition is removed
|
Over temperature
|
100℃±10℃ shut down o/p voltage, automatically recover after cooling.
|
Environment
|
Working TEMP.
|
-40~+60℃
|
Working Humidity
|
20~90%RH,non-condensing
|
Storage TEM.,Humidity
|
-40~+80℃,10~95%RH
|
TEMP.coefficient
|
±0.03%/℃(0~50℃)
|
Vibration
|
10~500Hz,2G 10min./1 cycle,period for 60min.
each along X,Y,Z axes
|
Safety&EMC
|
Safety standards
|
UL8750+UL1310 , CAN/CSA-C22.2 No.250.13
|
Withstand voltage
|
I/P-O/P:1.88KVac
|
Isolation resistance
|
I/P-O/P:100MΩ/500VDC/25℃/70%RH
|
EMC EMISSION
|
FCC 47 CFR Part 15 ,Subpart B
|
Others
|
Weight
|
0.4Kg
|
Size
|
55*90*100mm(L*W*H)
|
packing
|
50PCS/CTN , carton size:330*330*130mm
|
Notes
|
1. Just to confirm the drivers are Three In One Dimming Function Compatible With Leading-edge/Trailing-edge Dimmer, No Flicker? No Min load?
Answer: Our Triac dimmable led drivers are compatible with Leading-edge/Trailing-edge Dimmer,no flicker,no min load.
|
Label

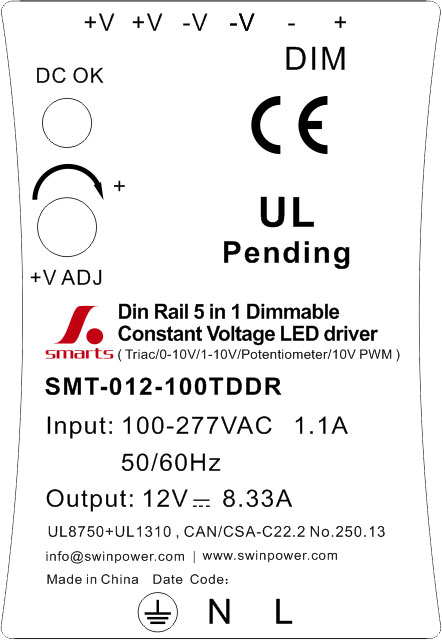

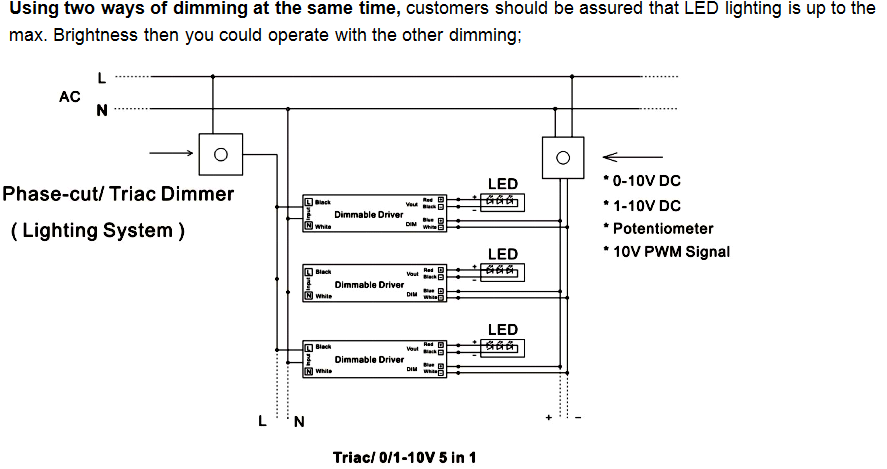

Dimming Operation and Connecting Diagram
