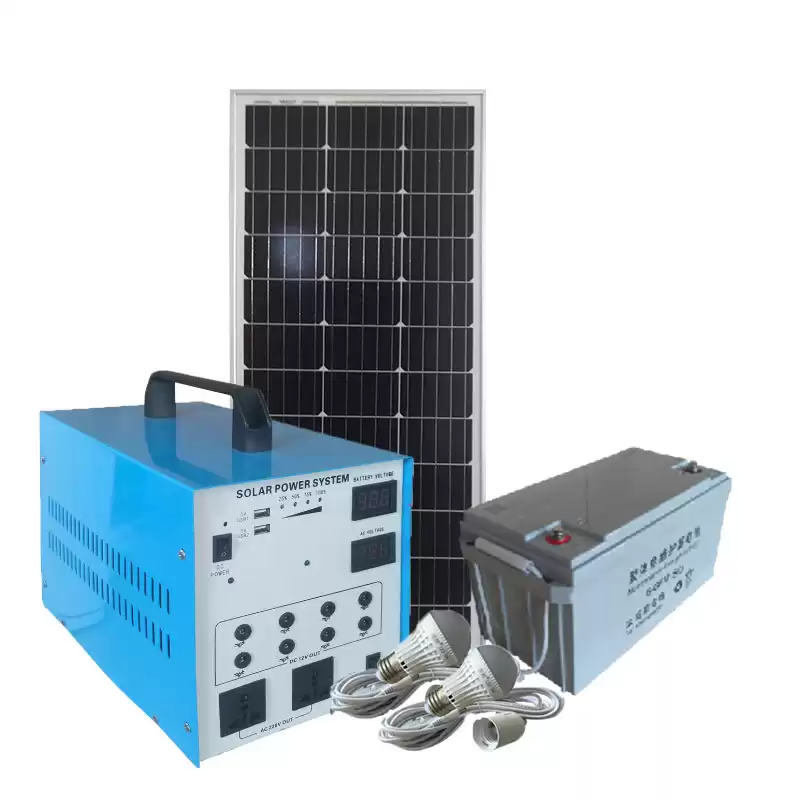

12V 100W Monocrystalline Solar Panel System Kits
12V 100W Solar Panel System Specifications:
|

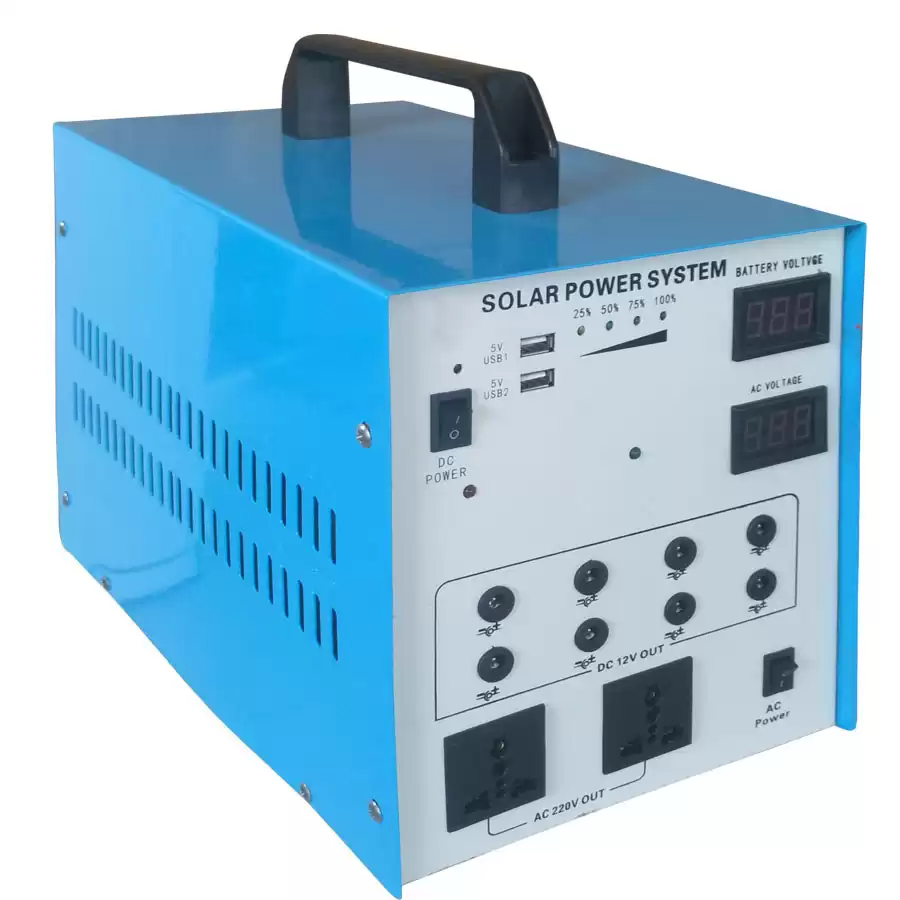

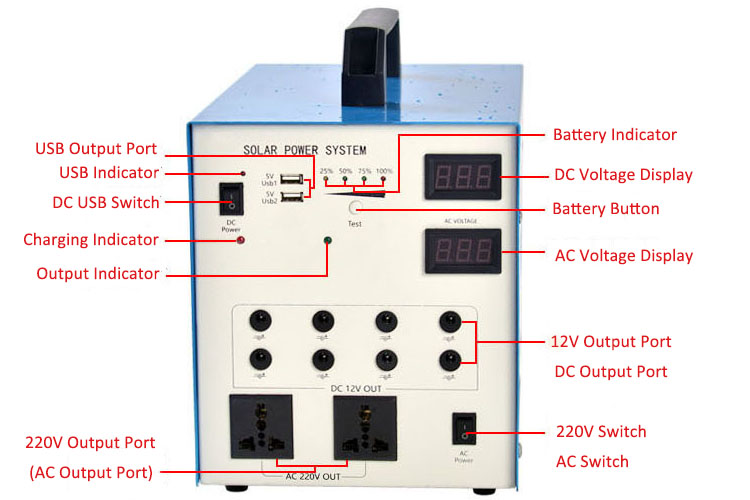

Controller System Host*1
|
Input voltage
|
DC12V
|
|
Maximum charging current
|
15A
|
|
Maximum discharge current
|
25A
|
|
USB
|
1A/5V
|
|
LED indicator
|
Switch, battery
|
|
AC220V output interface
|
2 pcs
|
|
DC12V output interface
|
8
|
|
Charging control
|
PWM controller
|
|
Temperature difference supplement
|
-4MV/0°/2V
|
|
Load protection
|
Overcharge, overdischarge, overload, short circuit
|
|
Size
|
345*210*245mm
|
|
Weight
|
About 4.03KG
|
|
Built-in inverter
|
300W
|
|
Solar Panel*1
|
Maximum output power (Pm)
|
100W
|
|
Optimal power voltage (Vmp)
|
17.6V
|
|
Optimal power current (Imp)
|
5.71A
|
|
Open circuit voltage (Voc)
|
21V
|
|
Short circuit current (Isc)
|
6.4A
|
|
Size
|
1200*540*30mm
|
|
Weight
|
About 7KG
|
|
Conversion efficiency
|
18%
|
|
Power deviation
|
3%
|
|
Cell
|
Monocrystalline silicon
|
|
Service life
|
More than 25 years
|
|
Battery*1
|
Battery Type
|
Valve-controlled maintenance-free gel battery
|
|
Voltage
|
12V
|
|
Capacity
|
50AH
|
|
Size
|
229*138*211mm
|
|
Weight
|
About 15.5KG
|
|
Accessories
|
LED light*2
|
12V/3W
|
|
LED light line*2
|
5M
|
12V 100W Solar Panel System Feature:
-
Complete remote power solution for off-grid operation
-
High-efficiency 100W monocrystalline silicon solar panel with dedicated solar cable and waterproof connector
-
12V solar charge controller
-
It is very suitable for power supply of various devices in various applications such as household, camper, boat, shed or farm.
-
Can bring electrical appliances within 300W
TV (150W): Use alone for about 4 hours
Fan (50W): Use alone for about 12 hours
Bulb (5W): Use alone for about 120 hours
-
User manual with detailed installation instructions
