120W single output 12v switching power supplies
Description:
This K31B-UP120S12 model switching power supplies is suitable for use in telecommunications, networking, test and measurement, IT applications, general electronics, low profile systems, automation, POS, motor based machinery and non patient contact medical equipment.
Features:
1, 120W high efficiency 12v single output power supplies;
2, K31B-UP120S12 model including filter, low output noise;
3, This 12V version power supply with 100-240 VAC input voltage;
4, Overload, overcurrent protections.
|
Parameter
|
|
Item NO.
|
K31B-UP120S12
|
|
Output
|
Output Voltage
|
12V
|
|
Rated Current
|
10A
|
|
Current Range
|
0-10A
|
|
Rated power
|
120W
|
|
Ripple noise
|
120mVp-p
|
|
Adjustable output range
|
±10%
|
|
Output accuracy
|
±1%
|
|
Line Regulation
|
±0.5%
|
|
Load Regulation
|
±0.5%
|
|
Set up,Rise,Keep up time
|
/
|
|
Input
|
Input voltage range
|
100~240V AC
|
|
Input Current
|
2A/ 115Vac
|
|
Frequency
|
50~60Hz
|
|
Efficiency
|
86% @230Vac
|
|
Power factor
|
>0.9@230Vac, >0.95@115Vac
|
|
Inrush current
|
Cold start 20A 230V AC
|
|
Leakage Current
|
<0.5mA@240V
|
|
Protection
|
Overload protection
|
105-180% Automatic protection/385v Do not overload
|
|
Output overvoltage protection
|
/
|
|
Over temperature protection
|
/
|
|
Environment
|
Working Temp.,Humidity
|
-20~40℃,10~90%RH,No condensation
|
|
Storage Temp.,Humidity
|
-20~85℃，10~95% RH
|
|
Temp.,Drift
|
±0.03%/℃(0~50℃)
|
|
Vibration
|
10~500Hz, 2G 10min./1cycle, PERIOD FOR 60min. EACH AXES
|
|
Safety&EMC Standards
|
Safety standards
|
GB4943
|
|
Withstand voltage
|
I/P-O/P:3.0KV; I/P-FG：1.8KV；O/P-FG:0.6KV AC 1min.
|
|
Insulation resistance
|
I/P-O/P, I/P-FG, O/P-FG:500VDC / 100M Ohms
|
|
EMC standard
|
/
|
|
Others
|
Dimension
|
118*55*38mm
|
|
Weight
|
0.3Kg
|
|
Remarks
|
1. All parameters 230VAC input, rated load, ambient temperature 25 ℃, measured under conditions of 70% humidity;
2. Accuracy: includes set up tolerance, line regulation, load regulation and so on;
3. Ripple Test: 30cm long strands connect the power supply and the load, the load side and 0.1u and 47u capacitor to 20MHz oscilloscope measured at the load end;
4. Line regulation: at rated load conditions, the input voltage changes from low to high measured;
5. Load regulation: the measured output load from 0 to 100% load change measured.
|

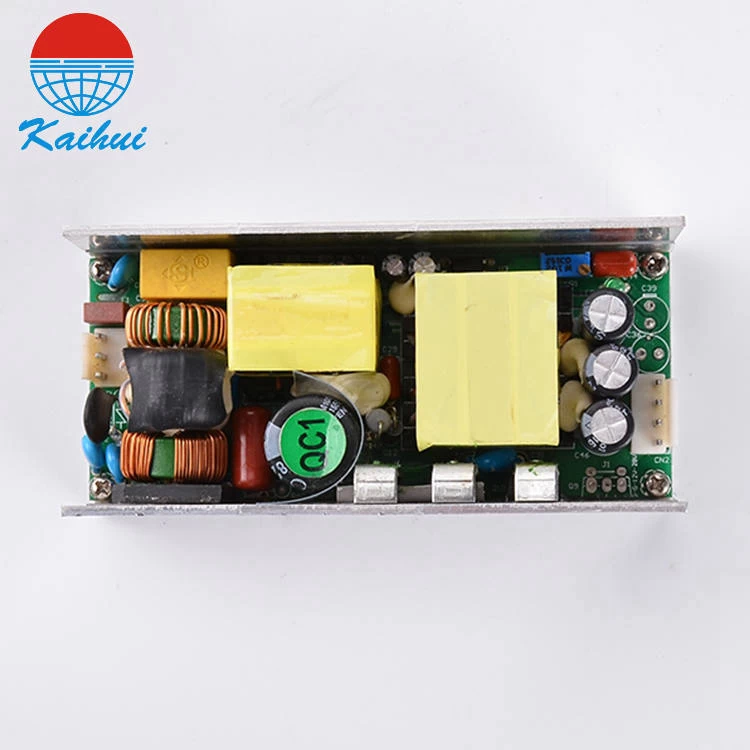

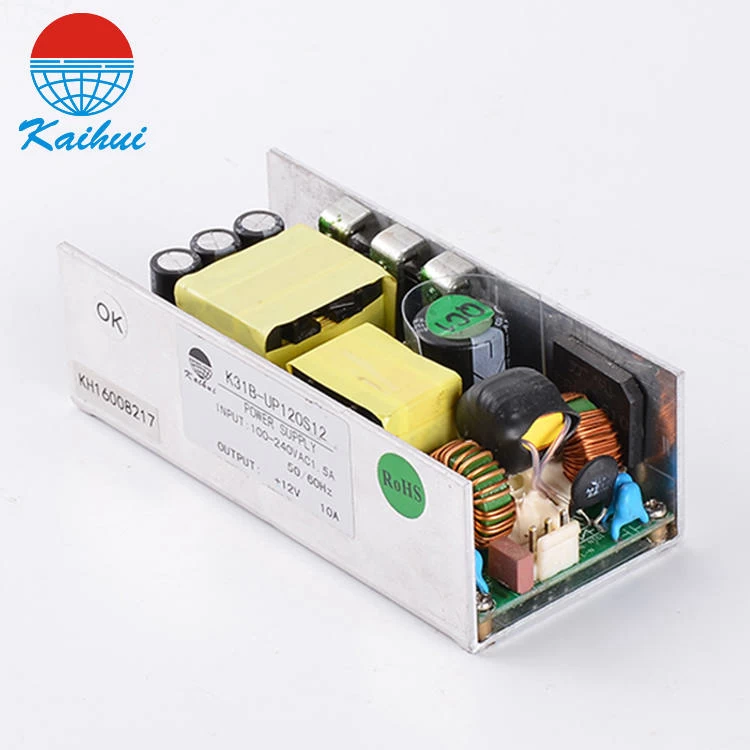

Product picture:
FAQ
Q1. Can I have a sample order for power supply?
A1: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2: Do you accept OEM/ODM for the switching power supply?
A2: Yes. we do.
Q3:How about the quality?
A3:We have the better professional and experienced engineers team and strict QA and QC system.Repair rate under 0.1%~0.2%
Q4:What is PFC?
A4:PFC stands for Power Factor Correction. The purpose of PFC is to improve the ratio of apparent power and real power. The power factor is only 0.5~0.7 in non-PFC models. In PFC models, the power factor can reach above 0.9. The calculation formulas are as below:
Apparent Power=Input Voltage x Input Current (VA)
Real Power= Input Voltage x Input Current x Power Factor (W)
