12V 12W triac dimmable led driver for led light

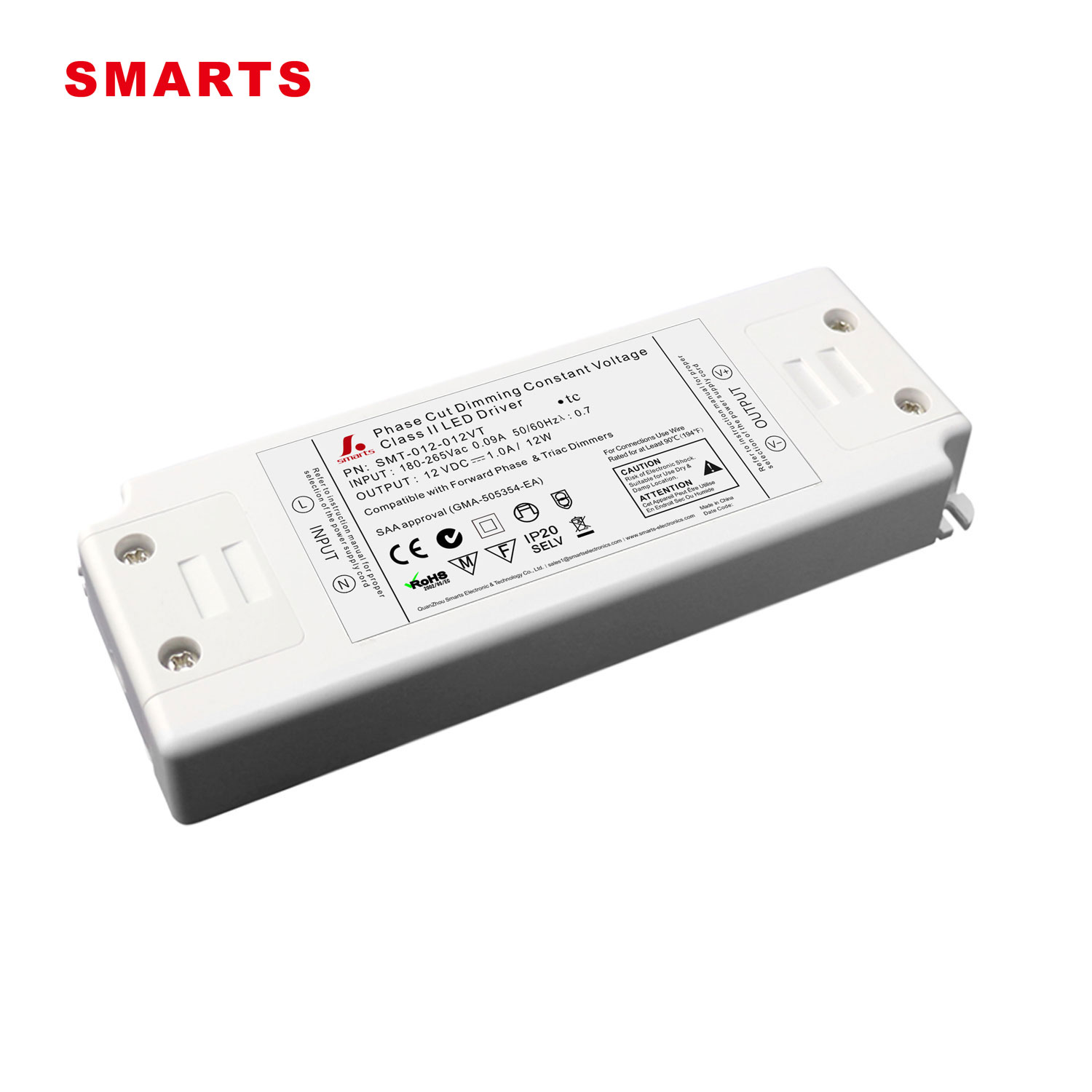

This SMT-012-012VT is 180-265v input voltage to 12v 12w single output triac dimmable led driver. Is's small type, the size is 140*45*28mm, IP20 design for indoor installations.
Features
-
Output constant voltage type
-
Input range: 180-265VAC
-
Built-in PFC function >0.9
-
Efficiency > 84%
-
Protections:Short circuit/over Current
-
Fully isolated plastic case IP20 / Easy Installation
-
Cooling by free air convection
-
Work with leading edge and trailing edge triac dimmers
-
Compliance to worldwide safety regulations for lighting
Specification
|
Model
|
SMT-012-012VT
|
SMT-024-012VT
|
|
Output
|
DC Voltage
|
12VDC
|
24VDC
|
|
Voltage Accuracy
|
±5%
|
±5%
|
|
Rated current
|
1.0A
|
0.5A
|
|
Rated power
|
12W
|
12W
|
|
Input
|
Voltage Range
|
90-135VAC / 170～250VAC
|
|
Frequency Range
|
47～63HZ
|
|
Power Factor ( Typ.）
|
PF≧0.92/110V ; PF≧0.94/220V ; PF≧0.95/250V
|
|
Full Load Efficiency（Typ.）
|
>82%
|
>82%
|
|
AC Current（Typ.）
|
0.17A/110VAC 0.15A/170VAC 0.12A/220VAC 0.1A/265VAC
|
|
Leakage current
|
<0.8mA/110VAC, ﹤0.7mA/220VAC
|
|
Protection
|
Short Circuit
|
Hiccup mode, recovers automatically after fault condition
is removed.
|
|
Over Current
|
1.4 Times output current
|
|
Environment
|
Working TEMP.
|
-40～+60℃
|
|
Working Humidity
|
20～90%RH,non-condensing
|
|
Storage TEM.,Humidity
|
-40～+80℃，10～95%RH
|
|
TEMP.coefficient
|
±0.03%/℃（0～50℃）
|
|
Vibration
|
10～500Hz，2G 10min./1 cycle，period for 60min.
each along X,Y,Z axes
|
|
Safety&
EMC
|
Safety standards
|
EN-60950-1, EN-61347-1/-2/-13
|
|
Withstand voltage
|
I/P-O/P:3.75KVAC
|
|
Isolation resistance
|
I/P-O/P：100MΩ/500VDC/25℃/70%RH
|
|
EMC EMISSION
|
Compliance toEN55015,EN61000-3-2 (≧50%load)
|
|
EMC IMMUNITY
|
Compliance to EN61000-4-2,3,4,5,6,11,EN61547,Alight industry level
|
Dimming Operation
-
Output constant current level can be adjusted through input terminal of the AC phase line(L) by connection a triac dimmer.
-
Compatible with Leading edge or tailing edge triac dimmers.
-
please try to use the small power dimmer, have access to a wider dimming range, high-power dimmer is difficult to achieve the output current to zero
Do you need special Dimmer for LED lights?
The less electricity drawn, the dimmer the light. ... If you'd like your LED to be dimmable, you need to do one of two things: find LED bulbs compatible with traditional dimmers, or replace your current dimming switch with a leading-edge (LED-compatible) dimmer. A dimmer is need to be connect with dimmable led driver then the led light can works better.
