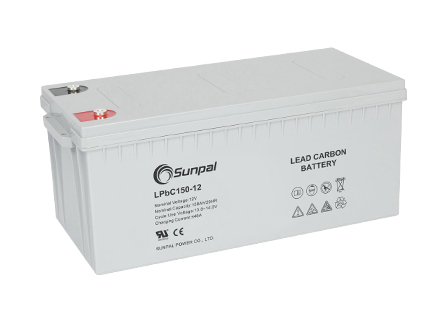

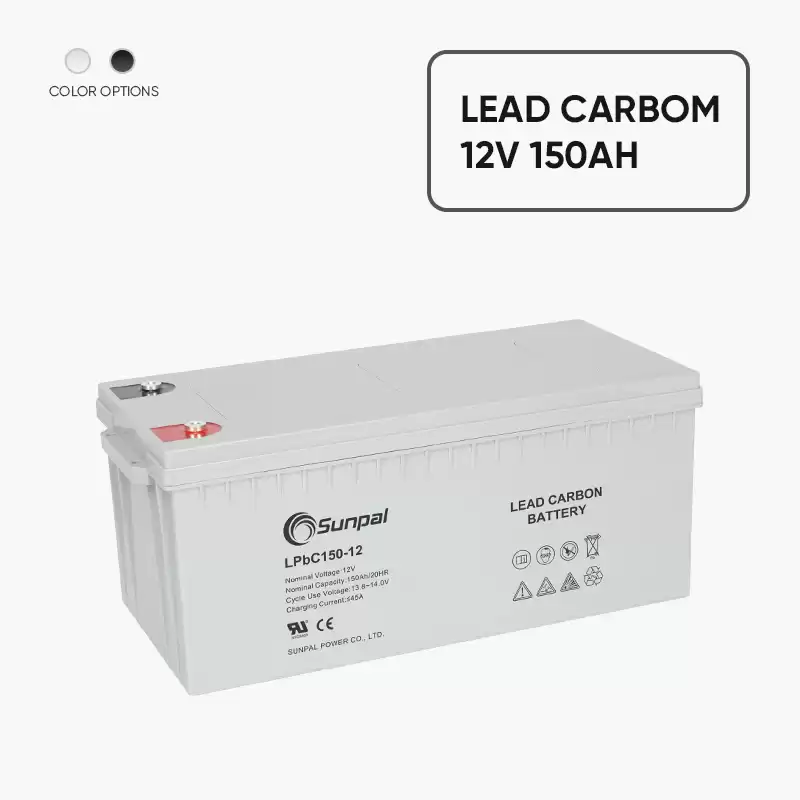

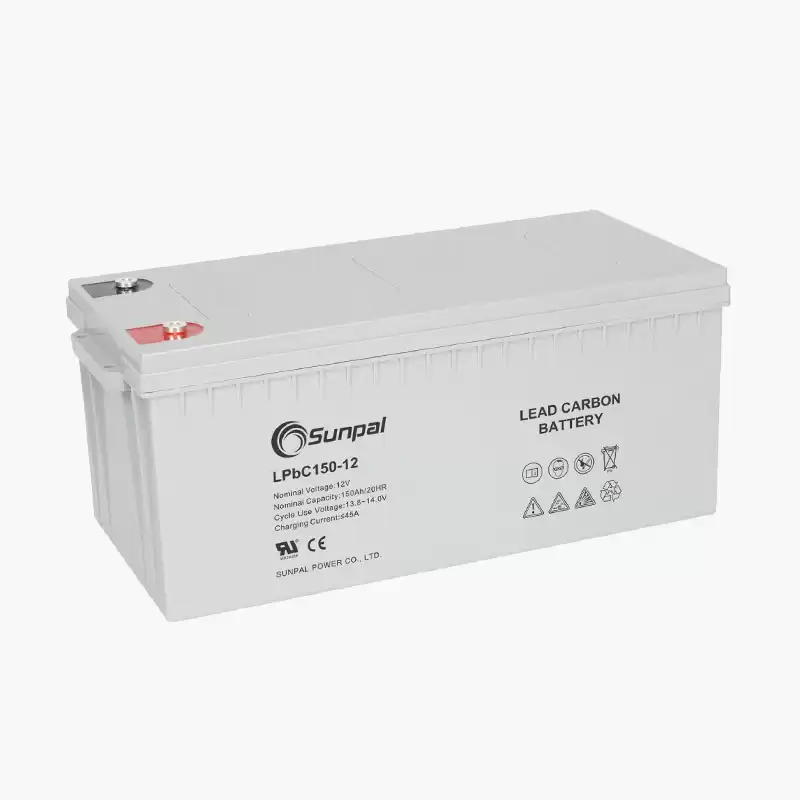

12V 150Ah Lead Carbon UPS Battery Backup

Lead-carbon batteries are an advanced VRLA lead acid battery which use a common lead positive plate (anode) and a carbon composite negative plate (cathode).


  • Max. Discharge Current1500A (5 sec)
  • Maximum Charging Current45.0A
  • WeightApprox. 61.5 Kg (Tolerance±1.5%)
  • Capacity150Ah@20hr-rate to 1.75V per cell @25℃
  • Voltage Per Unit12
  • ModelLead Carbon 12V 150Ah




12V 150Ah


Lead carbon batteries are better at sitting at partial states of charge (PSOC). Ordinary lead type batteries work best and last longer if they follow a strict ‘full charge’-‘full discharge’-full charge’ regime; they do not respond well to being charged at any state in between full and empty. Lead carbon batteries are happier to function in the more ambiguous charging regions.






Lead Carbon Battery



Lead carbon batteries have longer a longer cycle-life. If you take the battery’s ‘end of life’ to be the point at which it can only be charged/discharged to 80% of its original capacity, a lead-carbon battery will last for 7000 cycles at 30% DoD daily – compared to 2000 – 5500 cycles at 30% DoD for VRLA-types and 800 cycles at 30% DoD for flooded batteries.




12V 150AH lead carbon battery meet certifications:

IEC 61215, IEC 61730, UL 61730
ISO 9001:2008: ISO Quality Management System
ISO 14001: 2004: ISO Environment Management System
OHSAS 18001: 2007 Occupational Health and Safety
