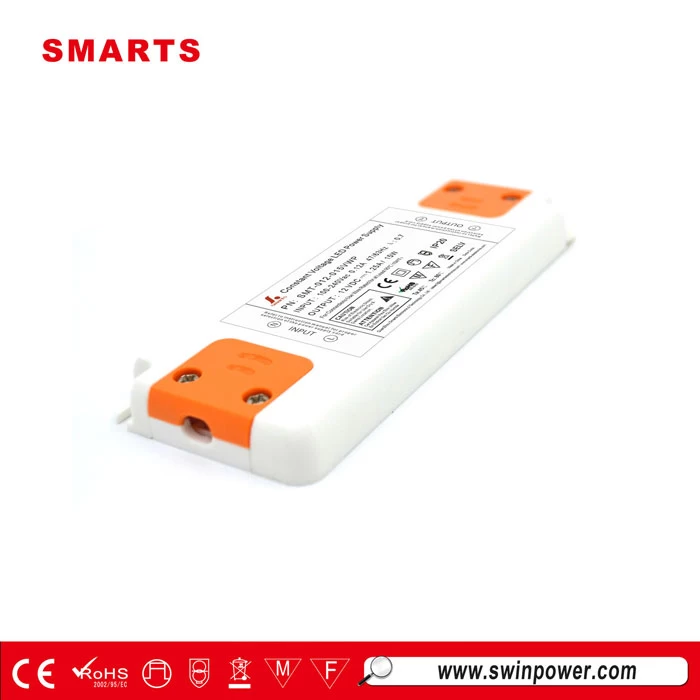

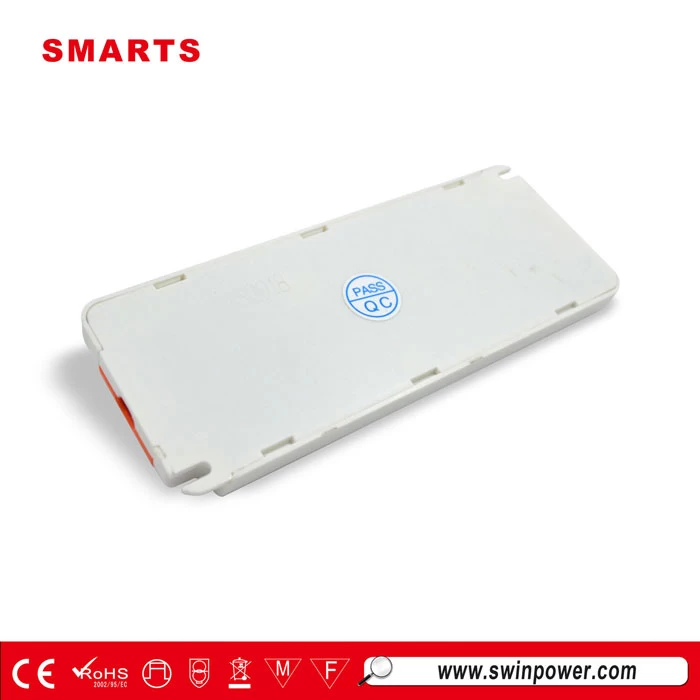

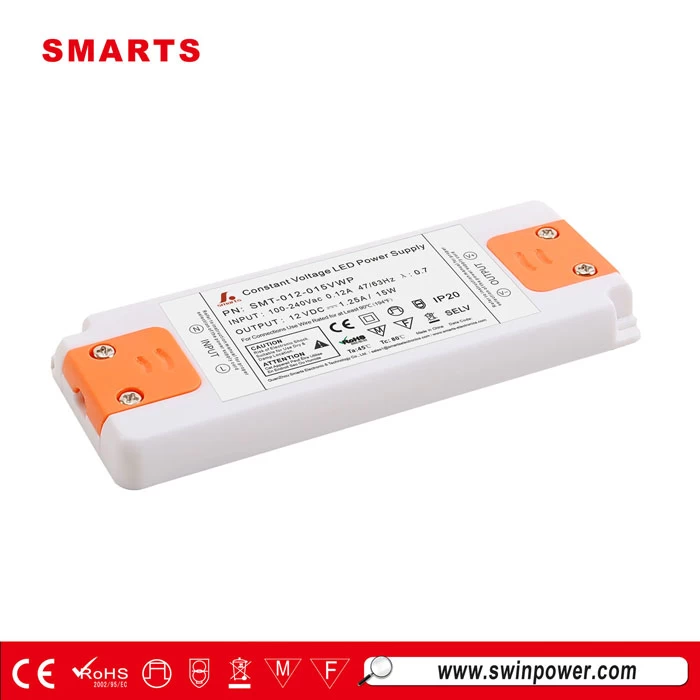

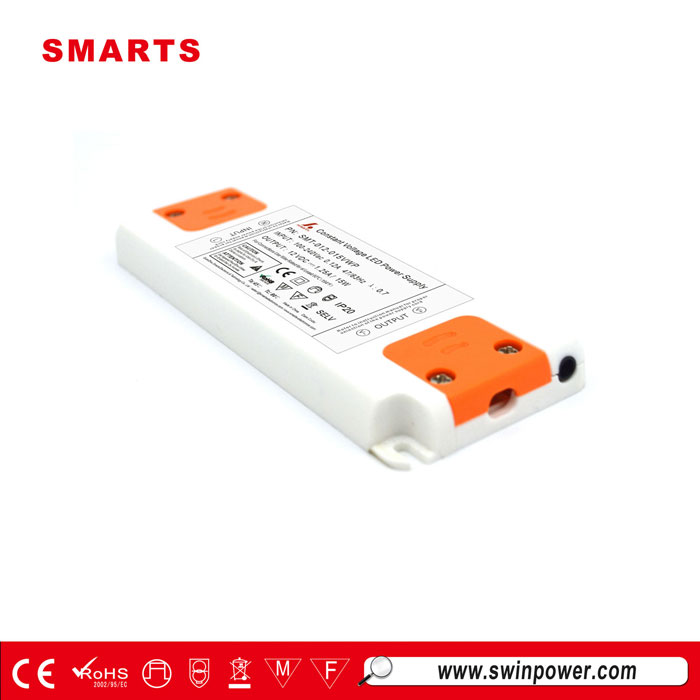

12v 15w class 2 power supply for led lighting
Smarts Electronics constant voltage class 2 power supply for led lighting is reliable, long-lasting and versatile. With 2 years warranty, this driver can be used to run back-lit ad signs, architecture lighting, landscape lighting and more.
|
Feture
|
Label for 15w led driver
|
● IP44 design for indoor installations
● Protections:Short circuit/Overload/Over temperature
● Cooling by free air convection
● 100% full load burn-in test
● Suitable for LED lighting
● Products through CE Certification
● 2 years warranty
|
|
Specification
|
MODEL
|
SMT-012-015VWP
|
SMT-024-015VWP
|
|
OUTPUT
|
DC VOLTAGE
|
12V
|
24V
|
|
RATED CURRENT
|
1.25Amp
|
0.625Amp
|
|
VOLTAGE RANGE
|
|
|
|
RATED POWER
|
15Watt
|
15Watt
|
|
RIPPLE&NOISE(max)
|
300mV
|
300mV
|
|
VOLTAGE TOLERANCE
|
±5%
|
±5%
|
|
LINE REGULATION
|
±1%
|
±1%
|
|
LOAD REGULATION
|
±2%
|
±2%
|
|
INPUT
|
VOLTAGE RANGE
|
100-240VAC
|
100-240VAC
|
|
FREQUENCY RANGE
|
47-63Hz
|
47-63Hz
|
|
POWER FACTOR(Typ.)
|
|
|
|
EFFICIENCY(Typ.)
|
>83%
|
>83%
|
|
AC CURRENT(Typ.)
|
0.17A/110VAC, 0.0.86/220VAC
|
|
PROTECTION
|
SHORT CIRCUIT
|
Protection type:recovers automatically after condition is removed
|
|
OVER CURRENT
|
overload protected@145-160% above peak rating
|
|
OVER LOAD
|
2.3A
|
1.2A
|
|
ENVIRONMENT
|
WORKING TEMP.
|
-10~+50℃ (Refer to output load derating curve)
|
|
WORKING HUMIDITY
|
20~99% RH non-condensing
|
|
STORAGE TEMP.,HUMIDITY
|
-40~+80℃,10~99%RH
|
|
SAFETY&EMC
|
SAFETY STANDARDS
|
EN61347-1;EN61347-2-13; CE /ROHS approval
|
|
WITHSTAND VOLTAGE
|
I/P-O/P:2KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC
|
|
EMC Test Standards
|
EN55015;EN61000-3-2;EN61000-3-3;
|
|
EN61547;EN61000-4-2,3,4,5,6,8,11;
|
Question
1. Do you have 120W power adapter?
Answer
Sorry that the most biggest output power for our power adapter is 100W.
How about considering our 12V 10A 120W Power Supply and then we install 3 pins UL standard AC cable and DC power cable with connector?
Other
|
Dimention:
|
127.5*50*12mm
|
|
Carton quantity:
|
50pcs/ctn
|
|
Carton size:
|
309*279*176mm
|
|
Net weight:
|
60g/pcs
|
