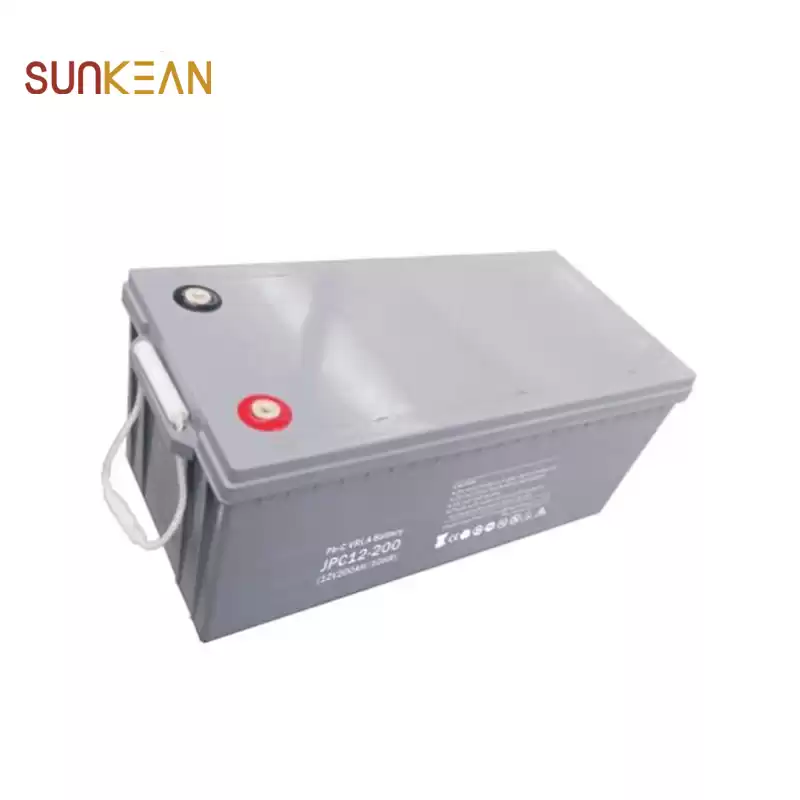

12V 200Ah Lead-carbon energy storage battery
Our lead-carbon batteries have excellent deep-cycle discharge capability and excellent charge acceptance, and have a very long cycle life. 12v Lead Carbon Battery is the best choice for new energy storage.

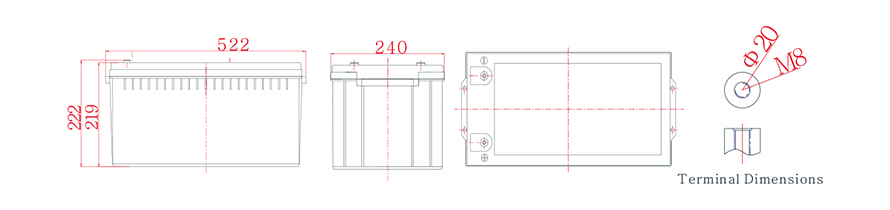

Dimension:522(L) x 240(W) x 219(H) x 222(TH) Unit:mm
Product Specifications：
|
Name
|
Lead Carbon Battery
|
Nominal Voltage
|
12V
|
Nominal Capacity
|
200Ah
|
Design life
|
15 years
|
Terminal
|
M8
|
Approx. Weight
|
Approx 59.0kg (130lbs)
|
Container Material
|
ABS
|
Constant Current Discharge Characteristics Unit: A (25℃,77℉)
|
FV/Time
|
5min
|
15min
|
30min
|
1h
|
2h
|
3h
|
5h
|
8h
|
10h
|
20h
|
|
1.60V
|
719
|
386
|
235
|
136
|
78.0
|
56.6
|
38.0
|
24.9
|
21.0
|
11.0
|
|
1.65V
|
697
|
374
|
231
|
135
|
77.6
|
56.0
|
37.6
|
24.7
|
20.8
|
11.0
|
|
1.70V
|
669
|
366
|
227
|
134
|
77.0
|
55.2
|
37.2
|
24.5
|
20.6
|
10.9
|
|
1.75V
|
615
|
354
|
225
|
132
|
75.8
|
54.6
|
36.8
|
24.3
|
20.4
|
10.9
|
|
1.80V
|
552
|
330
|
215
|
129
|
74.4
|
54.2
|
35.8
|
24.1
|
20.0
|
10.8
|
|
1.85V
|
492
|
295
|
196
|
119
|
70.7
|
51.1
|
34.0
|
23.2
|
19.6
|
10.6
|
Constant Power Discharge Characteristics Unit: W/cell (25℃, 77℉)
|
FV/Time
|
5min
|
15min
|
30min
|
1h
|
2h
|
3h
|
5h
|
8h
|
10h
|
20h
|
|
1.60V
|
1205
|
680
|
425
|
257
|
147
|
108
|
72.1
|
48.5
|
40.4
|
21.8
|
|
1.65V
|
1159
|
668
|
421
|
255
|
147
|
106
|
71.7
|
48.1
|
40.0
|
21.7
|
|
1.70V
|
1153
|
660
|
421
|
253
|
146
|
106
|
71.1
|
47.9
|
39.6
|
21.6
|
|
1.75V
|
1075
|
656
|
419
|
251
|
146
|
105
|
70.7
|
47.5
|
39.2
|
21.5
|
|
1.80V
|
988
|
621
|
409
|
249
|
145
|
105
|
69.9
|
47.1
|
38.8
|
21.4
|
|
1.85V
|
882
|
555
|
375
|
231
|
139
|
99.6
|
66.7
|
45.5
|
38.2
|
21.2
|
Disclaimer: Manufacturers have the right to self-modify the parameters of the product updates, please keep in touch with manufacturers to obtain the latest information.

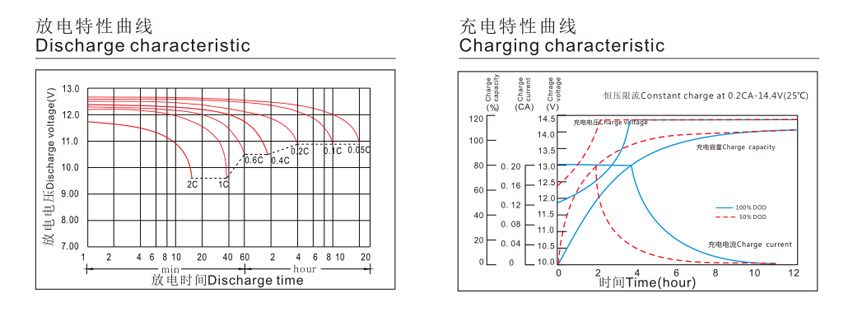

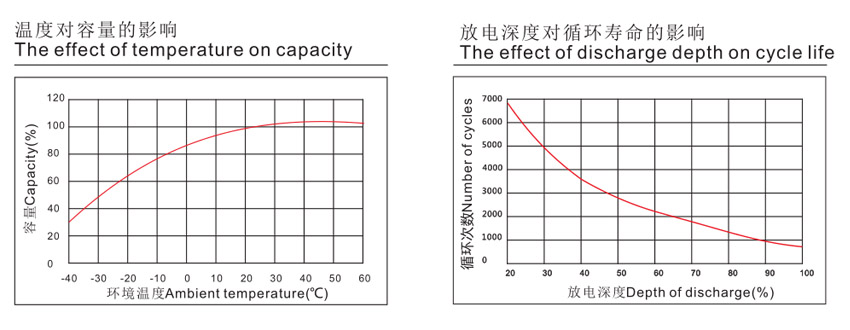

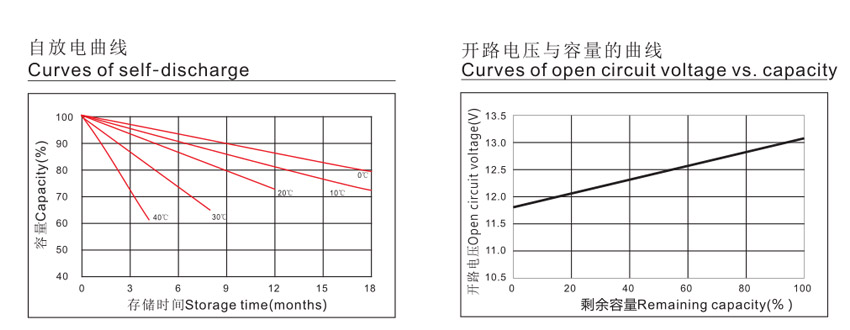

JPC Series Lead-carbon Battery Curve Display :
General Features:
*Nano-silica gelelectrolyte and lead-carbon composite negative plate, long battery life, excellent deep cycle discharge capability, excellent charge acceptance.
*Long cycle life, excellent deep cycle discharge ability.
*Excellent charge acceptance ability.
*Optimized capability of instant.
Application:
(1)Solar / wind energy and other new energy storage.
(2)Hybrid vehicles, electric bicycles and other new energy vehicles.
(3)Other backup or cycles.
