H1003520 30kg small dc rectangular 12v 24v electromagnet, 100mm length, 35mm wide, 20mm height, dc power supply holding electromagnet, good for safety lifting and also used for electronic door electromagnetic lock.
Product description
|
Specifications
|
|
Brand
|
Landa
|
Product Name
|
H1003520 square electromagnet
|
|
Model
|
H1003520
|
Rated Voltage
|
DC 12v 24v
|
|
Power
|
12w
|
Force
|
300N
|
|
Waterproof Class
|
IP65
|
Duty Cycle
|
50-100%
|
|
Cable Length
|
200mm
|
Material
|
Metal, Electronic Parts
|
|
Action Form
|
Holding type
|
Weight(N.W.)
|
0.4kg
|
|
Install Style
|
Screw
|
Thread Size & Deepth(mm)
|
M4,10
|
|
Hi-Pot Test
|
AC 600V 50/60Hz 2s
|
Insulation Class
|
B
|
|
Packaging Details
|
|
Body Size
|
L100*W35*H20(mm)
|
Carton Box Size(Standard)
|
350*310*180(mm), accepted custom
|
Product Feature
square holding electromagnet
1.Holding type, square shape, mini size, IP65 waterproof, DC solenoid electromagnet.
2.The electromagnet need to be energised to develop suction force, widely used for holding of ferromagnetic workpieces during machining or assembly, safety mechanisms, selector devices in textiles machinery, door latching holdback devices and etc.
3.Energised-on-holding, and release deenergised. We also offer an optional spring loaded ejector pin to overcome residual magnetism, as well as optional armature plates as a magnetic counterpart for optimum performance.
4.Also offer custom shape and energise to release circular electromagnet

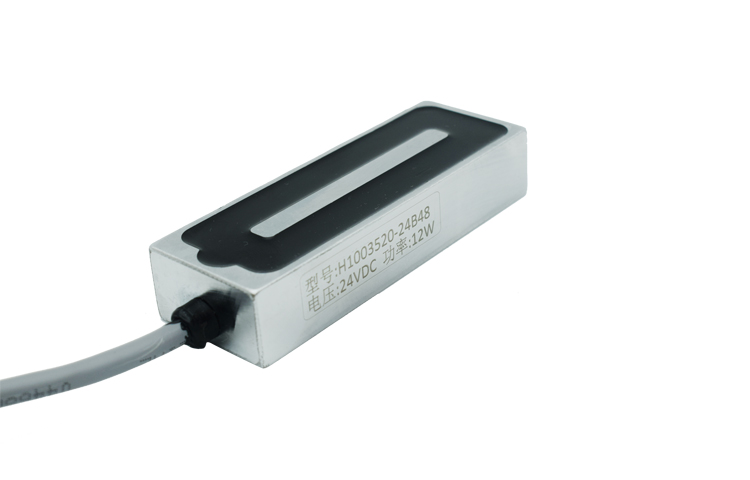

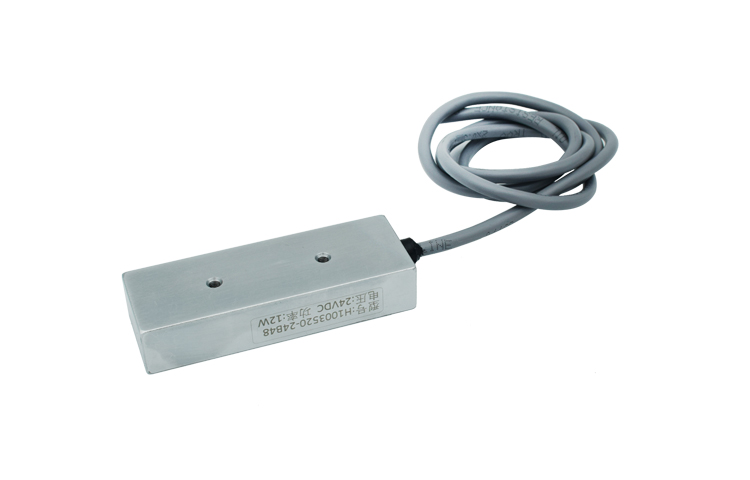

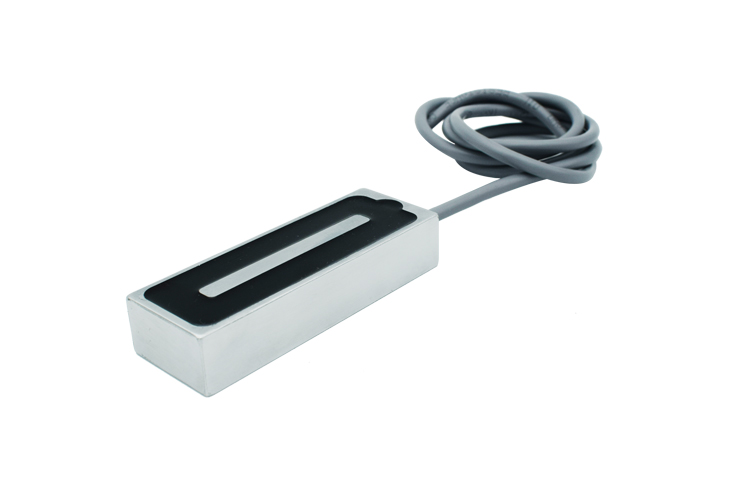

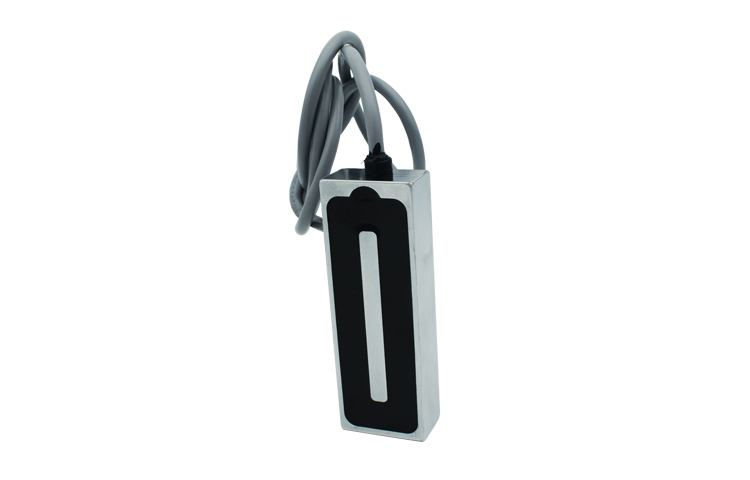

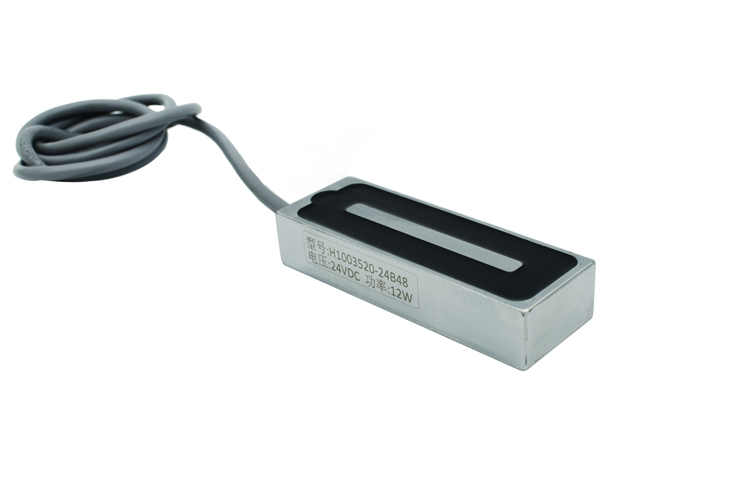

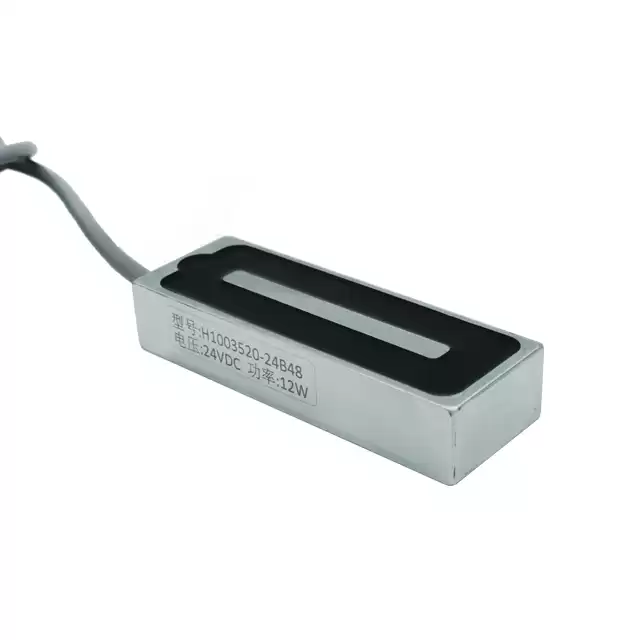

Product Details
