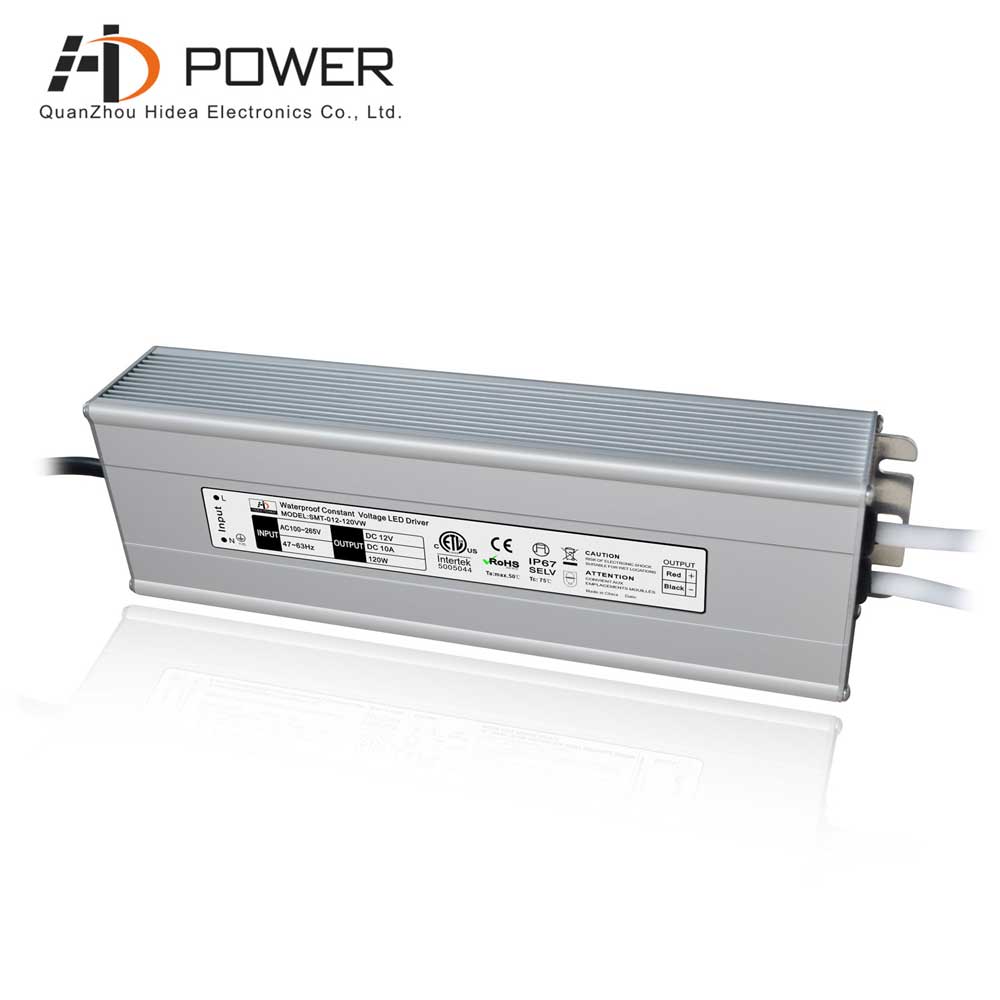

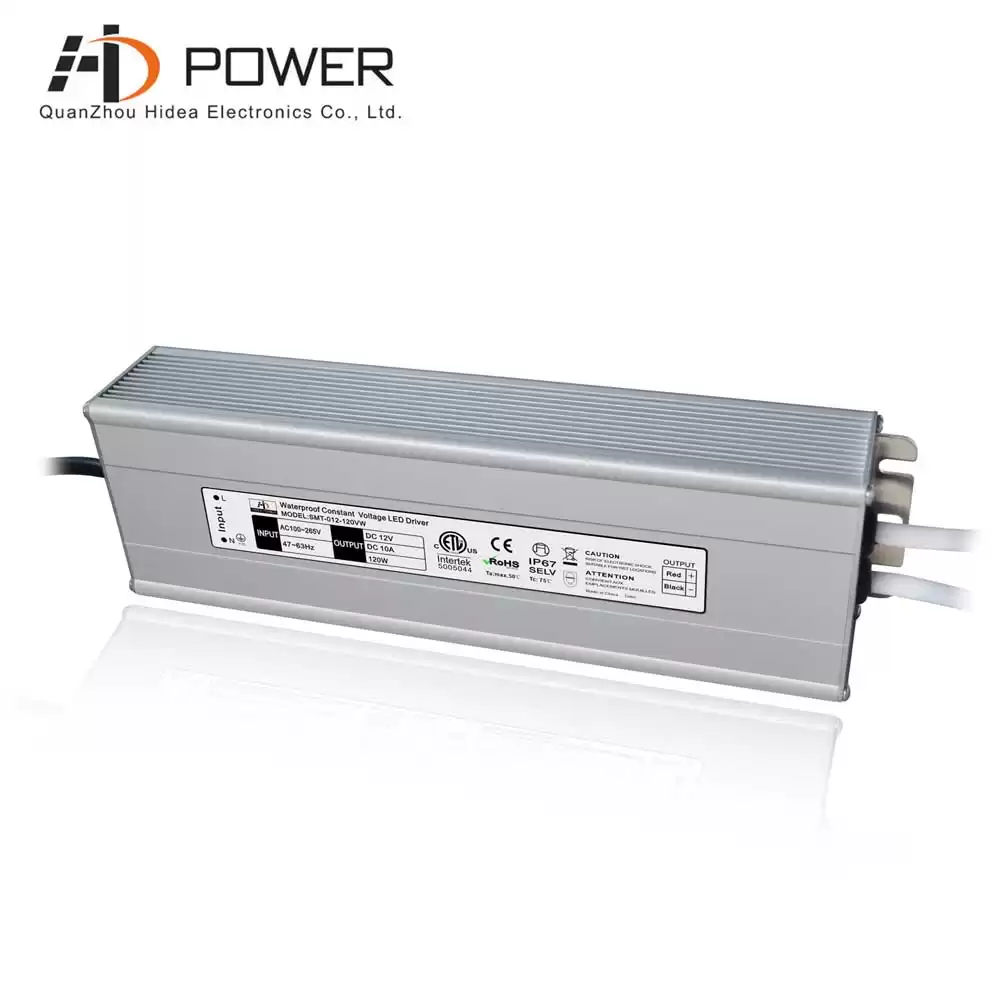

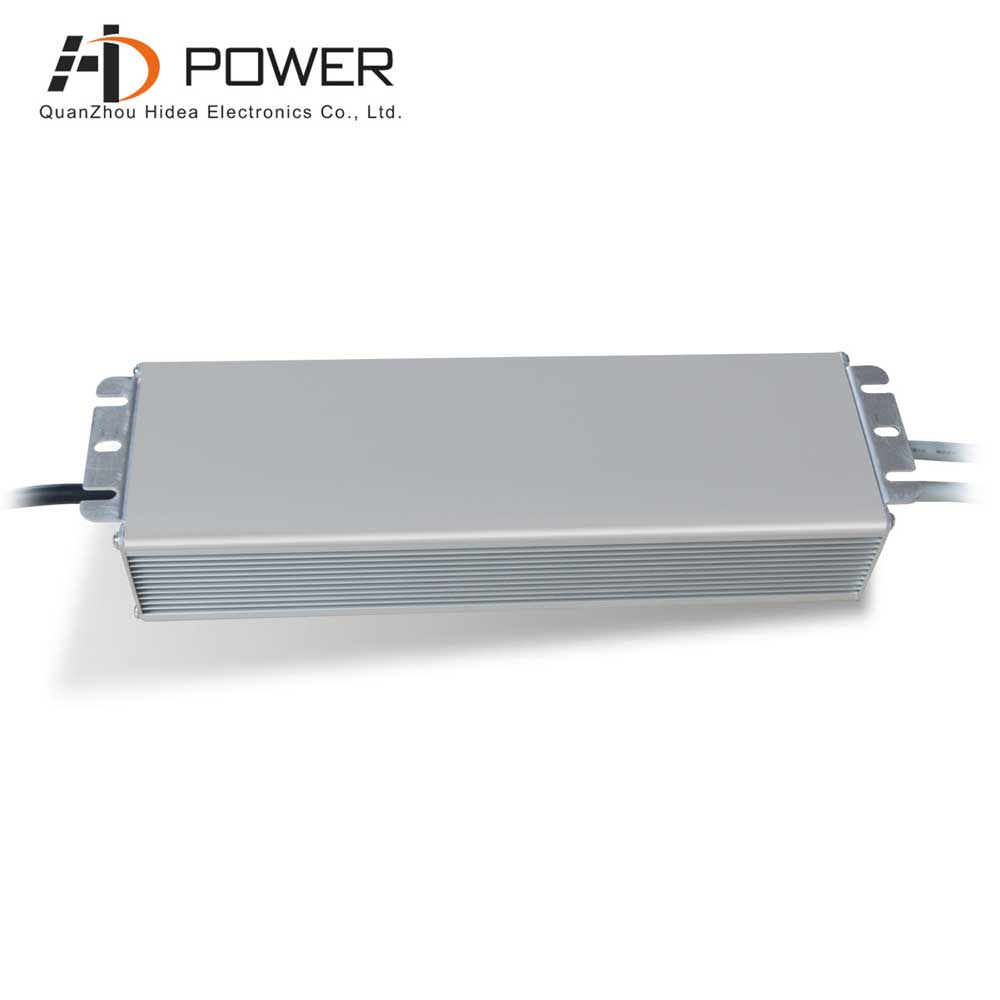

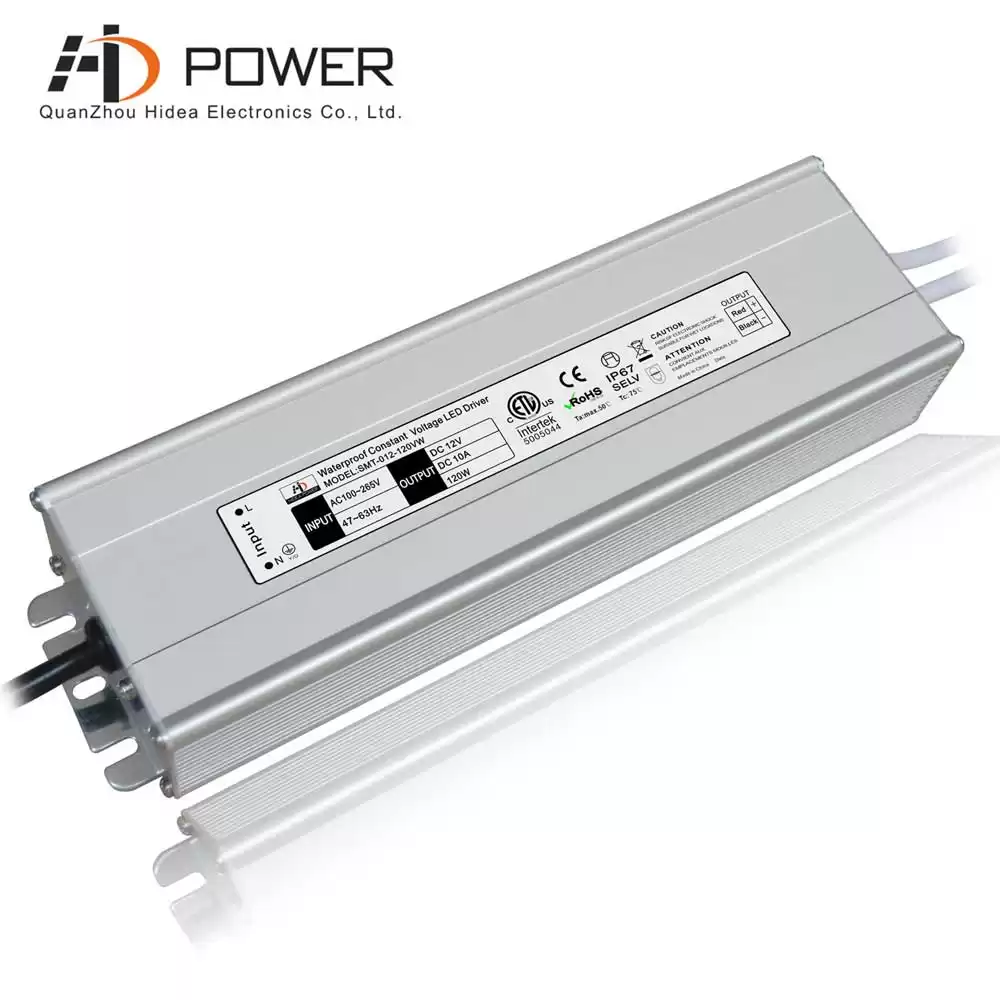

12v 24v 120w led transformer driver power
Waterproof IP67 12v 24v 120w led driver are ETL CE and ROHS approval, high PFC 0.95 for high solutions LEDs, like LUMINAIRE led lamps 12v.
Specification
|
MODEL
|
SMT-012-120VW
|
SMT-024-120VW
|
|
OUTPUT
|
DC VOLTAGE
|
12V
|
24V
|
|
RATED CURRENT
|
10.0A
|
5.0A
|
|
CURRENT RANGE
|
0~10.0A
|
0~5.0A
|
|
RATED POWER
|
120W
|
120W
|
|
RIPPLE&NOISE(max)
|
150mV
|
150mV
|
|
VOLTAGE TOLERANCE
|
±0.5V
|
±0.5V
|
|
SETUP RISE TIME
|
80ms/110V,220VAC
|
|
HOLD UP TIME(Typ.)
|
60ms/110V,220VAC
|
|
INPUT
|
VOLTAGE RANGE
|
100~265VAC
|
|
FREQUENCY RANGE
|
50~60Hz
|
|
POWER FACTOR(Typ.)
|
|
|
EFFICIENCY(Typ.)
|
﹥83%
|
|
AC CURRENT(Typ.)
|
0.92A/110VAC, 0.86A/220VAC
|
|
INRUSH CURRENT (Typ.)
|
COLD START 50A/110VAC, 220VAC
|
|
PROTECTION
|
Short circuit
|
Protection type:recovers automatically after condition is removed
|
|
Overload
|
overload protected@145-160% above peak rating
|
|
Over temperature
|
Protection type:Shut down o/p voltage,re-power on to removed
|
|
ENVIRONMENT
|
WORKING TEMP.
|
-30~+50℃ (Refer to output load derating curve)
|
|
WORKING HUMIDITY
|
20~99% RH non-condensing(Waterproof)
|
|
STORAGE TEMP.,HUMIDITY
|
-40~+80℃,10~99%RH
|
|
SAFETY&EMC
|
SAFETY STANDARDS
|
CE ETL Mark(LVD),IP67
|
|
WITHSTAND VOLTAGE
|
I/P-O/P:1.5KVAC IP-GND:1.5KVAC
|
|
EMC Test Standards
|
EN55015:2006;EN61547:1995+2000;EN61000-3-2:2006
|
|
EN61000-3-3:1995+A2:2005;EN61346-1:2001;EN61347-2-13:2006
|
|
NOTE
|
1.All parameters NOT specially mentoned are measured at 110VAC,220VAC input,rated load and 25℃ of ambient temperature.
|
|
2.Ripple&noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf&10uf parallel capacitor.
|
|
3.Tolerance:includes set up tolerance,line regulation and load regulation.
|
Compatible Light Type

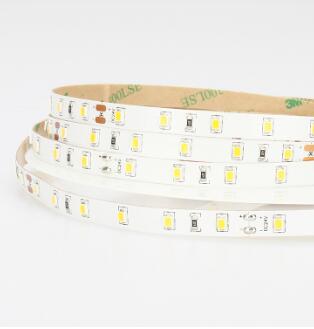

12v electronic led transformer driver are wattage avaliable in 12w, 30w, 60w , 120w, 150w , 200w and 250w, all are IP67 design work for N LIGHT LED strips.
Related Products
|

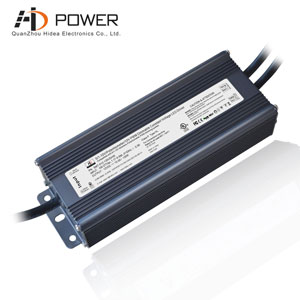

 12v 120w 0-10v dimming led driver is come with PWM output, 7 years warranty, hardwire IP67.
