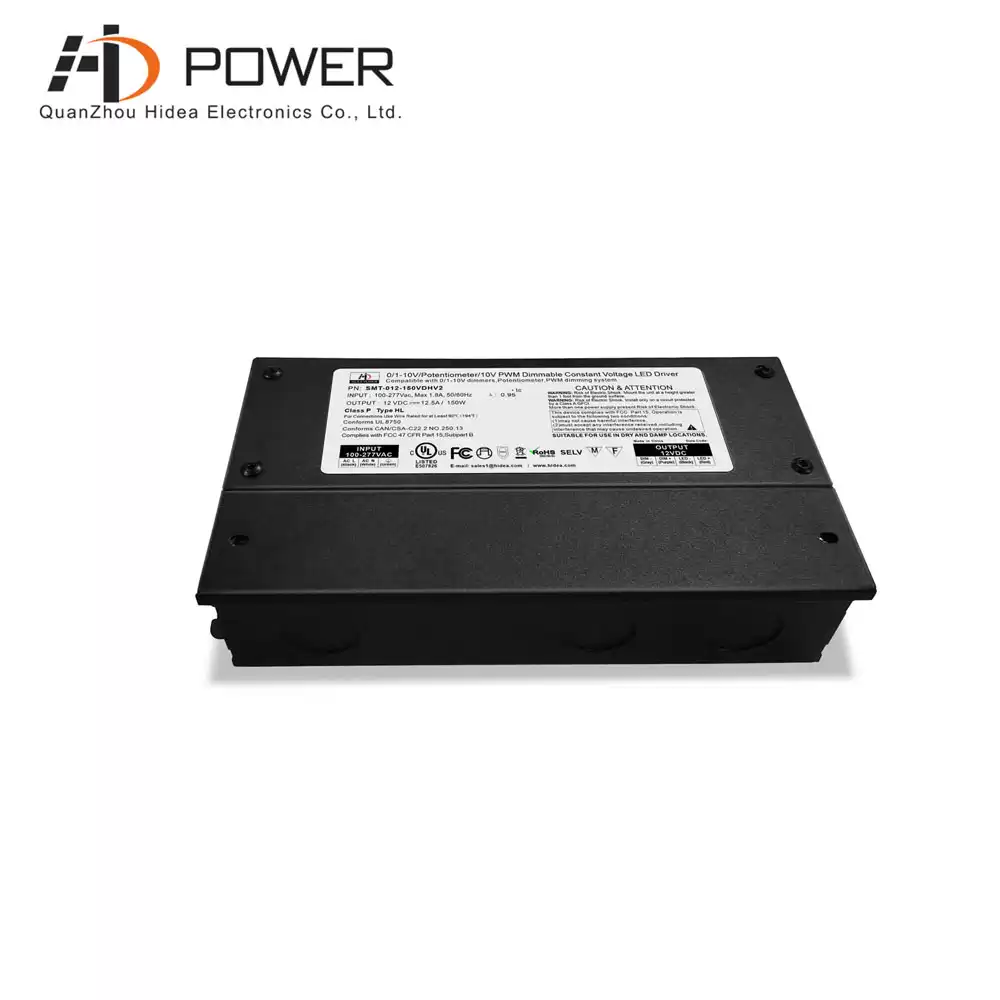

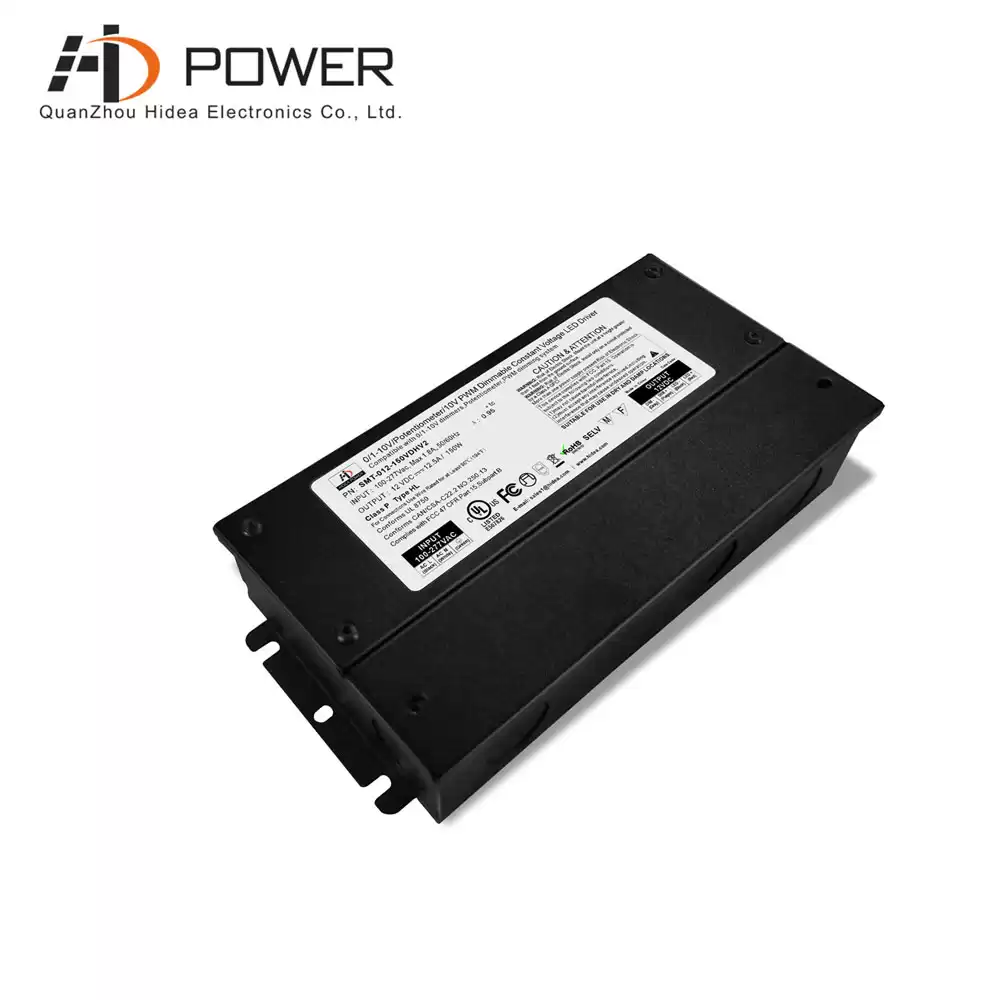

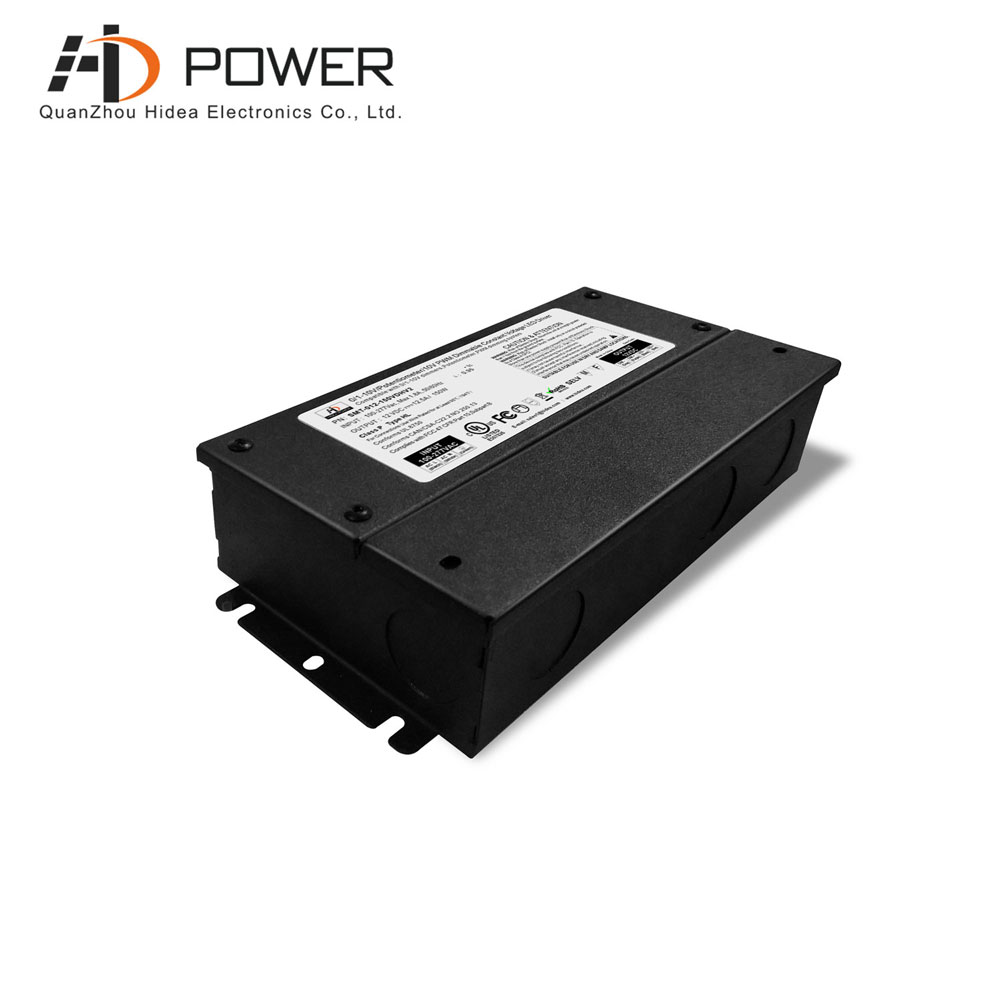

12v/24v 150w constant voltage 0 10v dimmable led driver power supply

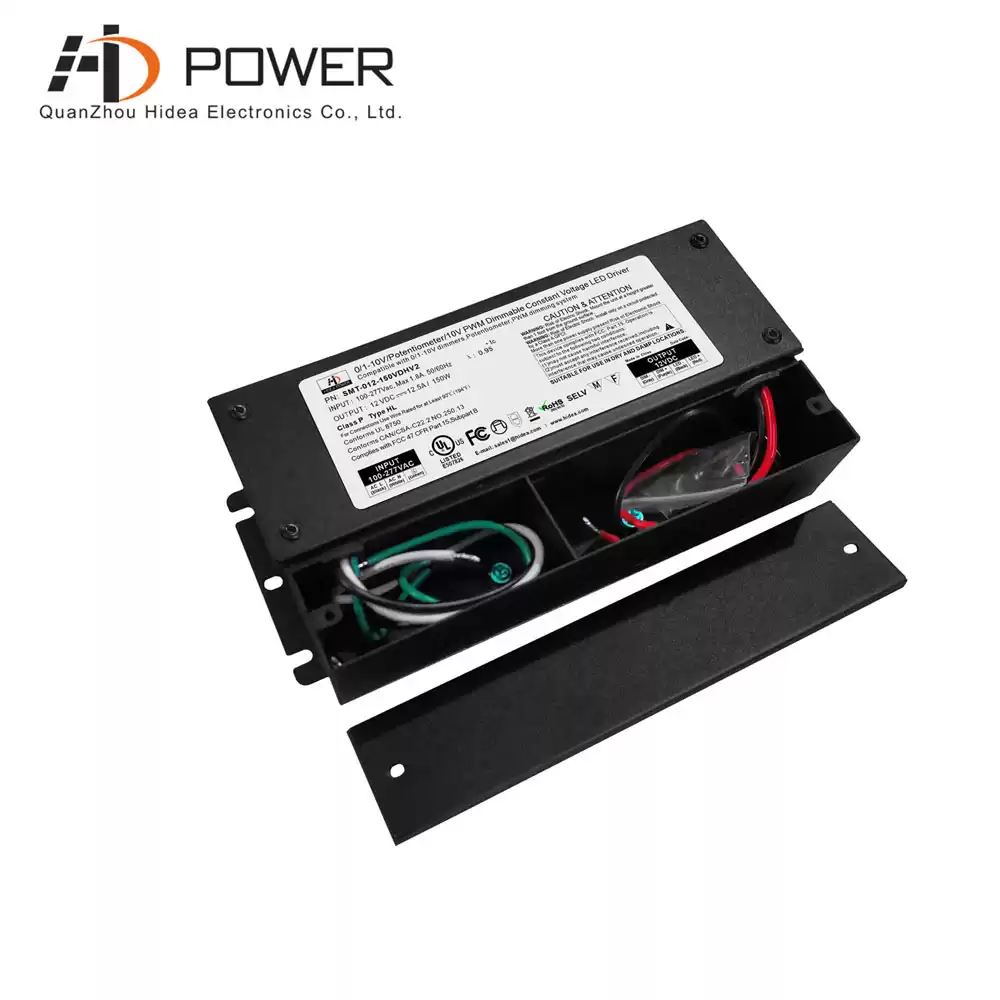

This 0 10v dimmable led driver junction box is integrated with a metal shell design, free air convection cooling, good heat dissipation, 277vac input voltage, and complies with global safety lighting laws.
Specification
|
Model
|
SMT-012-150VDH (1.0 version)
SMT-012-150VDHV2 (2.0 version)
SMT-012-150VDHWV2 (3.0 version)
|
SMT-024-150VDH (1.0 version)
SMT-024-150VDHV2 (2.0 version)
SMT-024-150VDHWV2 (3.0 version)
|
|
Output
|
DC Voltage
|
12V
|
24V
|
|
Rated Current
|
12.5A
|
6.25A
|
|
Rated Power
|
150W
|
150W
|
|
Voltage Tolerance
|
±0.5V
|
|
Voltage Regulation
|
±0.5%
|
|
Load Regulation
|
±2%
|
±1%
|
|
Input
|
Voltage Range
|
110-277VAC
|
|
Frequency Range
|
47-63Hz
|
|
Power Factor(Typ.)@ full load
|
0.98@120VAC 0.95@277VAC
|
0.99@120VAC 0.94@277VAC
|
|
THD(Typ.)@ full load
|
<20%
|
|
Efficiency(Typ.)@ full load
|
85% @120Vac 86%@277Vac
|
85% @120Vac 87%@277Vac
|
|
AC Current(Max.)
|
1.8A@100Vac
|
|
Inrush Current (Typ.)
|
15A, 50%, 1.4ms @120Vac 30A, 50%, 1.4m,s @277Vac
|
|
Leakage current
|
<0.50mA
|
|
Protection
|
Short Circuit
|
shut down o/p voltage, re-power on to recover after fault condition is removed
|
|
Over Loading
|
≤120% constant current limiting, auto-recovery
|
|
Over temperature
|
100℃±10℃ shut down o/p voltage, automatically recover after cooling.
|
|
Environment
|
Working TEMP.
|
-40~+60℃ (see below derating curve)
|
|
Working Humidity
|
20~90%RH, non-condensing
|
|
Storage TEMP. Humidity
|
-40~+80℃,10~95%RH
|
|
TEMP .coefficient
|
±0.03%/℃(0~50℃)
|
|
Vibration
|
10~500Hz, 5G 10min./1 cycle,period for 60min. each along X,Y,Z axes
|
|
Safety&EMC
|
Safety standards
|
UL8750+UL1310
|
|
Withstand voltage
|
I/P-O/P:1.88KVAC
|
|
Isolation resistance
|
I/P-O/P:100MΩ/500VDC/25℃/70%RH
|
|
EMC EMISSION
|
FCC Part 15 B
|
|
Others
|
Weight
|
1.8Kg (1.0 version)
|
|
Size
|
1.0 version: 260*103*46mm (L*W*H) /2.0 version: 260*105*45mm (L*W*H)/3.0 version: 260*125*45mm (L*W*H)
|
|
packing
|
Packaging: 10PCS/CTN
|
|
Notes
|
1. All parameters if NOT specially mentioned are measured at 120VAC input , rated load and 25℃of ambient temperature.
|
|
2. To extend the driver's using life ,please reduce the loading at lower input voltage.
|
Compatible Light Type

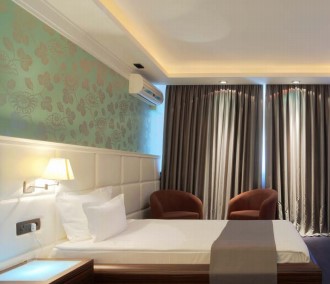

This enclosure 0-10v dimming 150w led driver has widely appliciations, such Home,store, jewelry shops, showrooms, showcase, cabinet, backdrop, shops, advertising signs, decoration. It can match good well with DECOR led strips.
Related Products
|

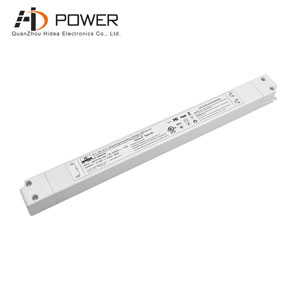

 slim size 150W 0 10V dimmable led driver plastic shell waterproof grade ip20, easy and fast installation, suitable for indoor lighting projects
