12v/24v 150w dali-2 & push dimmable led driver power supply manufacturers

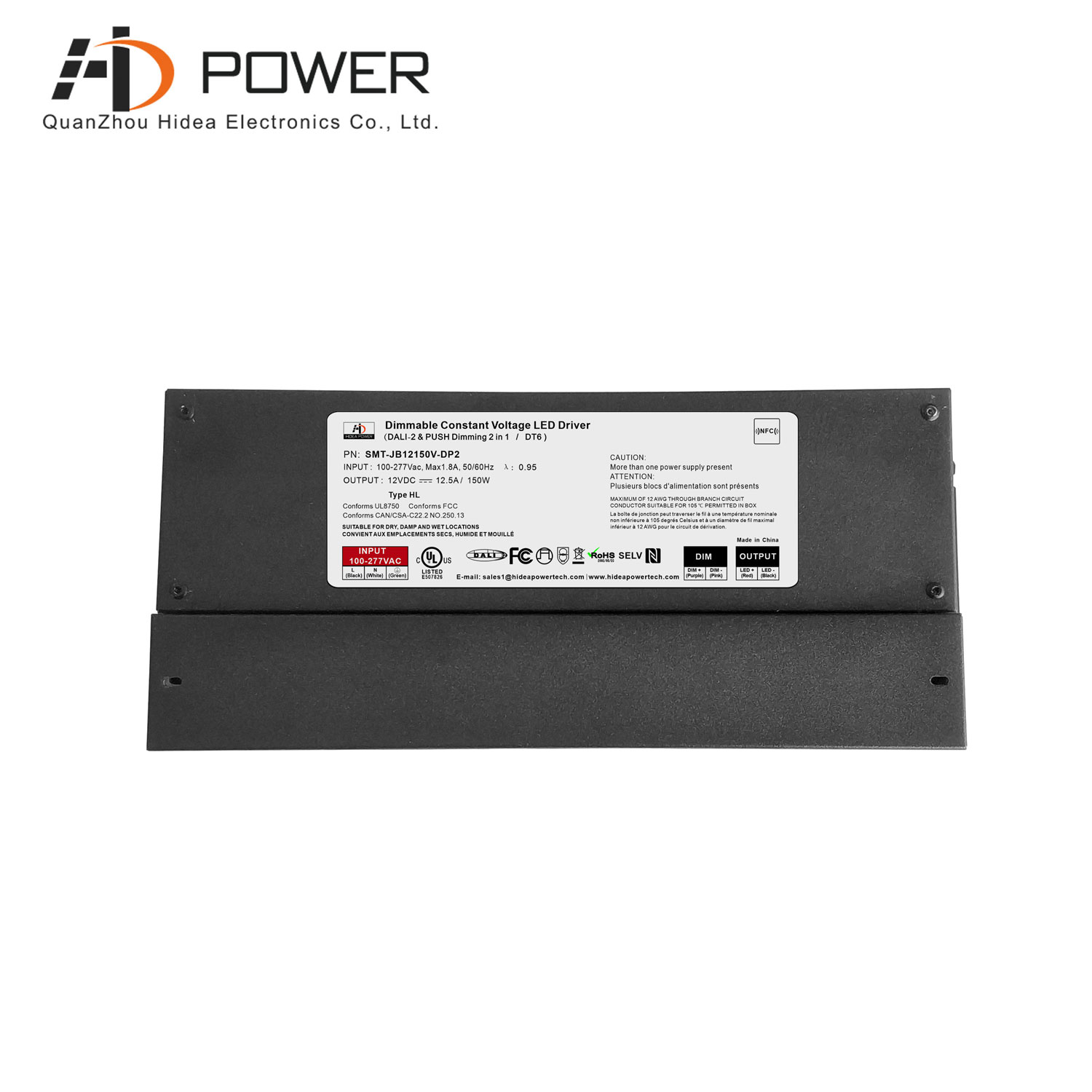

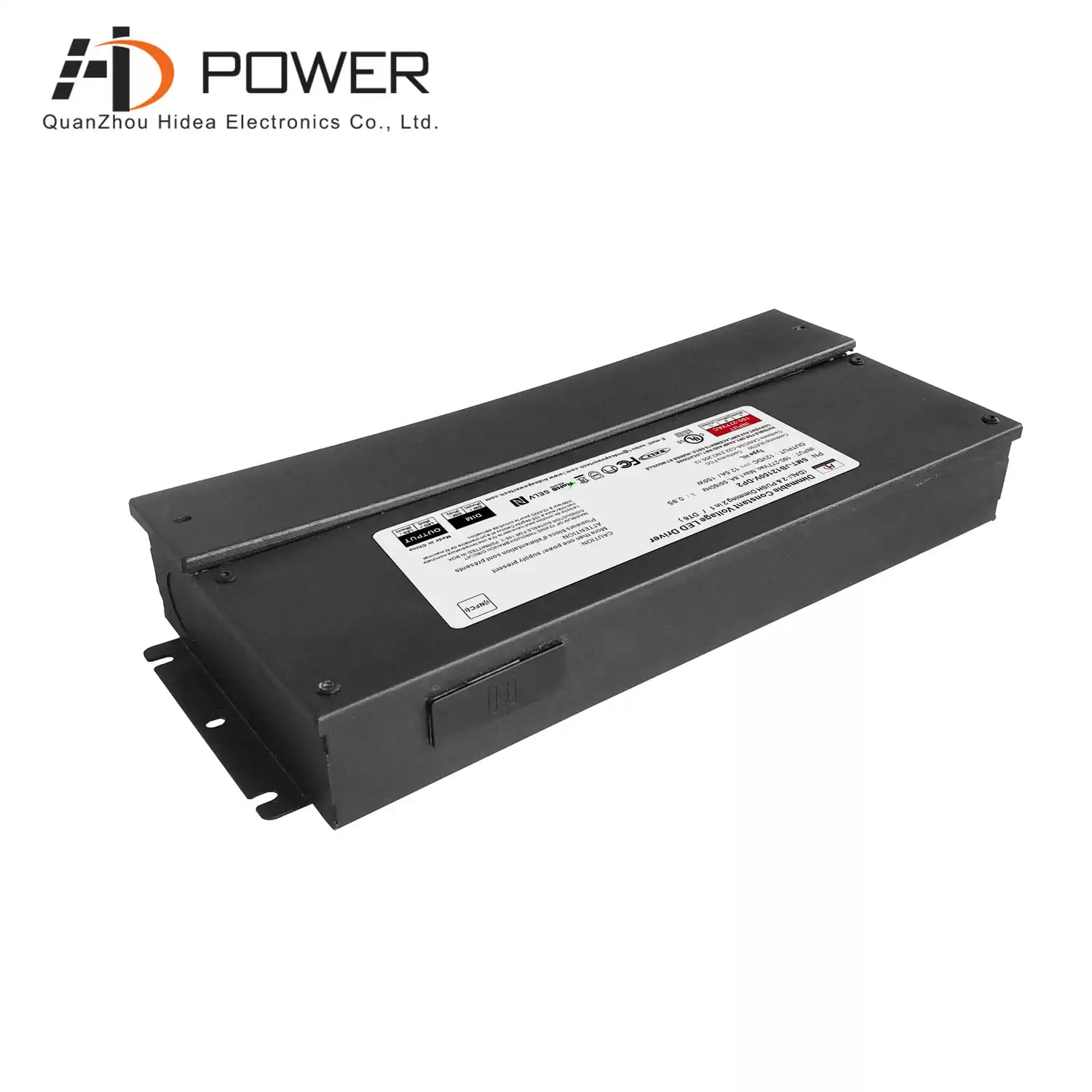

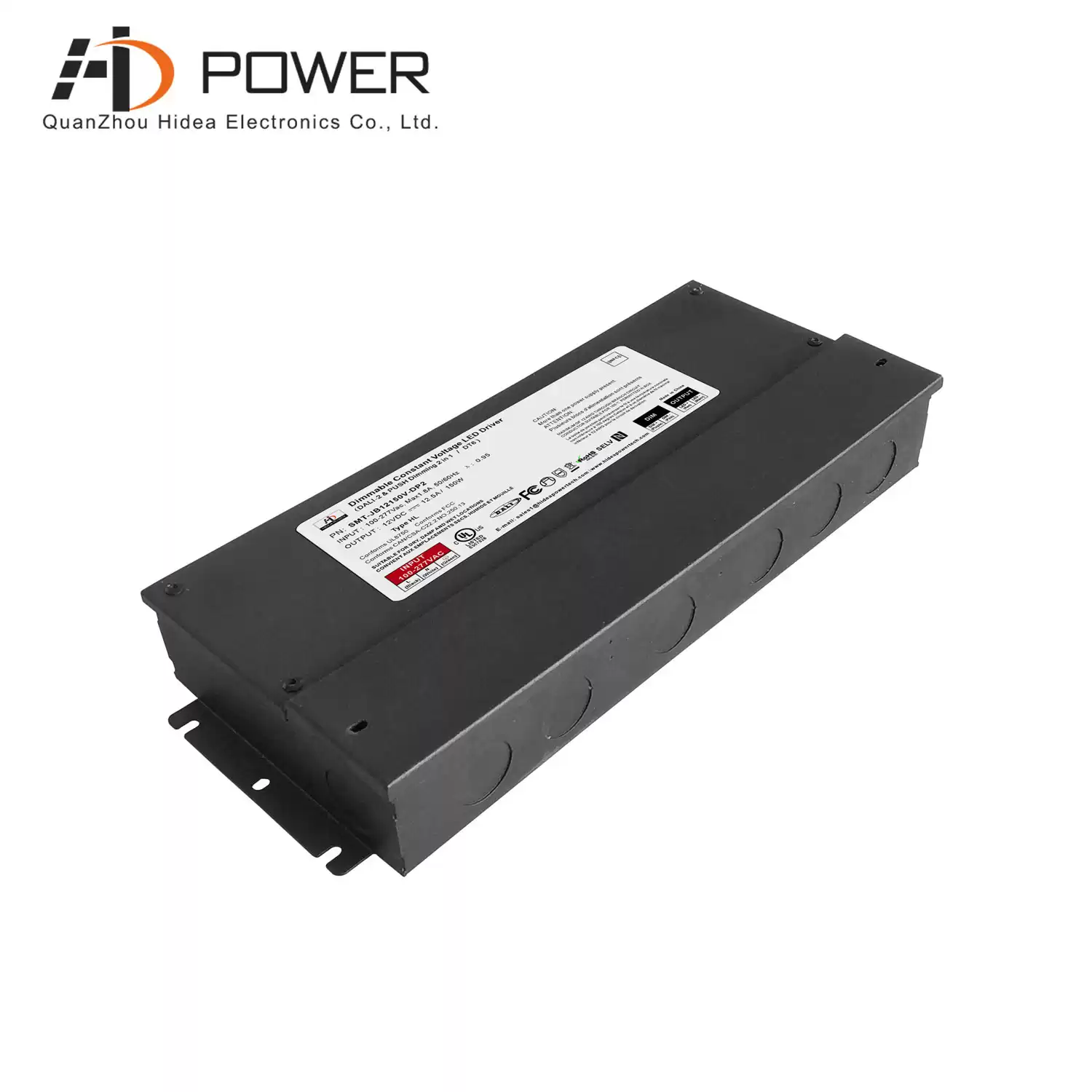

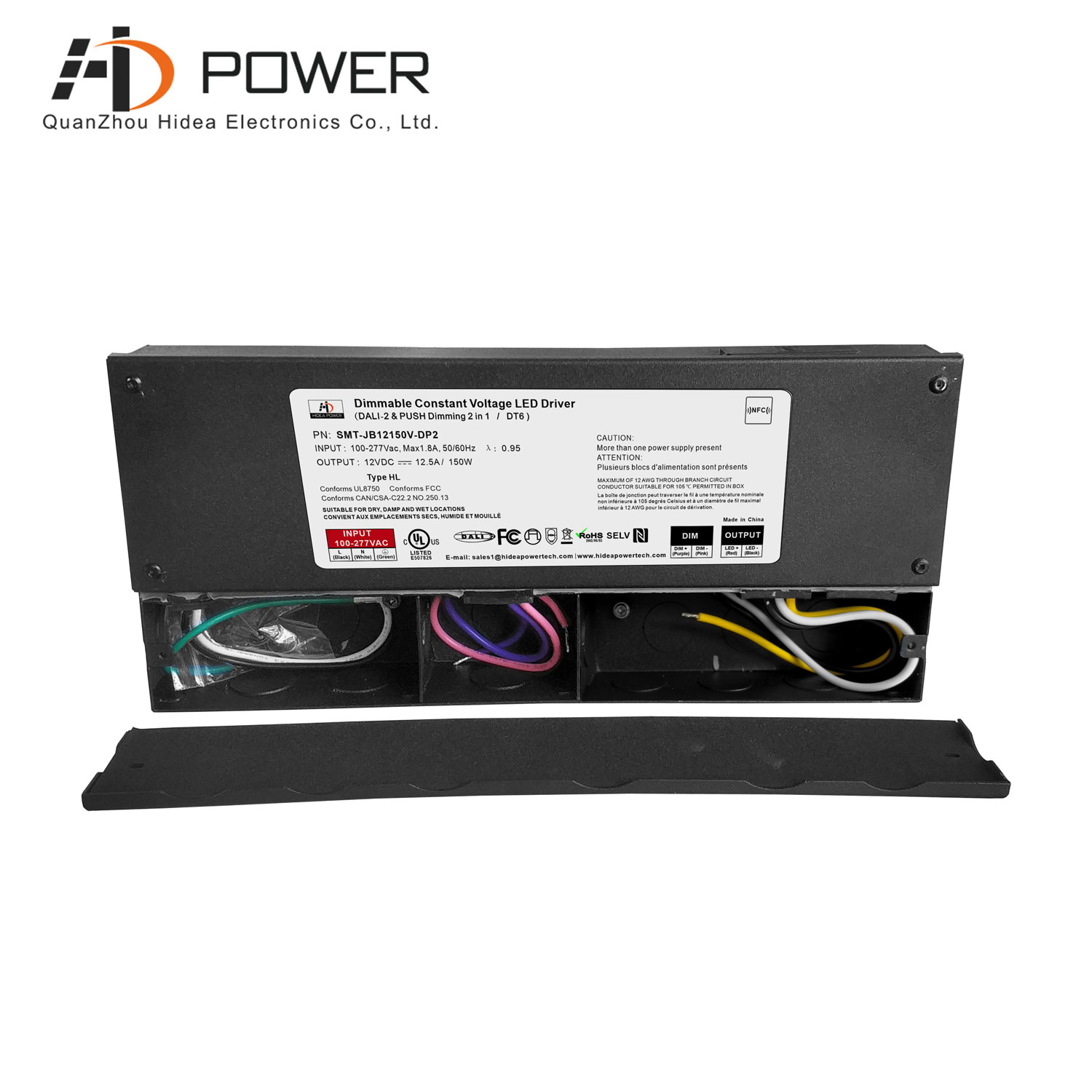

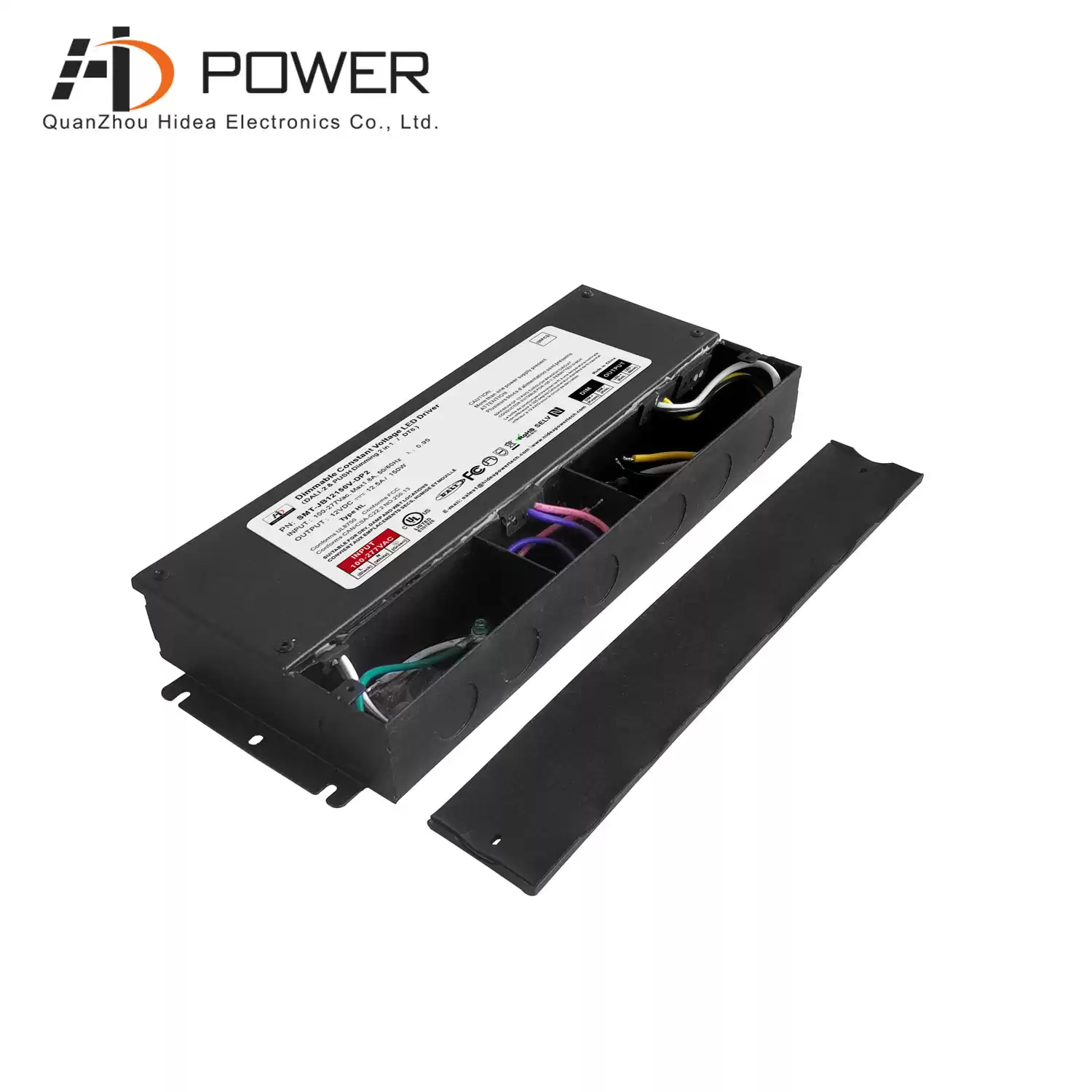

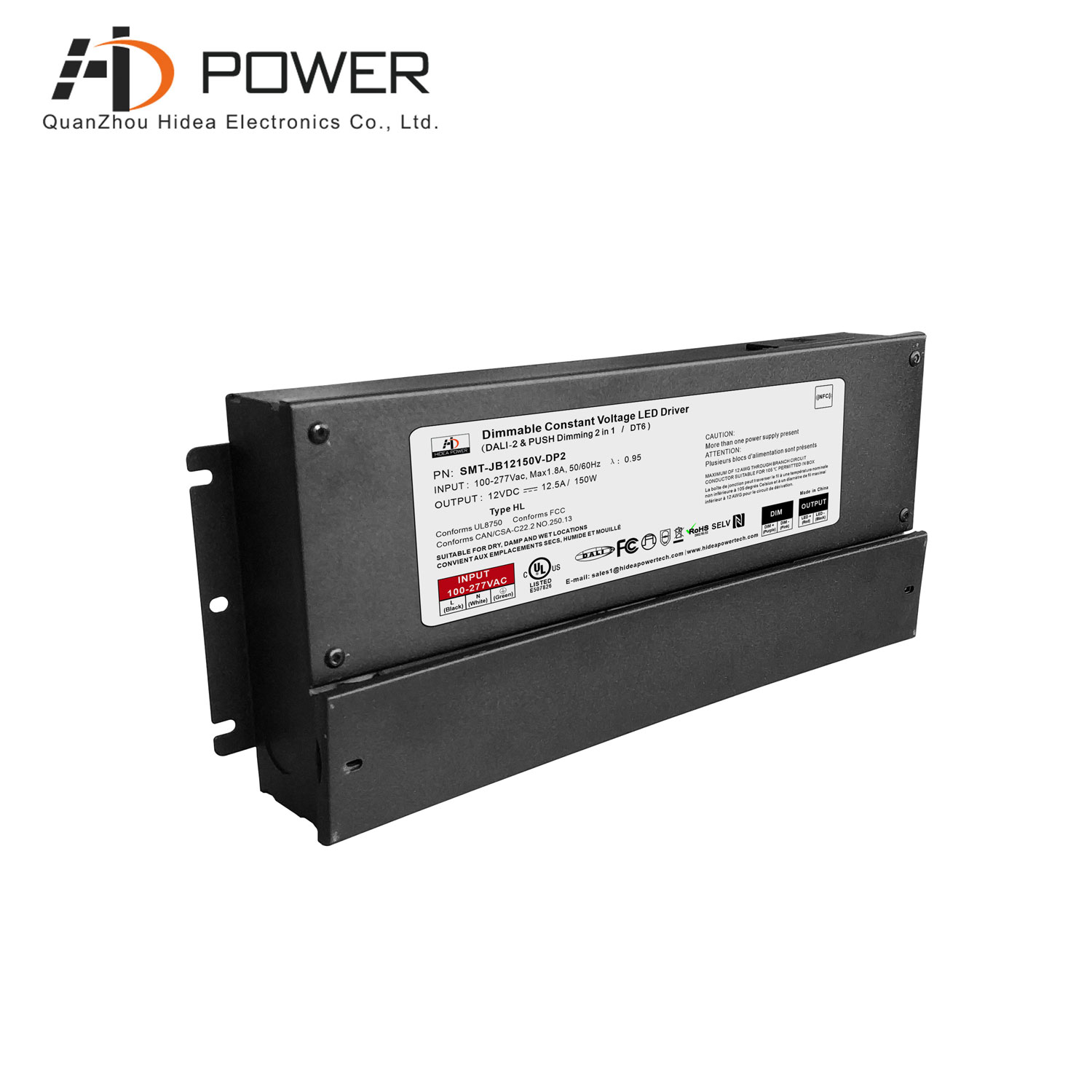

SMT-JB12150V-DP2 150W constant voltage led driver is dali-2 & push dimmable mode, with short circuit, overtemperature, overload protection design, built-in active PFC function, working efficiency up to 93%
Specification
|
Model
|
SMT-JB12150V-DP2
|
SMT-JB24150V-DP2
|
SMT-JB36150V-DP2
|
SMT-JB48150V-DP2
|
|
Certificate
|
UL/cUL/SELV / CE
|
|
Output
|
DC Voltage
|
12V
|
24V
|
36V
|
48V
|
|
Voltage range(adjust by NFC)
|
12-13.5V
|
24-26V
|
36-38V
|
48-50V
|
|
Voltage Tolerance
|
±0.5V
|
|
Voltage Regulation
|
±0.5%
|
|
Rated current
|
12.5A
|
6.25A
|
4.17A
|
3.13A
|
|
Rated power
|
150W
|
|
Load Regulation
|
±2%
|
±1%
|
±1%
|
±1%
|
|
Input
|
Voltage Range
|
100-277VAC
|
|
Frequency Range
|
47 - 63Hz
|
|
Power Factor (Typ.) @ full load
|
0.98@120VAC 0.95@277VAC
|
|
THD(Typ. ) @ full load
|
≤10%@120VAC ≤15%@277VAC
|
|
Efficiency(Typ.) @ full load
|
91%@120VAC
92%@277VAC
|
92%@120VAC
93.5%@277VAC
|
92.5%@120VAC
93.5%@277VAC
|
92.5%@120VAC
93.5%@277VAC
|
|
AC Current (Max.)
|
1.7A
|
|
Inrush Current (Typ.)
|
38.4A, 50%, 510us @120VAC 48A, 50% , 560us @277VAC
|
|
Leakage current
|
<0.5mA
|
|
Protection
|
Short Circuit
|
Hiccup mode, automatically recover after fault condition removed
|
|
Over temperature
|
55℃±10℃ shut down o/p voltage, automatically recover after temp. drop.
|
|
Over Load
|
≤120% ,hiccup mode, recover automatically after fault condition is removed
|
|
Environment
|
Working TEMP.
|
-40~+60℃ (see below derating curve)
|
|
Working Humidity
|
20 - 90%RH non-condensing
|
|
Storage TEM.,Humidity
|
-40 - +80℃,10 - 95% RH non-condensing
|
|
TEMP.coefficient
|
±0.03%/℃(0 - 50℃)
|
|
Vibration
|
10~500Hz, 5G 10min./1 cycle, period for 60min. each along X,Y,Z axes
|
|
Safety & EMC
|
Safety standards
|
EN61347-1; EN61347-2-13 UL8750
|
|
Withstand voltage
|
I/P-O/P:1.80KVAC I/P-FG:1.80KVac O/P-FG:1.80KVac
|
|
Isolation resistance
|
I/P-O/P:100MΩ/500VDC/25℃/70%RH
|
|
EMC Emission
|
EN55015 EN61000-3-2 EN61000-3-3 FCC Part 15 Subpart B
|
|
Others
|
Net Weight
|
1.135Kg
|
|
Dimension
|
293*125*40mm (L*W*H)
|
|
Packing
|
330*300*215mm 20pcs /CTN
|
|
Notes
|
1.All parameters NOT specially mentioned are measured at 120VAC input, rated load and 25℃of ambient temperature.
|
|
2.Under low input voltage, reduced output is required to ensure a long life.
|
Related Products
|

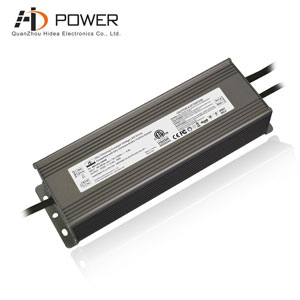

150W DALI dimmable Constant Voltage led driver Aluminum case, ETL certified, five year warranty, guaranteed quality
