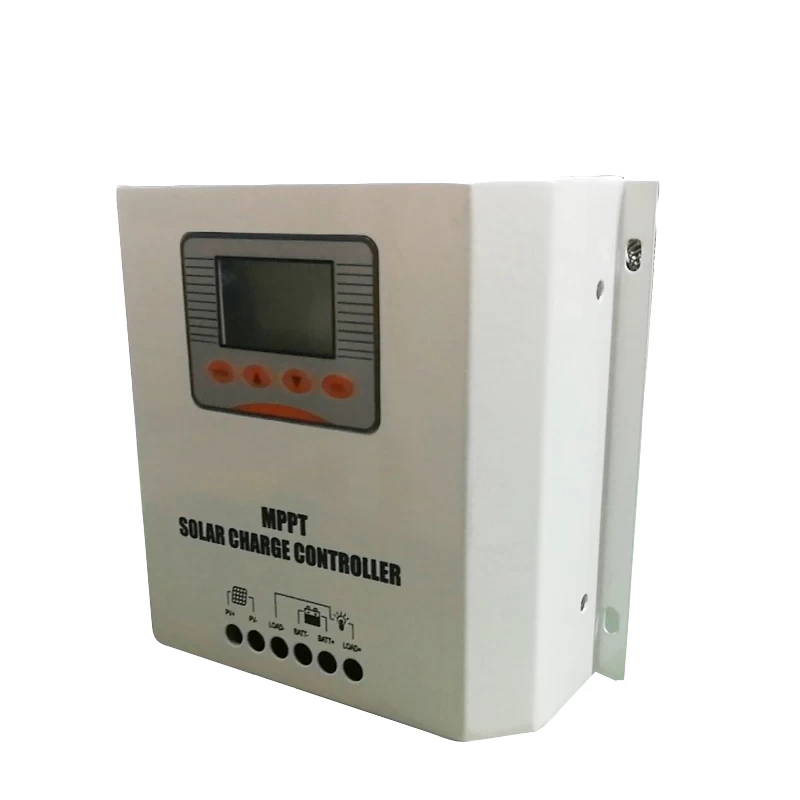

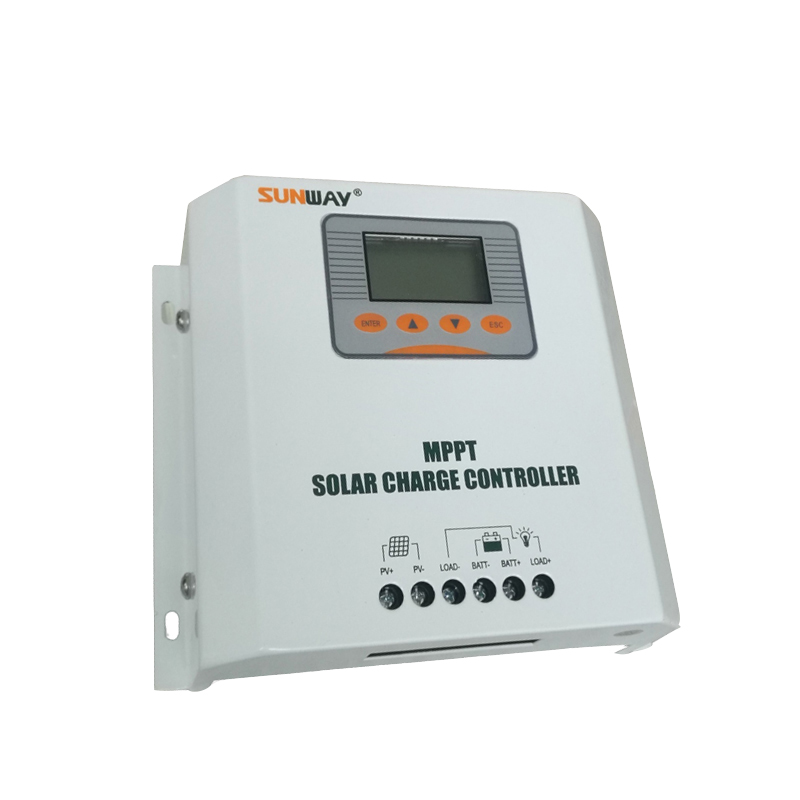

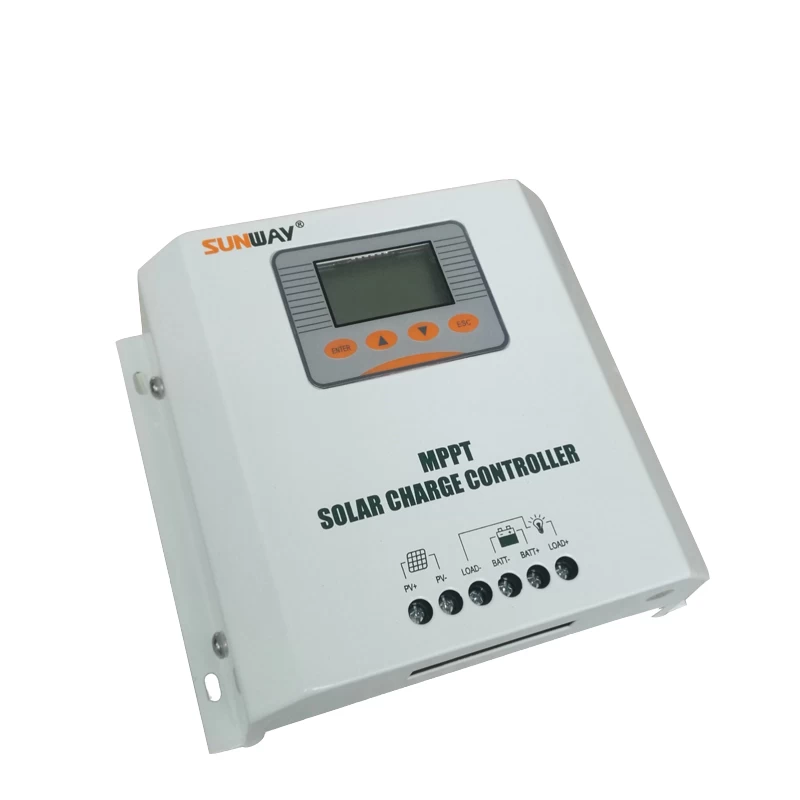

12/24V auto detection MPPT solar charge controller
Description of MPPT solar charge controller

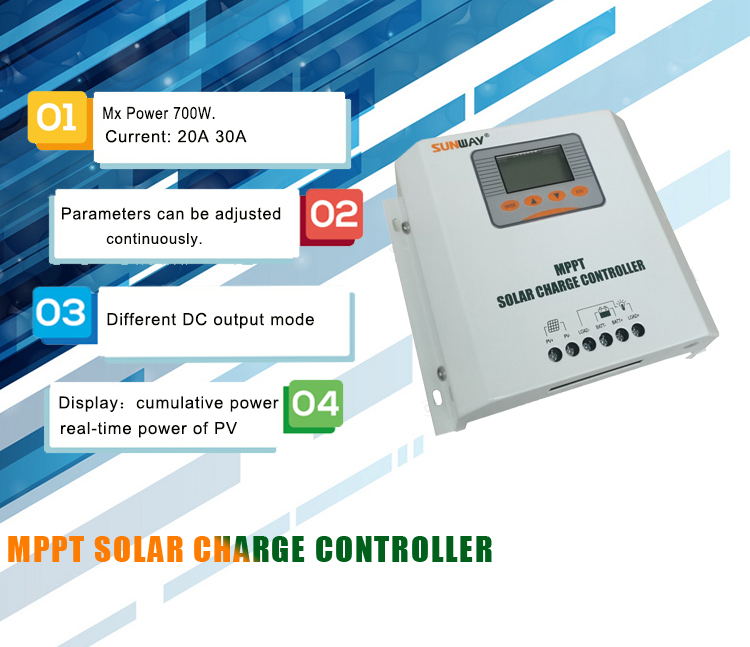

Features of MPPT solar charge controller
-
12V/24V auto recognition.
-
Advanced maximum power point tracking technology to optimize using the solar system.
-
Peak conversion efficiency of 95%, high Tracking efficiency of 97%.
-
Very fast sweeping of the entire I-V curve several seconds tracking speed.
-
Widely used, automatic recognize day/night.
-
Timer function with 1-17 hours option for street light system.
-
Unique dual timer function, enhance the flexibility of street light system.
-
Sealed, Gel and Flooded battery be suitable.
-
Adopting temperature compensation and correcting the charging and discharging parameters automatically, improving the battery lifetime.
-

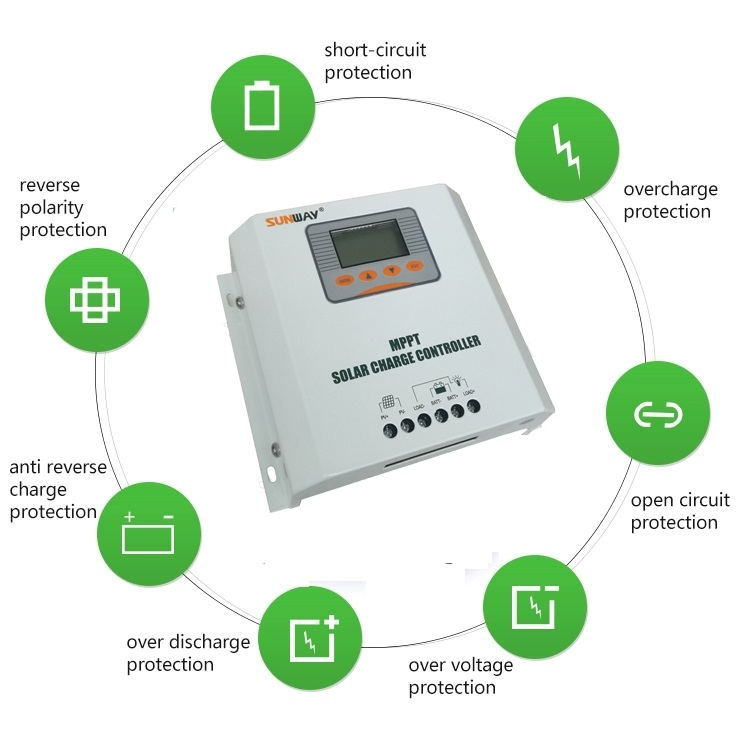

Electronic protection: over charging, over discharging ,overload short circuit.
-
Reverse protection: any combination of solar module and battery, without causing damage to any component.
-
Excellent thermal design and nature air cooling.
-
3 years warranty and the whole life maintenance service
Part Of Tech-Parameters
-
Solar module configuration:
|
System
|
Vmp Min.
|
Vmp standard
|
Vmp Max
|
Good Charging
efficiencyneed
higher than Vmp Min.
|
|
12V
|
15V
|
18V
|
25V
|
|
24V
|
30V
|
36V
|
45V
|
|
Max. Vol of solar panel
|
65V/150V
|
|
Max. Power from solar panel
|
240W(12V);480W(24V)
|
|
Controller operation
|
9V Min(12V); 18V Min(24V)
|
|
Charge current rated
|
20A 30A
|
|
Controller power
|
≤30mA
|
|
Charging efficiency
|
90%~95%, Peak on 97%
|
|
Current of output Max.
|
10A
|
|
Temperature compensation conefficient
|
-35mV/°c(25°c ref.)
|
|
Ambient Temp. Range
|
-35°c~+55°c
|
|
Store Temp. Range
|
-35°c~+80°c
|
|
Humidity range
|
10%~90%(NC)
|
|
Protection class
|
IP52
|
|
System
|
Over-discharging
|
Over-discharging recovery
|
Floating
|
Over-charge
|
Over-charge recovery
|
|
12V
|
10.5V
|
12.0V
|
14V
|
13.5V
|
15.0V
|
|
24V
|
20V
|
24V
|
28.0V
|
27.0V
|
30.0V
|
Topology of solar charge controller:
Assemly of MPPT solar charge controller
Project case of MPPT solar charge controller
Package and shippment of MPPT solar charge controller
Payment of MPPT solar charge controller
|
|
|
EXW
|
30% T/T in advance, paid the balance before shipment
|
|
FOB
|
|
CFR(C&F)
|
30% T/T in advance, paid the balance against copy of B/L
|
|
CIF
|
|
|
L/C amount above 50,000 usd, we can accept L/C at sight
|
|
|
Amount lower than 5000usd
|
|
|
|
|
7~10days after receiving payment for one container
|
