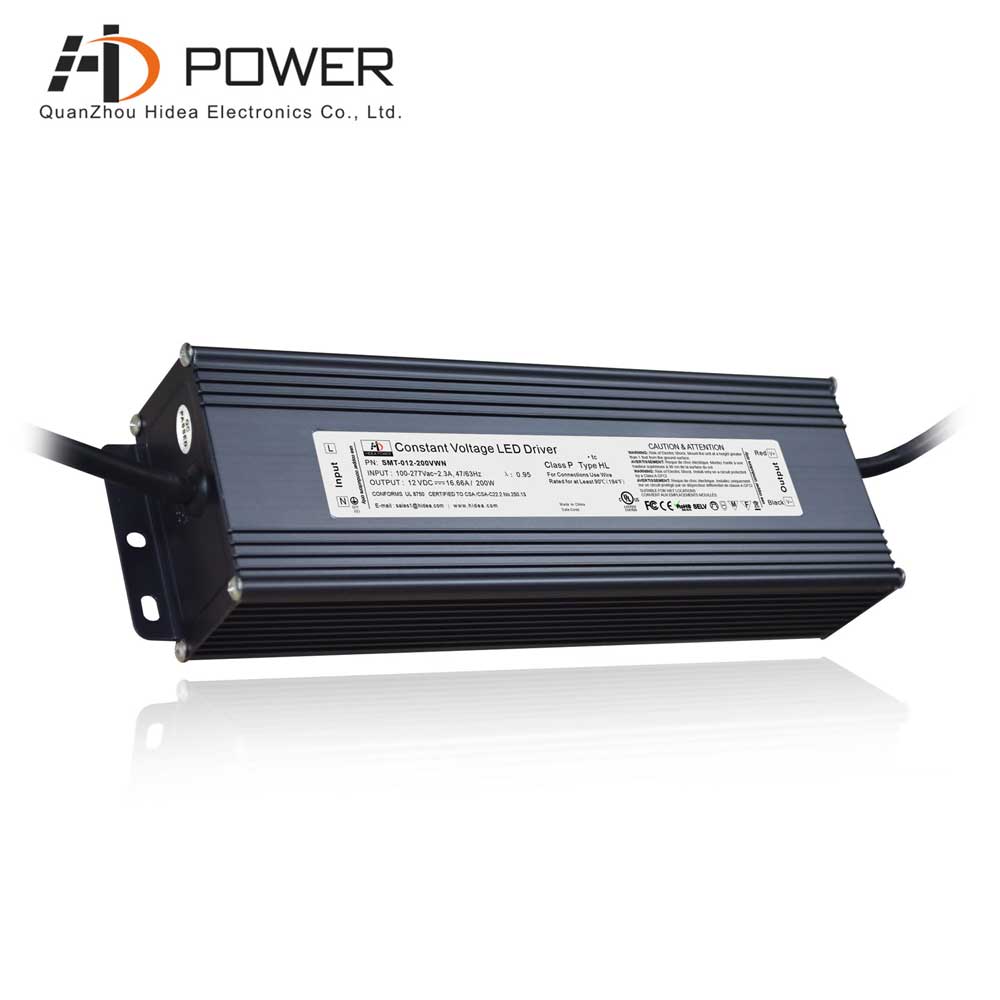

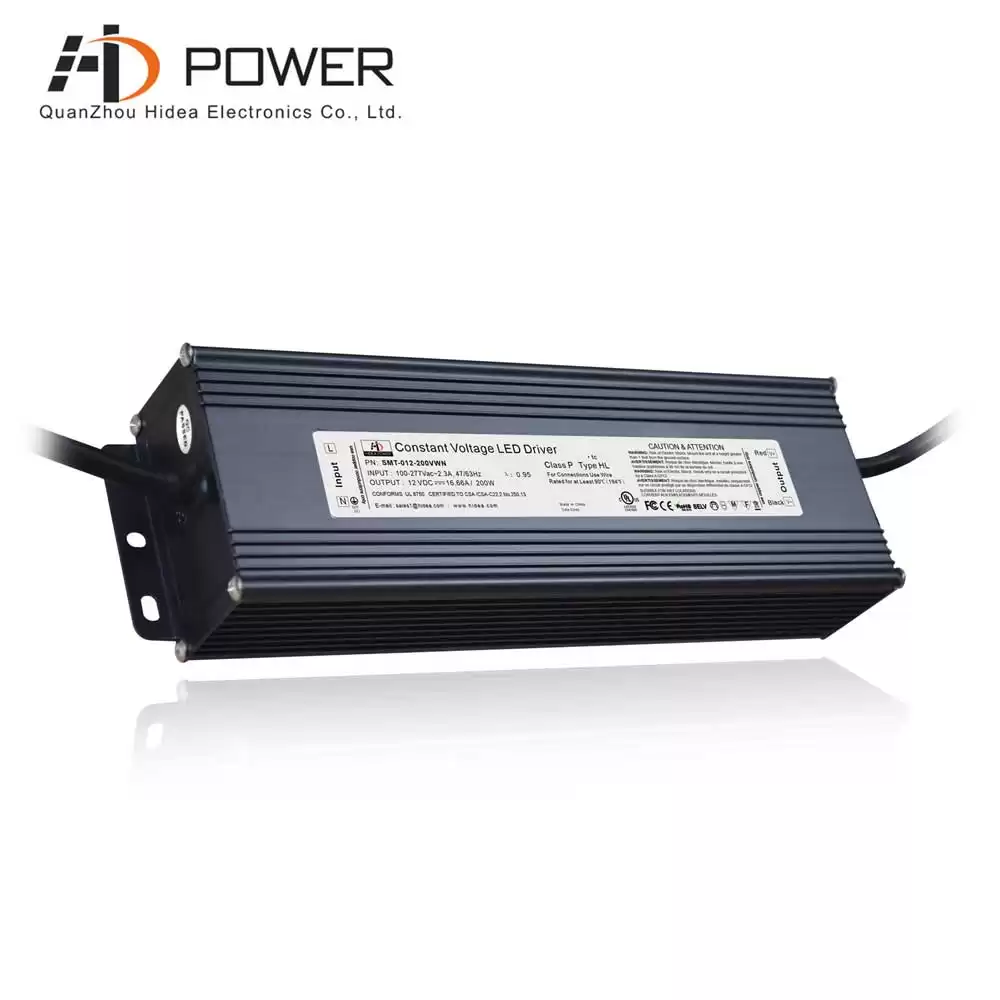

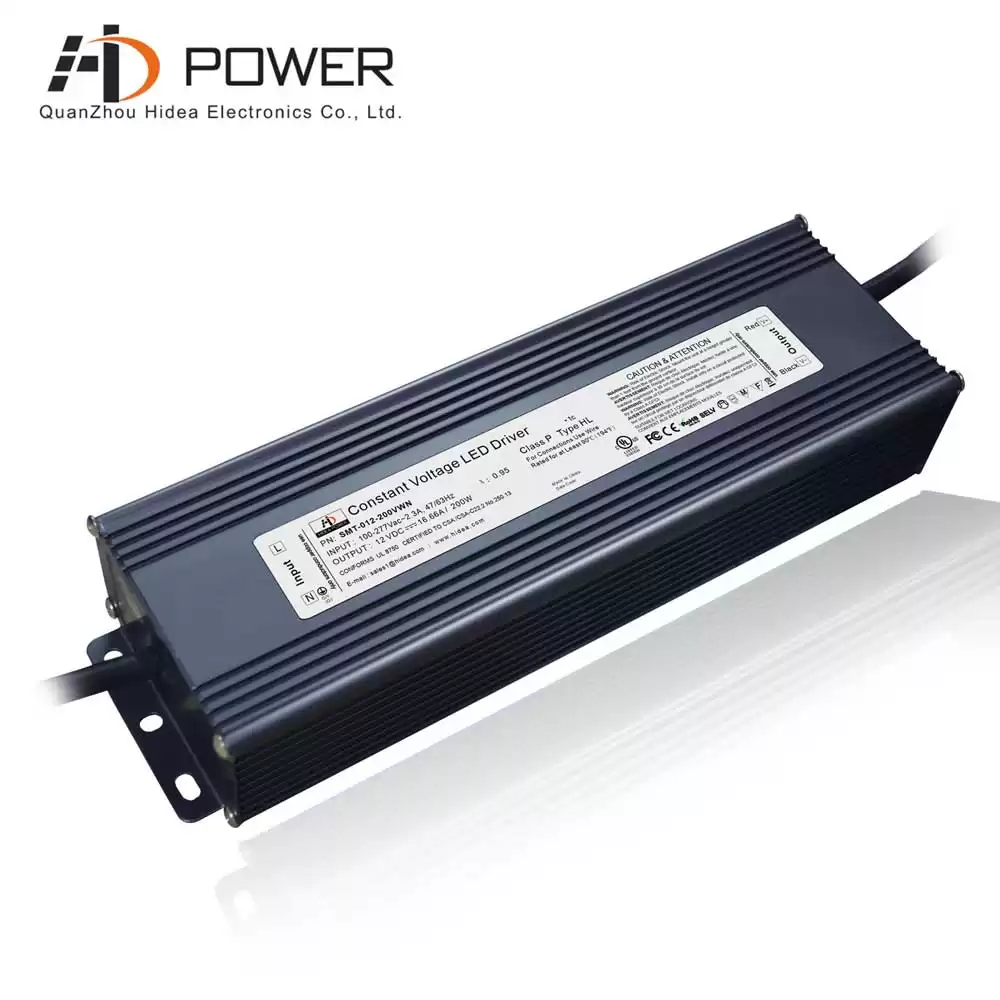

Smarts SMT-012-200VWN is led driver 12v 200w, Comply with UL/cUL, FCC, Type HL, Class 2 rate, this newly released non dimmable 200w led power supply features high compatablity to Led Stuff floor lights Silver.
Specification
|
Model
|
SMT-012-200VWN
|
SMT-024-200VWN
|
|
Output
|
DC Voltage
|
12V
|
24V
|
|
Voltage Accuracy
|
±0.5V
|
±0.5V
|
|
Rated current
|
16.66A
|
8.33A
|
|
Rated power
|
200W
|
200W
|
|
Input
|
Voltage Range
|
100~277V AC
|
|
Frequency Range
|
47~63HZ
|
|
THD(Typ.) @full load
|
<20%
|
|
Power Factor ( Typ.)
|
0.98@120VAC 0.98@277VAC
|
0.97@120VAC 0.97@277VAC
|
|
Full Load Efficiency(Typ.)
|
>86%
|
>86%
|
|
AC Current(Typ.)
|
2.3A/110VAC
|
|
Inrush Current (Typ.)
|
15A, 50%, 1.4ms@120VAC; 55A,50%220us@230VAC; 30A,50%1.4ms@277VAC
|
|
Leakage current
|
﹤0.5mA/110V
|
|
Protection
|
Short Circuit
|
Hiccup mode, recovers automatically after fault condition
|
|
Over temperature
|
100℃±10℃ shut down o/p voltage, automatically recover after cooling.
|
|
Over Loading
|
≤120% constant current limiting, auto-recovery
|
|
Over voltage
|
≦140VAC(90~135V) , ≦270VAC(170~265V)
|
|
Environment
|
Working TEMP.
|
-40~+60℃
|
|
Working Humidity
|
20~90%RH,non-condensing
|
|
Storage TEM.,Humidity
|
-40~+80℃,10~95%RH
|
|
TEMP.coefficient
|
±0.03%/℃(0~50℃)
|
|
Vibration
|
10~500Hz,2G 10min./1 cycle,period for 60min.
|
|
Safety&EMC
|
Safety standards
|
UL8750
|
|
Withstand voltage
|
I/P-O/P: 1.90KVAC
|
|
Isolation resistance
|
I/P-O/P:100MΩ/500VDC/25℃/70%RH
|
|
EMC EMISSION
|
FCC Part 15 B
|
|
EMC IMMUNITY
|
Compliance to EN55015; EN61000-4-2,3,4,5,6,8,11,EN61547
|
|
Others
|
Net Weight
|
1.5Kg
|
|
Size
|
256*78*47mm (L*W*H)
|
|
packing
|
329*279*176mm , 10PCS/ctn
|
|
Notes
|
1. All parameters NOT specially mentioned are measured at 110V/277VAC input , rated load and 25℃of ambient temperature.
|
|
2. Tolerance:includes set us tolerance,line regulation and load regulation .
|

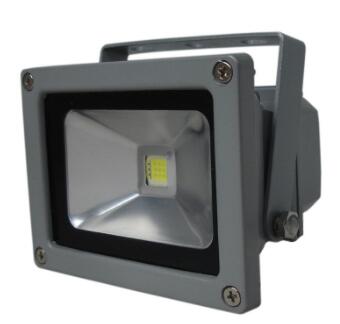

Compatible Light Type
Smarts UL,FCC certificated 7 years warranty led driver 12v 200w, enjoy a bright and comfortable life. Matched with Led Stuff floor lights A perfect solution for a wide variety of architectural and accent lighting applications.
