12v 24v 48V 30A 40A MPPT solar charge controller

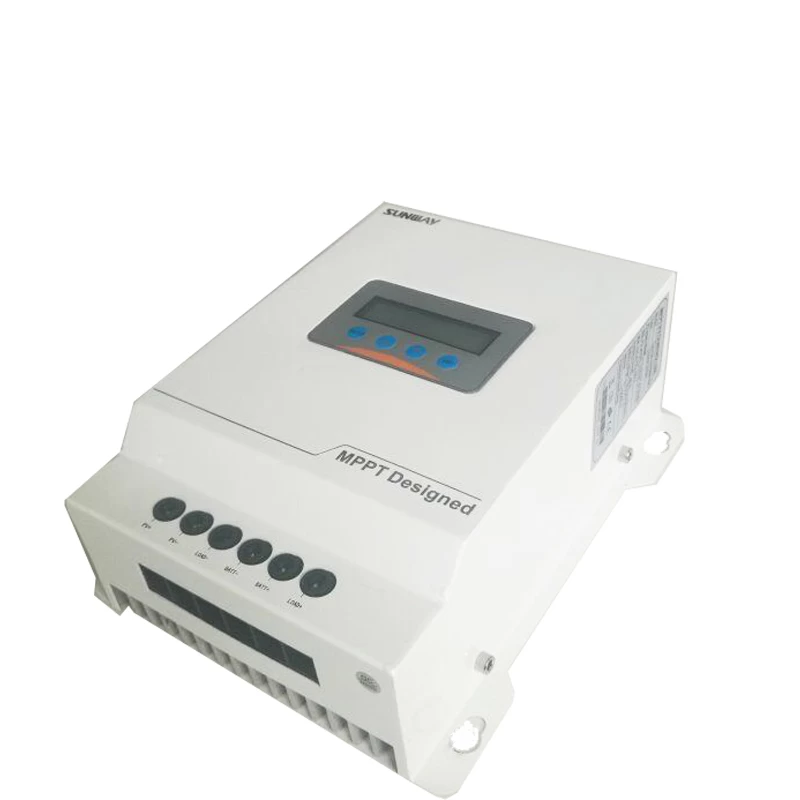

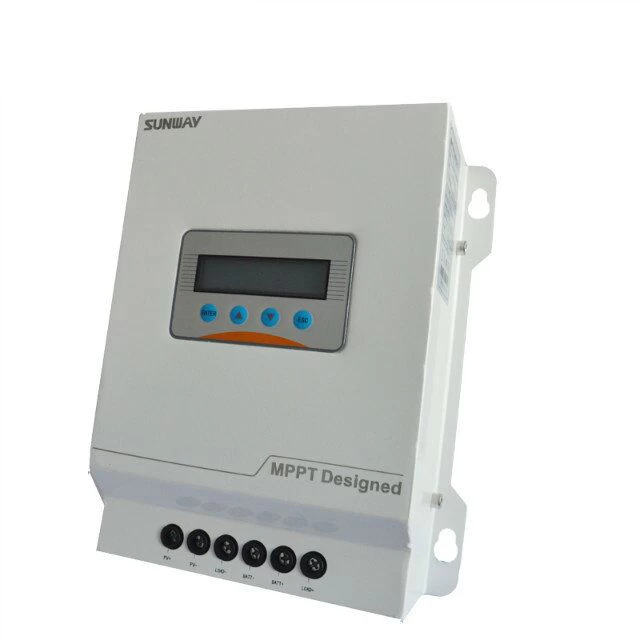

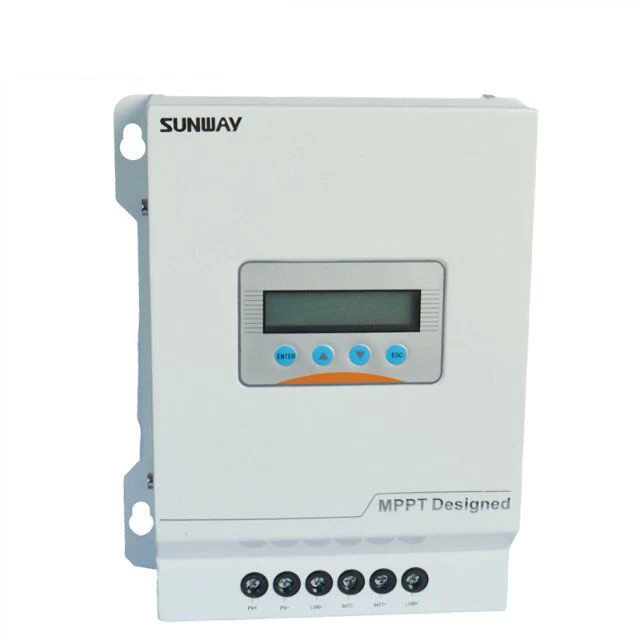

Description of MPPT solar charge controller

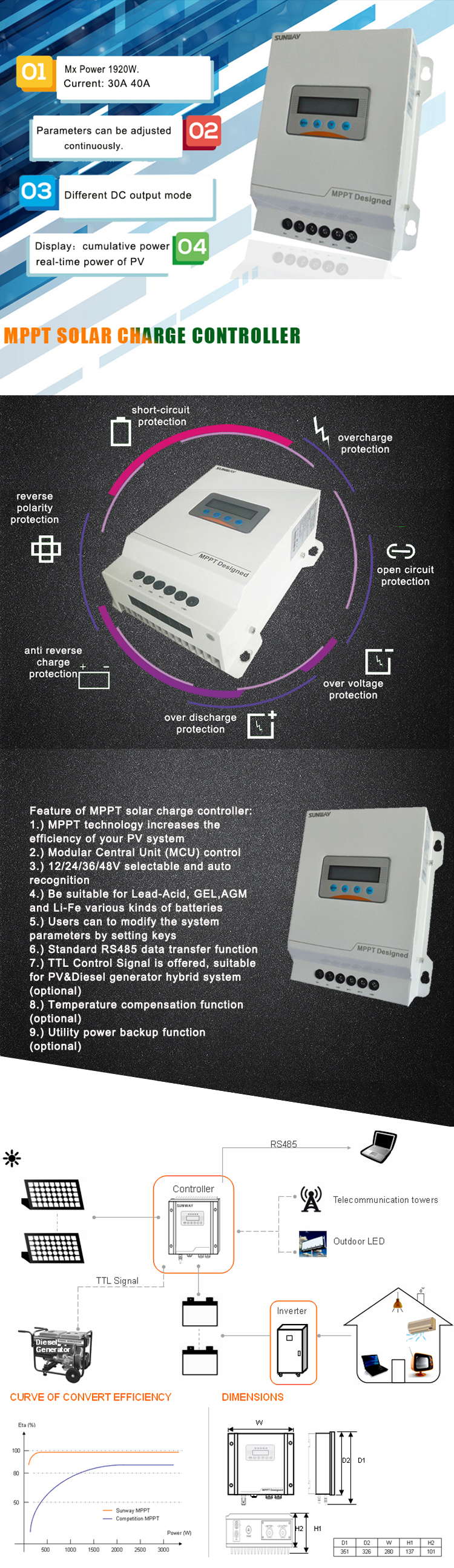

Feature of MPPT solar charge controller:
1.) MPPT technology increases the efficiency of your PV system
2.) Modular Central Unit (MCU) control
3.) 12/24/36/48V selectable and auto recognition
4.) Be suitable for Lead-Acid, GEL,AGM and Li-Fe various kinds of batteries
5.) Users can to modify the system parameters by setting keys
6.) Standard RS485 data transfer function
7.) TTL Control Signal is offered, suitable for PV&Diesel generator hybrid system(optional)
8.) Temperature compensation function (optional)
9.) Utility power backup function (optional)
Technical Data of MPPT solar charge controller:
|
System Capability
|
|
Model type
|
SSCM- 12V / 24V / 36V / 48V
|
|
Max. PV input power [W]
|
900 / 1800 / 2250 / 3000 (12/24/36/48V system)
|
|
Rated charging current [A]
|
30 A / 40A / 45A
|
|
Min. input voltage (Vmp) [V]
|
15 / 28 / 43 / 58 (12/24/36/48V system)
|
|
Max. input voltage (Vmp) [V]
|
18 / 36 / 54 / 72 (12/24/36/48V system)
|
|
Max. PV input voltage (Voc) [V]
|
150
|
|
Float charge (be adjustable) [V]
|
14 / 28 / 42 / 56 (12/24/36/48V system)
|
|
Boost charge [V]
|
10 / 20 / 30 / 40 (12/24/36/48V system)
|
|
Deep discharge protection (be adjustable) [V]
Load disconnect
|
10.5 / 21 / 31.5 / 42 (12/24/36/48V system)
|
|
Reconnect level (be adjustable) [V]
With 10s delay
|
12 / 24 / 36 / 48 (12/24/36/48V system)
|
|
Over-voltage protection (be adjustable) [V]
Cut-off charging 10s delay (be adjustable)
|
15 / 30 / 45 / 60 (12/24/36/48V system)
|
|
Reconnect charging [V]
With 10minutes delay (be adjustable)
|
13.5 / 27 / 40.5 / 54 (12/24/36/48V system)
|
|
|
|
Performance
|
|
Consumption at standby [mA]
|
<30
|
|
Conversion Efficiency
|
Up to 98%
|
|
Peak of conversion efficiency
|
99%
|
|
Topology
|
Inductor
|
|
Ambient Temperature
|
-40℃ to +50℃ (exceed 50℃ with derating)
|
|
Ambient Humidity
|
0%~98% Non-condensing
|
|
Cooling Method
|
Natural Convection
|
|
Temperature compensation
|
-4mV/K(2V cell)
|
|
Altitude [m]
|
<2000 (without power derating)
|
|
|
|
General Data
|
|
LCD Display
|
LCD (16X2characters,green backlight)
|
|
Display Language
|
English
|
|
Data communication (option)
|
RS-485
|
|
Grounding
|
Negative
|
|
Ingress Protection Class
|
IP65
|
|
Dimensions (W*D*H) [mm]
|
290*200*90
|
|
Net weight [kg]
|
4
|
Topology of solar charge controller:
Assemly of MPPT solar charge controller
Project case of MPPT solar charge controller
Package and shippment of MPPT solar charge controller
Payment of MPPT solar charge controller
|
|
|
EXW
|
30% T/T in advance, paid the balance before shipment
|
|
FOB
|
|
CFR(C&F)
|
30% T/T in advance, paid the balance against copy of B/L
|
|
CIF
|
|
|
L/C amount above 50,000 usd, we can accept L/C at sight
|
|
|
Amount lower than 5000usd
|
|
|
|
|
7~10days after receiving payment for one container
|
