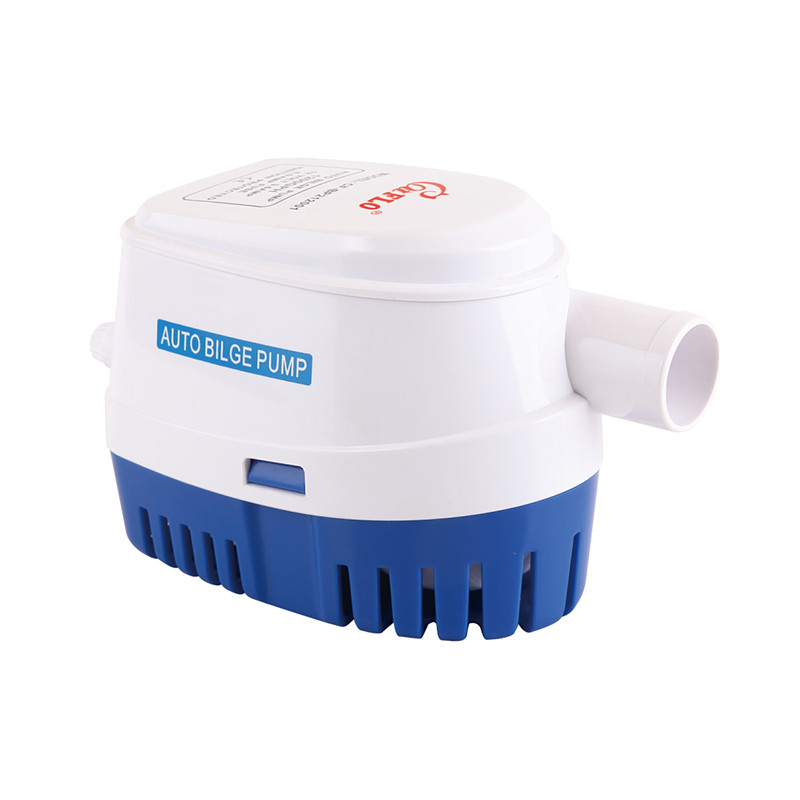

12V/24V 750GPH Automatic Bilge Pump
750GPH Automatic Submersible Boat Bilge Water Pump.All-in-one pump & float switch. No additional float switch required. Pump turns on when water level rises & shuts off when water is removed.
Features
l 3/4’’ nylon hose bard allow for multiple connections options
l 18AWG,1M long leads
l Ignition protection
l ABS exclusive moisture tight seal,liquid temperature 110°F (43°C) temperature limits
l All in one pump& switch, and no flow switch required. Pump turns on when water level rises and shuts off when water removes.
l Compact ,efficient,long life motor
l Easy clean snap-lock strainer base
MORE FEATURES
- 1Year Warranty
- Snap-off strainer base for easy maintenance
- Sealed efficient,long life motors
- Run dry capable for normal workloads
- Quiet operation
- 110°F (43°C) temperature limits
- Stainless steel shaft
- Anti-Airlock protection
TYPICAL APPLICATIONS
Marine, Medical, Pond, Water Research, etc.
DEMENSION
STANDARD PUMP CONFIGURATIONS
|
Model
|
Volt
|
Flow rate(GPH)
|
Current rate(A)
|
Head
|
Wire lead
|
Outlet dia
|
N.W/G.W (KG)
|
|
CFBP-0201-01
|
12
|
750
|
6
|
3m
|
1M
|
3/4"
|
0.47/0.52
|
|
CFBP-040-01
|
24
|
750
|
3
|
3m
|
1M
|
3/4"
|
0.47/0.52
|
Performance
|
Voltage
|
Current
|
Flow rate
|
Head (M）
|
|
GPH
|
LPH
|
|
Open
|
2.48
|
676
|
2558
|
0
|
|
12
|
311
|
545
|
2062
|
0.5
|
|
12
|
3.78
|
411
|
1555
|
1
|
|
12
|
4.26
|
284
|
1075
|
1.5
|
|
12
|
4.66
|
103
|
390
|
2
|
|
12
|
5.0
|
0
|
0
|
2.5
|
|
Voltage
|
Current
|
Flow rate
|
Head (M）
|
|
GPH
|
LPH
|
|
Open
|
1.3
|
660
|
2498
|
0
|
|
24
|
1.6
|
533
|
2017
|
0.5
|
|
24
|
1.94
|
400
|
1514
|
1
|
|
24
|
2.31
|
263
|
995
|
1.5
|
|
24
|
2.54
|
86
|
325
|
2
|
|
24
|
2.9
|
0
|
0
|
2.5
|
|
Item
|
Description
|
Quantity
|
|
1
|
Pump cover
|
1
|
|
2
|
Motor bracket
|
1
|
|
3
|
Motor
|
1
|
|
4
|
Motor oil seal
|
1
|
|
5
|
Wear plate
|
1
|
|
6
|
Switch assembly
|
1
|
|
7
|
Pump housing
|
1
|
|
8
|
Impeller
|
1
|
|
9
|
Impeller cover
|
1
|
|
10
|
Strainer
|
1
|
|
11
|
Rotor
|
1
|
|
12
|
Round wearplate
|
1
|
|
13
|
Oil seal
|
1
|
|
14
|
Float
|
1
|
|
15
|
Knob
|
1
|
Shipping information
|
Unit pump weight(N.W/G.W)
|
0.47/0.52kg
|
|
Unit size
|
16.2*9.5*11.4cm
|
|
Mater carton size
|
64.5 x 38.5 x 24.8 cm
|
|
Mater carton quantity
|
32pcs
|
|
Mater carton weight
|
19.3kgs
|
