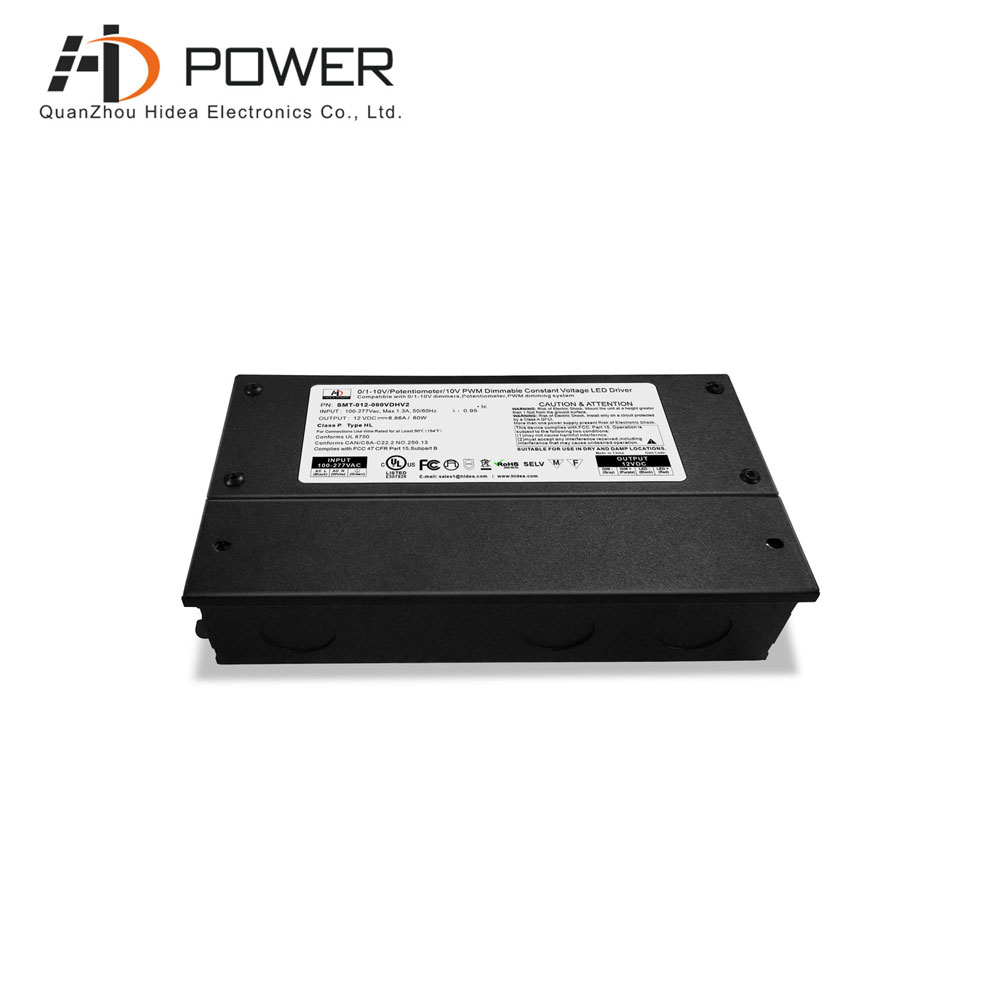

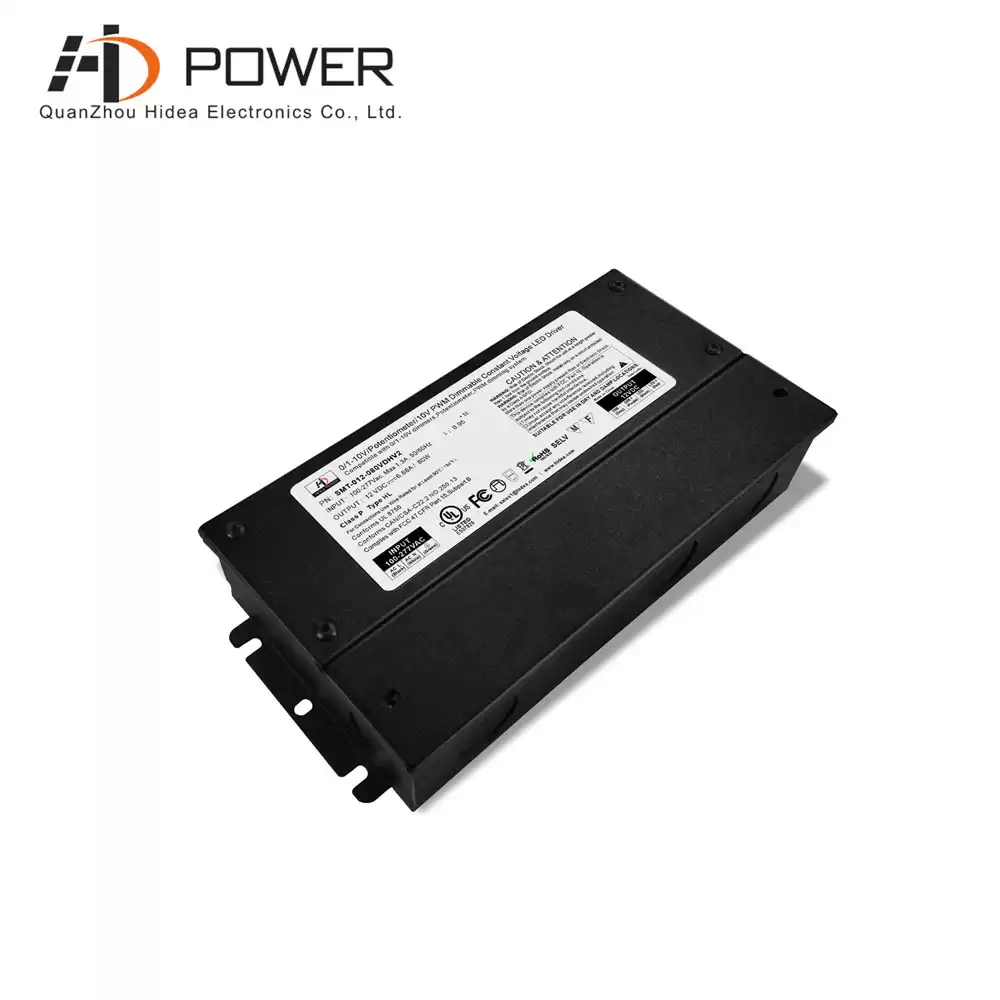

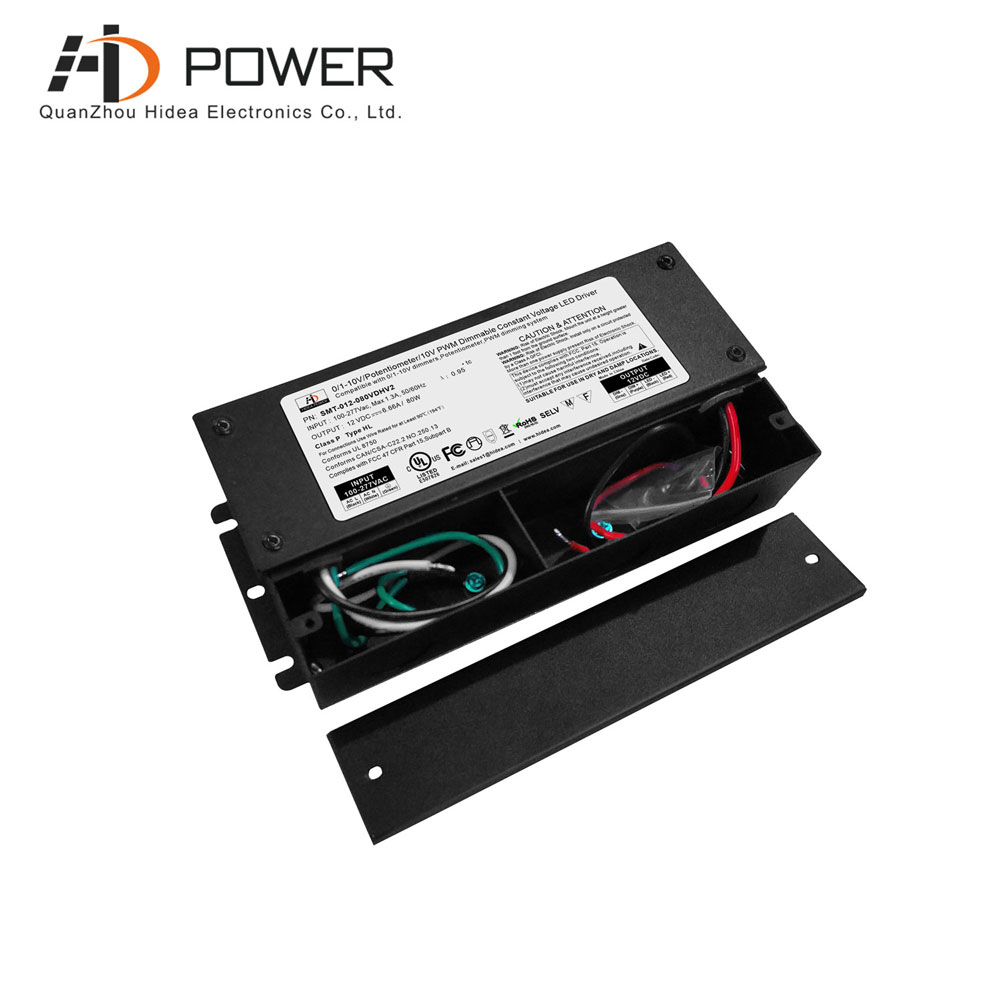

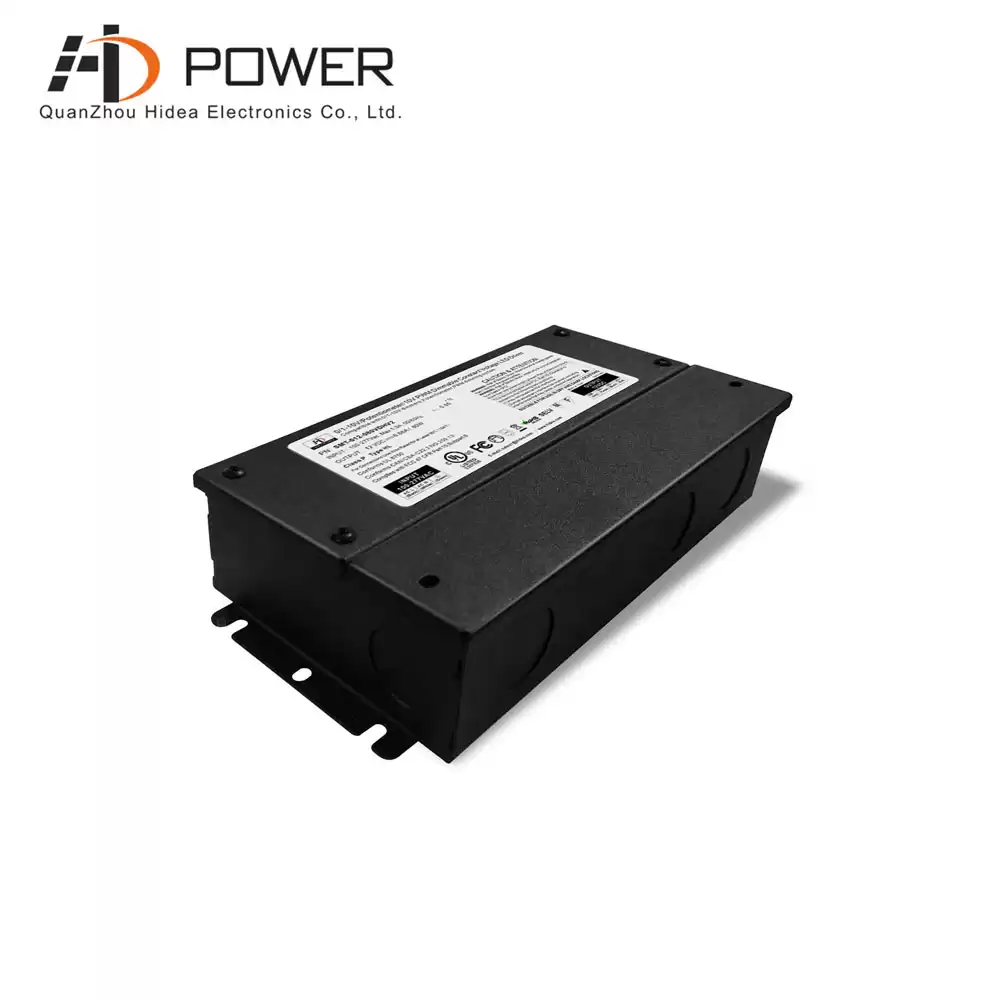

12v/24v 80w constant voltage 0 10v dimmable led power supply driver junction box
hideapowertech 80W 0 10v dimmable constant voltage led driver has built-in PFC function, PF>0.99, exceeds load requirements, can work perfectly under 10-100% load, metal shell design, good heat dissipation, with 7-year warranty
Specification
|
model
|
SMT-012-080VDH (1.0 version)
SMT-012-080VDHV2 (2.0 version)
|
SMT-024-080VDH (1.0 version)
SMT-024-080VDHV2 (2.0 version)
|
|
Output
|
DC Voltage
|
12V
|
24V
|
|
Voltage Accuracy
|
±0.5V
|
|
Rated current
|
6.66A
|
3.33A (class 2 type)
|
|
Rated power
|
80W
|
80W
|
|
Input
|
Voltage Range
|
100~277V AC
|
|
Frequency Range
|
47~63HZ
|
|
Power Factor ( Typ.)
|
PF≧0.95/110V , PF≧0.95/277V
|
|
THD(Typ.)@ full load
|
<20%
|
|
Full Load Efficiency(Typ.)
|
86%@120VAC 88%@277VAC
|
|
AC Current(Typ.)
|
1.3A @110VAC
|
|
Inrush Current (Typ.)
|
18A, 50%, 1.6ms
|
|
Leakage current
|
﹤0.50mA
|
|
Protection
|
Short Circuit
|
shut down o/p voltage, re-power on to recover after fault condition is removed
|
|
Over Loading
|
≤120% constant current limiting, auto-recovery
|
|
Over temperature
|
100℃±10℃ shut down o/p voltage, automatically recover after cooling.
|
|
Environment
|
Working TEMP.
|
-40~+60℃
|
|
Working Humidity
|
20~90%RH,non-condensing
|
|
Storage TEM.,Humidity
|
-40~+80℃,10~95%RH
|
|
TEMP.coefficient
|
±0.03%/℃(0~50℃)
|
|
Vibration
|
10~500Hz,2G 10min./1 cycle,period for 60min.each along X,Y,Z axes
|
|
Safety&EMC
|
Safety standards
|
UL8750+UL1310
|
|
Withstand voltage
|
I/P-O/P:1.88KVAC
|
|
Isolation resistance
|
I/P-O/P:100MΩ/500VDC/25℃/70%RH
|
|
EMC EMISSION
|
FCC Part 15 B
|
|
Others
|
Weight
|
1.3Kg (1.0 version)
|
|
Size
|
1.0 version: 220*93*41mm (L*W*H) / 2.0 version: 220*94.5*40mm(L*W*H)
|
|
packing
|
330*280*176mm / 10PCS/CTN 385*335*200mm 20PCS/CTN
|
|
Notes
|
1. All parameters if NOT specially mentioned are measured at 120VAC input , rated load and 25℃of ambient temperature.
|
|
2. To extend the driver's using life ,please reduce the loading at lower input voltage.
|
Compatible Light Type

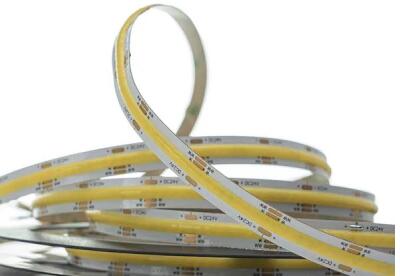

Tunable white LED strip lights are a top choice for interior led driver. This dynamic white LED strip gives you vibrant white options from 2700K warm white to 6500K cool white. .
Related Products
|

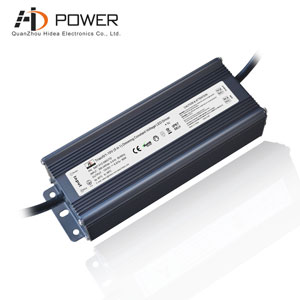

triac & 0 10v dimmable 80w led driver 100-277Vac input voltage UL certification, mainly sold to North America, aluminum shell, good heat dissipation, effective waterproof and dustproof, 7-year warranty
