12V 24V DC Circulation Pumps For Hot Water Recirculating System
Recirculating pumps for water heaters are designed to circulate hot water throughout a plumbing system, ensuring quick access to hot water at the faucets or fixtures without having to wait for the water to heat up. These pumps help eliminate the need to wait for hot water, reducing water waste and improving overall convenience. Our Water Heater Pump operates using a brushless DC motor, which offers various advantages such as higher efficiency, longer lifespan and quieter operation compared to traditional brushed motors. Its a IP68 submersible pump with under body safety voltage of 12V DC, insulation of F(155℃), the medium required is water.

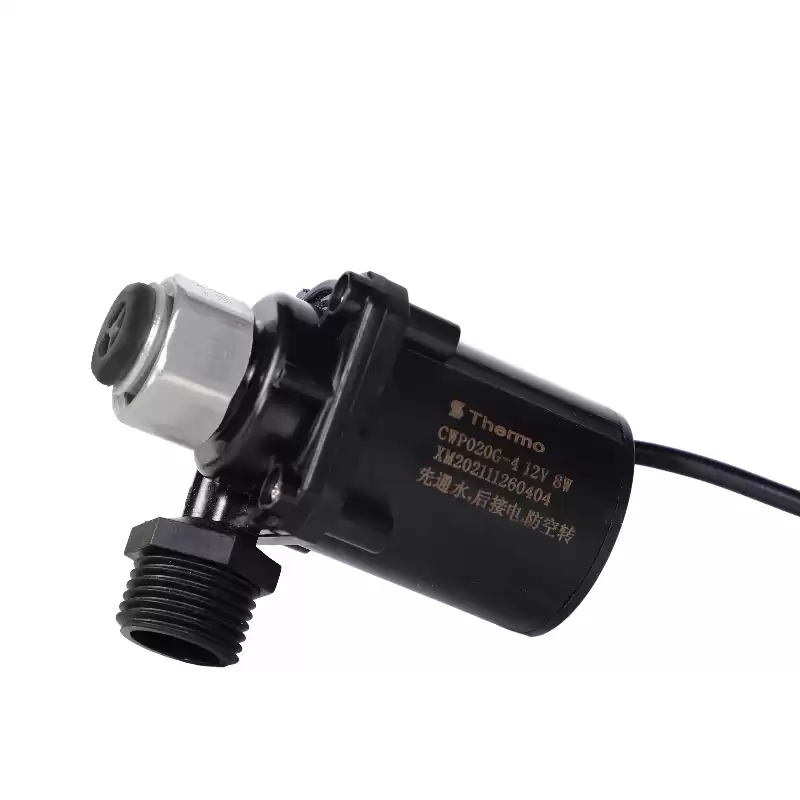

Thermo water recirc pump CWP020G/F is an external device for the electric water heater, solar water heater etc. Its allow users in remote areas to have reliable access to water without relying on grid electricity.These pumps are more efficient and cost-effective compared to traditional AC (alternating current) pumps, as they eliminate the need for inverters or batteries to convert DC to AC power.
The feature of THERMO Water Circulation Pump CWP020G/F is:
l Compact and small size with light weight 220g
l Long lifetime ≥20,000 Times
l Lower noise ≤40dB@1m
l Dry-running protection
l Over-current protection
l Blocked protection
l Over-voltage protection
l Lower-voltage protection
l Over-temperature protection
l Constant power
l Reverse protection
l PWM Control & FG Signal Customization
l Liquid temperature range from -15~100℃, Ambient temperature range from -25~55℃
l Static seal design to prevent leakage
Typical Applications：
- Boosting Applications
- Water Circulations
- Heating System
- Solar Water Heater
- Electric Water Heater
- Instant Water Heaetr
- Marine Boat
- Shower Boosting
- Faucet
