Tubular Solenoids are used in a broad range of DC power applications wherever a short stroke with high force and low power are specified. Available in both push and pull configurations, our tubular solenoids are supplied with a mounting bracket, hex nut, and lock washer and can be mounted directly in a panel or by utilizing the bracket. Plungers can be easily customized to interface with your application.
Product Description
|

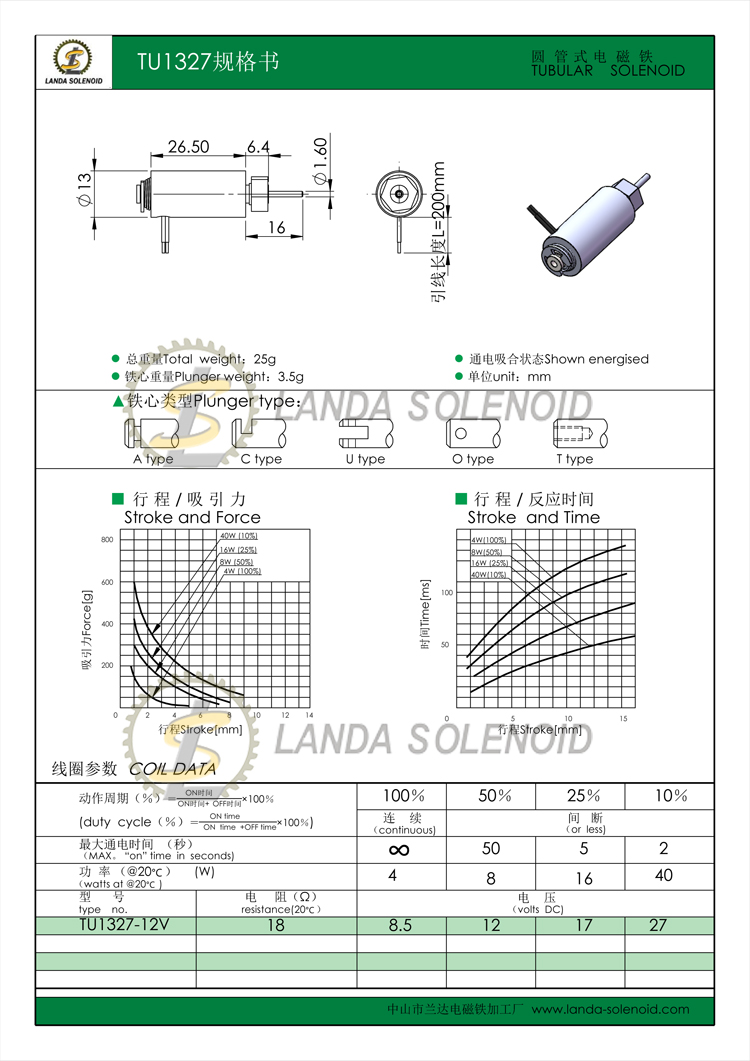

Specifications
|
|
Brand
|
Landa
|
Product Name
|
tubular push pull solenoid
|
|
Model
|
TU1327
|
Rated Voltage
|
DC 12v 24v
|
|
Power
|
4-40w
|
Force
|
0-3N
|
|
Waterproof Class
|
IP65
|
Duty Cycle
|
10-100%
|
|
Stroke
|
0-5mm
|
Material
|
Metal, Electronic Parts
|
|
Action Form
|
Holding type
|
Weight(N.W.)
|
0.025kg
|
|
Install Style
|
Screw
|
Thread Size & Deepth(mm)
|
/
|
|
Hi-Pot Test
|
AC 600V 50/60Hz 2s
|
Insulation Class
|
B
|
|
Packaging Details
|
|
Body Size
|
L27*D13(mm)
|
Carton Box Size(Standard)
|
350*310*180(mm), accepted custom
|
Product Feature
1. Push-pull type, linear motion, DC solenoid electromagnet, supply reset spring or no reset spring plunger.
2. Tubular solenoid are excellent used for locking solenoids, whether for doors, security or industrial machiney.
3. Typically used for longer stroke, can also be designed for high force heavy duty applications.
4. Single hole mounting holes, easy to install, accepted custom as you needed.

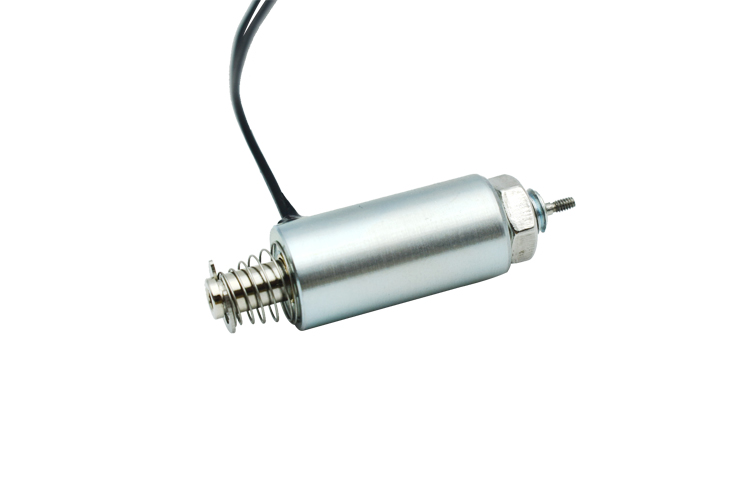

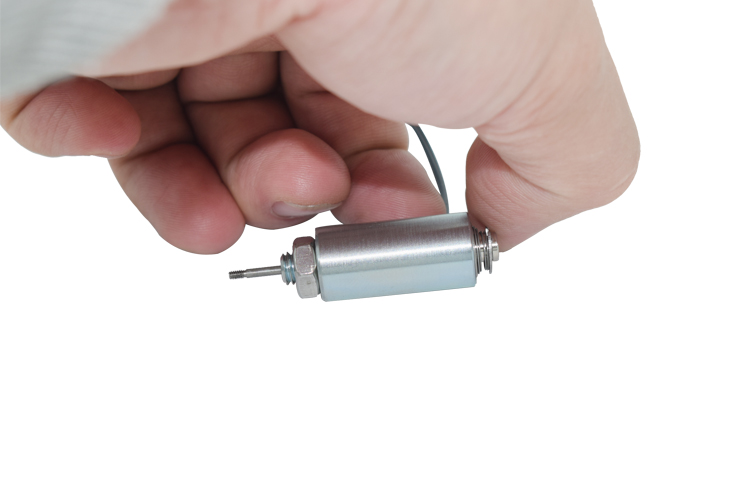

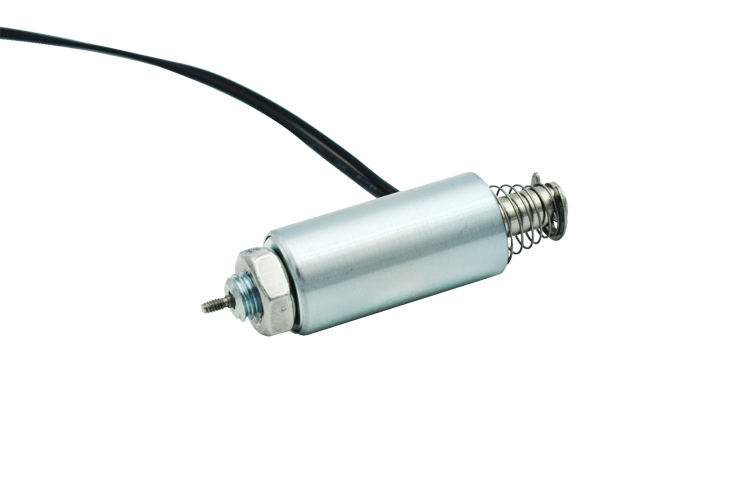

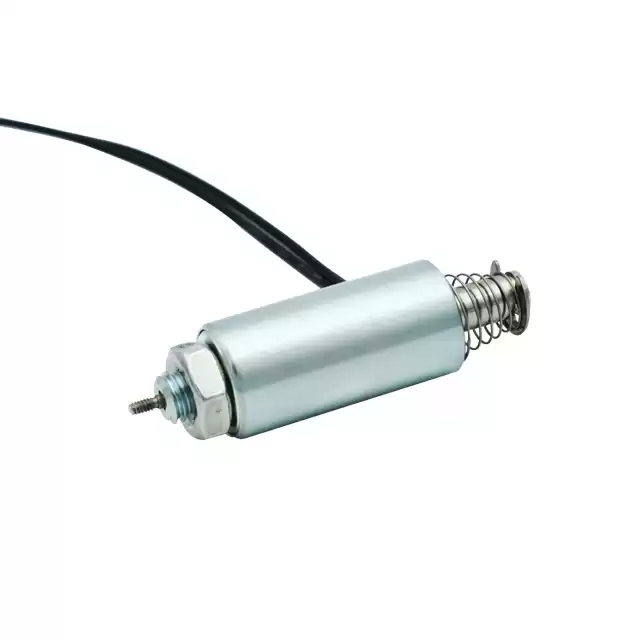

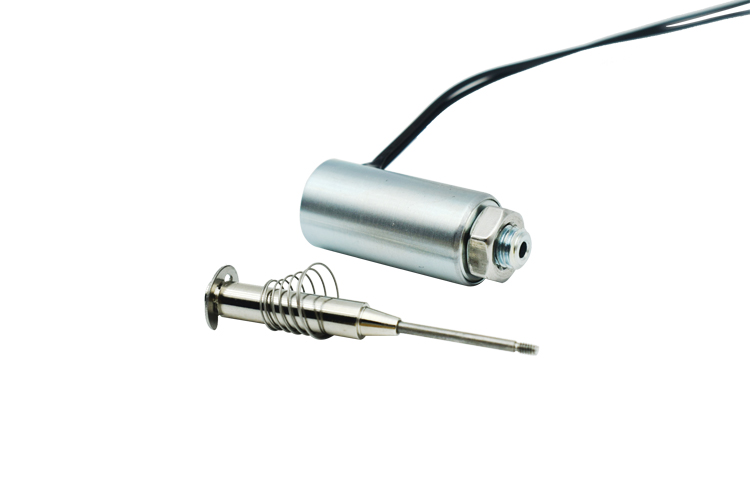

Detailed Images
