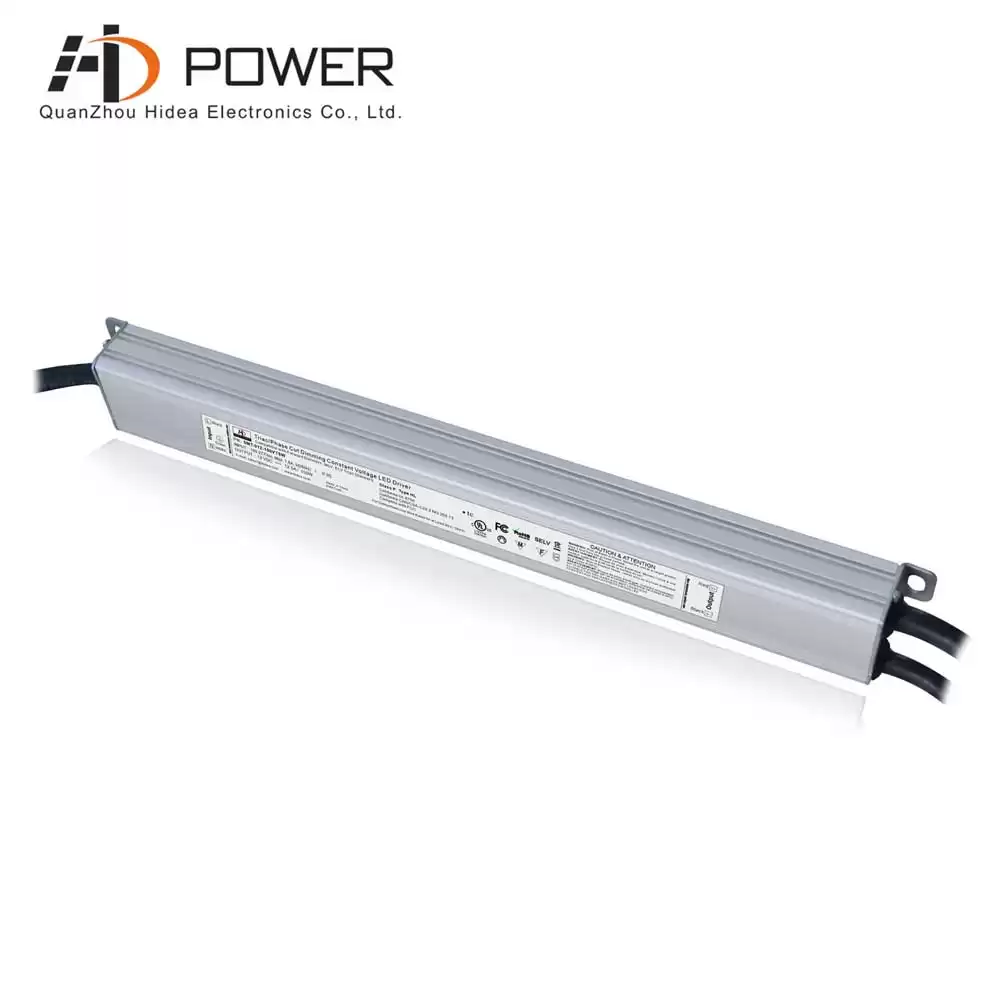

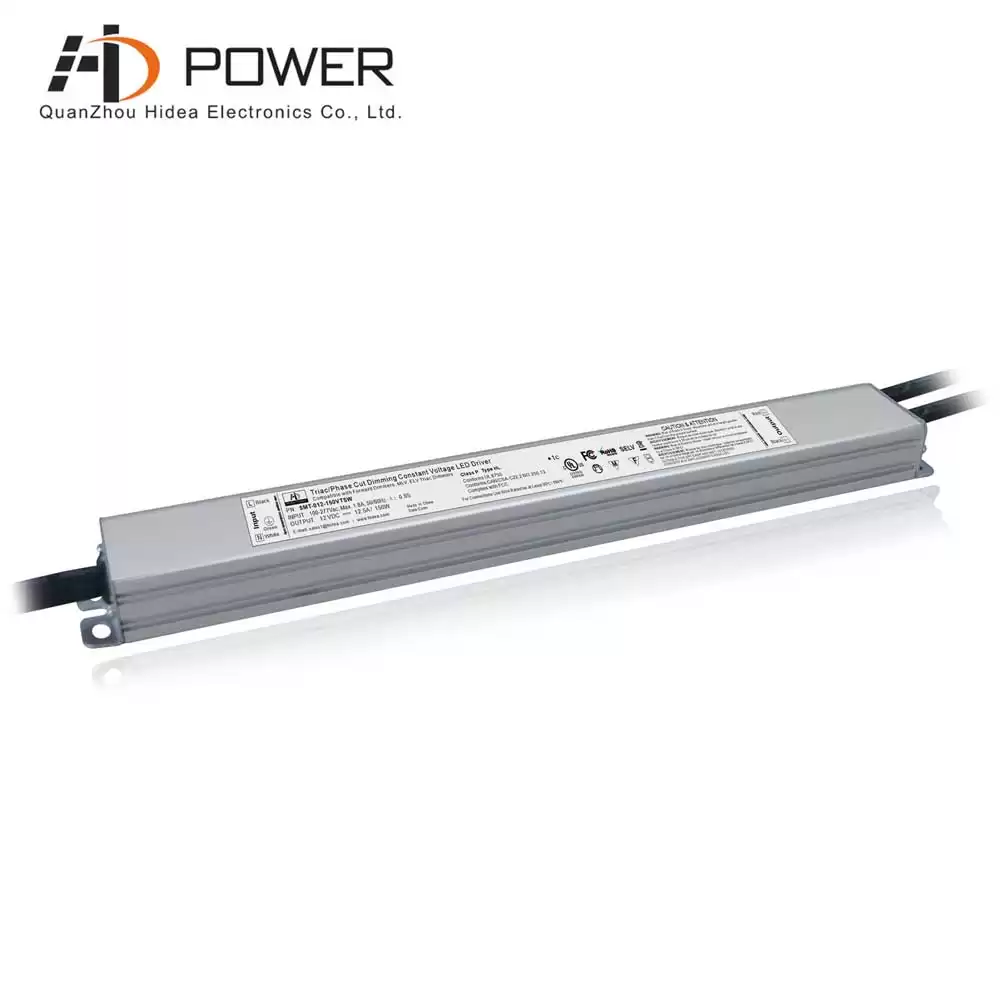

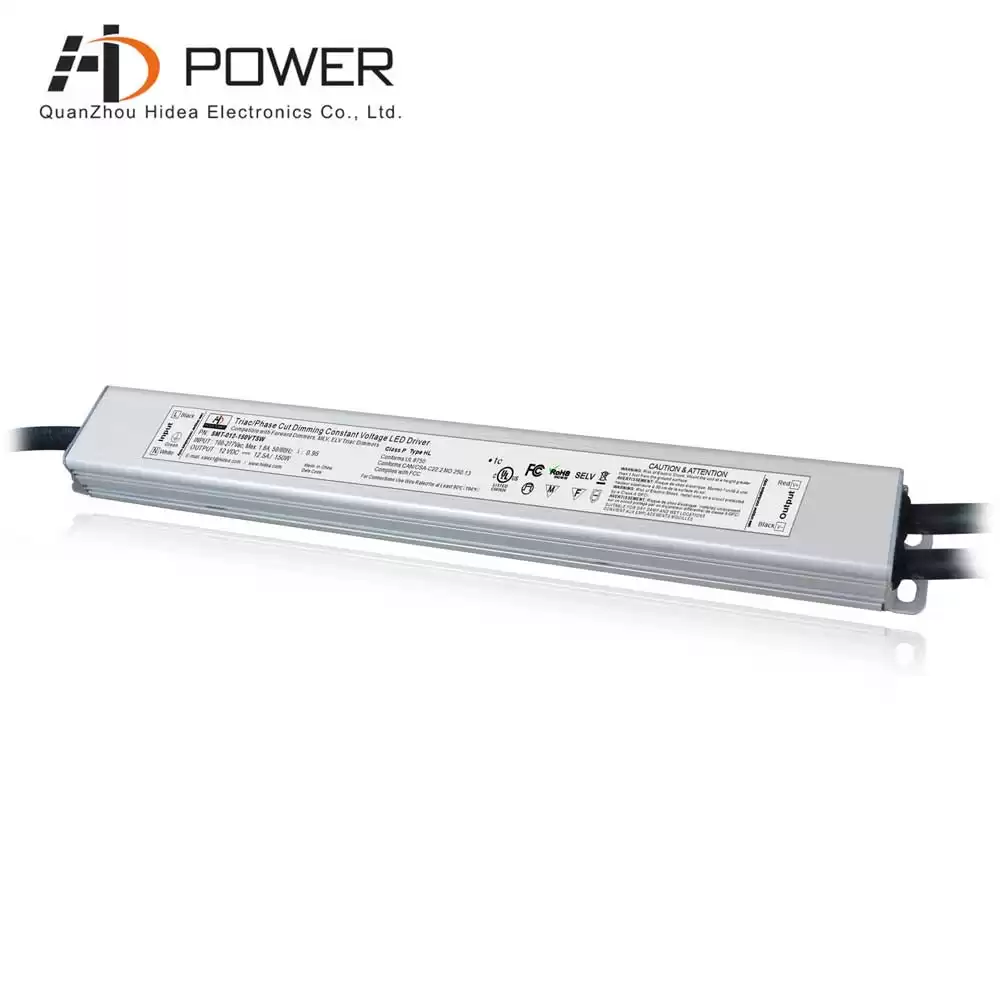

The triac dimmable led light bulb driver 150watt is with high effiency over 90%. UL approval and given 7 years extra long warranty.Flicker free and shows 0-100% dimming range when compatible suitable dimmers like Lutron 110V 277V.
Label
Specification
|
Model
|
SMT-012-150VTSW
|
SMT-024-150VTSW
|
SMT-048-150VTSW
|
|
Output
|
DC Voltage
|
12VDC
|
24VDC
|
48VDC
|
|
Voltage Accuracy
|
±5%
|
|
Rated current
|
12.5A
|
6.25A
|
3.125A
|
|
Rated power
|
150W
|
|
Voltage Regulation
|
±0.5%
|
|
Load Regulation
|
±1%
|
|
Input
|
Voltage Range
|
100-277 VAC
|
|
Frequency Range
|
47~63HZ
|
|
Power Factor ( Typ.)
|
PF≧0.95/110V ; PF≧0.97/277V
|
|
Full Load Efficiency(Typ.)
|
>89%
|
>90%
|
>91%
|
|
AC Current(Typ.)
|
1.90A/100VAC / 0.82A/277VAC
|
|
Inrush Current(Typ.)
|
59.2A/212us@50%Ipeak
|
|
Leakage current
|
<0.50mA/110VAC; ﹤0.13mA/277VAC
|
|
Protection
|
Short Circuit
|
Hiccup mode, recovers automatically after fault condition is removed.
|
|
Over Loading
|
≤120% Hiccup mode, recovers automatically after fault condition
|
|
is removed.
|
|
Over temperature
|
100℃±10℃ shut down o/p voltage, automatically recover after cooling.
|
|
Environment
|
Working TEMP.
|
-40~+60℃
|
|
Working Humidity
|
20~90%RH,non-condensing
|
|
Storage TEM.,Humidity
|
-40~+80℃,10~95%RH
|
|
TEMP.coefficient
|
±0.03%/℃(0~50℃)
|
|
Vibration
|
10~500Hz,2G 10min./1 cycle,period for 60min.each along X,Y,Z axes
|
|
Safety&EMC
|
Safety standards
|
UL8750
|
|
Withstand voltage
|
I/P-O/P: 3.75KVAC
|
|
Isolation resistance
|
I/P-O/P:100MΩ/500VDC/25℃/70%RH
|
|
EMC EMISSION
|
FCC Part 15 B
|
|
Others
|
Weight
|
0.75Kg
|
|
Size
|
368*32*23mm (L*W*H)
|
|
packing
|
50PCS/CTN
|
|
Notes
|
1. All parameters NOT specially mentioned are measured at 110VAC, 277VAC input ,Rated load and 25℃of ambient temperature.
|
|
c
|
Compatible Light Type

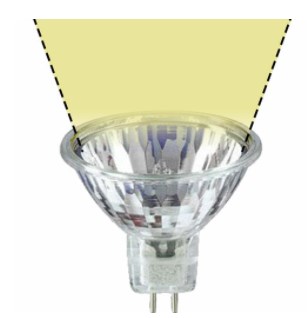

The waterproof led power supply 150w is designed for 12VDC 24VDC constant voltage lighting applications, especially suited for the constant voltage lighs like LED Slim Puck lights, LED lighting box and lightbars. AQ lighting LED light bulb is also recommended.
Related Products
|

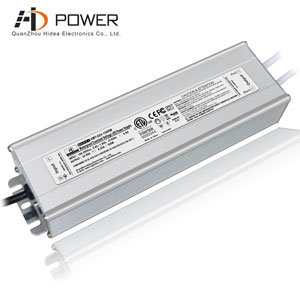

 The 150w led driver 12v is non dimming type. With high effiency over 88% and high PF up to 90%. Meet ETL stadard and given 3 years warranty.
