12V 24V Solar Water Heater Hot Water Circulation Pump

THERMO Water Circulation Pump is a brushless DC motor design with dry-running protection, over-current protection, blocked protection, over-voltage protection, under-voltage protection, reverse protection, constant power and over-temperature protection. Used for solar water heater, gas boiler, instant water heater, water circulation system, boosting purpose, heating system and so on.



12V 24V Solar Water Heater Hot Water Circulation Pump

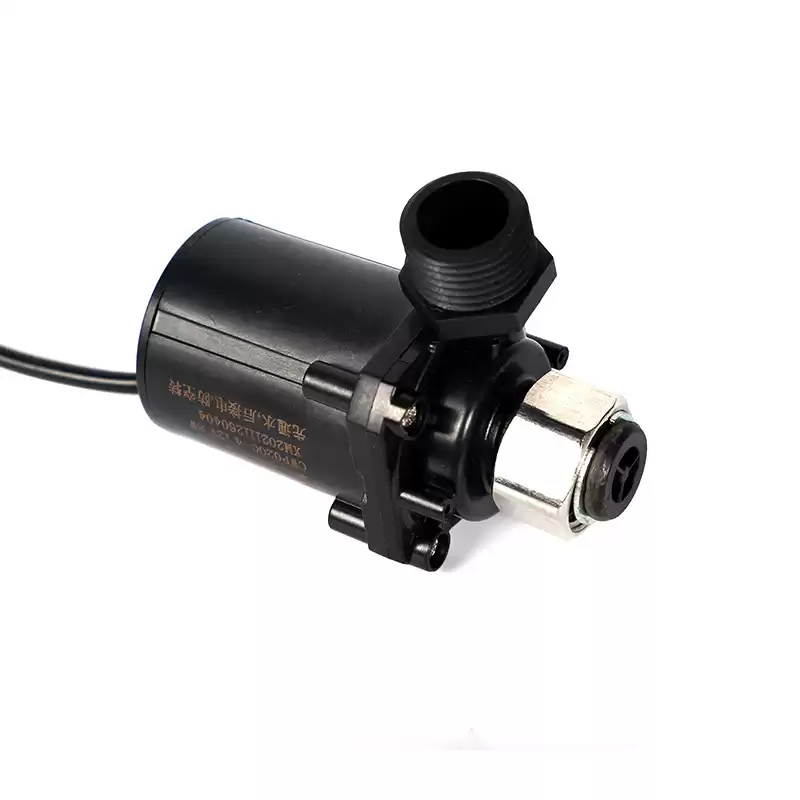

Thermo solar water pump CWP020G/F is an external device for the electric water heater, solar water heater etc. Its allow users in remote areas to have reliable access to water without relying on grid electricity.These pumps are more efficient and cost-effective compared to traditional AC (alternating current) pumps, as they eliminate the need for inverters or batteries to convert DC to AC power.



The feature of THERMO Water Circulation Pump CWP020G/F is:



Compact and small size with light weight 210g

Long lifetime ≥5,000 Times

Lower noise ≤40dB@1m

Dry-running protection

Over-current protection

Blocked protection

Over-voltage protection

Lower-voltage protection

Over-temperature protection

Constant power

Reverse protection

l PWM Control & FG Signal Customization

l Liquid temperature range from -15~100℃, Ambient temperature range from -25~55℃

Static seal design to prevent leakage

solar water pump

Thermo DC Pumps







Thermo Pumps win a good reputation in the market after several years. Its with widely applications including: bidet toilet, water heated blanket, water heater, gas boiler electric vehicle, liquid cooled ultra-fast charging, computer cooling, motorcycle, aquarium, ice maker, water dispenser, coffee machine, beverage machine, dishwasher and others kitchen appliances.
