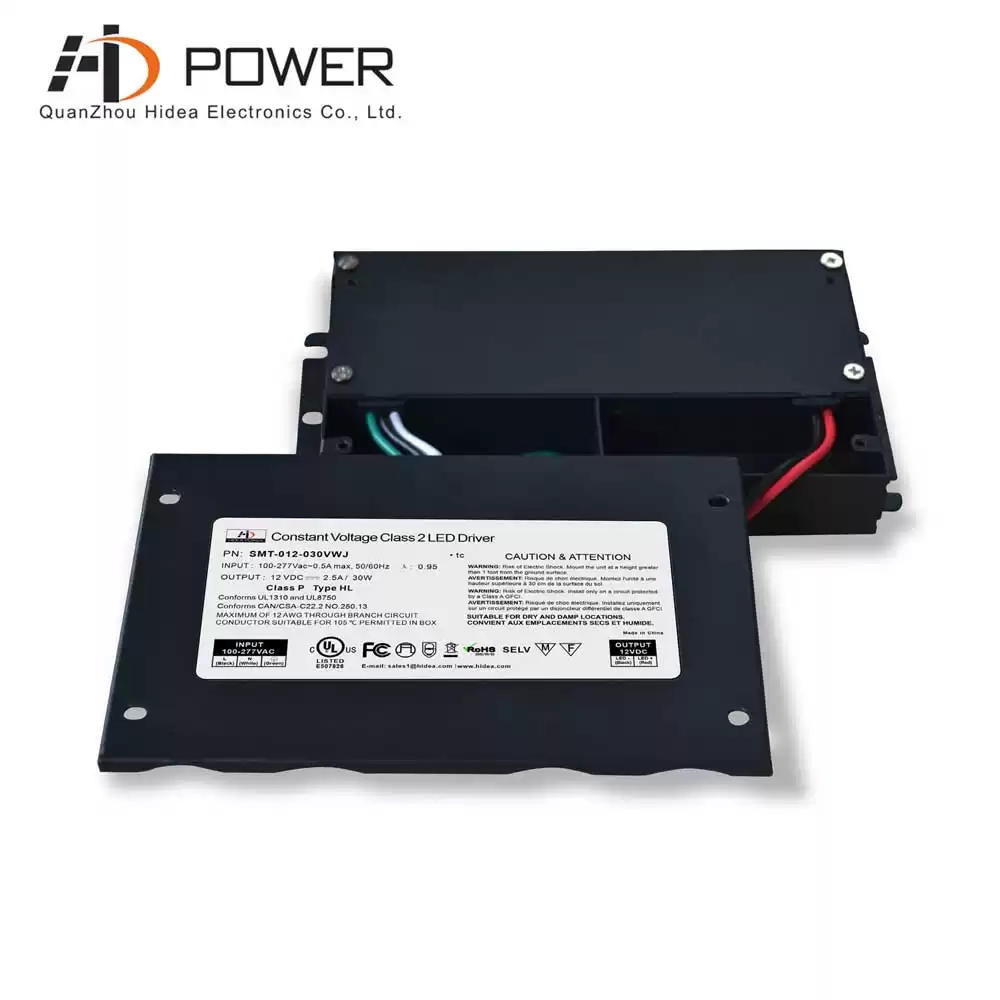

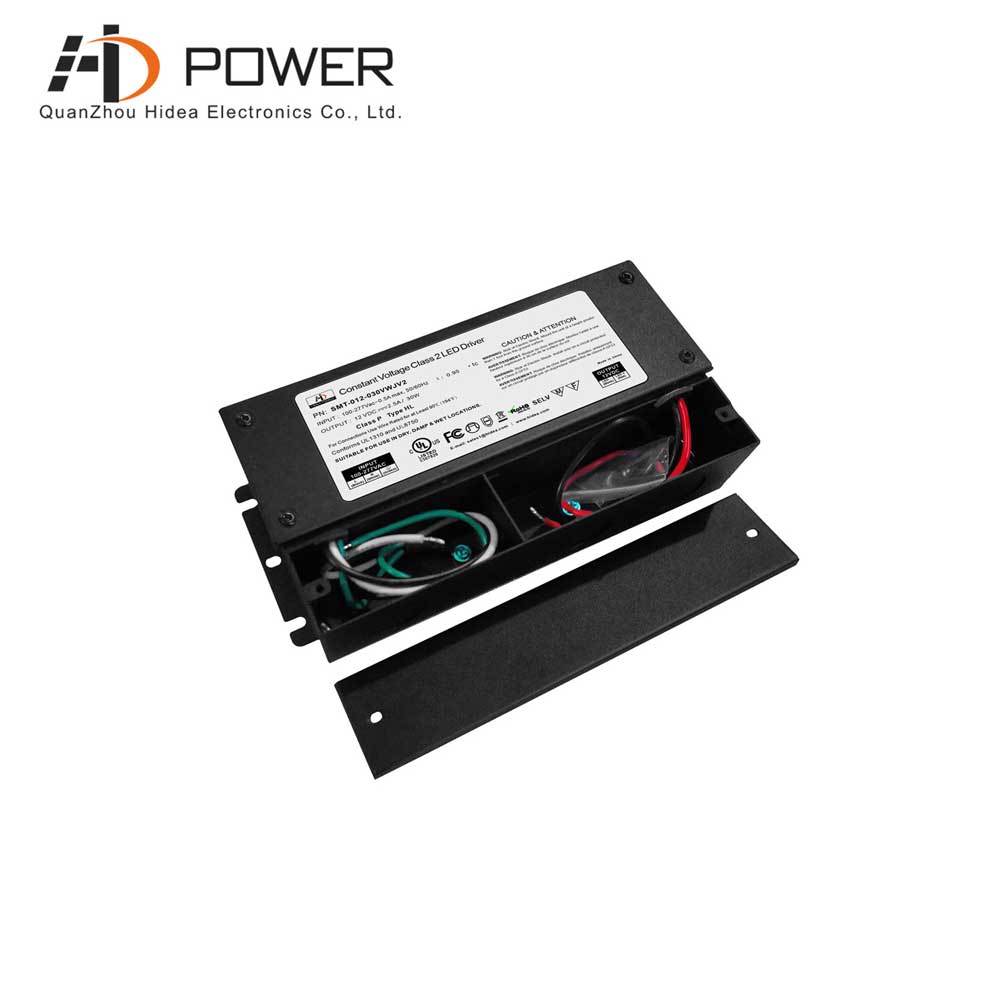

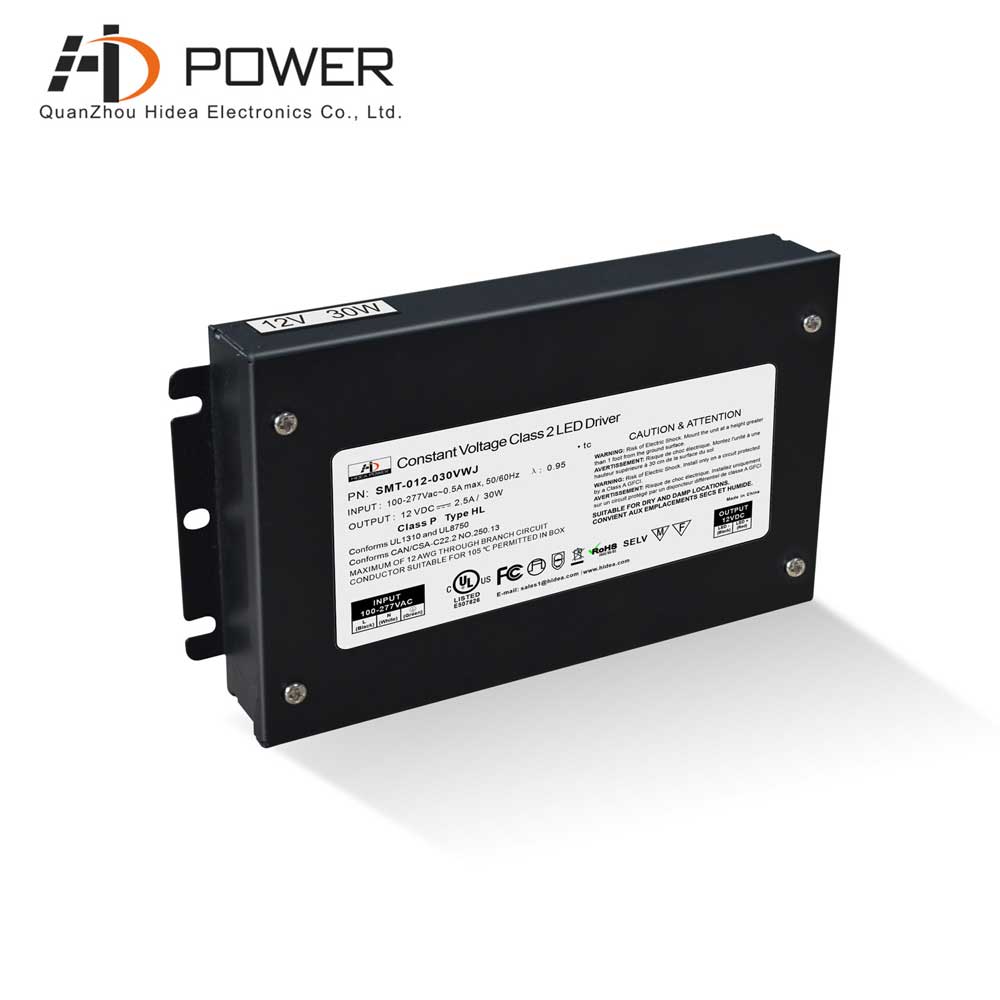

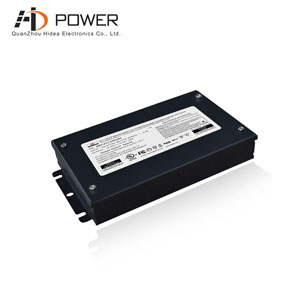

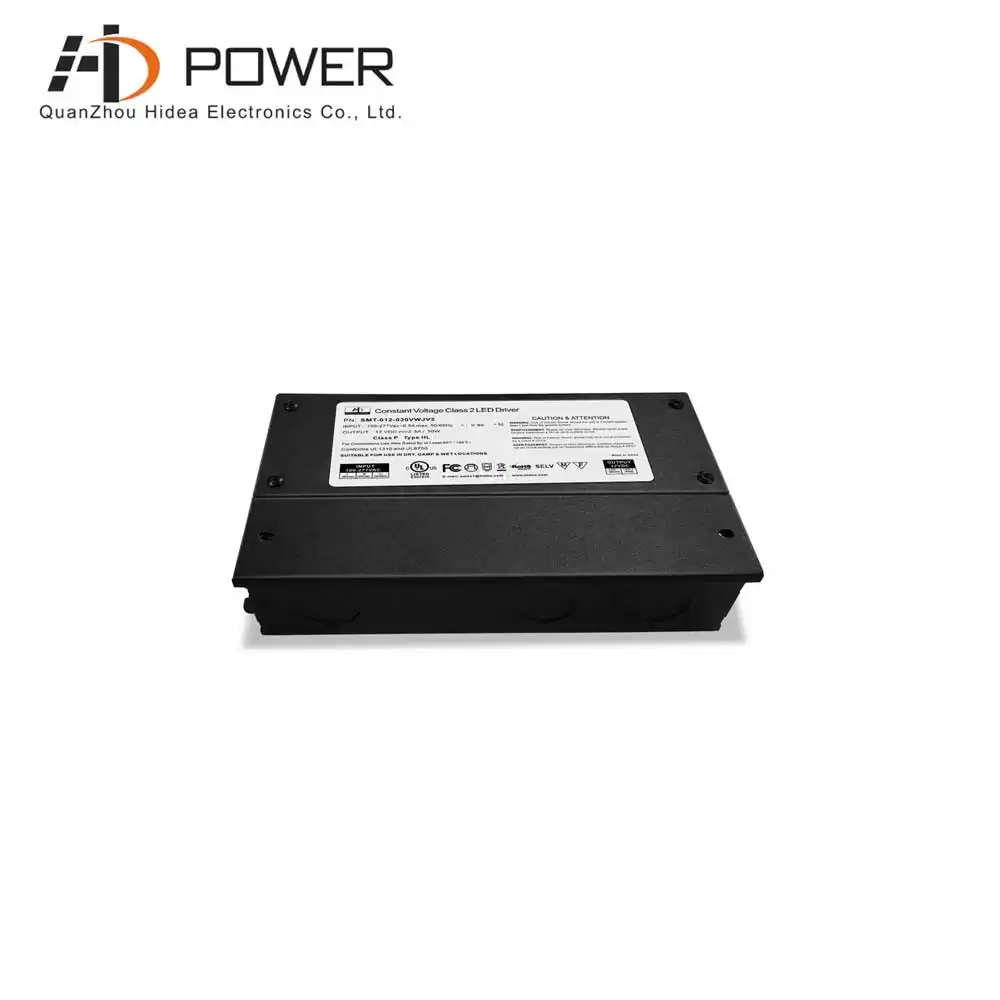

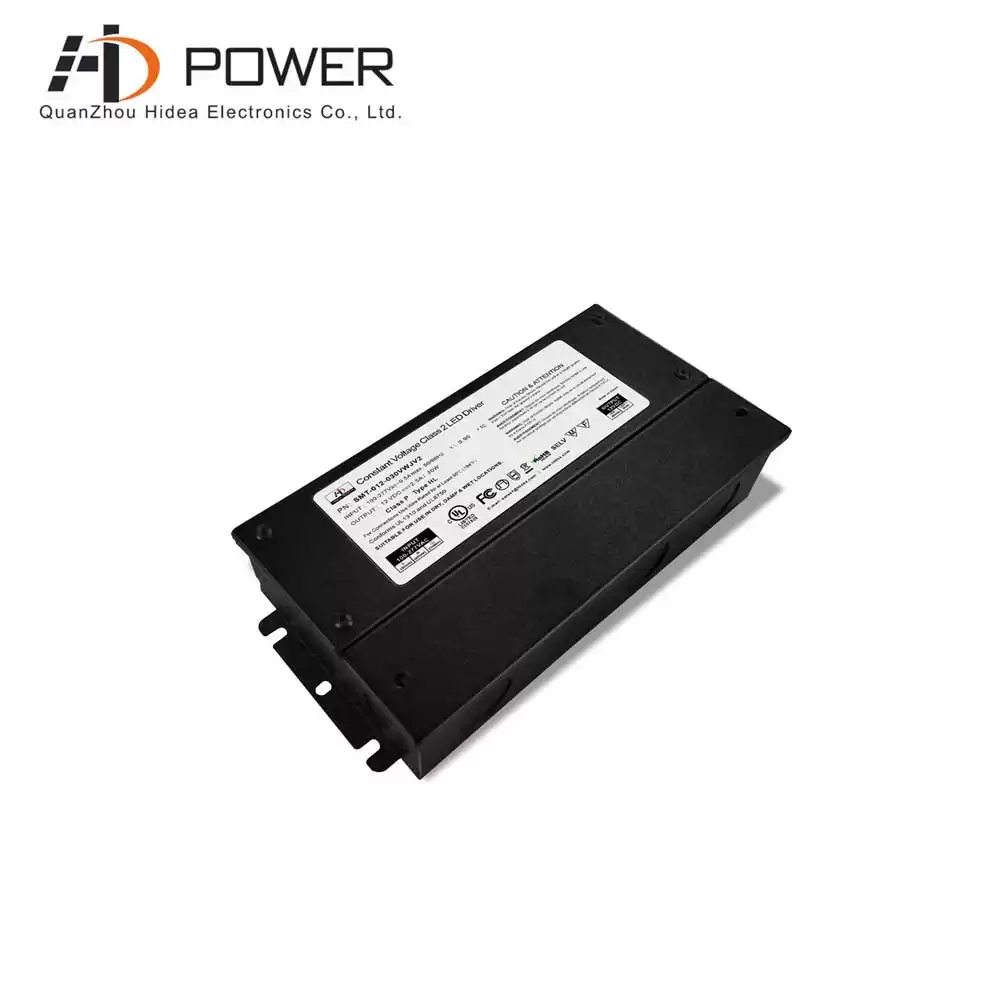

SMT-012-030VWJ is 12v 30w led driver, the input voltage is from 110 to 277VAC and output
constant voltage is 12VDC. Aluminum metal housing, easy for heat dissipation & ensure stability, suitable for Lights Upon Line led strip 12vdc 7 years warranty.
Specification
|
Model
|
SMT-012-030VWJ (1.0 version)
SMT-012-030VWJV2 (2.0 version)
|
SMT-024-030VWJ (1.0 version)
SMT-024-030VWJV2 (2.0 version)
|
|
Output
|
DC Voltage
|
12VDC
|
24VDC
|
|
Voltage Accuracy
|
±5%
|
±5%
|
|
Rated current
|
2.5Amp
|
1.25Amp
|
|
Rated power
|
30W
|
30W
|
|
Voltage Regulation
|
±0.5%
|
|
Load Regulation
|
±1%
|
|
Input
|
Voltage Range
|
100-277VAC
|
|
Frequency Range
|
47-63Hz
|
|
Power Factor (Typ.)@ full load
|
0.99@120V ;0.98@230V ;0.98@277V
|
0.99@120V ; 0.98@230V ;0.96@277V
|
|
THD (Typ.)@ full load
|
<15% @120V <20%@230V <20% @277V
|
|
Efficiency(Typ.)@ full load
|
80%@120V 79%@230V 81%@277V
|
82%@120V 82%@230V 81%@277V
|
|
AC Current(Max.)
|
0.5A (100VAC)
|
|
Inrush Current (Typ.)
|
7A,50% ,420us @120V ;30A,50% 90us@230V ;12A 50% 480us@277V
|
|
Leakage current
|
<0.50mA
|
|
Protection
|
Short Circuit
|
shut down o/p voltage, re-power on to recover after fault condition removed
|
|
Over Loading
|
≤120% shut down o/p voltage, re-power on to recover
|
|
Over temperature
|
100℃±10℃ shut down o/p voltage, automatically recover after cooling.
|
|
Environment
|
Working TEMP.
|
-40~+60℃ (see below derating curve)
|
|
Working Humidity
|
20~90%RH, non-condensing
|
|
Storage TEMP. Humidity
|
-40~+80℃,10~95%RH
|
|
TEMP .coefficient
|
±0.03%/℃(0~50℃)
|
|
Vibration
|
10~500Hz, 5G 10min./1 cycle, period for 60min. each along X,Y,Z axes
|
|
Safety&EMC
|
Safety standards
|
UL8750+UL1310
|
|
Withstand voltage
|
I/P-O/P:1.88KVAC
|
|
Isolation resistance
|
I/P-O/P:100MΩ/500VDC/25℃/70%RH
|
|
EMC EMISSION
|
FCC Part 15 B
|
|
Others
|
Weight
|
0.95Kg
|
|
Size
|
1.0 version: 165*92*40mm / 2.0 version: 165*94.5*40mm (L*W*H)
|
|
packing
|
355*215*215mm / 10PCS/CTN
|
|
Notes
|
1. All parameters NOT specially mentioned are measured at 110VAC input, Rated load and 25℃of ambient temperature.
|
|
2. Tolerance:includes set us tolerance,line regulation and load regulation .
|
Compatible Light Type
Smarts 12v 30w led driver junction box meet Class 2,UL listed with 7 years warranty, it's could drive Lights Upon Line led strip high quality, high PF>0.98 & High efficiency>90%.
