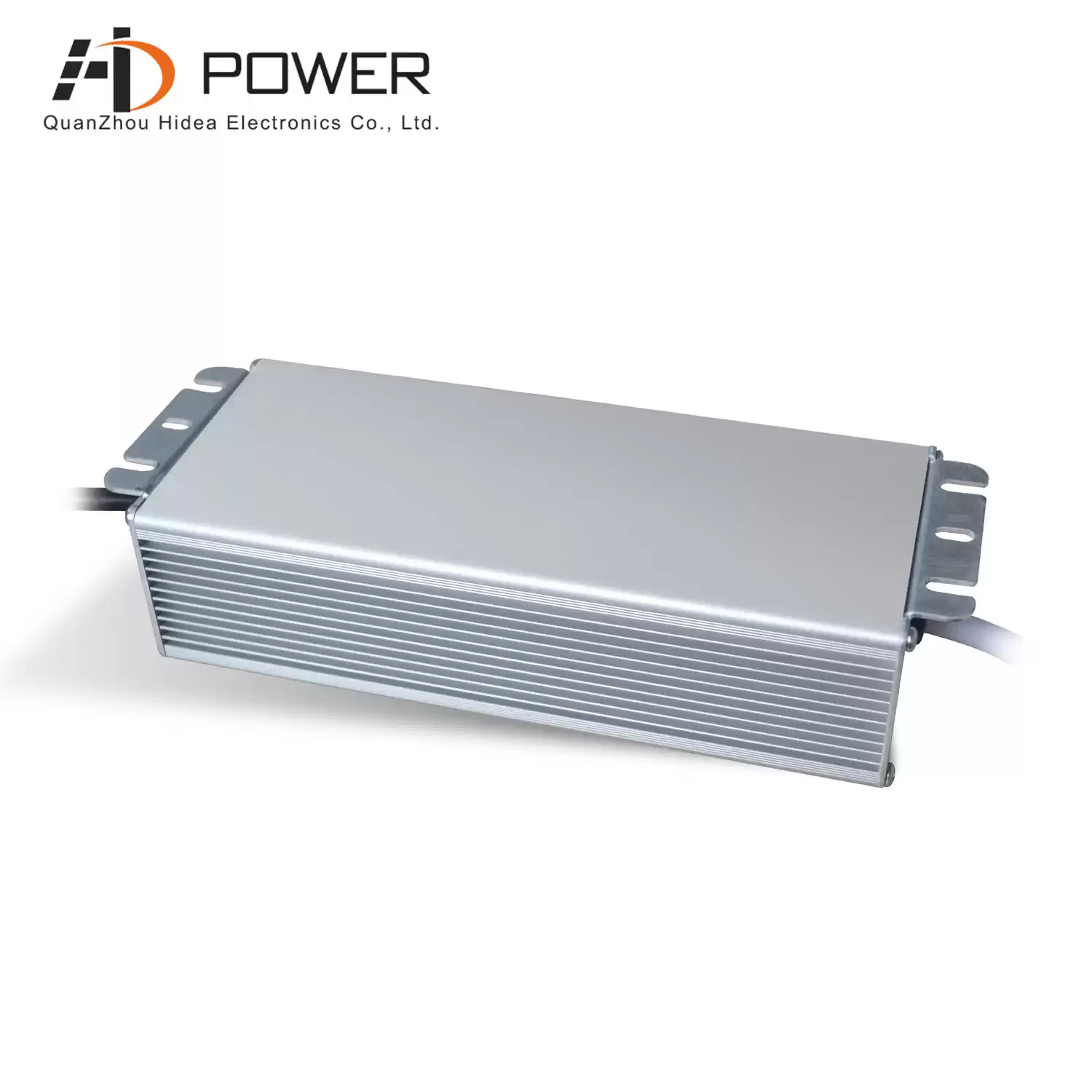

12v 24v waterproof led power supply 150w transformer led light strip outdoor led driver
12V 24V WaterProof Led Power Supply 150W Transformer Led Light Strip Outdoor Led Driver has short circuit/overload/high temperature protection, and provides 2 -year warranty for it
Specification
|
MODEL
|
SMT-012-150VE
|
SMT-024-150VE
|
|
OUTPUT
|
DC VOLTAGE
|
12V
|
24V
|
|
RATED CURRENT
|
12.5A
|
6.25A
|
|
CURRENT RANGE
|
0-12.5A
|
0-6.25A
|
|
RATED POWER
|
150W
|
150W
|
|
RIPPLE&NOISE(max)
|
<500mV
|
|
VOLTAGE TOLERANCE
|
±0.5V
|
|
INPUT
|
VOLTAGE RANGE
|
190-265VAC
|
|
FREQUENCY RANGE
|
47-63Hz
|
|
POWER FACTOR(Typ.)
|
no PFC
|
|
EFFICIENCY(Typ.)
|
》84%
|
|
AC CURRENT(Typ.)
|
1.3A/220VAC
|
|
PROTECTION
|
Short circuit
|
Hiccpe mode,recovers automatically after condition is removed
|
|
Overload
|
17A
|
|
ENVIRONMENT
|
WORKING TEMP.
|
-30~+50℃ (Refer to output load derating curve)
|
|
INGRESS PROTECTION
|
IP67 design for indoor or outdoor installations
|
|
STORAGE TEMP
|
-40~+80℃
|
|
SAFETY&EMC
|
SAFETY STANDARDS
|
EN61347-1;EN61347-2-13;SELV;IP67 approved
|
|
WITHSTAND VOLTAGE
|
I/P-O/P:2KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC
|
|
EMC Test Standards
|
|
|
NOTE
|
1.All parameters NOT specially mentioned are measured at 220VAC input,rated load and 25℃ of ambient temperature.
|
|
2.Ripple&noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf&47uf parallel capacitor.
|
|
3.Tolerance:includes set up tolerance,line regulation and load regulation.
|

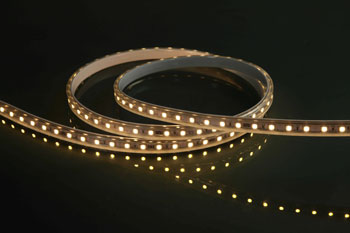

Compatible Low Voltage Device Type
CE authentication 150W waterproof constant voltage led power supply passed 100 % full load combustion test suitable for installation in the indoor or outdoor wet in Europe
Related Products
|

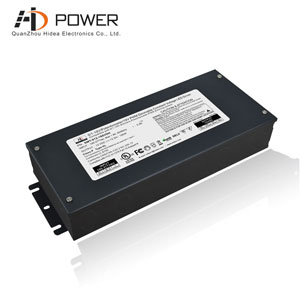

Power and wiring box integrated 0-10V dimmable led driver 150W 12V/24V
