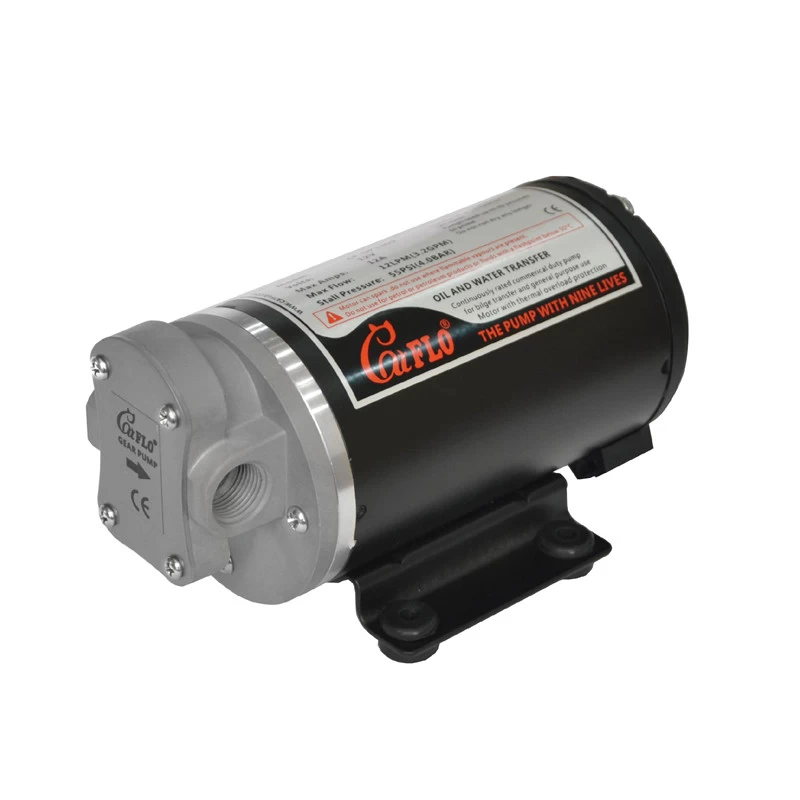

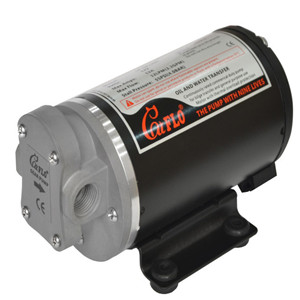

12V 3.2GPM/12LPM 55PSI DC Oil Gear Pumps
Scavenge Impeller reversible Gear pump,the best kind of pump for oil scavenging.
Bronze gears,Brass pump body. No diaphragms to fail like our competitors pumps.
Gear design for maximum scavenge.
Application
Transmission fluid (Diesel; Lubricant; Viscous liquids)
Be able to use for water and machinery fuel(except gasoline)
Industrial use
Features:
Max Flow rate: 12LPM ( 3.8gpm)
Stall Pressure: 55PSI (4.0bar)
Super wear resistance gear
Thermally protected motor
High quality efficeient motor
|
PUMP
|
|
Type
|
Thermally Protected,High Quality Efficient Motor
|
|
Max Recommended Temperature
|
60° C (140° F)
|
|
Priming Capabilities
|
3.2 feet(1m)suction lift
|
|
Pressure off
|
Shut-off Pressure 40 PSI ： 30 PSI ± 5 PSI( ± 0.3 bar)
|
|
Head
|
9.8 feet(3m)suction lift
|
|
Inlet/Outlet Ports
|
3/8" BSP*1/2’’bard
|
|
Duty cycle
|
Intermittent
|
|
Leads
|
Wire Leads
|

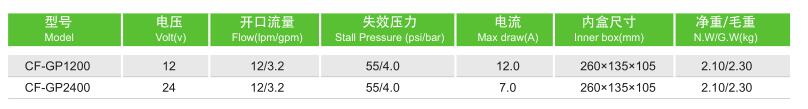

Standard Pump Configurations

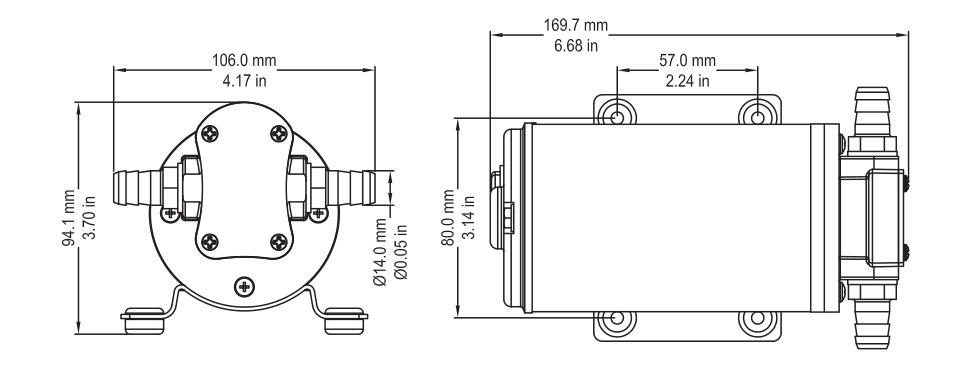

Demension

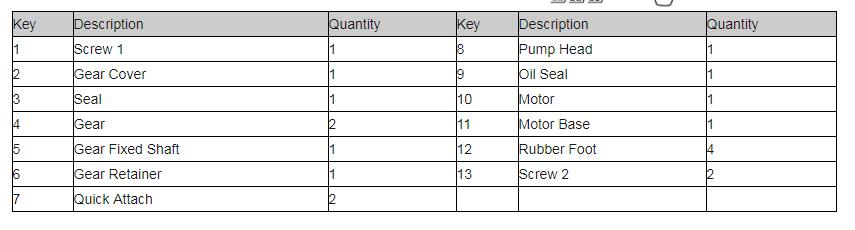

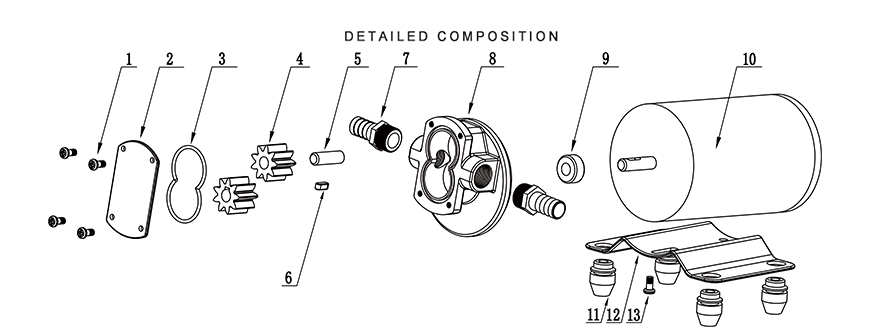

Details
