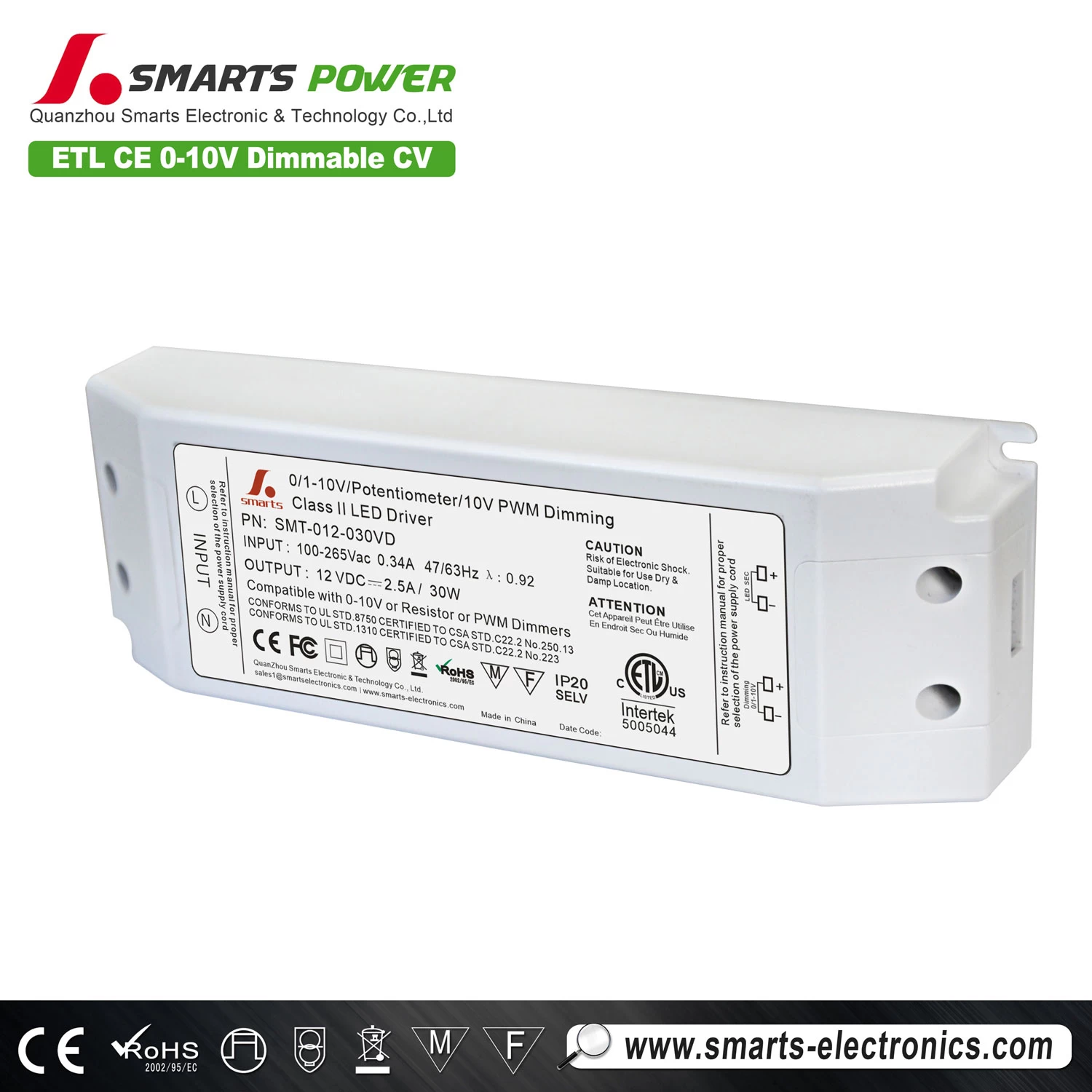

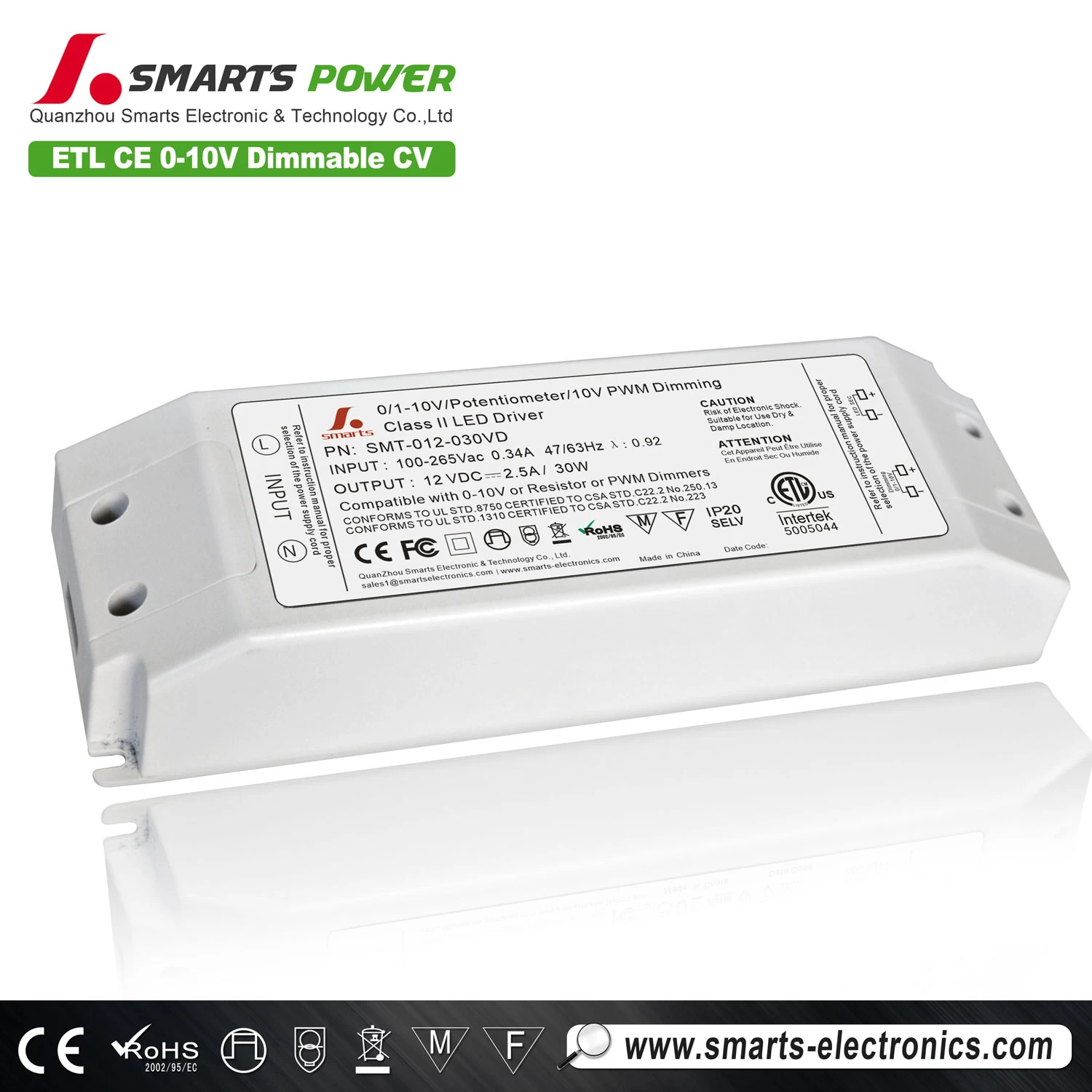

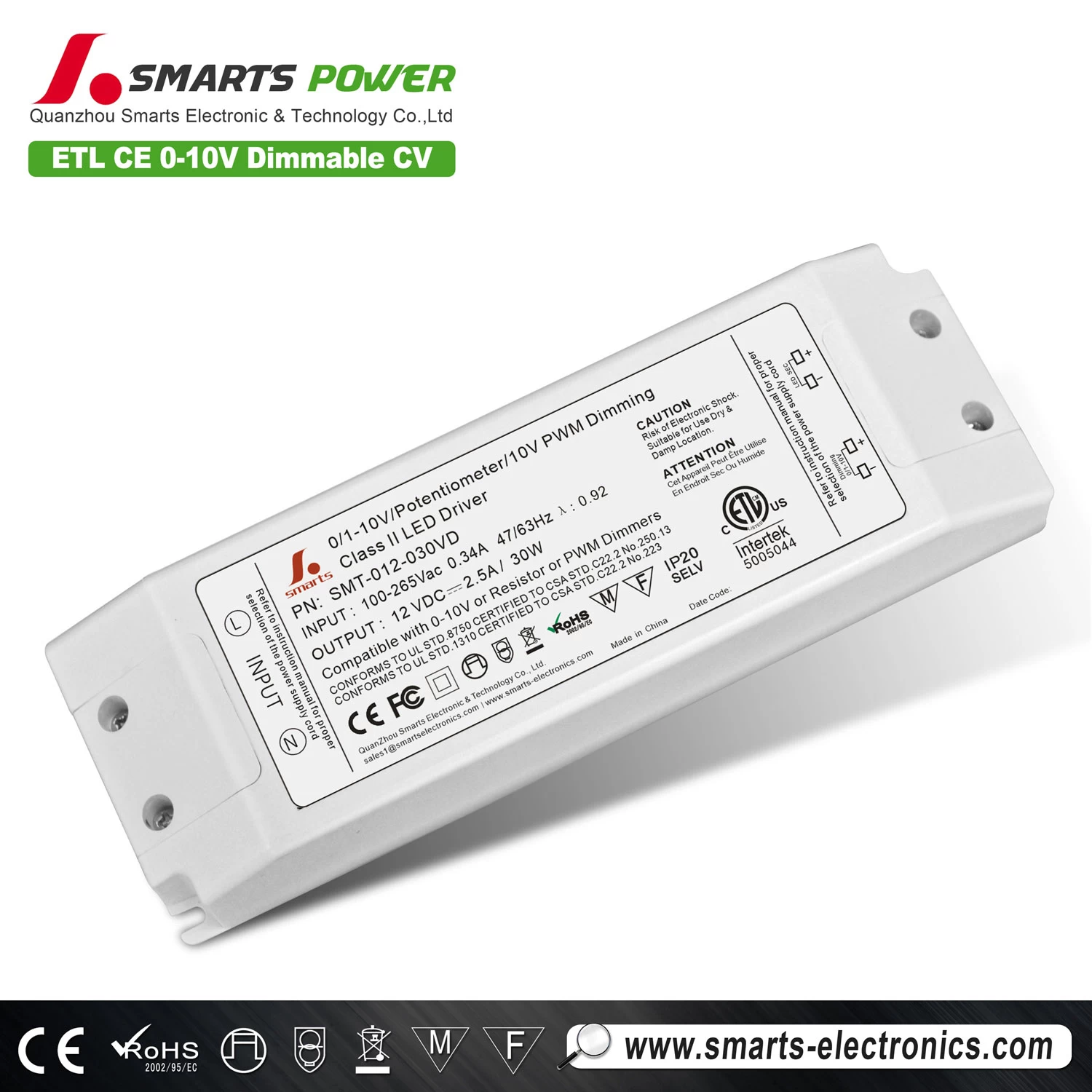

12v 30w constant voltage 0-10v led dimmable driver

Product Description

0-10v dimmable led driver
Product parameters
Model SMT-012-030VD SMT-024-030VD
Single Output features Constant voltage 12vDC 24vDC


output current 2.5Amp 1.25Amp
output power 30watt 30watt
Ripple & Noise 250mV
Current Regulation ±3%
Starting time 1000mS/230Vac, 3000mS/110Vac
Input Voltage range 100Vac-265Vac
Frequency range 47Hz-63Hz
Power factor PF>0.93/230Vac,PF>0.92/110Vac
Efficiency 87%/110Vac , 86%/230Vac
Inrush Current 20A/110Vac, 40A/230Vac
Leakage Current <1mA/120Vac,240Vac
Protection short circuit
Single Protection,Hiccup ,recovery after the fault removed.
Over voltage Protection mode:Limit highest voltage, recovery after the fault removed.
Over temperature 105oC±5 oC ( Internal radiator's temperature)
over load Protection mode:Closed Output voltage,recovery after temperature automatic recovery.


Applications:

  • indoor LED illuminating lights, LED Neon
  • LED urban Decoration,LED Lighting Advertising
  • LED Display, Safety Protection Apparatus
  • Telecommunications, Networks
