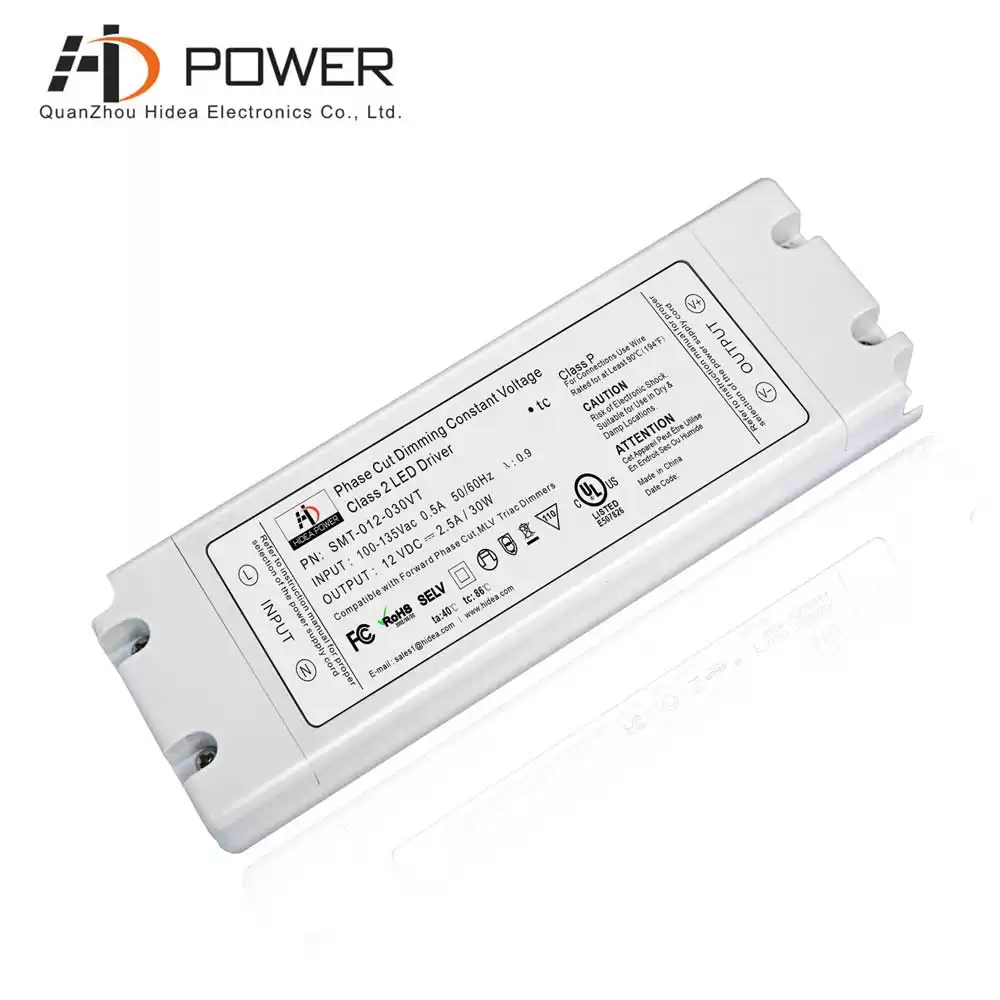

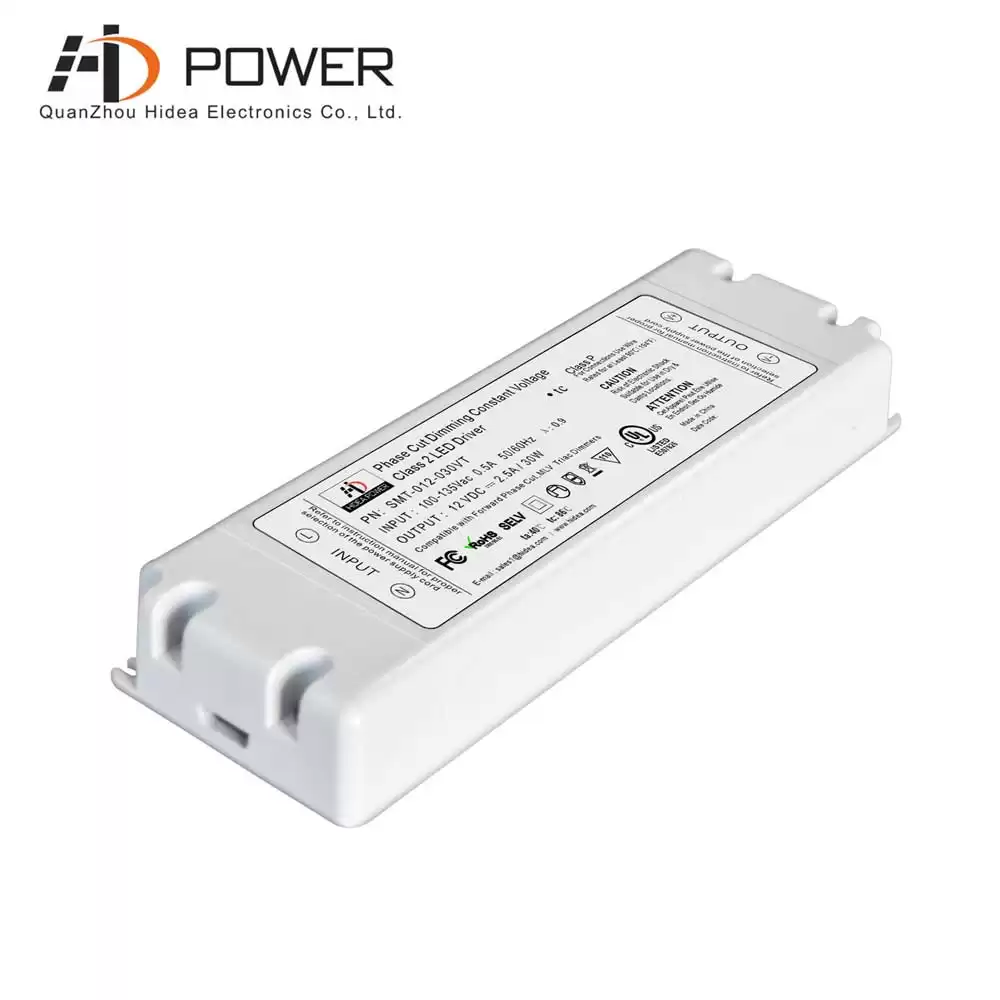

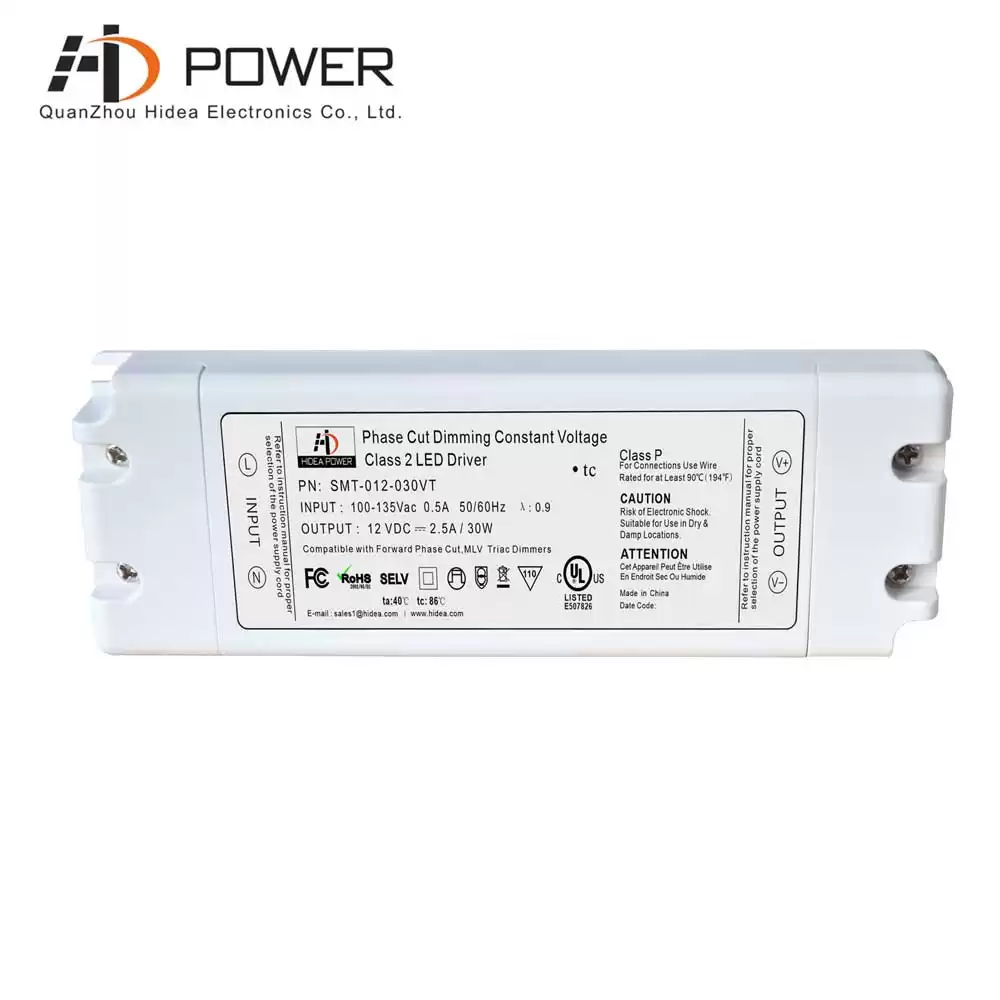

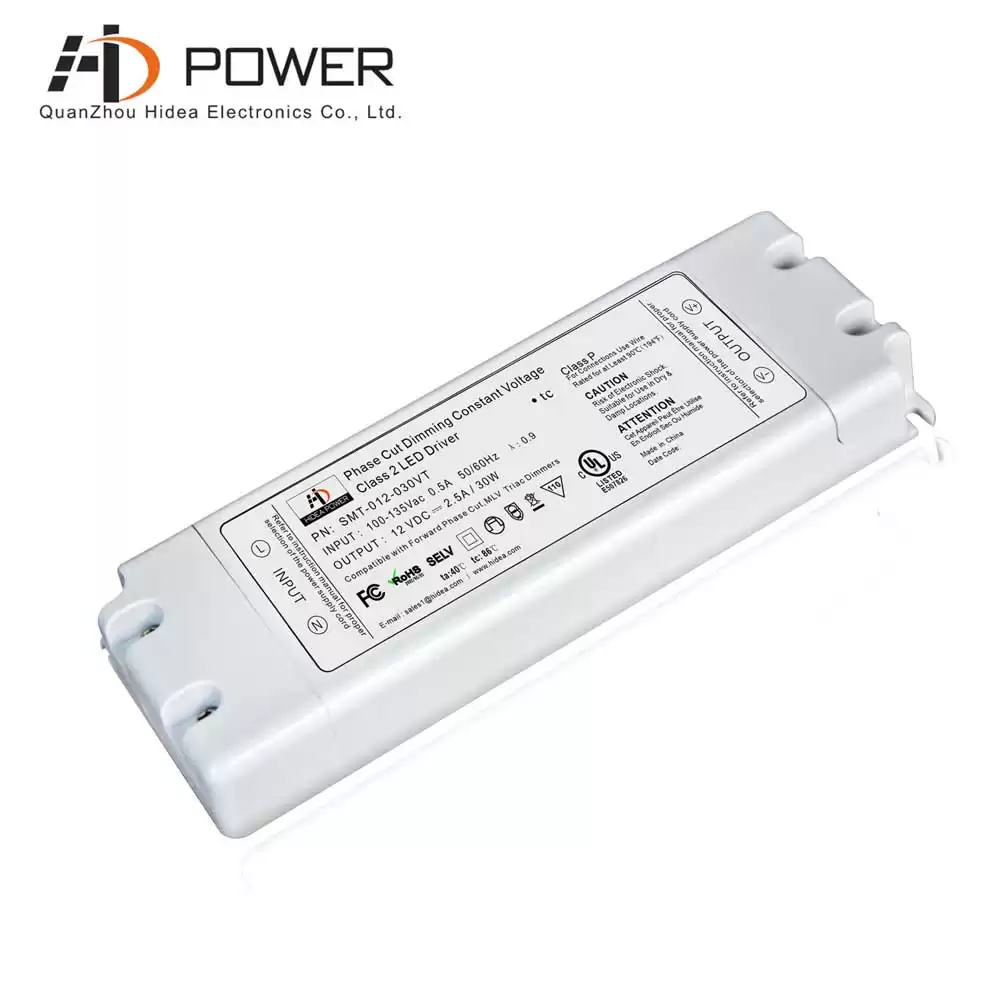

12v 30w dimmable led strip light driver power supply for led lights
Our 30w triac dim LED drivers are flexible, compact size and capable to withstand the toughest environment, which makes them the best selection for all your lighting needs. It can match well with GLLS neon lights.
- Shape & SizeStandard Size
- Output Voltage12/24Vdc
- Output Power(Watt)30W
- Input Voltage170-265Vac
- Input Voltage100-130Vac
- Working ModeConstnat Voltage LED Driver
- Dimming ModeTriac Dimming
- Size180*60*34MM
- Weight320g
- CertificationUL SAA
- Warranty5 Years
Our Electronic 12v 30w LED drivers have been designed to meet the evolving and expanding lighting industry requirements, while delivering a reliable and constant performance for a wide portfolio of LED lighting applications, such as WAVEFORM lighting.
Specification
| Model | SMT-012-030VT | SMT-024-030VT | |
| Output | DC Voltage | 12V | 24V |
| Voltage Tolerance | ±0.5V | ||
| Rated current | 2.5A | 1.25A | |
| Rated power | 30W | ||
| Input | Voltage Range | 90~135VAC / 170-265VAC | |
| Frequency Range | 47~63HZ | ||
| Power Factor | PF≥ 0.95 (Full loading) | ||
| Efficiency(Typ.) | 81% | 83% | |
| AC Current(Max.) | 0.41A | 0.4A | |
| Leakage current | ﹤0.50mA/120VAC | ||
| Protection | Short Circuit | Hiccup mode, recover automatically after fault condition is removed | |
| Over Current | ≤1.2*I out | ||
| Over Loading | ≤120% | ||
| Over temperature | 100℃±10℃,Shut down o/p voltage,recover automatically after temperature goes down. | ||
| Environment | Working TEMP. | -40~+60℃ | |
| Working Humidity | 20~90%RH, non-condensing | ||
| Storage TEMP. Humidity | -40~+80℃,10~95%RH | ||
| TEMP .coefficient | ±0.03%/℃(0~50℃) | ||
| Vibration | 10~500Hz,2G 12min./1 cycle,period for 72min. each along X,Y,Z axes | ||
| Safety standards | UL8750+UL1310 Class 2 unit | ||
| Safety& EMC | Withstand voltage | I/P-O/P:1500VAC | |
| Isolation resistance | I/P-O/P:100MΩ/500VDC/25℃/70%RH | ||
| EMC EMISSION | FCC Part 15 B | ||
| Others | Net. Weight | 0.55Kg | |
| Size | 180*60*35mm(L*W*H) | ||
| packing | 350*195*180mm 20PCS/CTN | ||
| Notes | 1. All parameters if NOT specially mentioned are measured at 120VAC/220VAC input , rated load and 25℃ of ambient temperature. | ||
| 2. To extend the driver's using life ,please reduce the loading at lower input voltage. | |||
| 3.Loading should be 60-100%. | |||
 |
 |
 |
 |
||
Compatible Light Type
This is 12v dimmable led driver and rated power is 30w with class2. About over Current is 1.4 Times output current. More than 0.7 power factor and 83% efficiency.Can be used with ELKO 315GLE dimmer.
Related Products
|

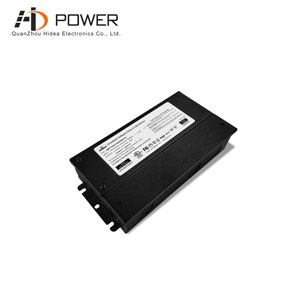

Mode：SMT-012-030VWJV2
