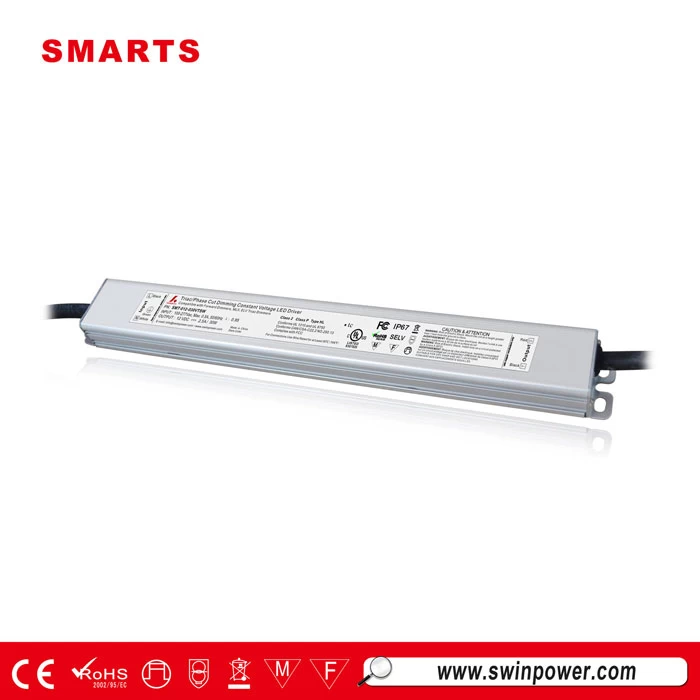

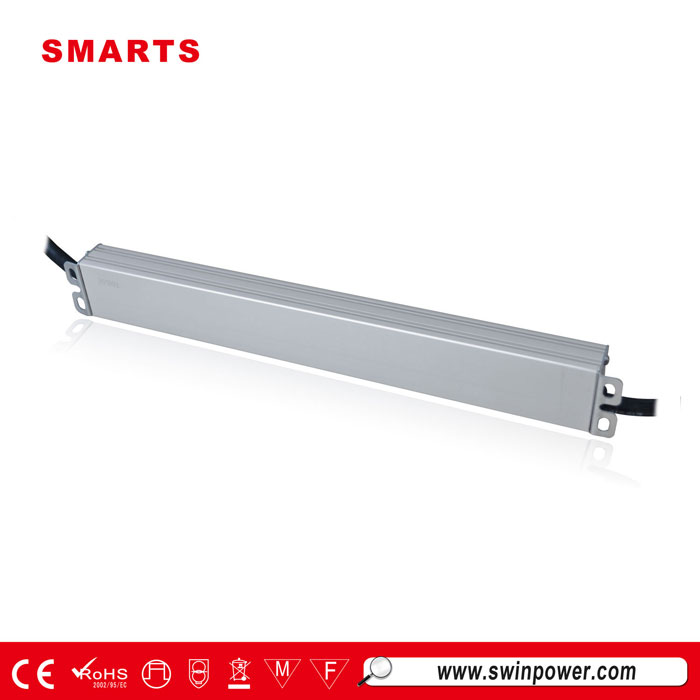

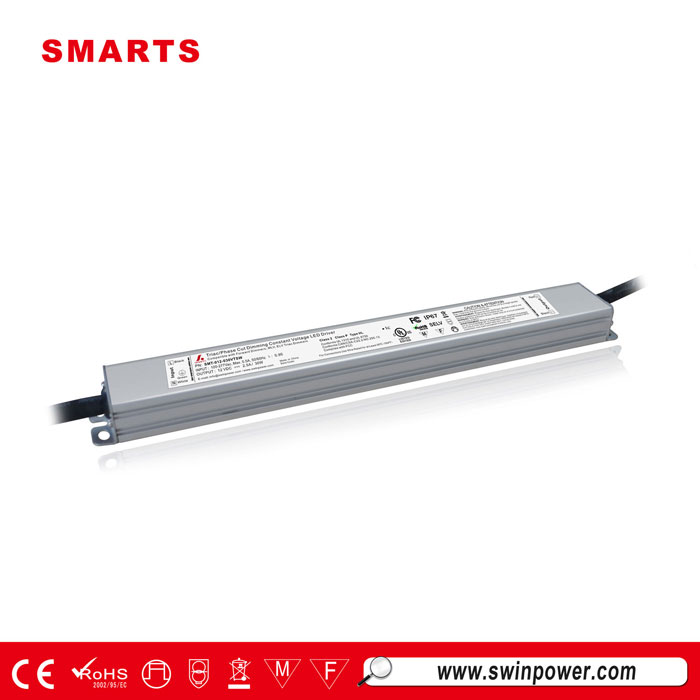

12v 30w led driver constant voltage power supply for orbit touch lamp
Features
·Output constant voltage
·Input voltage range 100-277VAC
·UL, cUL listed, Class 2, Class P approval
·Built-in PFC function / Efficiency > 80% / PF> 0.99
·Dimming range: 0~100% / load:10~100%
·Protections:short circuit/over voltage/over heat
·IP67 design for indoor dry or damp environment installations
·Cooling by free air convection
·Work with leading edge and trailing edge triac dimmers available
·PWM output, does not change the color index
·Full protection aluminum housing, for dry, damp, wet location
·Strong compatibility, flicker-free dimming
·Suitable for LED lighting and moving sign applications
·Compliance to worldwide safety regulations for lighting
·7 years warranty
Specification
|
model
|
SMT-012-030VTSW
|
SMT-024-030VTSW
|
|
Output
|
DC Voltage
|
12VDC
|
24VDC
|
|
Voltage Accuracy
|
±5%
|
±5%
|
|
Rated current
|
2.5Amp
|
1.25Amp
|
|
Rated power
|
30W
|
30W
|
|
Voltage Regulation
|
±0.5%
|
|
Load Regulation
|
±1%
±1%
|
|
Input
|
Voltage Range
|
100-277 VAC
|
|
Frequency Range
|
47～63HZ
|
|
Power Factor ( Typ.）
|
PF≧0.99/110V ; PF≧0.98/277V
|
|
Full Load Efficiency（Typ.）
|
>79%
|
>81%
|
|
AC Current（Typ.）
|
0.5A/100VAC / 0.13A/277VAC
|
|
Inrush Current（Typ.）
|
7A, 50%, 420us
|
|
Leakage current
|
<0.27mA/110VAC; ﹤0.25mA/277VAC
|
|
Protection
|
Short Circuit
|
Hiccup mode, recovers automatically after fault condition
is removed.
|
|
Over Loading
|
≤120% shut down o/p voltage, re-power on to recover
|
|
Over temperature
|
100℃±10℃ shut down o/p voltage, automatically recover after cooling.
|
|
Environment
|
Working TEMP.
|
-40～+60℃
|
|
Working Humidity
|
20～90%RH,non-condensing
|
|
Storage TEM.,Humidity
|
-40～+80℃，10～95%RH
|
|
TEMP.coefficient
|
±0.03%/℃（0～50℃）
|
|
Vibration
|
10～500Hz，2G 10min./1 cycle，period for 60min.
each along X,Y,Z axes
|
|
Safety&EMC
|
Safety standards
|
UL8750+UL1310
|
|
Withstand voltage
|
I/P-O/P:2KVAC
|
|
Isolation resistance
|
I/P-O/P：100MΩ/500VDC/25℃/70%RH
|
|
EMC EMISSION
|
FCC Part 15 B
|
|
EMC IMMUNITY
|
Compliance to EN61000-4-2,3,4,5,6,,11, ,
Alight industry level
|
|
Others
|
Weight
|
0.35Kg
|
|
Size
|
260*32*20mm (L*W*H)
|
|
packing
|
50PCS/CTN
|
|
Notes
|
1. All parameters NOT specially mentioned are measured at 110VAC, 277VAC input ,
Rated load and 25℃of ambient temperature.
2. Tolerance:includes set us tolerance,line regulation and load regulation .
|

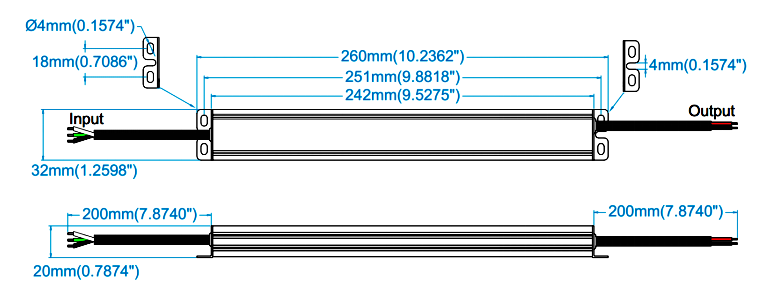

Mechanical Specification
Input:18AWG Black and White to be connected to AC L and N ,Green wire go ground,
Output: Red is（DIM+）,Black is（DIM-）

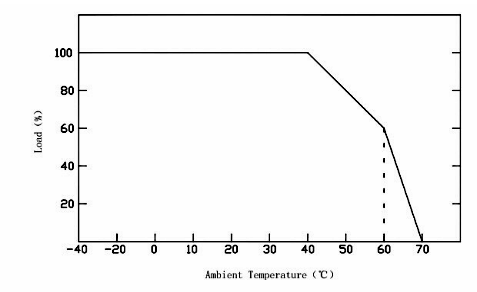

Derating Curve

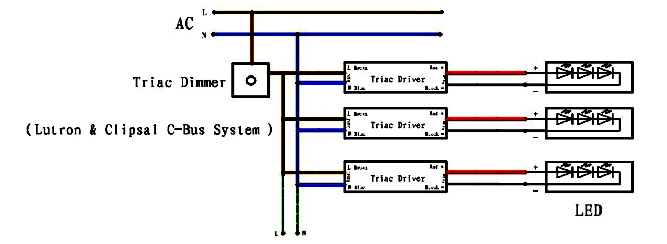

Connecting Diagram
Can all LED lights be dimmed?
The number one rule for successfully dimming LED lighting might sound obvious but it is a common misconception that any LED lights can be dimmed with an LED dimmer. ... Choose 'dimmable' lamps but be aware that this in itself is not a guarantee of a good dimming performance.
