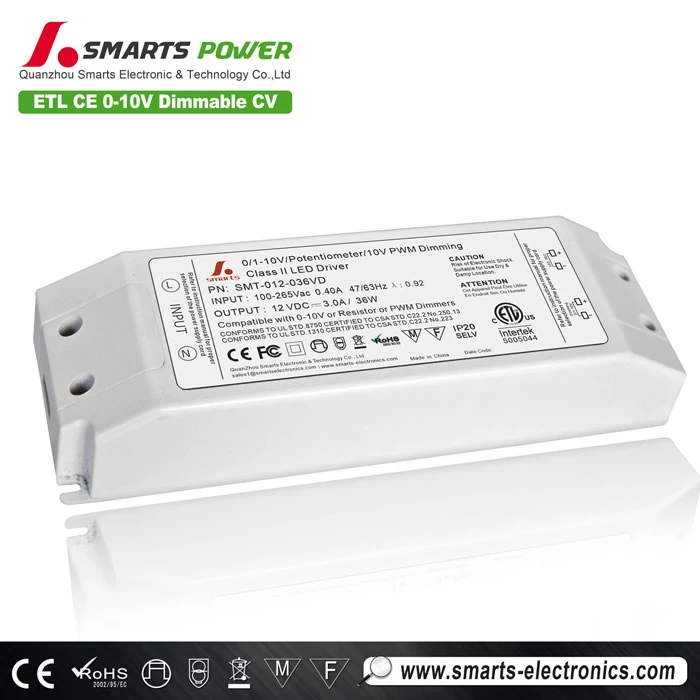

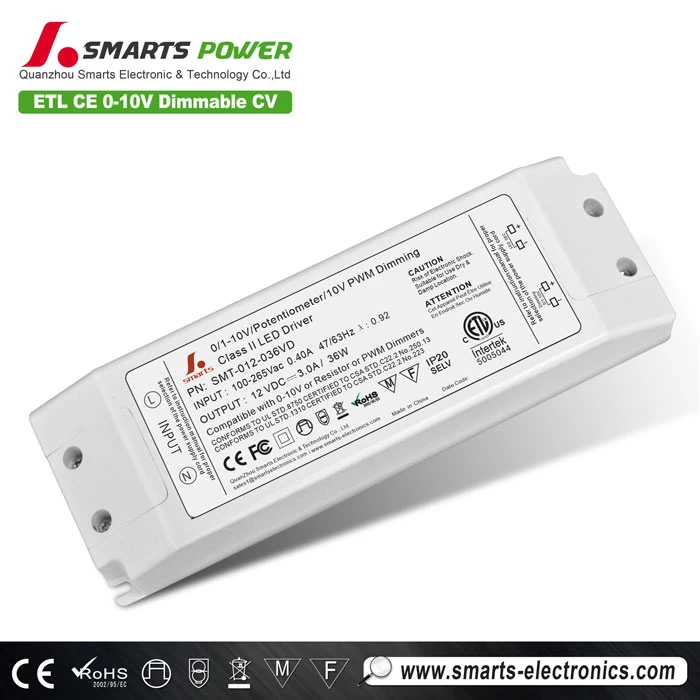

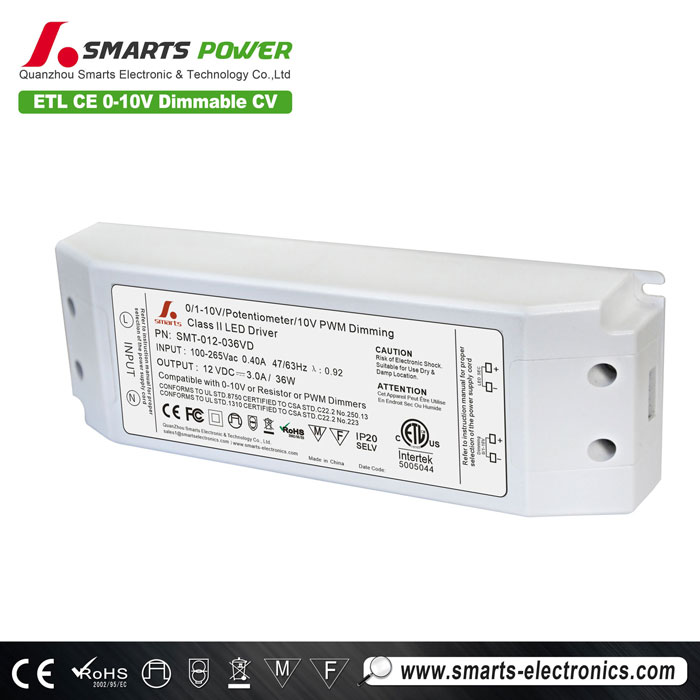

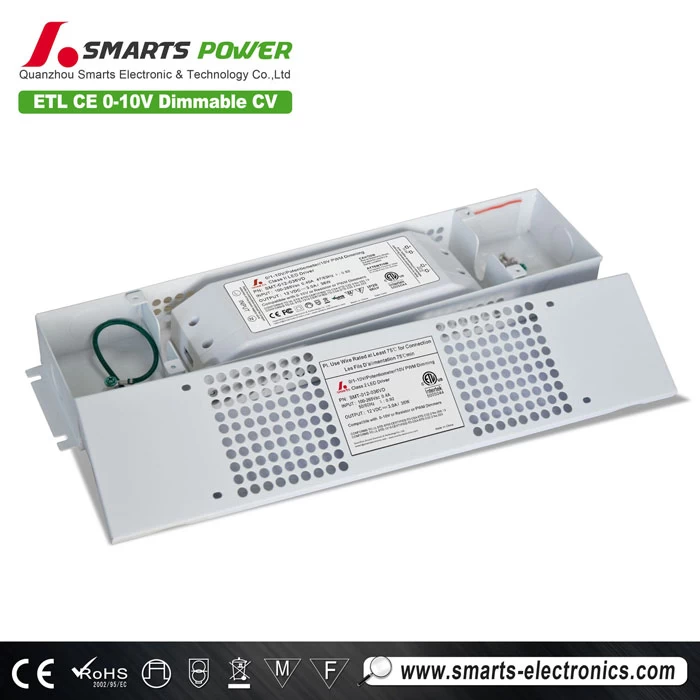

12v 36w constant voltage 0-10v dimming power supply
Product parameters
|
Model
|
SMT-012-036VD
|
SMT-024-036VD
|
|
Output
|
DC Voltage
|
12VDC
|
24VDC
|
|
voltage Accuracy
|
±3%
|
|
Current
|
3.0Amp
|
1.5Amp
|
|
Rated power
|
36W
|
36W
|
|
Input
|
Voltage Range
|
100-130VAC, 170-265VAC
|
|
Frequency Range
|
47～63HZ
|
|
PF(Typ.）
|
PF>0.90
|
|
Full Load
Efficiency（Typ）
|
>88%
|
>89%
|
|
AC Current (Typ.）
|
0.41A@110VAC
|
0.21A@220VAC
|
|
Leakage current
|
﹤0.62mA/110VAC, ﹤0.65mA/220VAC
|
|
Protection
|
Short Circuit
|
Protection type: Hiccup mode, recovers automatically after fault
condition is removed
|
|
Over voltage
|
≦280VAC
|
|
Over temperature
|
100℃±10℃ shut down o/p voltage, re-power on to recover
|
|
Environme
|
Working TEMP.
|
-40～+50℃
|
|
Working Humidity
|
20～95%RH,non-condensing
|
|
Storage TEM.,Humidity
|
-40～+80℃，10～95%RH
|
|
TEMP.coefficient
|
±0.03%/℃（0～50℃）
|
|
Vibration
|
10～500Hz，5G 12min./1 cycle，period for 72min.each along
X,Y,Z axes
|
|
Safety&EMC
|
Safety standards
|
EN61347-1 EN61347-2-13. Waterproof rate: IP40
|
|
Withstand voltage
|
I/P-O/P:3.75KVAC I/P-FG:1.88KVAC O/P-FG:0.5KVAC
|
|
Isolation resistance
|
I/P-O/P I/P-FG O/P-FG：100MΩ/500VDC/25℃/70%RH
|
|
EMC EMISSION
|
Compliance to EN55015,EN61000-3-2 (≧50%Load)
|
|
EMC IMMUNITY
|
Compliance to EN61000-4-2,3,4,5,6,8,11,EN61547,A light industry
level
|
|
Others
|
Weight
|
0.4Kg
|
|
Size
|
180*60*34mm（L*W*H）
|
|
packing
|
355*215*215mm/20pcs /CTN
|
|
Notes
|
1. All parameters NOT specially mentioned are measured at 110v~220VAC input ,
rated load and 25℃of ambient temperature.
2. Ripple& noise are measured at 20MHz of bandwidth by using a 12”twisted
pair-wire terminated with a 0.1uf &47uf parallel capacitor.
3. Tolerance:includes set us tolerance,line regulation and load regulation .
|
|
Label
|
|
Features
-
High efficiency,save energy ,protected environment.
-
High stability and low ripple, increase light efficiency and decrease light attenuation.
-
Meet to safety standard and EMC
-
Assure LED stability long lift and light efficiency by constant voltage
-
Protections:Short circuit/Overload/Over temperature
-
Cooling by free air convection
-
100% full load burn-in test.
-
Suitable for LED lighting
-
Brand electrotronic components.
-
ROHS material.
Environment
-
Working temp: -30~+50℃ (Refer to output load derating curve)
-
Working humidity: 20~99% RH non-condensing(Waterproof)
-
Storage temp. humidity: -40~+80℃,10~99%RH
Safety
-
Safety Standards : IEC 61347 –2–11 , IEC 61347 –1 , IEC 60529 , IP67 approved
-
Withstand Voltage : I/P-O/P: 3000KVAC
-
Isolation Resistance : I/P-O/P:100M Ohms/500VDC
Application
-
Indoor LED illuminating lights
-
LED Neon, LED urban Decoration
-
LED Lighting Advertising,LED Display
-
Safety Protection Apparatus
-
Telecommunications, Networks
-
Vehicle Lights, Controller Panels
