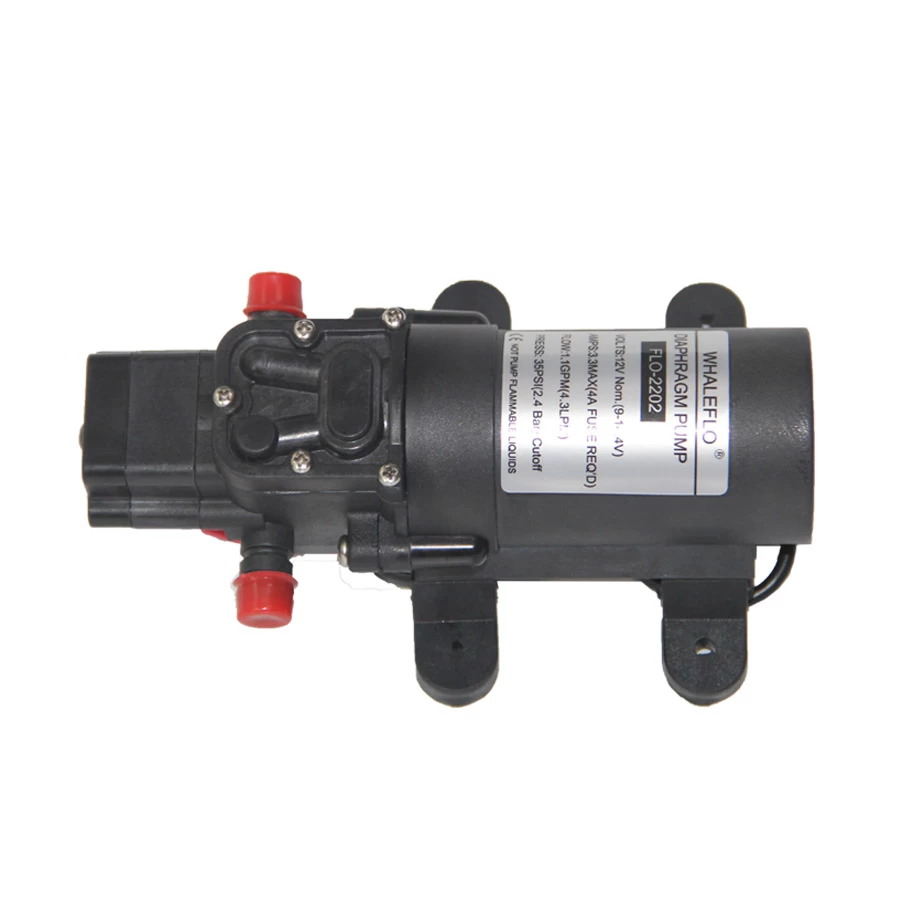

12V 4.3LPM Battery Power Camping Self-priming Water Pump Electric
Description：
Whaleflo FLo22 series is ideal water dispensing for agriculture sprayer, marine RV,Lawn and outdoor. The Pump designed basing on two diaphragm. Each of whaleflo FLO22 series has self-priming with head about 1 Meter.
Pump chamber material made of Santoprene.The inside check value is EPDM(Ethylene Propylene Diene Monomer) and Viton use widely for liquid PH value vary from 4-11PH value.
Whaleflo 12v self-priming water pump pressure switch serves from 35PSi to 80PSI,and outlet port size is 3/8” (10mm)hose barb,female thread with 1/4’’BSPT(6mm) and male thread can match different requirement.
Pump duty working: working intermittent. Pump working power: battery, Sunshine energy via Solar panel.
Performance
Self-priming ability. Can dry run with damage. Low noise, automatic pressure switch,mini and flexible, superior rubber feet with low noise.
Application
Agriculture, electric sprayer system,Atv system, beverage water dispenser,industrial field,Marine, RV,Lawn,caravan, yatch, Outdoor shower, vehichle -mounted sprayer, Misting system.
|
Model
|
Volt(V)
|
Open Flow(LPM/GPM)
|
Demend Pressure(PSI/Bar)
|
Amps Draw(A)
|
Check value
|
Diaphragm
|
Ports
|
Wire connections
|
|
FLO2201
|
12
|
2(0.52)
|
55(3.79)
|
1.8
|
EPDM/VITON
|
Santoprene
|
3/8" barb
|
2-pin /Leads
|
|
FLO2202
|
12
|
3.8(1.0)
|
35(2.41)
|
3
|
EPDM/VITON
|
Santoprene
|
3/8" barb
|
2-pin /Leads
|
|
FLO2202-1
|
12
|
4.3(1.13)
|
35(2.41)
|
3.5
|
EPDM/VITON
|
Santoprene
|
3/8" barb
|
2-pin /Leads
|
|
FLO2203
|
12
|
2.6(0.68)
|
70(4.83)
|
2.1
|
EPDM/VITON
|
Santoprene
|
3/8" barb
|
2-pin /Leads
|
|
FLO2203-1
|
12
|
3.1(0.82)
|
70(4.83)
|
2.2
|
EPDM/VITON
|
Santoprene
|
3/8" barb
|
2-pin /Leads
|
|
FLO2202A
|
12
|
4(1.05)
|
80(5.52)
|
2.6
|
EPDM/VITON
|
Santoprene
|
3/8" barb
|
2-pin /Leads
|
|
FLO2401
|
24
|
2(0.53)
|
55(3.79)
|
0.9
|
EPDM/VITON
|
Santoprene
|
3/8" barb
|
2-pin /Leads
|
|
FLO2402
|
24
|
3.8(1.0)
|
35(2.41)
|
1.5
|
EPDM/VITON
|
Santoprene
|
3/8" barb
|
2-pin /Leads
|
|
FLO2403
|
24
|
2.6(0.68)
|
70(4.83)
|
1
|
EPDM/VITON
|
Santoprene
|
3/8" barb
|
2-pin /Leads
|
|
FLO2402A
|
24
|
4(1.05)
|
80(5.5.2)
|
1.3
|
EPDM/VITON
|
Santoprene
|
3/8" barb
|
2-pin /Leads
|
|
Item Name
|
12v self priming water pump
|
Dimension/PC
|
18.5*11*6.5cm
|
Net Weight/pc
|
0.64KG
|
Gross Weight/pc
|
0.72kG
|
Carton Dimension(50pcs)
|
56.5*38.5*36.5cm
|
