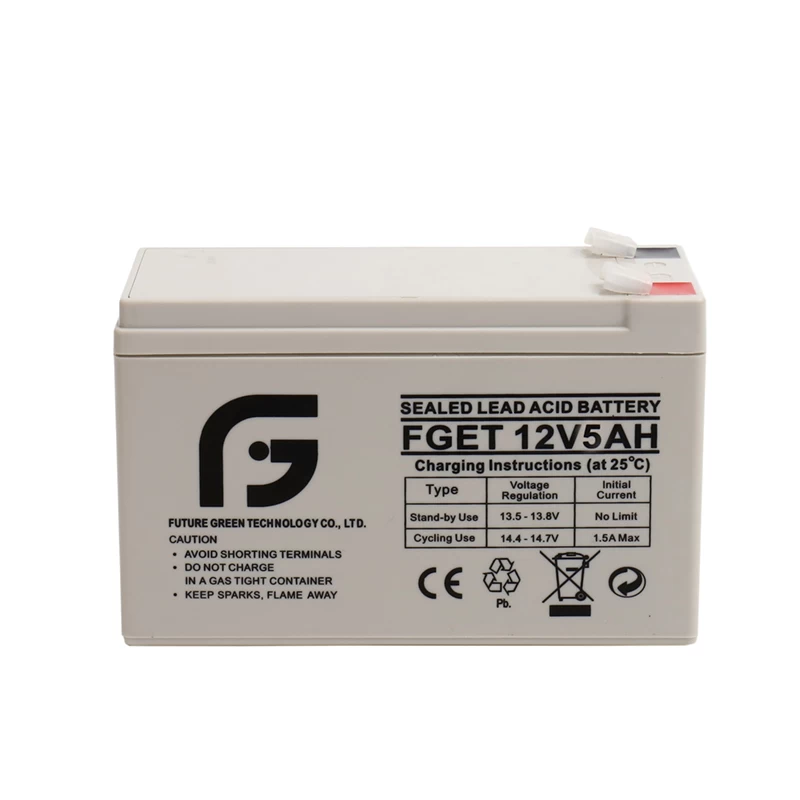

Future Green 12V 5AH Type B Top Sales Sealed Lead Acid VRLA UPS Battery
Main Application and General Features of AGM Battery Series:
This 12V rechargeable sealed lead acid battery is a compatible replacement for Ritar RT1250 batteries. The voltage, capacity, and physical dimensions of this high quality battery are nearly identical to the Ritar RT1250 battery. The manufacturer of this battery has ISO9001 and ISO14001 certification with UL and CE approvals.
|
Product Series
|
AS series small size（Capacity below 33Ah）
|
AM series mediuml size（6V,12V,Capacity above 33Ah）
|
SL series large size（2V, Capacity above 65Ah）
|
|
Main Applications
|
1) Small UPS
2) Baby carriage, scooter, lawn mower, bag car
3) Electronic scales, portable lamps, table lamps, garden lamps, electric fans
4) Instrumentation equipment such as electronics, power tools, and electric toys, etc.
5) Car starter, generator
6) Solar/ wind energy indicator lights, signal lights, emergency lights, fire alarms and security systems
7) Consumer products supporting power supply, etc.
|
1) Medium and large UPS
2) Banking, finance, traffic signals (metro, railway, highway, air station, navigation mark, etc.) system
3) Power DC screen
4) Emergency power supply (EPS)
5) DC power supply for hospitals, laboratories, schools, and research institutes
6) Electronics, equipment
7) Automation control system, etc.
|
1) Communication base station/office
2) Backup power supply for power DC screen, power communication backup power supply
3) Large IDC machine room backup power supply, large UPS backup power supply
4) Solar/ wind energy off-grid energy storage system
|
|
General Features
|
●Affordable, consumer design
●Children's car, lamps, scales, etc. adopt cycle technology, deep cycle and long discharge life
●The starter adopts cast welding and wall welding technology, and has excellent super-current discharge performance.
|
●High capacity design, longer standby time
●High corrosion-resistant multi-alloy grid, long life of float charge
● A variety of sizes, suitable for a variety of equipment or cabinet installation
|
●Thick plate, low density, internalized design, long life of floating charge, suitable for standby power supply
|
Battery Use and Maintenance:
1) Please use constant-voltage charge.
2) In floating charge, the voltage is 2.23 to 2.27 per unit cell.
3) In cycle use, the voltage is 2.35 to 2.45 per unit cell, the max. Current is no more than 25%° C
4) Please do tighten the bolts to avoid sparkle and poor contact when the battery is in use.
5) Please do not use it near the heat source and open flame.
6) Please keep it at low temperature. Please change it while there is liquid leaking or damage.

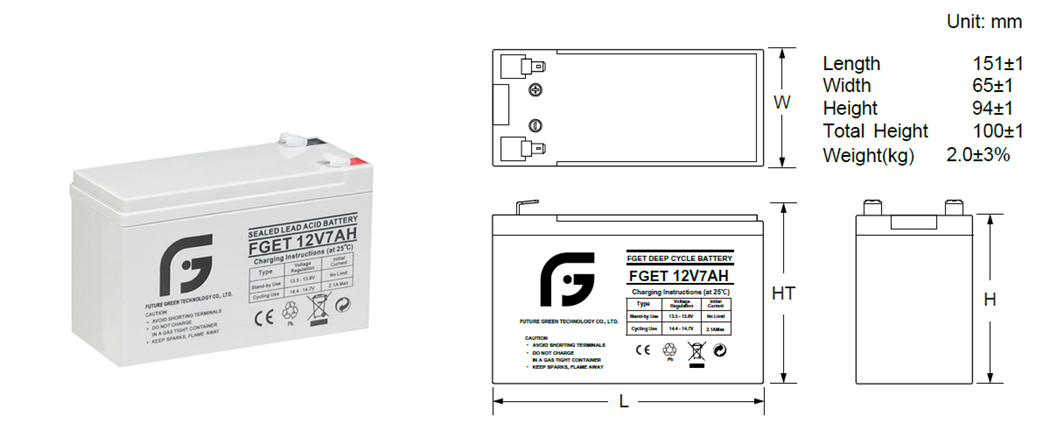

Battery Out Size:
Battery Parameters:
|
1. Functional Parameter
|
5. Environment Temperature
|
|
Nominal Voltage
|
12V
|
Discharge
Temperature
|
-15~50ºC
|
|
Nominal Capacity (20 hour rate)
|
5Ah
|
Charge
Temperature
|
0~40ºC
|
|
Number of Cells
|
6cells
|
Storage
Temperature
|
-15~40ºC
|
|
2. Rated Capacity at 25ºC (77° F)
|
6. Inner Resistance & Max . Discharge
Current
|
|
20 hour rate (0.05C, 10.8V)
|
5Ah
|
Fully
Charged battery at 25ºC (77° F)
|
<35mΩ
|
|
5 hour rate (0.165C, 10.8V)
|
4.48Ah
|
Max.
Discharge Current (7 min)
|
14.9A
|
|
1 hour rate (0.55C, 10.5V)
|
3.19Ah
|
Short
Circuit Current (10 sec)
|
50.0A
|
|
3. Capacity affected by Temperature (20 hour
rate)
|
7. Self-discharge at 25ºC (77° F)
|
|
40ºC (104° F)
|
103%
|
Capacity
after 3 month storage
|
91%
|
|
25ºC (77° F)
|
100%
|
Capacity
after 6 month storage
|
82%
|
|
0ºC (32° F)
|
85%
|
Capacity
after 9 month storage
|
73%
|
|
-15ºC (5° F)
|
65%
|
Capacity
after 12 month storage
|
64%
|
|
4. Dimension and Weight
|
8. Constant voltage charging at 25ºC (77° F)
|
|
Length
|
90mm
|
Cyclic
use
|
14.4~14.9V
|
|
Width
|
70mm
|
Maximum
charging current
|
1.5A
|
|
Height
|
101mm
|
Temperature
compensation
|
-30mV/ºC
|
|
Total Height
|
107mm
|
Float
use
|
13.6~13.8V
|
|
Reference Weight
|
1.6kg
|
Temperature
compensation
|
-20mV/ºC
|
Lead acid battery series:
|
Model
|
Voltage
|
Capacity
|
Size
|
Plate
|
Weight
|
Download
|
|
(20h)
|
(mm)
|
Number
|
(kg)
|
|
AS12V1.3Ah
|
12V
|
1.3Ah
|
97*43*51*57
|
30
|
0.56
|
|
|
AS12V2.3Ah
|
12V
|
2.3Ah
|
178*35*61*67
|
36
|
0.78
|
|
|
AS12V3.2Ah
|
12V
|
3.2Ah
|
134*67*61*67
|
36
|
1.2
|
|
|
AS12V4Ah
|
12V
|
4Ah
|
90*70*101*107
|
36
|
1.4
|
|
|
AS12V4.5Ah
|
12V
|
4.5Ah
|
90*70*101*107
|
36
|
1.45
|
|
|
AS12V5.5Ah
|
12V
|
5.5Ah
|
90*70*101*107
|
36
|
1.6
|
|
|
AS12V6Ah
|
12V
|
6Ah
|
151*65*94*100
|
48
|
1.9
|
|
|
AS12V7Ah
|
12V
|
7Ah
|
151*65*94*100
|
48
|
2
|
|
|
AS12V7.2Ah
|
12V
|
7.2Ah
|
151*65*94*100
|
54
|
2.1
|
|
AS12V8Ah
|
12V
|
8Ah
|
151*65*94*100
|
48
|
2.3
|
|
|
AS12V9Ah
|
12V
|
9Ah
|
151*65*94*100
|
54
|
2.6
|
|
AS12V10Ah
|
12V
|
10Ah
|
151*98*95*101
|
72
|
3
|
|
|
AS12V12Ah
|
12V
|
12Ah
|
151*98*95*101
|
78
|
3.5
|
|
AS12V15Ah
|
12V
|
15Ah
|
181*77*167*167
|
42
|
4.6
|
|
|
AS12V17Ah
|
12V
|
17Ah
|
181*77*167*167
|
48
|
4.9
|
|
AS12V18Ah
|
12V
|
18Ah
|
181*77*167*167
|
48
|
5.15
|
|
AS12V20Ah
|
12V
|
20Ah
|
181*77*167*167
|
54
|
5.6
|
|
AS12V22Ah
|
12V
|
22Ah
|
181*77*167*167
|
54
|
6
|
|
|
AS12V24Ah
|
12V
|
24Ah
|
177*165*126*126
|
66
|
7.3
|
|
AS12V26Ah
|
12V
|
26Ah
|
177*165*126*126
|
66
|
7.9
|
|
AS12V28Ah
|
12V
|
28Ah
|
177*165*126*126
|
78
|
8.3
|
|
More at : https://www.futuregreenbattery.com/category/downloads/1
|
