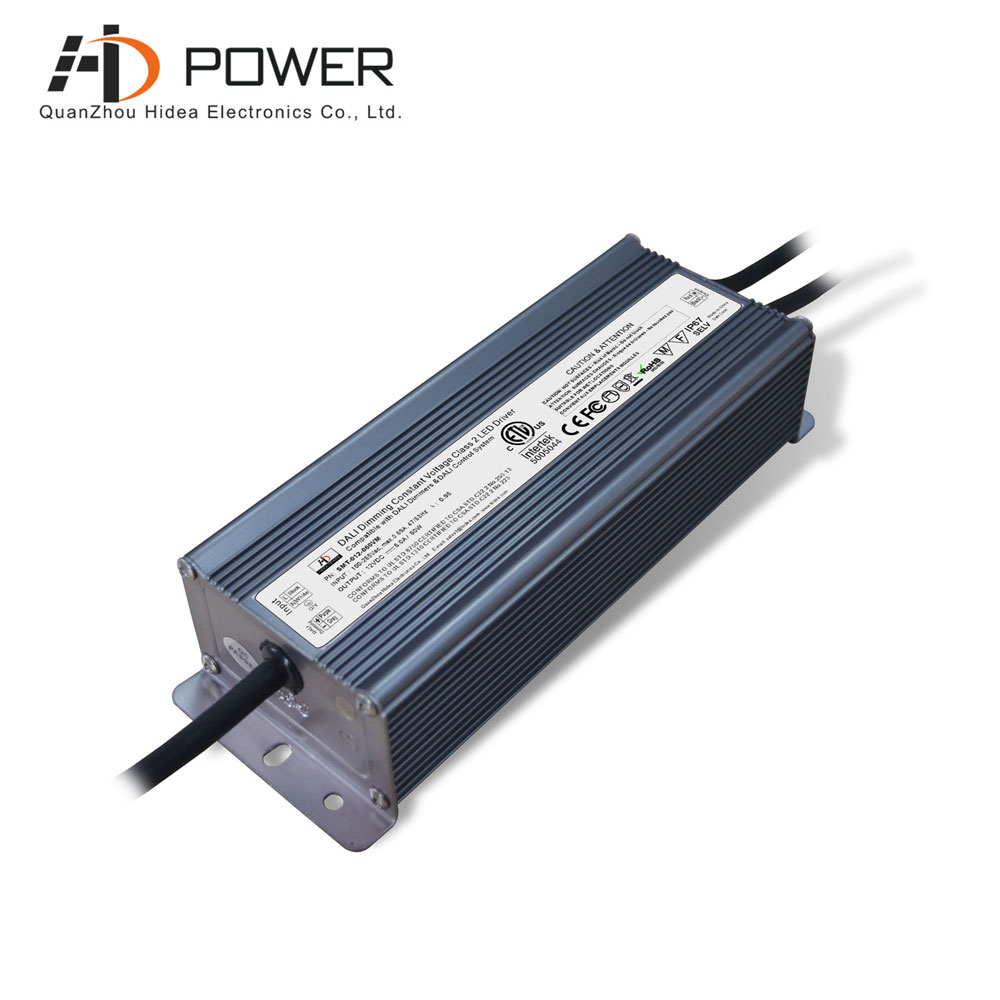

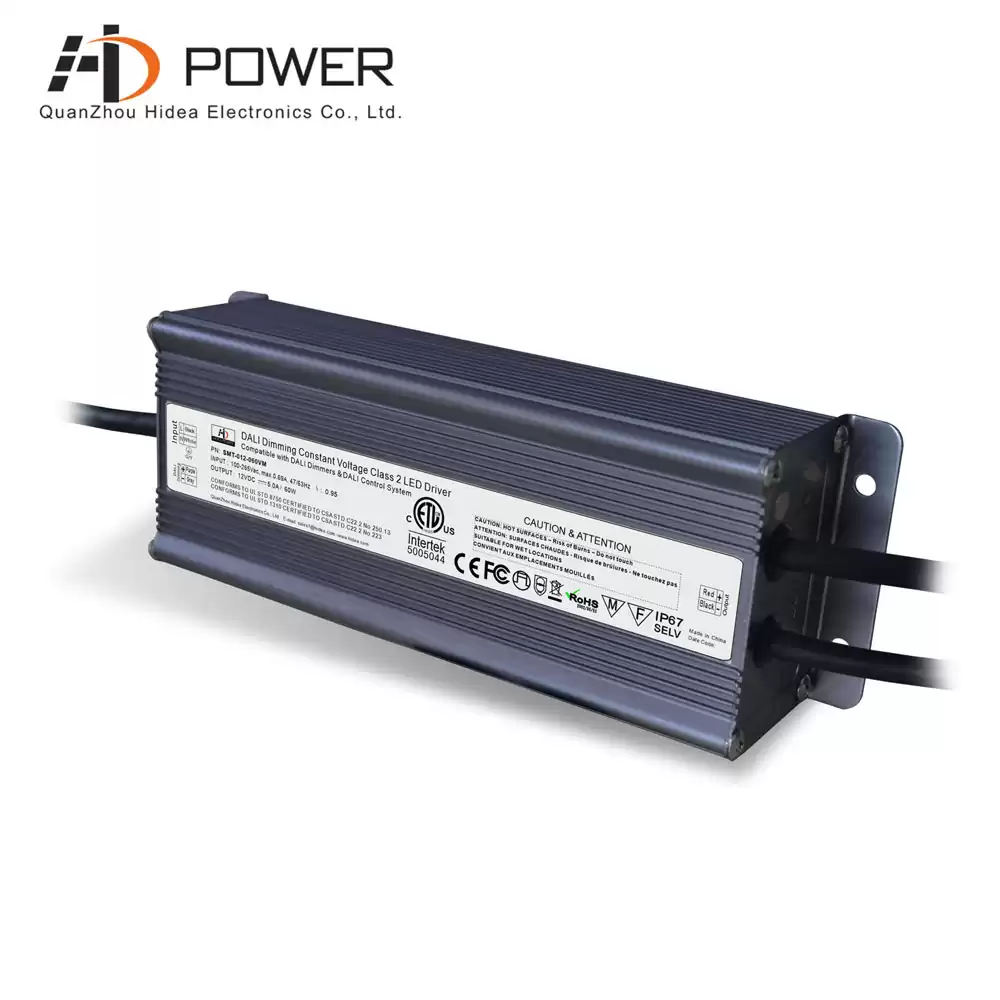

Our dali dimmable driver led 60w 12v are compliance to EN61000-4-2,3,4,5,6 ,11,EN61547, the complete certificate can meet the needs of major markets by working with Roll Lights LED Strip Lights Single Color.
Specification
|
Model
|
SMT-012-060VM
|
SMT-024-060VM
|
|
Output
|
DC Voltage
|
12V
|
24V
|
|
Voltage Accuracy
|
±0.5V
|
|
Rated current
|
5.0A
|
2.5A
|
|
Rated power
|
60W
|
60W
|
|
Input
|
Voltage Range
|
100-265VAC
|
|
Frequency Range
|
47~63HZ
|
|
Power Factor ( Typ.)
|
PF≧0.90/110V ; PF≧0.90/220V
|
|
Full Load Efficiency(Typ.)
|
>88%
|
>88%
|
|
AC Current(Typ.)
|
0.69A@110VAC
|
|
Leakage current
|
﹤0.70mA/110VAC ; ﹤0.75mA/220VAC
|
|
Protection
|
Short Circuit
|
Protection type: Hiccup mode, recovers automatically after fault condition is removed
|
|
Waterproof rate
|
IP67
|
|
Over Current
|
≦1.4*Iout
|
|
Over temperature
|
100℃±10℃ shut down o/p voltage, re-power on to recover
|
|
Environment
|
Working TEMP.
|
-40~+50℃
|
|
Working Humidity
|
20~95%RH,non-condensing
|
|
Storage TEM.,Humidity
|
-40~+80℃,10~95%RH
|
|
TEMP.coefficient
|
±0.03%/℃(0~50℃)
|
|
Vibration
|
10~500Hz,5G 12min./1 cycle,period for 72min.each along X,Y,Z axes
|
|
Safety&EMC
|
Safety standards
|
EN61347-1 EN61347-2-13
|
|
Withstand voltage
|
I/P-O/P:3.75KVAC I/P-FG:1.88KVAC O/P-FG:0.5KVAC
|
|
Isolation resistance
|
I/P-O/P I/P-FG O/P-FG:100MΩ/500VDC/25℃/70%RH
|
|
EMC EMISSION
|
Compliance toEN55015,EN61000-3-2 (≧50%load)
|
|
EMC IMMUNITY
|
Compliance to EN61000-4-2,3,4,5,6 ,11,EN61547,A light industry level (surge4KV)
|
|
Others
|
Weight
|
1Kg
|
|
Size
|
210*69*45mm(L*W*H)
|
|
packing
|
355*215*215mm/10pcs/CTN 220*70*50 mm for inner box
|
|
Notes
|
1. All parameters NOT specially mentioned are measured at 110V~220VAC input , rated load and 25℃of ambient temperature.
|
|
2. Ripple& noise are measured at 20MHz of bandwidth by using a 12”twisted pair-wire terminated with a 0.1uf &47uf parallel capacitor.
|
|
3. Tolerance:includes set us tolerance,line regulation and load regulation .
|
Compatible Light Type
Smarts are in the field of designing and manufacturing innovative LED drivers and triav, 0-10V & led dali driver for lighting & electrical manufacturers. It's the best led driver for Roll Lights LED Strip Lights 9.5x12x22mm.
