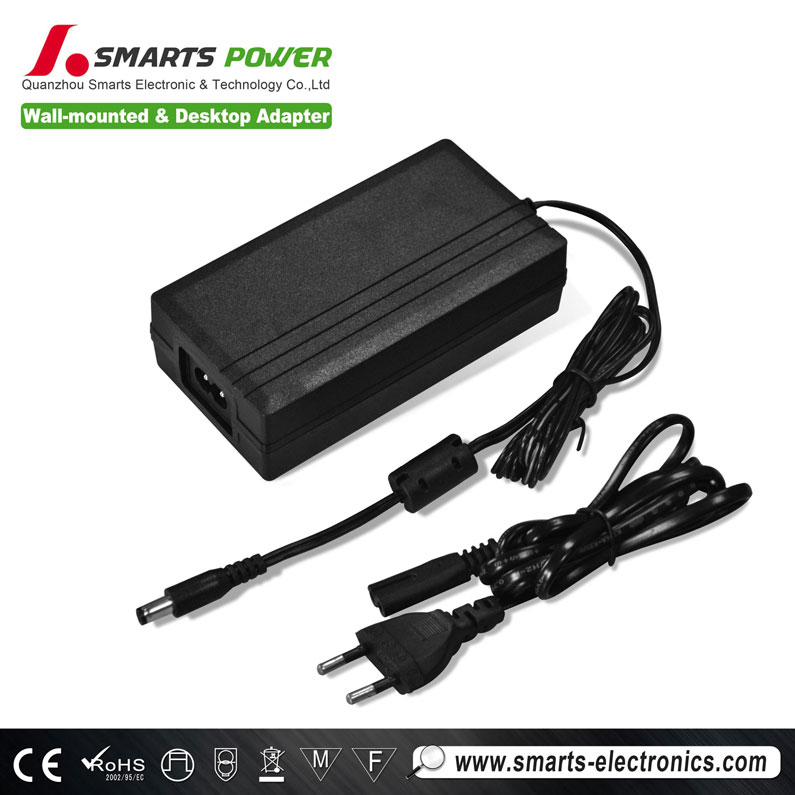

12v 60w power adapter-CE ROHS approval
Features :
• Universal AC input: 100~240Vac
• Protections: Short circuit / Overload
• No load power consumption < 0.5W /Over voltage

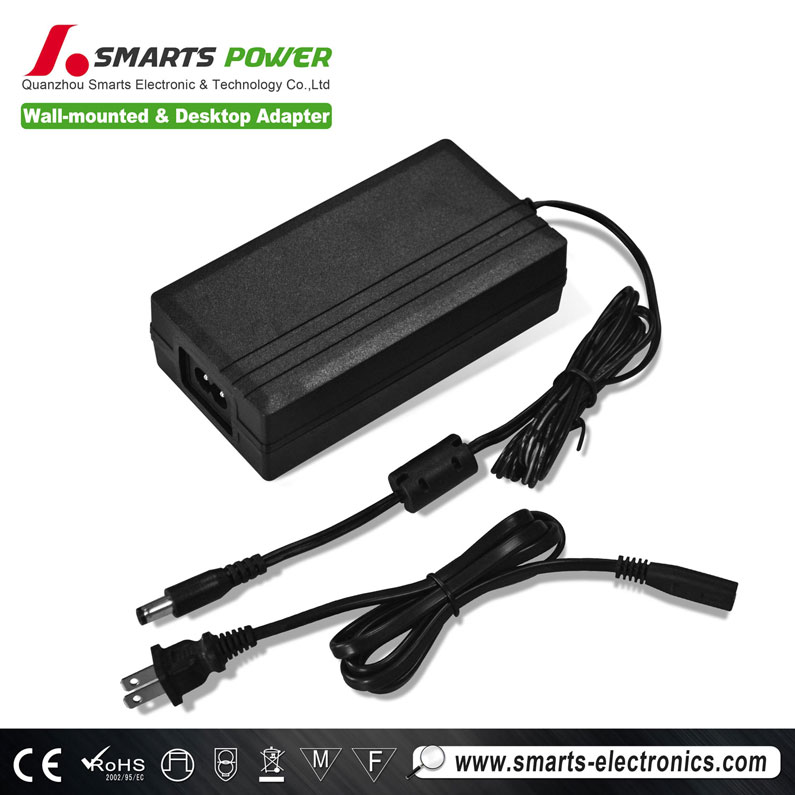

• 2 pole US / European type plug
• Fully enclosed plastic case
• Class II power (without earth pin)
• Pass LPS
• Full output 3~48V safety approved
• 18 months warranty
General Specification：
(AC/DC Desktop type switching power adapter)

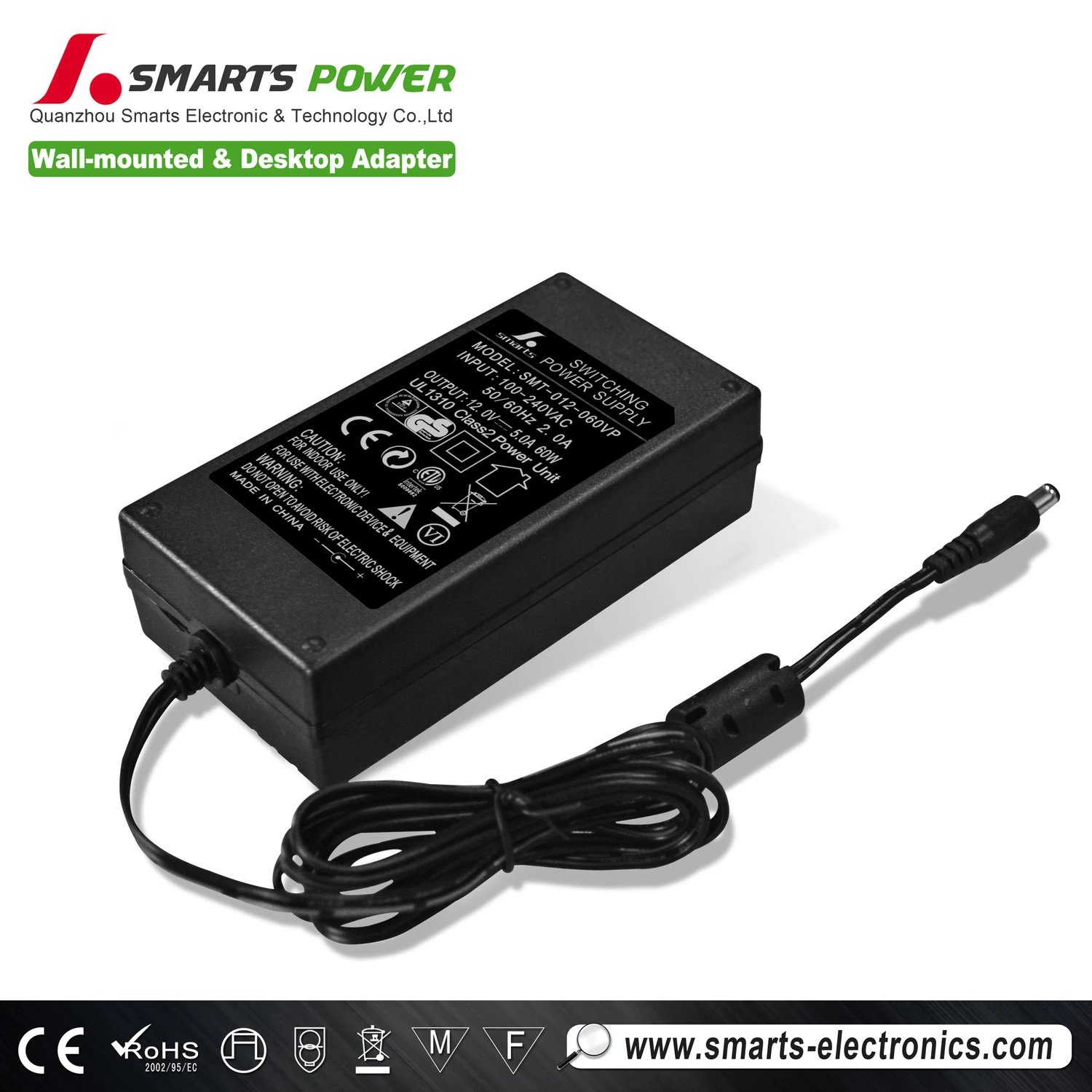

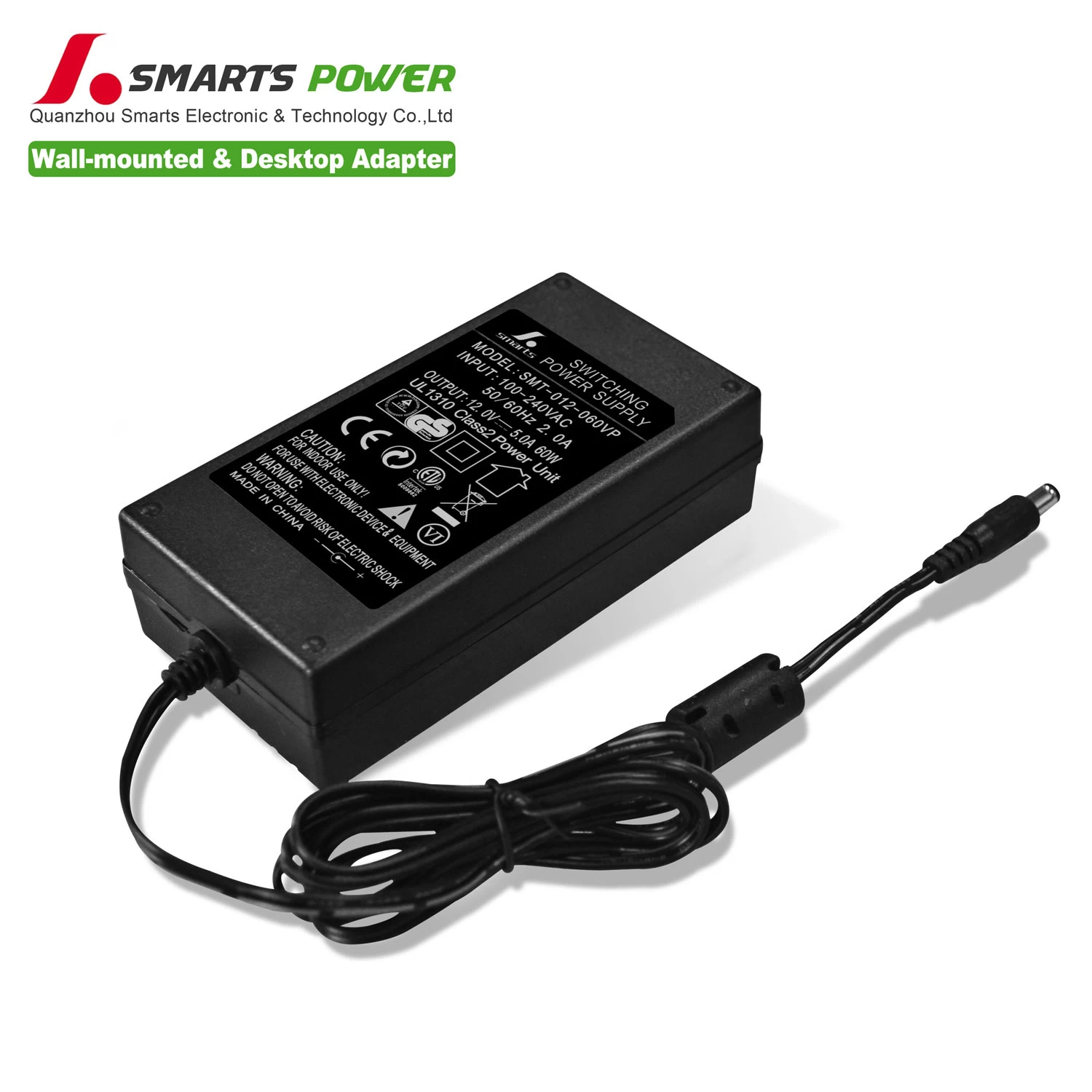

part number: SMT-012-060VP / SMT-024-060VP
(AC/DC single output desktop type switching power supply)
• 3 pole AC inlet IEC320-C14 • Fully enclosed plastic case
• Class I power (with earth pin) • Pass LPS for 12,24,36V
• Full output 12v 24V safety approved • LED indicator for power on
• Protections: Short circuit / Overload / • Approvals: CE
Over voltage •18 month warranty
AC input voltage range ............. 100~240VAC / 1.9A
AC inrush current (max.) ...........Cold start, <40A at 230VAC
Overload protection................... Hiccup mode, auto-recovery
Over voltage protection .............110~140% rated output voltage
Hold up time...............................16ms at full load
Withstand voltage...................... I/P-O/P: 42VDC, 1minute
Working temperature..................0~40°C @ 100% load, 50°C @ 70% load
Safety standards........................ TUV EN60950-1 approved
EMC standards.......................... EN55022-B, EN61000-3-2,3
Length of output cable................180cm of SPT-1,18AWG x2C
Standard DC plug....................... P2J: 2.1x5.5x10mm / C+, barrel type
