Application:
-
Solar and wind systems
-
Cable TV
-
Telecommunications
-
Wheelchair
-
Marine Equipment
|
-
Military Equipment
-
Emergency lighting
-
Power Plants
-
Medical Devices
-
Golf Cart
-
|
Battery Use and Maintenance:
1) Please use constant-voltage charge.
2) In floating charge, the voltage is 2.23 to 2.27 per unit cell.
3) In cycle use, the voltage is 2.35 to 2.45 per unit cell, the max. Current is no more than 25%° C
4) Please do tighten the bolts to avoid sparkle and poor contact when the battery is in use.
5) Please do not use it near the heat source and open flame.
6) Please keep it at low temperature. Please change it while there is liquid leaking or damage.

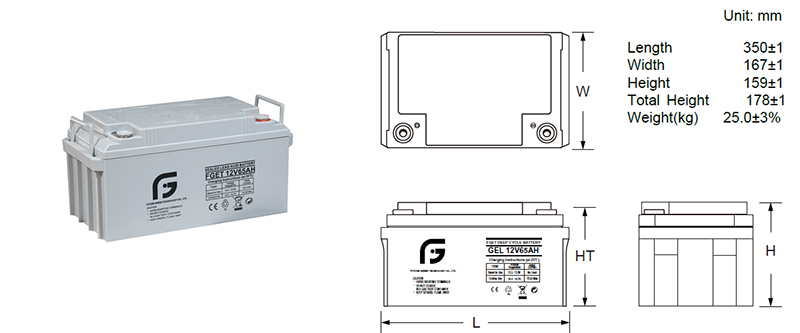

Battery Out Size:
Battery Parameters:
|
Capacity
25'C (77'C)
|
10 hour rate(15.0A )
|
65AH
|
|
3 hour rate(37.5A )
|
63AH
|
|
1 hour rate(82.5A )
|
38.7AH
|
|
Internal Resistance
|
Full charged Battery at 25 'C(77'F )
|
≤9mΩ
|
|
Capacity affected by Temp
|
40'C (104F)
|
102%
|
|
25'C (77'F)
|
100%
|
|
0'C (32'F)
|
85%
|
|
(-15'C )5'F
|
65%
|
|
Self-Discharge
25'C (77'F)
|
Capacity after 3 month storage
|
90%
|
|
Capacity after 6 month storage
|
80%
|
|
Capacity after 12 month storage
|
62%
|
|
Charge
(Constant Voltage)
|
Initial Charging Current less than 26 A
|
|
Voltage 14.4-15.0V
|
|
Voltage 13.5-13.8V
|
|
Model
|
Voltage
|
Capacity
C20
|
Dimension & Weight
|
Approx .weight
|
Download
|
|
Length
|
Width
|
Height
|
Totl height
|
|
(V)
|
(h)
|
mm
|
mm
|
mm
|
mm
|
Kg
|
|
GE12V33Ah
|
12
|
33
|
195
|
130
|
159
|
180
|
9.50
|
|
|
GE12V40Ah
|
12
|
40
|
197
|
165
|
175
|
182
|
13.00
|
|
|
GE12V65Ah
|
12
|
60
|
260
|
168
|
211
|
233
|
20.00
|
|
|
GE12V75Ah
|
12
|
70
|
260
|
168
|
211
|
233
|
23.50
|
|
|
GE12V100Ah
|
12
|
100
|
331
|
171
|
214
|
224
|
30.00
|
|
|
GE12V120Ah
|
12
|
120
|
407
|
174
|
225
|
238
|
33.50
|
|
|
GE12V150Ah
|
12
|
150
|
483
|
170
|
241
|
241
|
44.00
|
|
|
GE12V200Ah
|
12
|
200
|
522
|
240
|
219
|
244
|
57.00
|
|
|
GE12V250Ah
|
12
|
250
|
520
|
268
|
220
|
249
|
67.00
|
|
|
GE12V55Ah-F
|
12
|
55
|
277
|
106
|
222
|
222
|
16.50
|
|
|
GE12V80Ah-F
|
12
|
80
|
564
|
115
|
189
|
189
|
25.50
|
|
|
GE12V100Ah-F
|
12
|
100
|
395
|
110
|
285
|
285
|
30.00
|
|
|
GE12V150Ah-F
|
12
|
150
|
551
|
110
|
287
|
287
|
48.00
|
|
|
GE12V180Ah-F
|
12
|
180
|
546
|
125
|
317
|
323
|
53.00
|
|
|
Work Shop
|
View More
|
|
|
|
|
Main Workshop
FGET, it is highly resistant to battery acid, oxidation and heat, and can maintain its shape and strength after prolonged exposure to sever environmental conditions. Customized specifications are available.
|
Battery Charging
In the fully charged state, the negative plate consists of lead, and the positive plate lead dioxide, with the electrolyte of concentrated sulfuric acid.
|
Produce line
FGET have 3 produce lines for AGM battery from 2V to 12V, GEL battery and OPzV battery.
|
|
Packing & Delivery
|
View More
|
|
|
|
|
|
Carton Packing
20, 10 or 4 pieces in one carton for batteries smaller than 12V24AH，one in one carton for larger batteries.
|
Batteries Layer
Load Lead acid batteries 3-5 layers high with cardboard between each layer, and stretch wrap. Make sure to catch the top of the pallet to help anchor it.
|
Fumigation Free Tray
As Lead Acid batteries are very heavy, we all use fumigation free tray to transport them.
|
|
Our Certification
|
|
View More
|
|
|
|
|
Company Certificate
Commitment to quality, consistency, innovation and service is taking the Company through a steady growth in the competitive market.
|
ISO Certificate
SGS ISO9001 quality management system certificate, ISO14001 environment system certificate
|
MSDS & Transport
Our batteries have UL and CE approvals. MSDS and Report for Safe Transport of Goods.
|
Our Services:
Samples and OEM, Warranty and After-Sale Service:
Sample can be provided for quality testing
-
OEM Welcomed
-
Warranty: 2 Year
-
After-Sale Service: 24 Hour-Hot Line for Consultacncy and Technical Support
-
