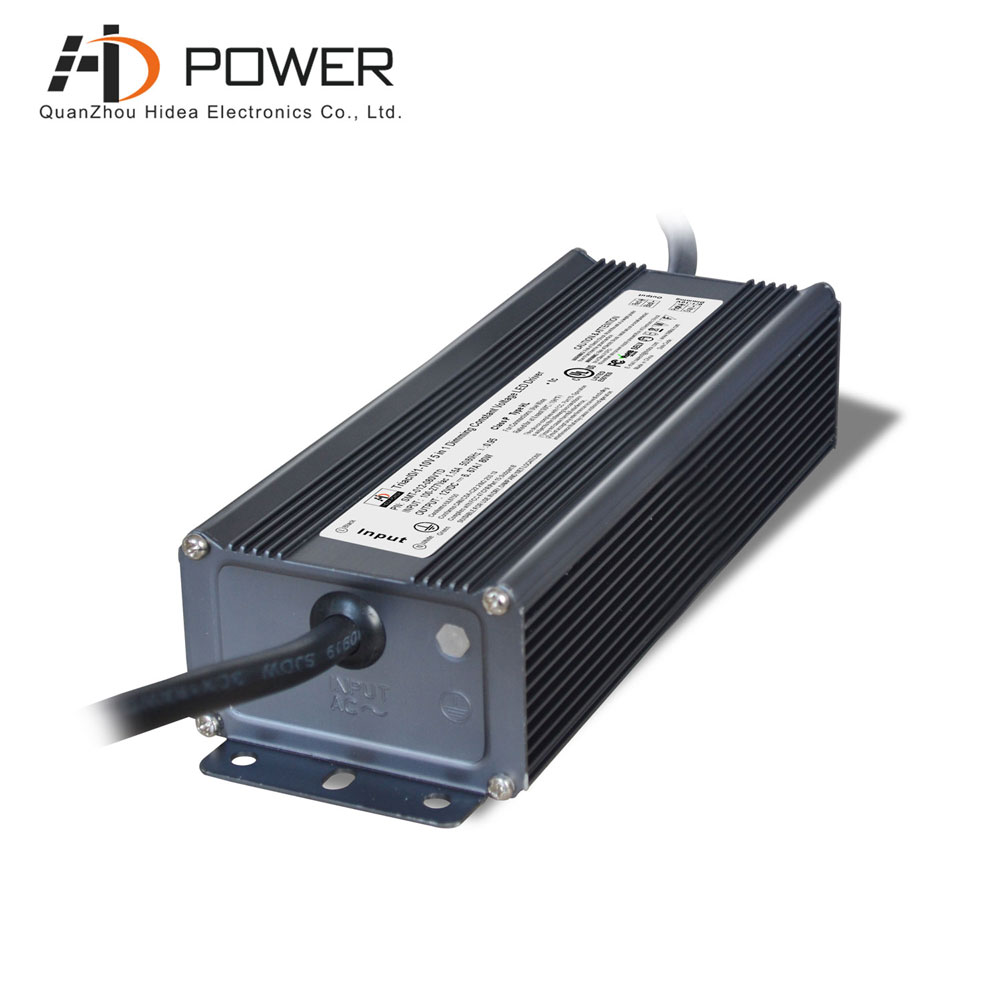

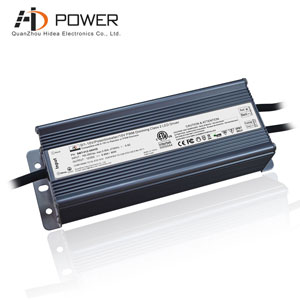

Simply connect the output of the dimmer to the input of the led driver outdoor 80w, and connect LED flexible strip to the 12 volt output, perfect for use with Lumicrest dim to warm LED strips.

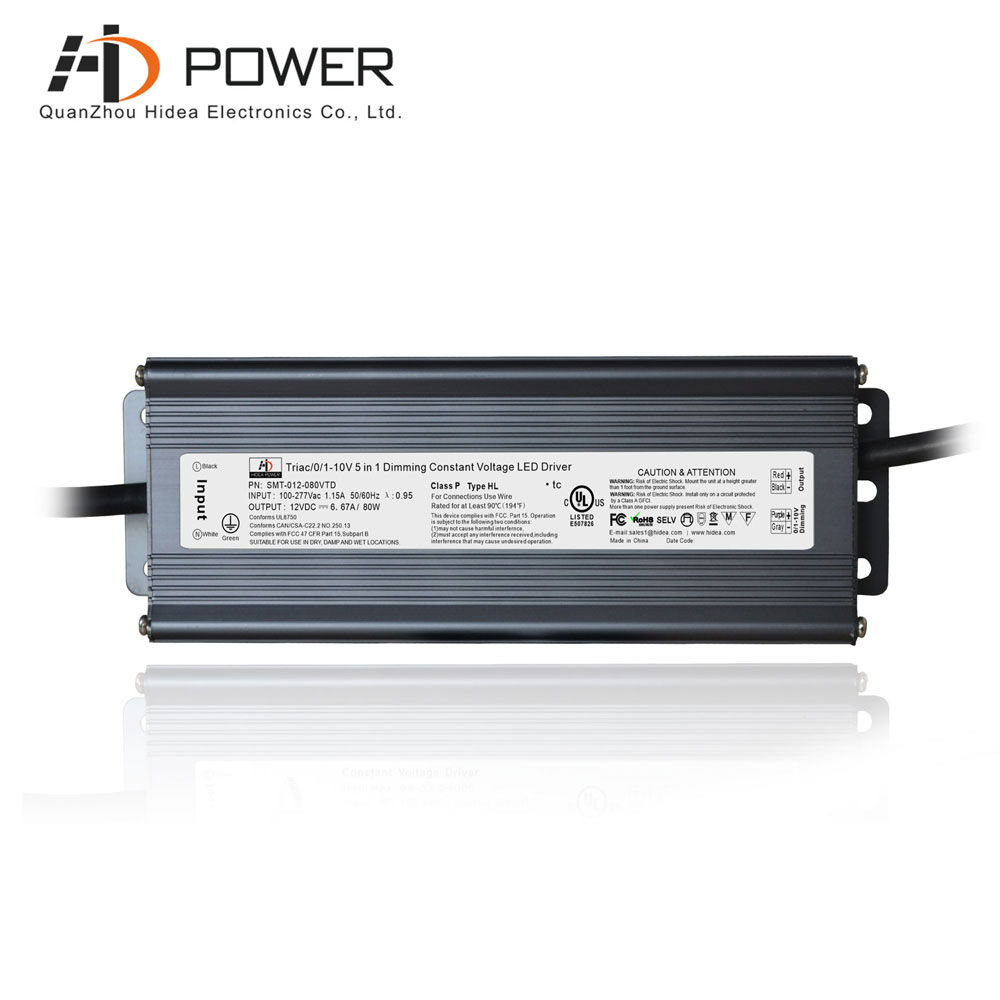

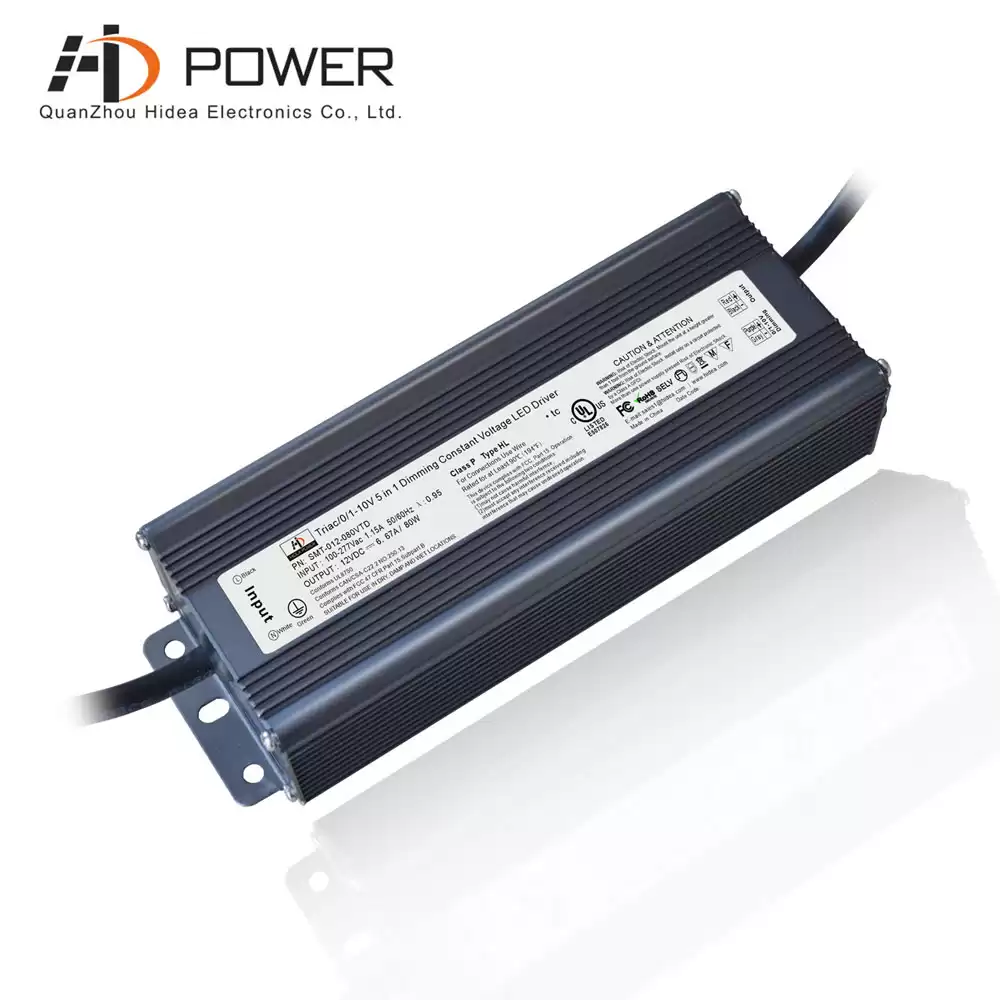

Specification
|
model
|
SMT-012-080VTD2JV2
|
SMT-024-080VTD2JV2
|
|
Output
|
DC Voltage
|
12V
|
24V
|
|
Voltage Accuracy
|
±0.5V
|
±0.5V
|
|
Rated current
|
6.66A
|
3.33A (class 2)
|
|
Rated power
|
80W
|
|
Input
|
Voltage Range
|
100~130V AC/170~265V AC
|
|
Frequency Range
|
47~63HZ
|
|
Power Factor ( Typ.)
|
PF≧0.95/110V,PF≧0.96/170V,PF≧0.95/220V,PF≧0.93/265V
|
|
Full Load Efficiency(Typ.)
|
80%@120VAC 82%@277VAC
|
82%@120VAC 85%@277VAC
|
|
THD(Typ. ) @ full load
|
<20%@120VAC &277VAC
|
|
AC Current(Typ.)
|
1.15A
|
|
Inrush Current (Typ.)
|
20A, 50%, 1.6ms @120VAC; 25A, 50% 1.2ms @277VAC
|
|
Leakage current
|
﹤0.5mA
|
|
Protection
|
Short Circuit
|
Hiccup mode, recovers automatically after fault condition is removed.
|
|
Over temperature
|
100℃±10℃ shut down o/p voltage, automatically recover after cooling.
|
|
Over Load
|
≤120% constant current limiting, auto-recovery
|
|
Environment
|
Working TEMP.
|
-40~+60℃
|
|
Working Humidity
|
20~90%RH,non-condensing
|
|
Storage TEM.,Humidity
|
-40~+80℃,10~95%RH
|
|
TEMP.coefficient
|
±0.03%/℃(0~50℃)
|
|
Vibration
|
10~500Hz,2G 10min./1 cycle,period for 60min.each along X,Y,Z axes
|
|
Safety&EMC
|
Safety standards
|
UL8750 + UL1310 , CAN/CSA-C22.2 No.250.13
|
|
Withstand voltage
|
I/P-O/P:1.88KVac
|
|
Isolation resistance
|
I/P-O/P:100MΩ/500VDC/25℃/70%RH
|
|
EMC EMISSION
|
FCC 47 CFR Part 15 ,Subpart B
|
|
Others
|
Weight
|
1.1Kg
|
|
Size
|
230*70*43mm(L*W*H)
|
|
packing
|
Carton size:340*275*170mm , 10pcs /CTN
|
|
Notes
|
1. All parameters NOT specially mentioned are measured at 120VAC input , rated load and 25℃of ambient temperature.
|
|
2. Tolerance: includes set up tolerance, line regulation and load regulation .
|
|
3. The power supply is considered as a component that will be operated in combination with final Equipment. Since EMC performance will be affected by the complete installation, the final equipment manufactures must be-qualify EMC Directive on the complete installation again.
|
Compatible Light Type
YEEMAYLUX led ribbon lights work in 12v low voltage, coming with a led driver outdoor, with short circuit protection for plug-in safely, and with energy-saving, low heat, touchable and long lifetime features.
Related Products
|
 Features a 0% minimum wattage load and provides superior dimming led driver outdoor,
Mode：SMT-012-080VD
Dimming Mode : 0-10V Dimming
Output Power : 80W
intput voltage：100-265VAC
Size：200*68.5*45MM （L*W*H）
|
