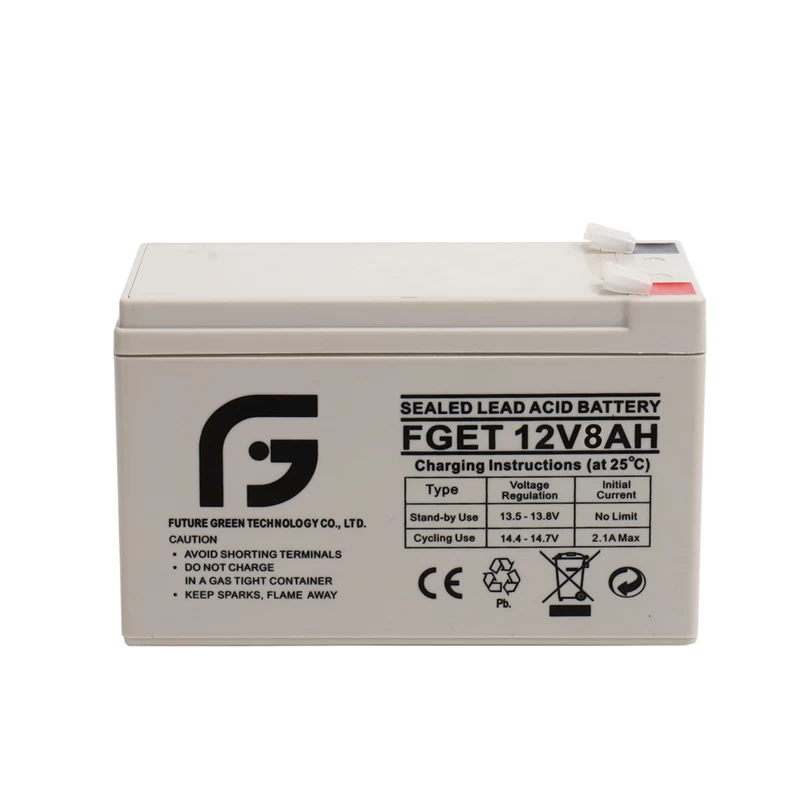

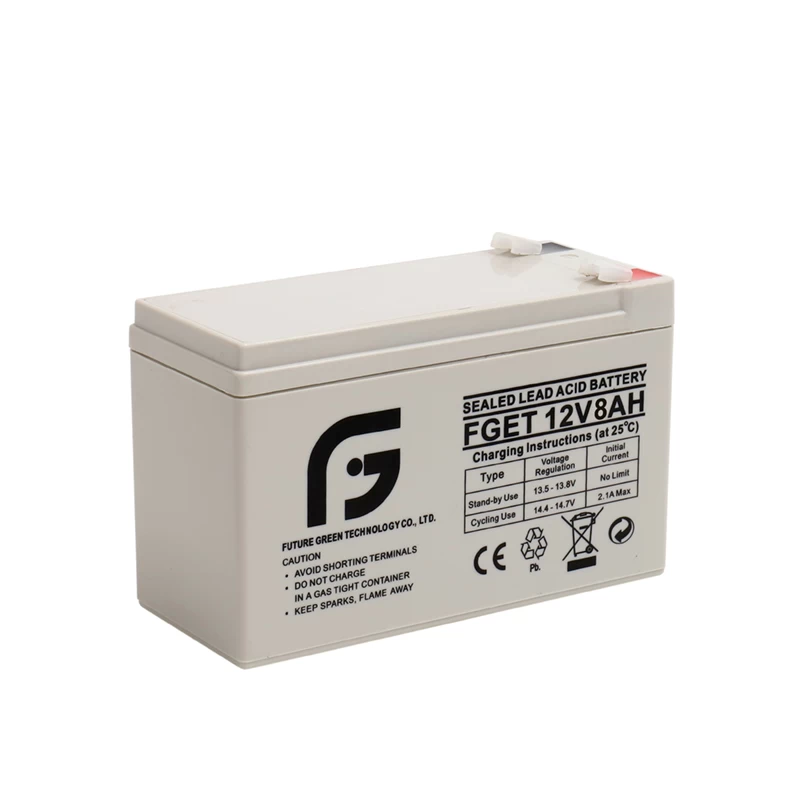

Future Green Deep Cycle 12V8AH Sealed Lead Acid AGM UPS Battery
Application:
-
Solar and wind systems
-
Cable TV
-
Telecommunications
-
Wheelchair
-
Marine Equipment
|
-
Military Equipment
-
Emergency lighting
-
Power Plants
-
Medical Devices
-
Golf Cart
|
• GENUINE EXPERTPOWER BATTERY - The Most Trusted And Highest Reviewed Sealed Lead Acid Batteries On Amazon
• BATTERY TYPE - 12 Volt 8 Amp 20 Hour Sealed Lead Acid Battery
• RUGGED CONSTRUCTION - The High Impact Resistant Battery Case Is Made Up Of A Non-Conductive ABS Plastic. This Material Has a Strong Resistance To Shock, Vibration, Chemicals and Heat
• AGM TECH - The Acid Inside Is Absorbed Between The Plates And Thereby Immobilized By A Very Fine Fiberglass Mat. This Along With The Valve Regulated, Spill-Proof Construction Of Our Batteries Allows Trouble-¬Free, Safe Operation In Any Position
• USER FRIENDLY - Easy, One-Time Installation Of Our Maintenance Free and Valve Regulated Batteries Will Get Your System Or Application Running In No Time At All
Battery Out Size:
Battery Parameters:
|
1. Functional Parameter
|
5. Environment Temperature
|
|
Nominal Voltage
|
12V
|
Discharge
Temperature
|
-15~50ºC
|
|
Nominal Capacity (20 hour rate)
|
8Ah
|
Charge
Temperature
|
0~40ºC
|
|
Number of Cells
|
6cells
|
Storage
Temperature
|
-15~40ºC
|
|
2. Rated Capacity at 25ºC (77° F)
|
6. Inner Resistance & Max . Discharge
Current
|
|
20 hour rate (0.05C, 10.8V)
|
8Ah
|
Fully
Charged battery at 25ºC (77° F)
|
<25mΩ
|
|
5 hour rate (0.165C, 10.8V)
|
6.8Ah
|
Max.
Discharge Current (7 min)
|
24.0A
|
|
1 hour rate (0.55C, 10.5V)
|
5.5Ah
|
Short
Circuit Current (10 sec)
|
80.0A
|
|
3. Capacity affected by Temperature (20 hour
rate)
|
7. Self-discharge at 25ºC (77° F)
|
|
40ºC (104° F)
|
103%
|
Capacity
after 3 month storage
|
91%
|
|
25ºC (77° F)
|
100%
|
Capacity
after 6 month storage
|
82%
|
|
0ºC (32° F)
|
85%
|
Capacity
after 9 month storage
|
73%
|
|
-15ºC (5° F)
|
65%
|
Capacity
after 12 month storage
|
64%
|
|
4. Dimension and Weight
|
8. Constant voltage charging at 25ºC (77° F)
|
|
Length
|
151mm
|
Cyclic
use
|
14.4~14.9V
|
|
Width
|
65mm
|
Maximum
charging current
|
2.40A
|
|
Height
|
94mm
|
Temperature
compensation
|
-30mV/ºC
|
|
Total Height
|
100mm
|
Float
use
|
13.6~13.8V
|
|
Reference Weight
|
2.35kg
|
Temperature
compensation
|
-20mV/ºC
|
Lead acid battery series:
|
Model
|
Voltage
|
Capacity
|
Size
|
Plate
|
Weight
|
Download
|
|
(20h)
|
(mm)
|
Number
|
(kg)
|
|
AS12V1.3Ah
|
12V
|
1.3Ah
|
97*43*51*57
|
30
|
0.56
|
|
|
AS12V2.3Ah
|
12V
|
2.3Ah
|
178*35*61*67
|
36
|
0.78
|
|
|
AS12V3.2Ah
|
12V
|
3.2Ah
|
134*67*61*67
|
36
|
1.2
|
|
|
AS12V4Ah
|
12V
|
4Ah
|
90*70*101*107
|
36
|
1.4
|
|
|
AS12V4.5Ah
|
12V
|
4.5Ah
|
90*70*101*107
|
36
|
1.45
|
|
|
AS12V5.5Ah
|
12V
|
5.5Ah
|
90*70*101*107
|
36
|
1.6
|
|
|
AS12V6Ah
|
12V
|
6Ah
|
151*65*94*100
|
48
|
1.9
|
|
|
AS12V7Ah
|
12V
|
7Ah
|
151*65*94*100
|
48
|
2
|
|
|
AS12V7.2Ah
|
12V
|
7.2Ah
|
151*65*94*100
|
54
|
2.1
|
|
AS12V8Ah
|
12V
|
8Ah
|
151*65*94*100
|
48
|
2.3
|
|
|
AS12V9Ah
|
12V
|
9Ah
|
151*65*94*100
|
54
|
2.6
|
|
AS12V10Ah
|
12V
|
10Ah
|
151*98*95*101
|
72
|
3
|
|
|
AS12V12Ah
|
12V
|
12Ah
|
151*98*95*101
|
78
|
3.5
|
|
AS12V15Ah
|
12V
|
15Ah
|
181*77*167*167
|
42
|
4.6
|
|
|
AS12V17Ah
|
12V
|
17Ah
|
181*77*167*167
|
48
|
4.9
|
|
AS12V18Ah
|
12V
|
18Ah
|
181*77*167*167
|
48
|
5.15
|
|
AS12V20Ah
|
12V
|
20Ah
|
181*77*167*167
|
54
|
5.6
|
|
AS12V22Ah
|
12V
|
22Ah
|
181*77*167*167
|
54
|
6
|
|
|
AS12V24Ah
|
12V
|
24Ah
|
177*165*126*126
|
66
|
7.3
|
|
AS12V26Ah
|
12V
|
26Ah
|
177*165*126*126
|
66
|
7.9
|
|
AS12V28Ah
|
12V
|
28Ah
|
177*165*126*126
|
78
|
8.3
|
|
|
Work Shop
|
View More
|
|
|
|
|
Main Workshop
FGET, it is highly resistant to battery acid, oxidation and heat, and can maintain its shape and strength after prolonged exposure to sever environmental conditions. Customized specifications are available.
|
Battery Charging
In the fully charged state, the negative plate consists of lead, and the positive plate lead dioxide, with the electrolyte of concentrated sulfuric acid.
|
Produce line
FGET have 3 produce lines for AGM battery from 2V to 12V, GEL battery and OPzV battery.
|
|
Packing & Delivery
|
View More
|
|
|
|
|
|
Carton Packing
20, 10 or 4 pieces in one carton for batteries smaller than 12V24AH，one in one carton for larger batteries.
|
Batteries Layer
Load Lead acid batteries 3-5 layers high with cardboard between each layer, and stretch wrap. Make sure to catch the top of the pallet to help anchor it.
|
Fumigation Free Tray
As Lead Acid batteries are very heavy, we all use fumigation free tray to transport them.
|
|
Our Certification
|
|
View More
|
|
|
|
|
Company Certificate
Commitment to quality, consistency, innovation and service is taking the Company through a steady growth in the competitive market.
|
ISO Certificate
SGS ISO9001 quality management system certificate, ISO14001 environment system certificate
|
MSDS & Transport
Our batteries have UL and CE approvals. MSDS and Report for Safe Transport of Goods.
|
Our Services:
Samples and OEM, Warranty and After-Sale Service:
Sample can be provided for quality testing
-
OEM Welcomed
-
Warranty: 2 Year
-
After-Sale Service: 24 Hour-Hot Line for Consultancy and Technical Support
