12V Dc Diaphragm high pressure car wash pump for carpet/Sprayer

High pressire washing pump for carpet/ Sprayer for sale



12V Dc Diaphragm high pressure  car wash pump for carpet/Sprayer


12V high pressure car wash pump

Whaleflo DP series with high pressure, which is ideal for carpet cleaning, car washing,Outdoor shower,industrial chemical liquids,Sanitary industry , sea water transfer

Fresh water transfer.DP series designed basing on three diaphragm.Pump pressure vary from 60PSi-160PSi with self-priming ability.

Pump chamber material made of Santoprene.The inside check value is EPDM(Ethylene Propylene Diene Monomer) and Viton use widely for liquid PH value vary from 4-11PH value.

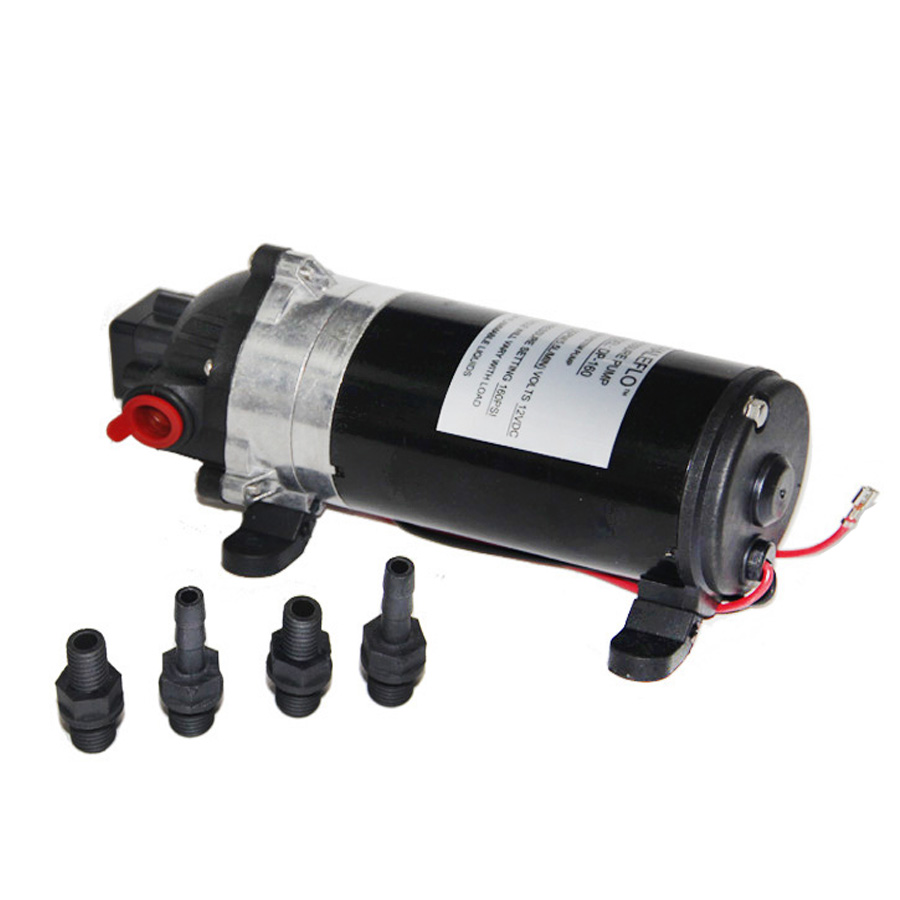

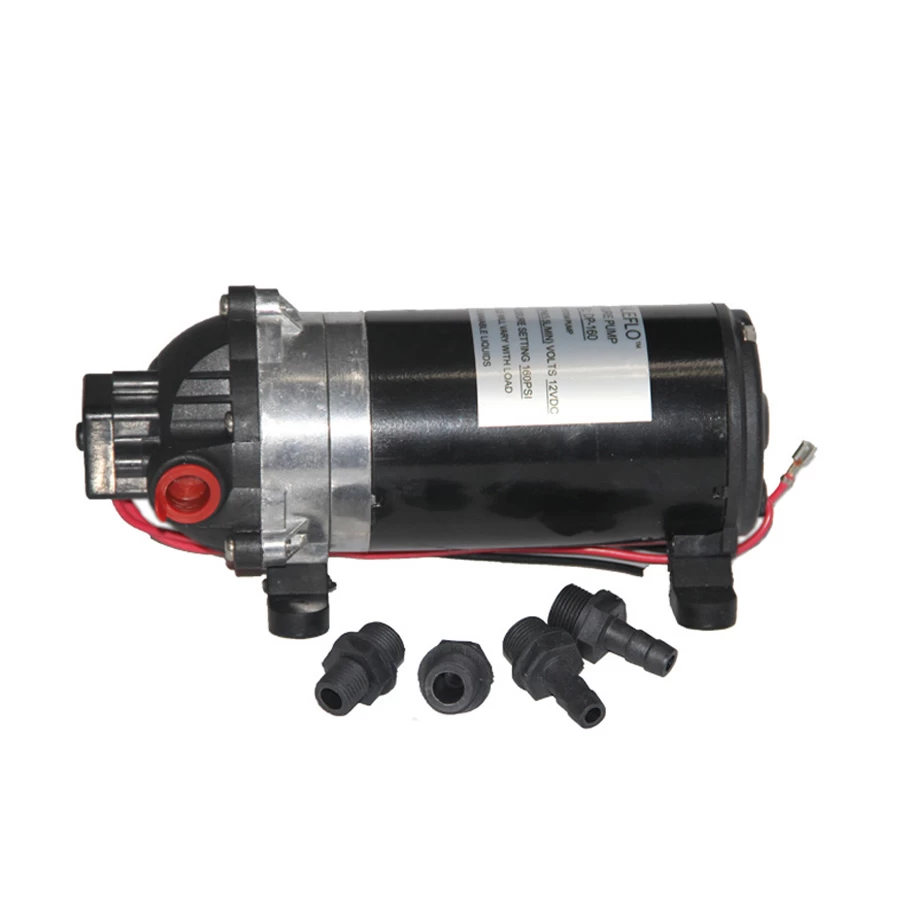

DP pump with 3/8’’(10mm) hose barb,1/4’’ male thread and 3/8’’ female thread.

Pump working duty: working intermittent


Shaft made of Stainless steel with Best heavy duty manufacturer

Pump pressure vary from 60PSi to 160PSI controlled by Bypass& pressure switch

Anti airlock design make motor with long life span and tight sealed well

superior rubber feet with low noise.

Pump detail install size drawing & manual are available

Mini& Flexible,light weight

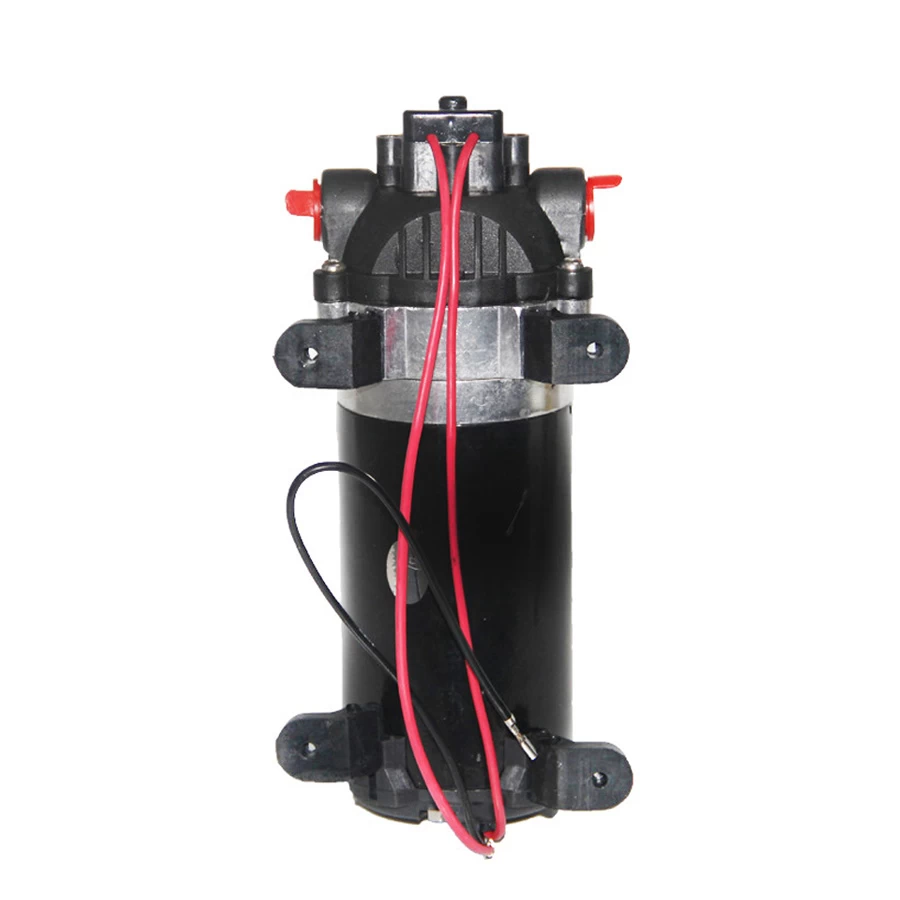

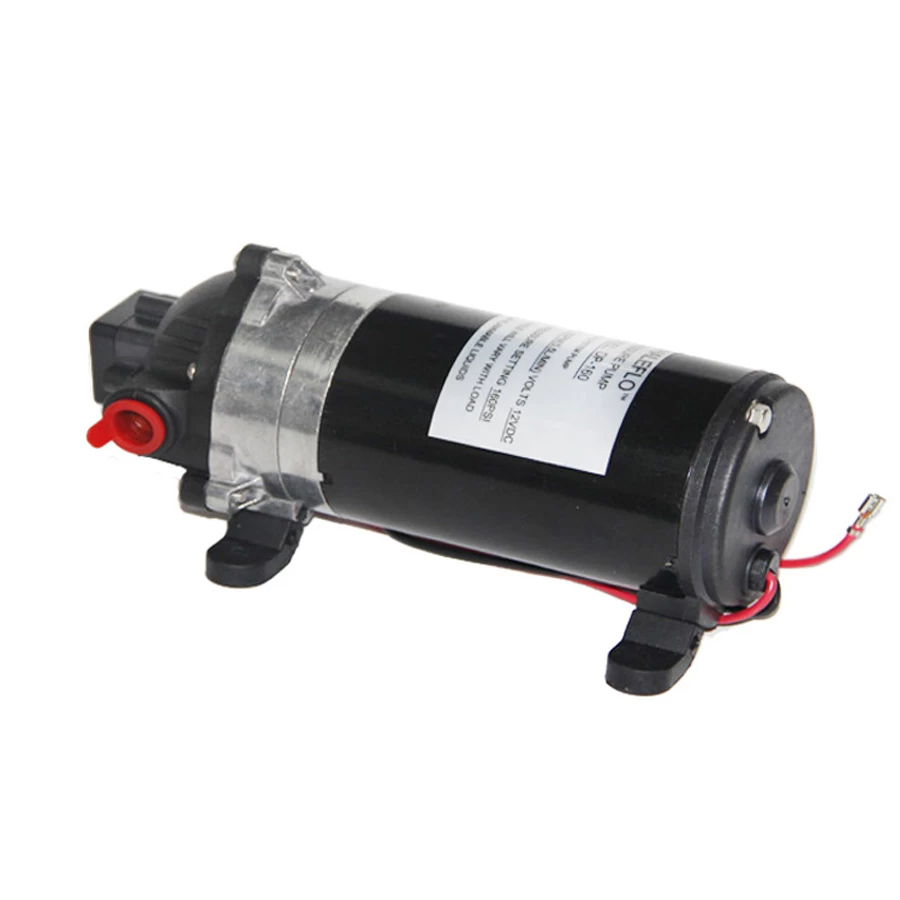

Whaleflo 12V high pressure water pumpWhaleflo car wash pump


Whaleflo 12V Dc diaphragm pump performance

High pressure ,Self-priming ability. Can dry run with damage. Low noise, automatic pressure switch,mini and flexible, superior rubber feet with low noise.

Whaleflo Pump application

carpet cleaning, car washing,Outdoor shower,industrial chemical liquids,Sanitary industry , sea water transfer

Whalelfo high pressure pump application


Whaleflo pump application


Technical data

Model Volt(V) Open Flow(LPM/GPM) Demend Pressure(PSI/Bar) Amps Draw(A) Check value  Diaphragm Ports Wire connections
DP60 12 4.6(1.2) 60(4.1) 7 EPDM/VITON Santoprene 3/8'' 2-pin/Leads
DP60B 24 4.6(1.2)
60(4.1) 4 EPDM/VITON
Santoprene 3/8''
2-pin/Leads
DP80 12 5.5(1.5) 80(5.5) 8 EPDM/VITON
Santoprene
3/8''
2-pin/Leads
DP100 12 5.5(1.5) 100(7.0) 9 EPDM/VITON
Santoprene
3/8''
2-pin/Leads
DP120 12 5.5(1.5) 120(8.3) 9.5 EPDM/VITON
Santoprene
3/8''
2-pin/Leads
DP120B 24 5.5(1.5) 120(8.3) 4.5 EPDM/VITON
Santoprene
3/8''
2-pin/Leads
DP160 12v 5.5(1.5) 160(11) 10.5
Santoprene
3/8''
2-pin/Leads
DP160B 24 5.5(1.5) 160(11) 4.2
Santoprene
3/8''
2-pin/Leads
DP100M 220 5.5(1.5) 100(7.0) 0.6
Santoprene
3/8''
2-pin/Leads
DP120M 220 5.5(1.5) 120(8.3) 0.5
Santoprene
3/8''
2-pin/Leads
DP160M 220 5.5(1.5) 160(11) 0.6
Santoprene
3/8''
2-pin/Leads
DP160S 115 5.5(1.5) 160(11) 1
Santoprene
3/8''
2-pin/Leads

Whaleflo Dp160 drawing
