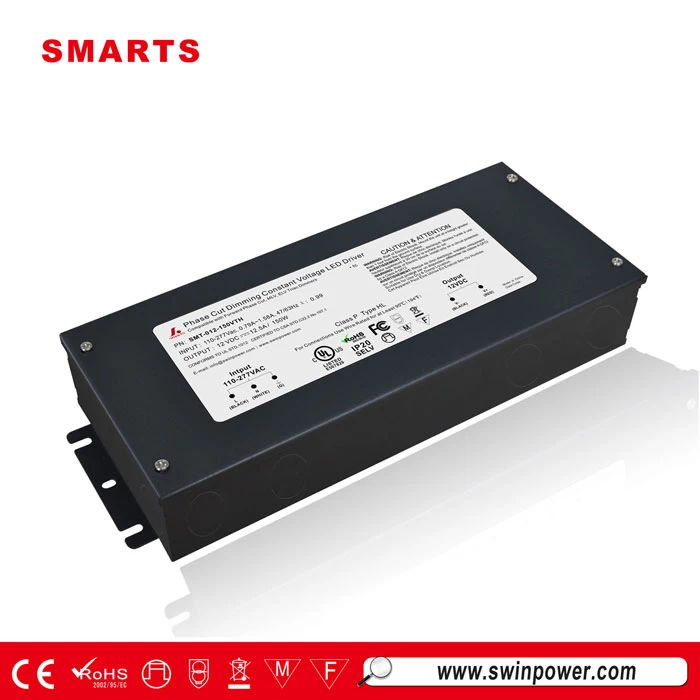

12v dc Dimmable Circuit 277v UL Led Driver Junction Box Power Supply
Smarts Electronics offers 100-277vac Triac Dimmable led driver power supply from 100watts to 300watts available with isolated circuits and overload protection. AC phase-cut method using electronic type dimmers: leading edge and trailing edge TRIAC.What is more, it is the UL CE Rohs listed and has 7 years warranty. Paired with relative junction box.
Features
|
Label
|
|
·Output constant voltage
·Input voltage range 120-277VAC
·Built-in PFC function, PF> 0.97
·Efficiency > 85% / load:0~100%
·Protections:short circuit/over voltage/over heat
·IP20 design for indoor installations
·Cooling by free air convection
·Work with leading edge and trailing edge triac dimmers available
·PWM output, does not change the color index
·Full protection aluminum housing, for dry, damp, wet location
·Strong compatibility, flicker-free dimming
·Suitable for LED lighting and moving sign applications
·Compliance to worldwide safety regulations for lighting
·7 years warranty
|
|
|
Model
|

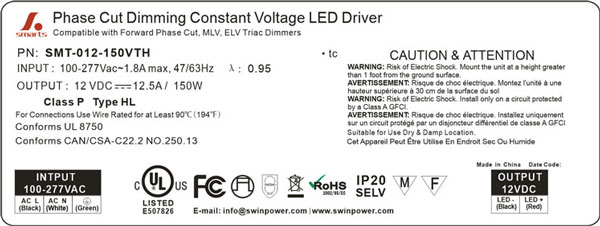

SMT-012-150VTH
|
SMT-024-150VTH
|
|
Output
|
DC Voltage
|
12V
|
24V
|
|
Voltage Tolerance
|
±0.5V
|
|
Voltage Tolerance
|
±0.5V
|
|
Voltage Regulation
|
±0.5%
|
|
Rated current
|
12.5A
|
6.25A
|
|
Rated power
|
150W
|
|
Input
|
Voltage Range
|
100-277VAC
|
|
Frequency Range
|
47～63HZ
|
|
Power Factor ( Typ.）
|
0.98@120VAC 0.95@277VAC
|
0.99@120VAC 0.94@277VAC
|
|
Full Load
Efficiency（Typ.）
|
>83%
|
>83%
|
|
AC Current（Typ.）
|
1.8A@110VAC
1.32A
|
|
Inrush Current （Typ.）
|
15A, 50%, 1.4ms
|
|
Leakage current
|
<0.50mA
|
|
Protection
|
Short Circuit
|
shut down o/p voltage, re-power on to recover after fault condition is removed
|
|
Over load
|
≤120% constant current limiting, auto-recovery
|
|
TEMP .coefficient
|
±0.03%/℃（0～50℃）
|
|
Vibration
|
10～500Hz, 5G 10min./1 cycle,period for 60min. each along X,Y,Z axes
|
|
Over Current
|
≤1.4*I out
|
|
Environment
|
Working TEMP.
|
-40～+60℃
|
|
Working Humidity
|
20～90%RH,non-condensing
|
|
Storage TEM.,Humidity
|
-40～+80℃，10～95%RH
|
|
TEMP.coefficient
|
±0.03%/℃（0～50℃）
|
|
Vibration
|
10～500Hz 2G 10min./1 cycle，period for 60min.each along X,Y,Z
axes
|
|
Safety&EMC
|
Safety standards
|
EN61347-1 EN61347-2-13
|
|
Withstand voltage
|
I/P-O/P:3.75KVAC
|
|
Isolation resistance
|
I/P-O/P：100MΩ/500VDC/25℃/70%RH
|
|
EMC EMISSION
|
Compliance to EN55015,EN61000-3-2 (≧50%load)
|
|
EMC IMMUNITY
|
EN61000-4-2,3,4,5,6,11（Surge about 4KV）
|
|
Others
|
Weight
|
1.8Kg
|
|
Size
|
260*103*46mm (L*W*H)
|
|
packing
|
440*295*145mm ,10PCS/CTN
|
|
Notes
|
1. All parameters NOT specially mentioned are measured at 110VAC, 277VAC input , rated
load and 25℃of ambient temperature.
2..Tolerance:includes set us tolerance,line regulation and load regulation .
|
We develop some 120~277VAC & output 12V /24VDC dimmable LED drivers with high PFC and efficiency:
---- triac dimmable LED drivers: 12VDC & 24VDC 30w , 60w ,100W, 120w , 150W, 200W, 250W, 300W with junction boxes attached .. 7 years warranty ( PF : 0.92, Efficiency : 0.85 )
---- DALI dimmable LED drivers: 12V & 24V 100W , 24V 120W , 12V & 24V 150W, 12V & 24V 180W , 24V 200W 5 years warranty ( PF : 0.95, Efficiency : 0.98)
---- 0-10V dimmable LED drivers: 12V & 24V 100W , 24V 120W , 12V & 24V 150W, 12V & 24V 180W , 24V 200W 5 years warranty ( PF : 0.95, Efficiency : 0.98 )
Problem analysis
1.Question: In the diagram spec sheet it show the dimmer on the N (neutral)? Normally Triac the dimmer is on the L Line?
Answer: Dimmer can be connected on the N (neutral) or on the L (Line). Depending on you.
2. Question:Just to confirm the drivers are Three In One Dimming Function Compatible With Leading-edge/Trailing-edge Dimmer, No Flicker? No Min load?
Answer: Our Triac dimmable led drivers are compatible with Leading-edge/Trailing-edge Dimmer,no flicker,no min load.
