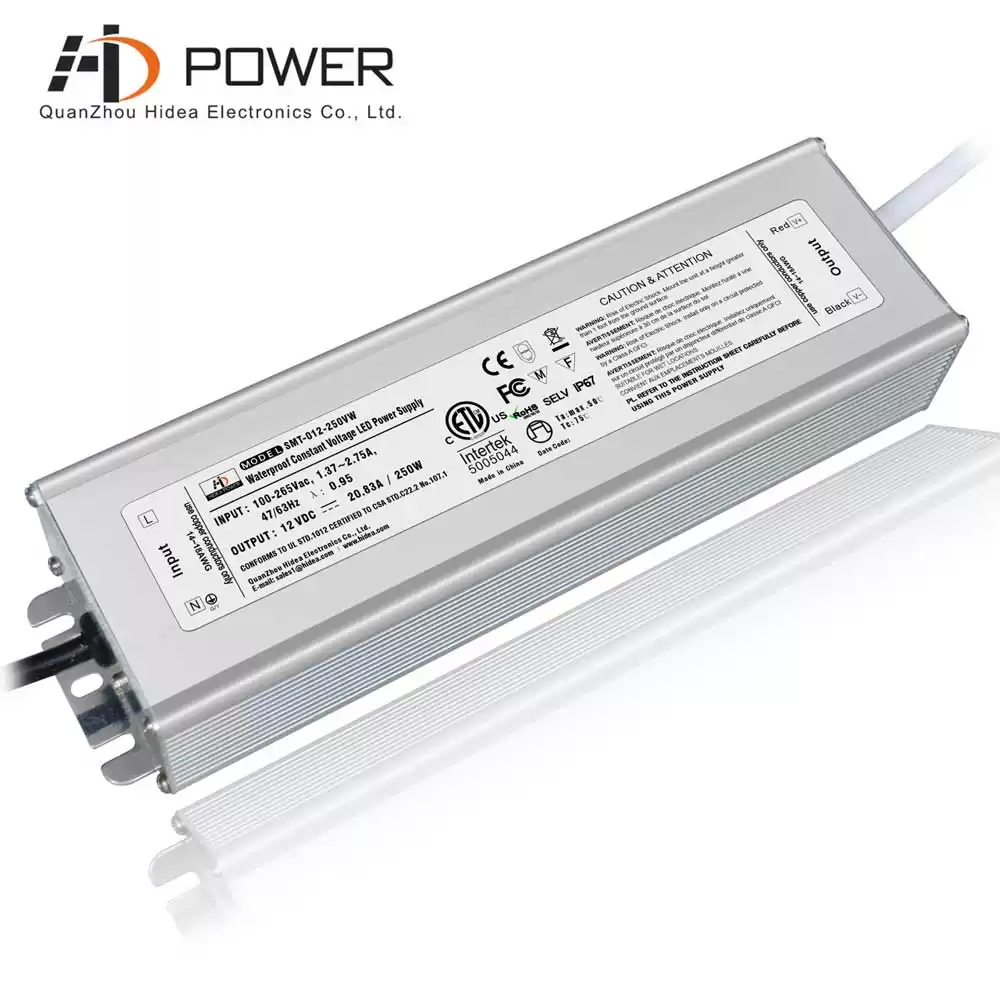

12v 250w dual output cable 12v led strip light driver, meet with ETL/cETL, CE Mark (EMC ,LVD) for North American, European markets, a perfect situation for Start Lighting outdoor constant voltage bar lghts.
Specification
|
MODEL
|
SMT-012-250VW
|
SMT-024-250VW
|
|
OUTPUT
|
DC VOLTAGE
|
DC12V
|
DC24V
|
|
RATED CURRENT
|
20.83A
|
10.42A
|
|
CURRENT RANGE
|
0-20.83A
|
0-10.42A
|
|
RATED POWER
|
250 W
|
250W
|
|
RIPPLE&NOISE(max)
|
150mV
|
150mV
|
|
CURRENT TOLERANCE
|
|
|
|
SETUP RISE TIME
|
80ms/120VAC,220VAC
|
|
HOLD UP TIME(Typ.)
|
60ms/120VAC,220VAC
|
|
INPUT
|
VOLTAGE RANGE
|
100~265VAC
|
|
FREQUENCY RANGE
|
50~60Hz
|
|
POWER FACTOR(Typ.)
|
>PF0.97@120VAC & 220VAC
|
|
EFFICIENCY(Typ.)
|
﹥89%
|
|
AC CURRENT(Typ.)
|
1.85A/120VAC,220VAC
|
|
INRUSH CURRENT (Typ.)
|
COLD START 50A/120VAC,220VAC
|
|
PROTECTION
|
Short circuit
|
Protection type:recovers automatically after condition is removed
|
|
Overload
|
overload protected@145-160% above peak rating
|
|
Over temperature
|
Protection type:Shut down o/p voltage,re-power on to removed
|
|
ENVIRONMENT
|
WORKING TEMP.
|
-40~+50℃ (Refer to output load derating curve)
|
|
WORKING HUMIDITY
|
20~99% RH non-condensing(Waterproof)
|
|
STORAGE TEMP.,HUMIDITY
|
-40~+80℃,10~99%RH
|
|
SAFETY&EMC
|
SAFETY STANDARDS
|
ETL/cETL,CE Mark(EMC ,LVD),IP67
|
|
WITHSTAND VOLTAGE
|
I/P-O/P:1.5KVAC IP-GND:1.5KVAC
|
|
EMC Test Standards
|
EN55015:2006;EN61547:1995+2000;EN61000-3-2:2006
|
|
EN61000-3-3:1995+A2:2005;EN61346-1:2001;EN61347-2-13:2006
|
|
NOTE
|
1.All parameters NOT specially mentoned are measured at 120~220VAC input,rated load and 25℃ of ambient temperature.
|
|
2.Ripple&noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf&10uf parallel capacitor.
|
|
3.Tolerance:includes set up tolerance,line regulation and load regulation.
|
Compatible Light Type

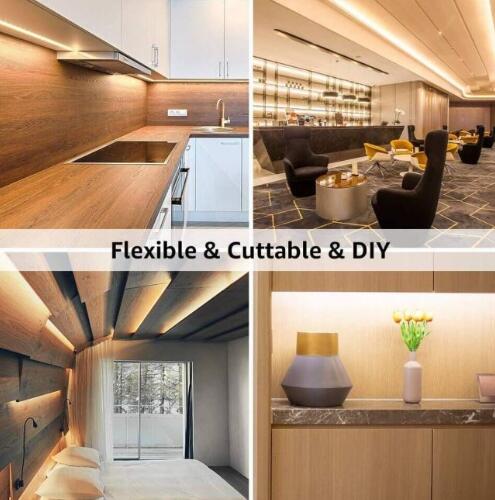

The low 12VDC power input makes Eichens strip lights run at an efficient rate while 5050 LEDs keep it running cool and safe to run in tight spaces, they are great for under cabinet lighting, accent lighting, bookshelf lighting, task lighting, cove lighting while installed to 12v led strip light driver.
Related Products
|

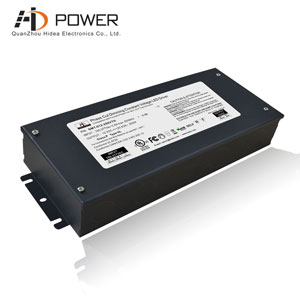

Phase cut dimming UL, FCC, CE, ROHS 12v 250w led driver with PWM output for smooth dim.
