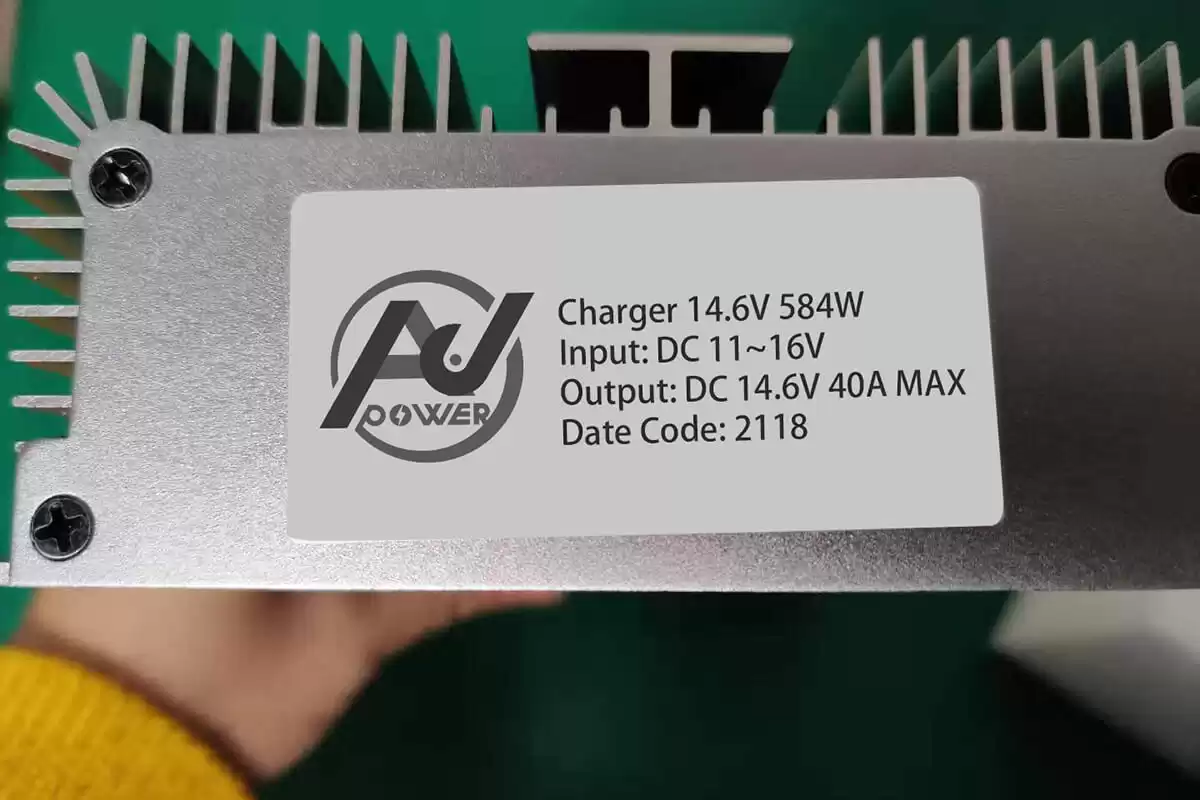

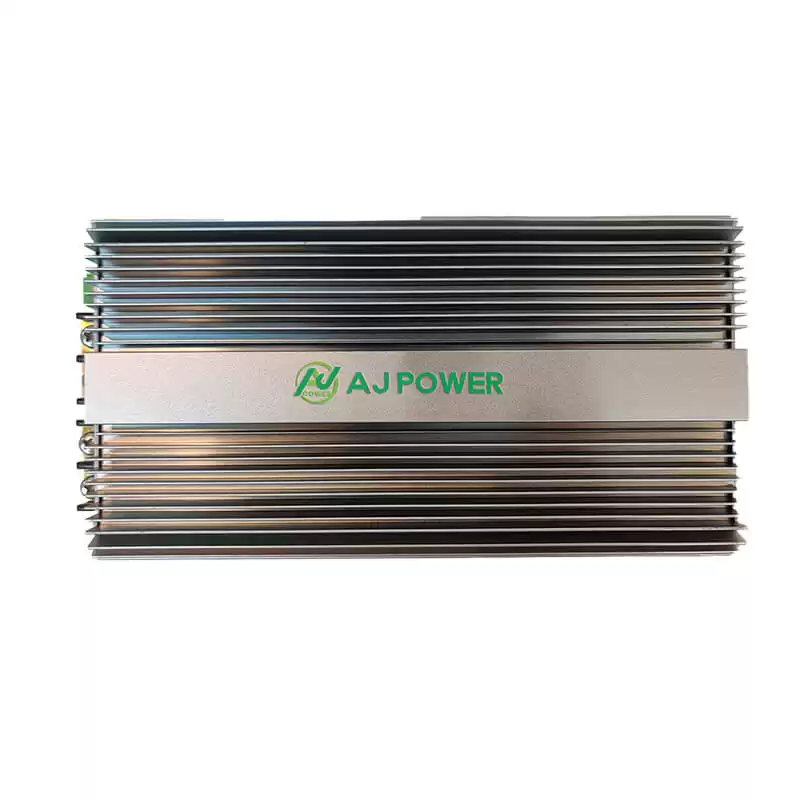

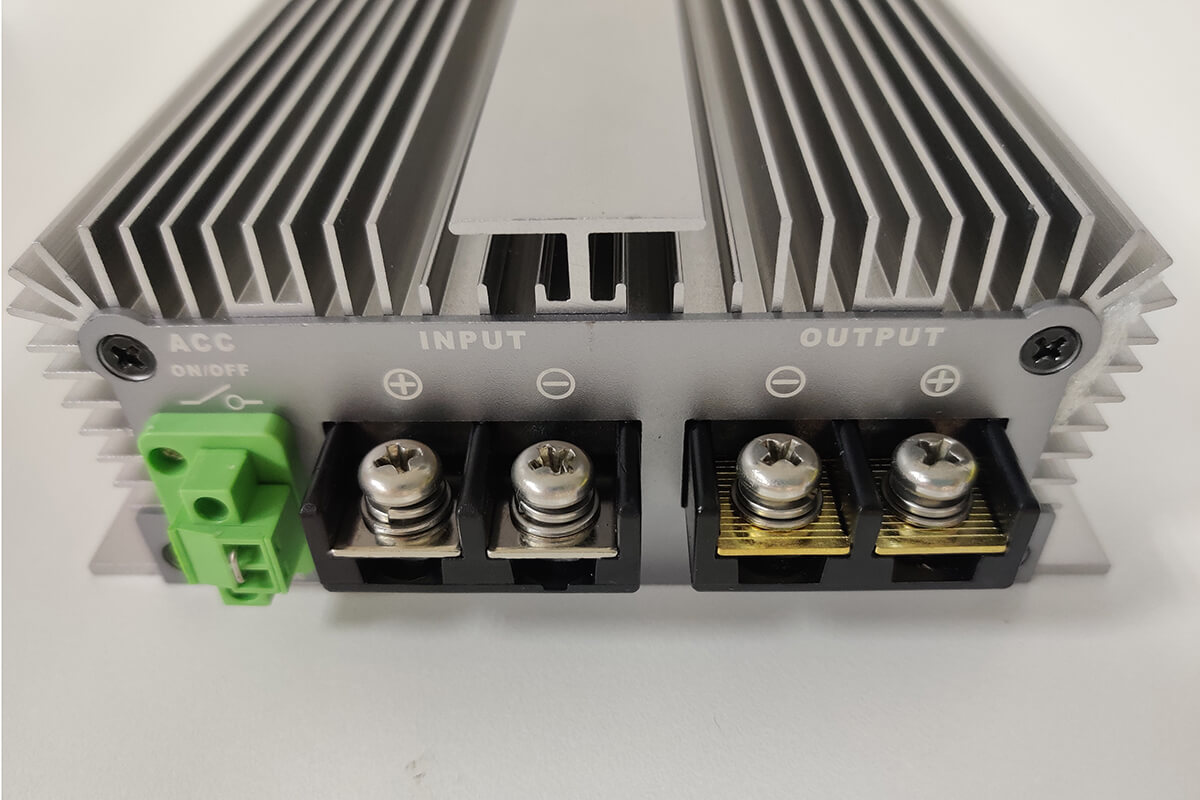

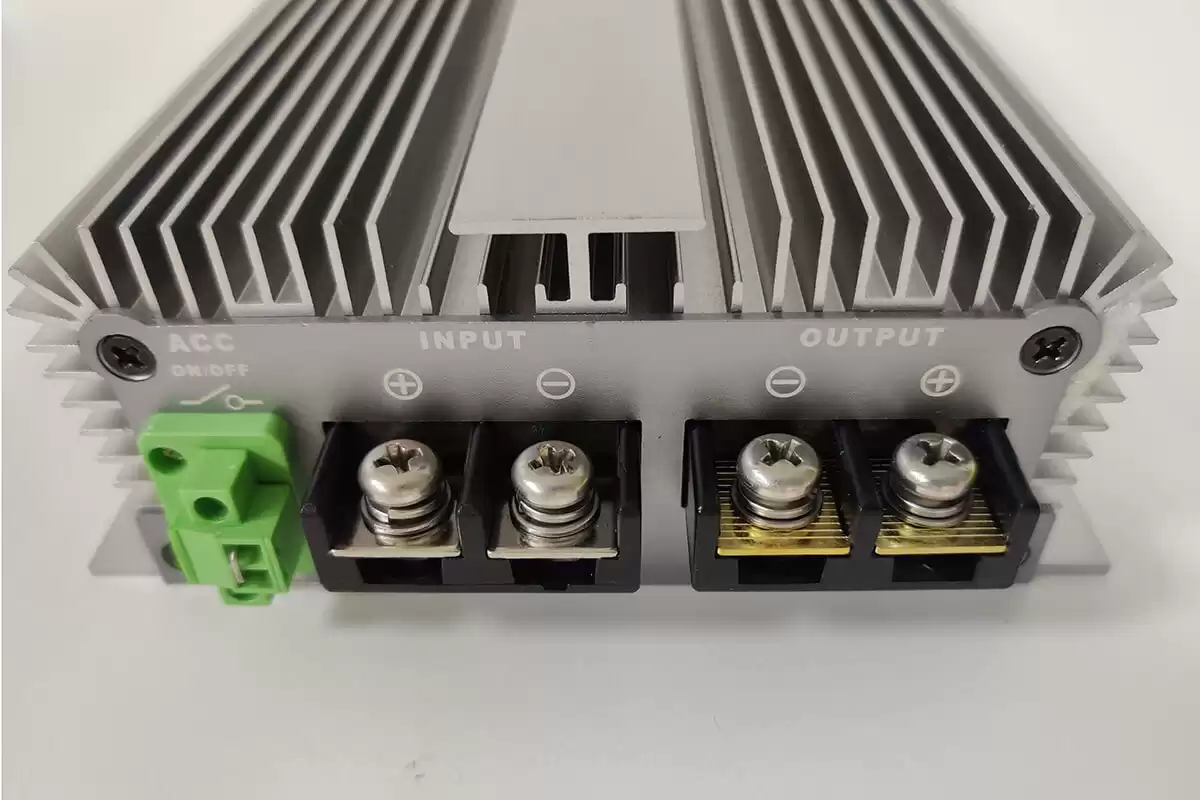

12V to 14.6V 40A DC to DC booster converter 584W boost module voltage regulator
Voltage Boosting Capability: The AJPOWER 12V to 14.6V 40A DC to DC Booster Converter can boost the voltage from 12V to 14.6V, ensuring compatibility with devices or systems that require a higher voltage.
High Power Output: This booster converter can handle modest power loads and offer enough power for a variety of applications with a maximum power output of 584W.
Efficient Voltage Regulation: The voltage regulator maintains a constant and dependable power supply for attached devices or systems by ensuring steady and accurate voltage output.

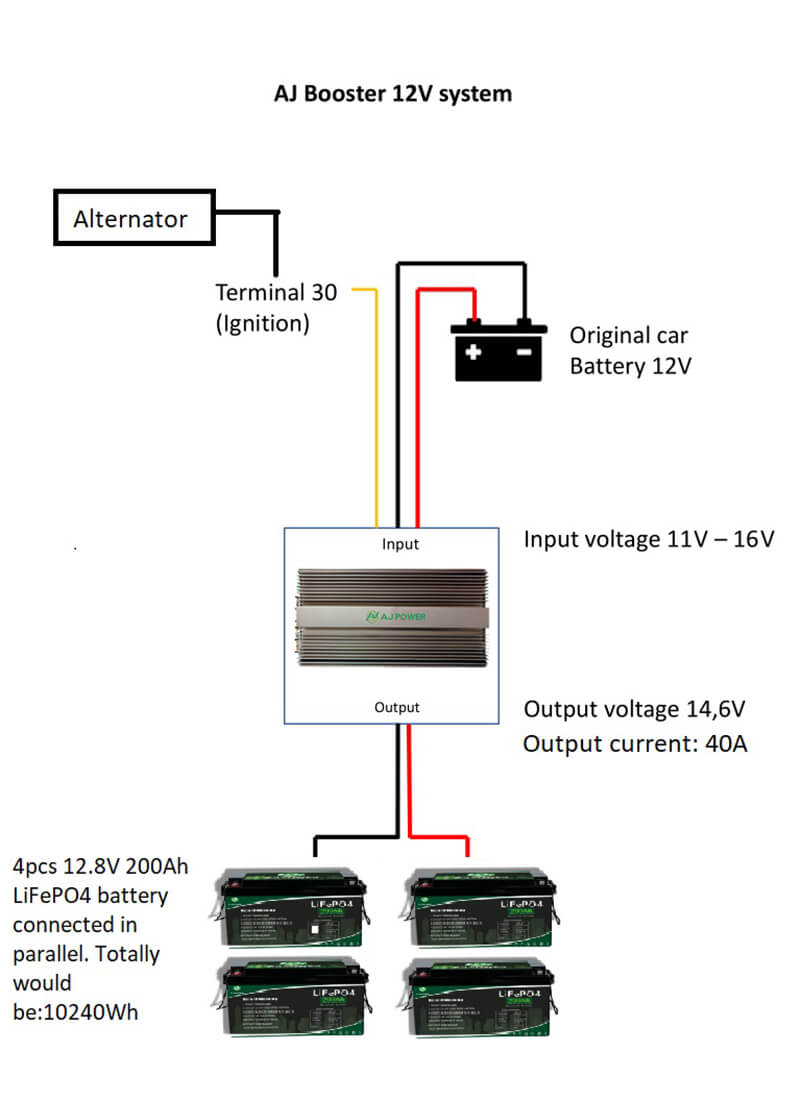

Wide Range of Applications: This booster converter is appropriate for a variety of uses, including off-grid or automobile power systems that need a certain voltage level.
Compact and Reliable Design: The small and dependable design of the AJPOWER booster converter makes installation simple and guarantees long-lasting performance.
 |
MODEL |
AJP1214R6JL584H |
| Rated output power (W) |
584W |
| Rated input voltage (V) |
12VDC |
| Rated output voltage (V) |
14.6VDC |
| |
|
Input
Characteristics
|
Voltage (V) |
11~16VDC |
| I/O with dual isolation |
With double battery isolation |
| No-load power consumption (W) |
＜0.4W |
| Typical Efficiency |
94% |
| |
|
Output
Characteristics
|
Voltage (V) |
14.6 VDC |
| Current (A) |
40A |
| Voltage regulation rate |
1% |
| |
| Characteristic |
Load Regulation |
3% |
| Ripple Voltage（mvp-p） |
< 200mv External 22UF capacitor ESR﹤0.1Ω100KHZ |
| Protection circuit and others |
Overcurrent Protection |
In the case of rated output, if it is greater than 20% of the rated current, the overcurrent protection will operate, the power will be limited and the voltage will be reduced, and it will automatically recover after the overcurrent disappears. |
| Output short circuit protection |
YES |
| Insulation |
Input-Output |
non-isolation |
| Waterproof |
Fully sealed glue filling and waterproof |
| Other |
Size |
220*130*50mm |
| Weight |
2200g |
| Rated temperature rise (°C) |
45℃ |
| Reliability |
＞100000h |
| cooling method |
Natural cooling is designed for natural cooling and heat dissipation (differences in the use environment and installation location affect the power usage), pay attention to ventilation and heat dissipation when using high power. |

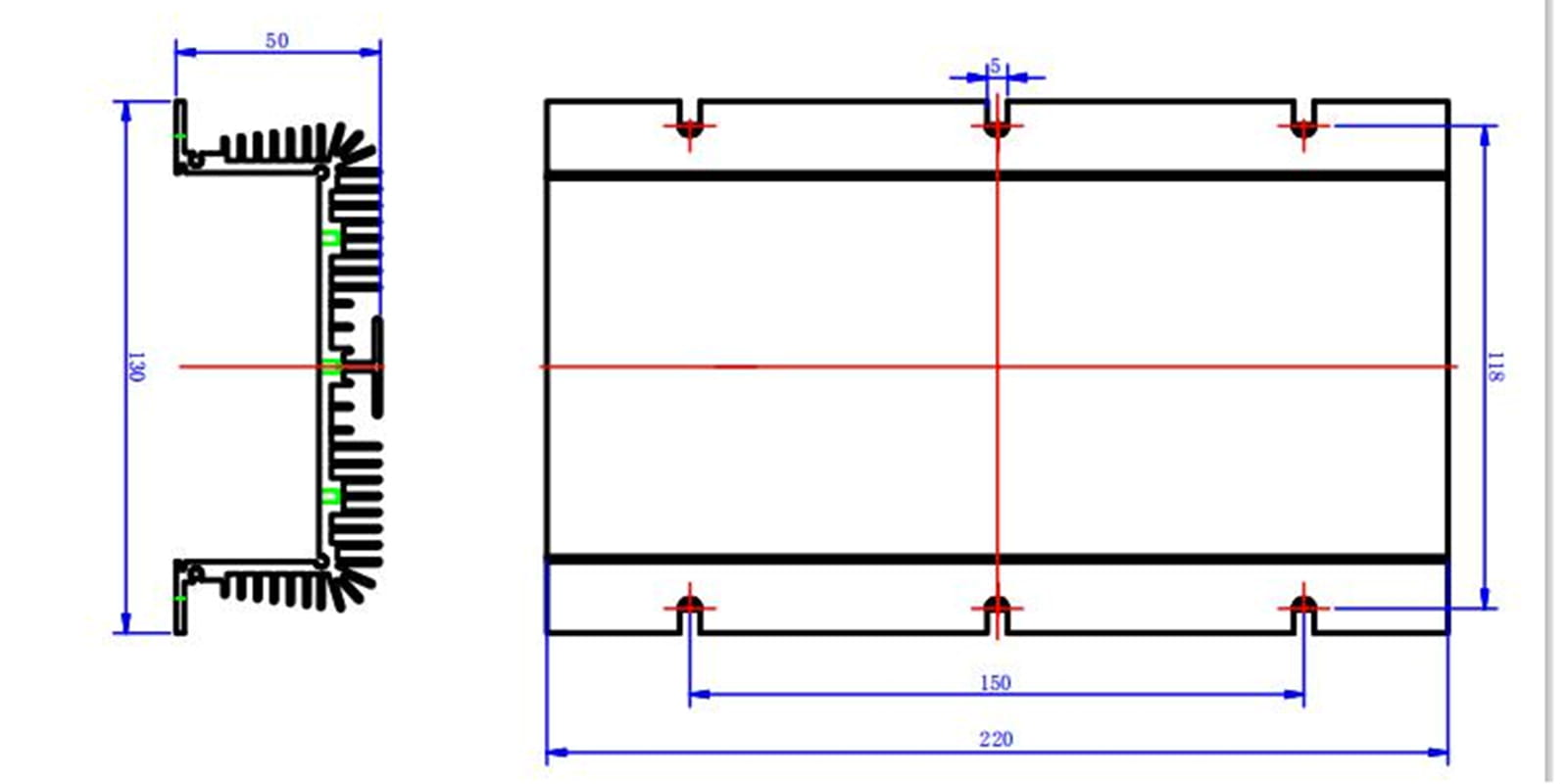

| Installation dimensions |
|
|
|
|
| 1 |
Design meeting RoHS / CE |
| 2 |
High efficiency: 94% |
| 3 |
Non-isolated between input and output |
| 4 |
Internal capacitor: NCC & NICHICON (high reliability) |
| 5 |
100% full load burn-in test |
| 6 |
Over load, Over temperature and Over voltage protections |
| 7 |
Fully sealed glue filling and waterproof |
| 8 |
12 months warranty |
