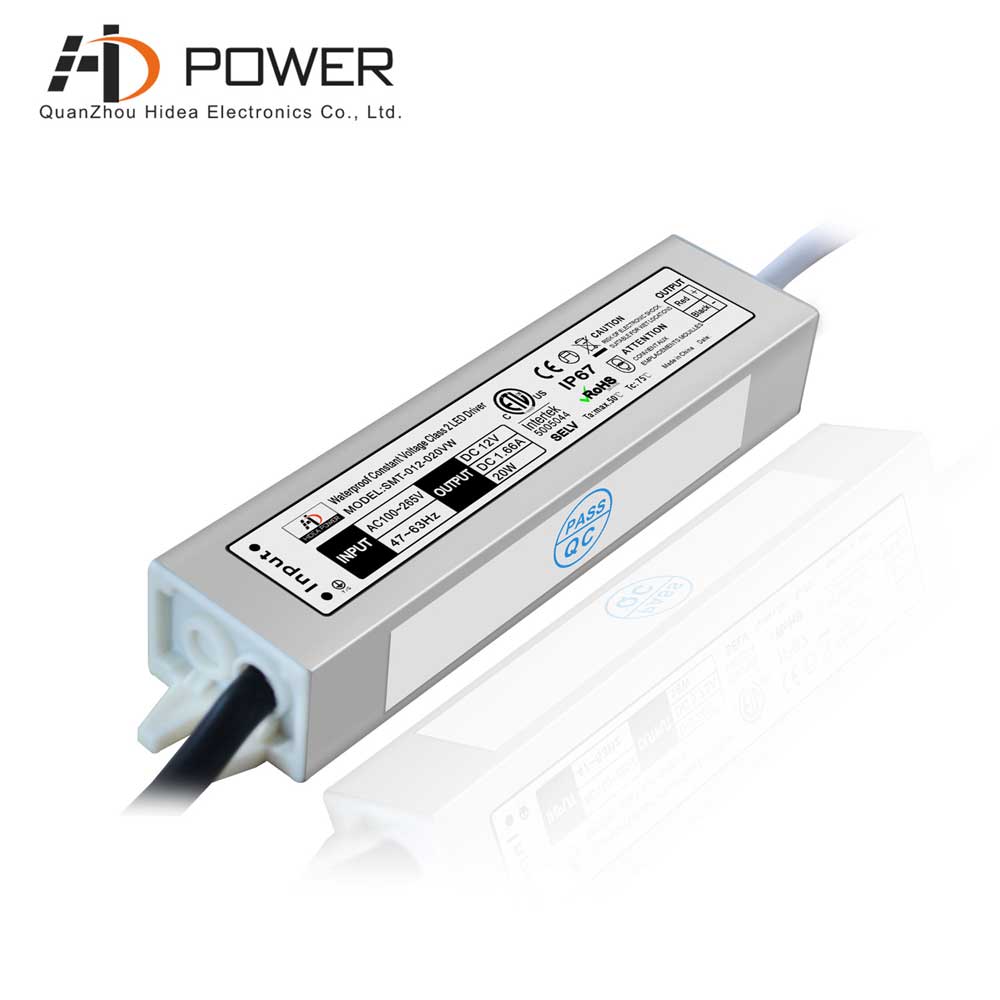

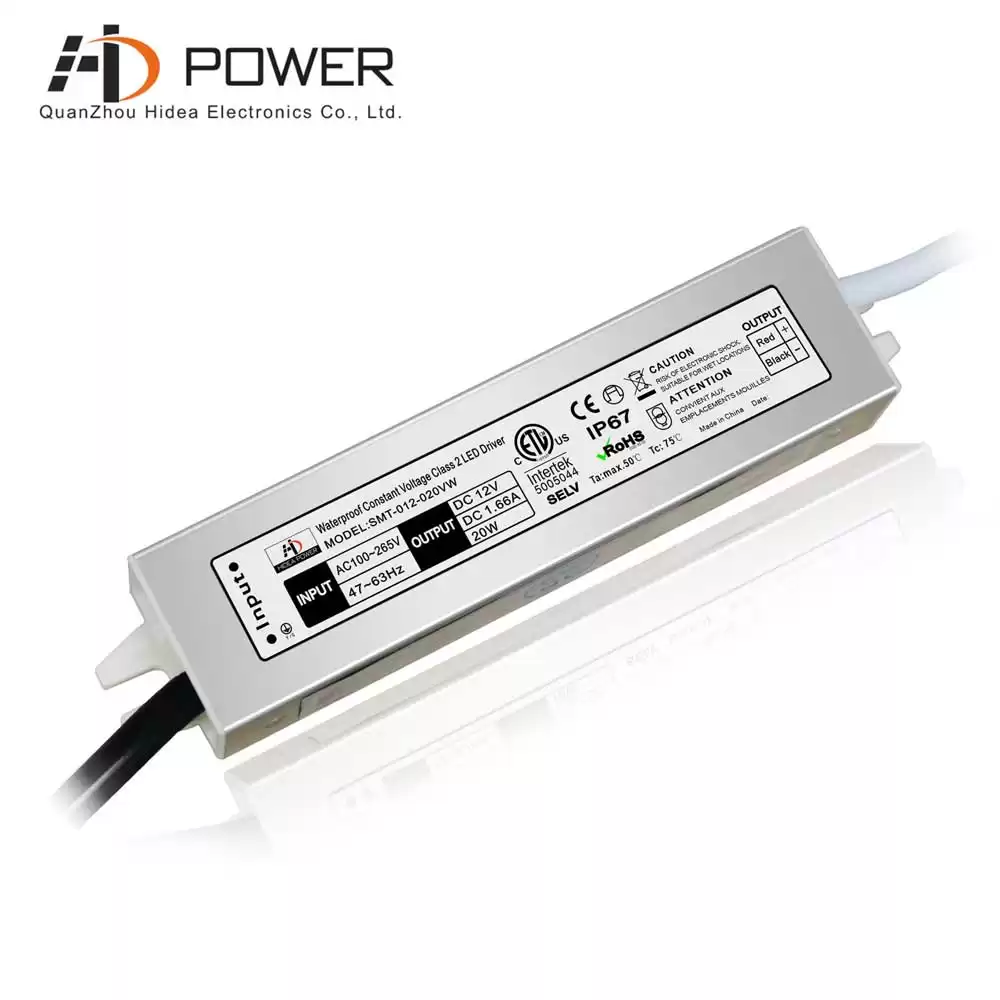

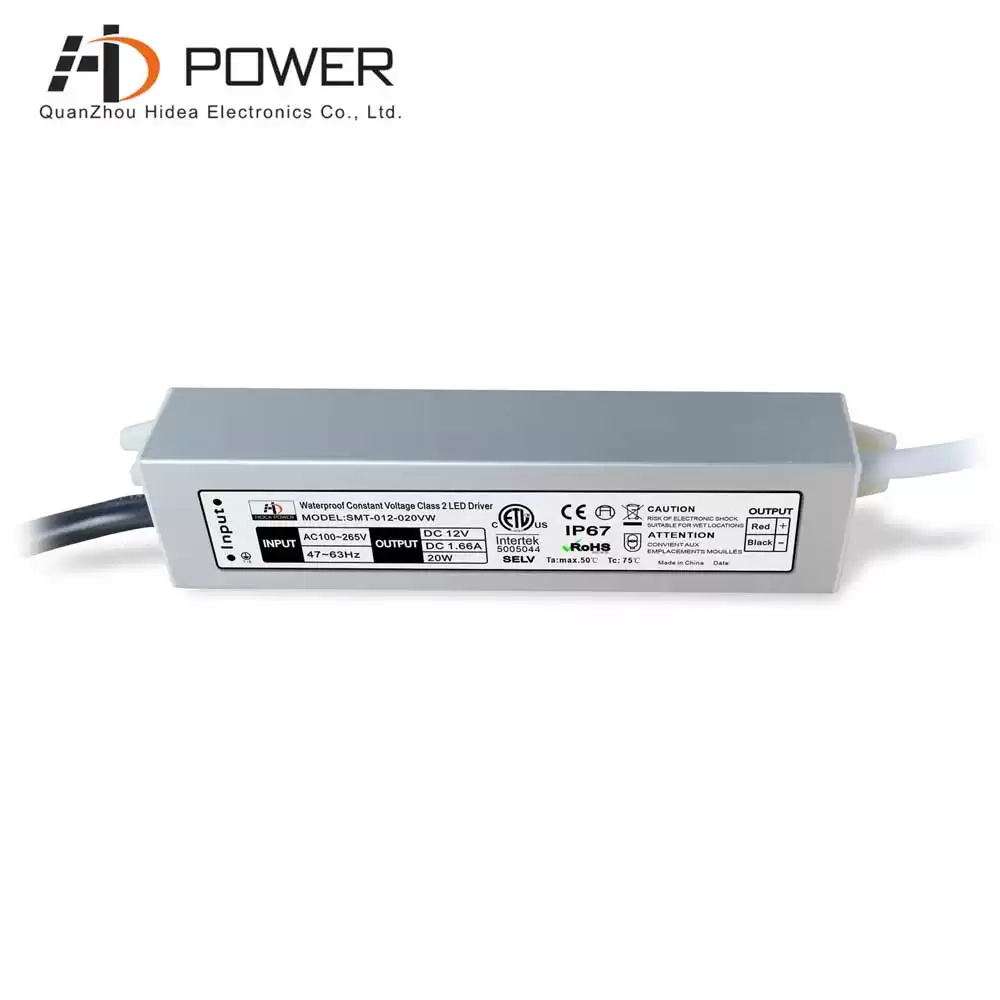

This 20w led driver itself is non dimmable constant voltage type, these waterproof IP67 rated can be used in indoor or outdoor. It is designed to protect against short circuiting. It can power well for the ULTRALEDS led strip lights.
Specification
|
MODEL
|
SMT-012-020WW
|
SMT-024-020VW
|
|
OUTPUT
|
DC VOLTAGE
|
12V
|
24V
|
|
RATED CURRENT
|
1.66Amp
|
0.83Amp
|
|
CURRENT RANGE
|
0~1.66A
|
0~0.83A
|
|
RATED POWER
|
20W
|
20W
|
|
RIPPLE&NOISE(max)
|
150mV
|
150mV
|
|
CURRENT TOLERANCE
|
±0.5V
|
±0.5V
|
|
SETUP RISE TIME
|
80ms/110,220VAC
|
81ms/110,220VAC
|
|
HOLD UP TIME(Typ.)
|
60ms/110-220VAC
|
60ms/110-220VAC
|
|
INPUT
|
VOLTAGE RANGE
|
100~265VAC
|
|
FREQUENCY RANGE
|
50~60Hz
|
|
POWER FACTOR(Typ.)
|
|
|
|
EFFICIENCY(Typ.)
|
>83%
|
>83%
|
|
AC CURRENT(Typ.)
|
3.5A/110,220VAC
|
2.0A/110,220VAC
|
|
INRUSH CURRENT (Typ.)
|
COLD START 50A/110~220VAC
|
|
PROTECTION
|
Short circuit
|
Protection type:recovers automatically after condition is removed
|
|
Overload
|
overload protected@145-160% above peak rating
|
|
Over temperature
|
Protection type:Shut down o/p voltage,re-power on to removed
|
|
ENVIRONMENT
|
WORKING TEMP.
|
-30~+50℃ (Refer to output load derating curve)
|
|
WORKING HUMIDITY
|
20~99% RH non-condensing(Waterproof)
|
|
STORAGE TEMP.,HUMIDITY
|
-40~+80℃,10~99%RH
|
|
SAFETY&EMC
|
SAFETY STANDARDS
|
UL/ROHS/CE Mark(EMC,LVD),IP67
|
|
WITHSTAND VOLTAGE
|
I/P-O/P:1.5KVAC IP-GND:1.5KVAC
|
|
EMC Test Standards
|
EN55015:2006;EN61547:1995+2000;EN61000-3-2:2006
|
|
EN61000-3-3:1995+A2:2005;EN61346-1:2001;EN61347-2-13:2006
|
|
NOTE
|
1.All parameters NOT specially mentioned are measured at 110V, 220VAC input,rated load and 25℃ of ambient temperature.
|
|
2.Ripple&noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf&10uf parallel capacitor.
|
|
3.Tolerance:includes set up tolerance,line regulation and load regulation.
|
Compatible Light Type
HIDEA's driver led 20w is one with CE ROSH listed waterproof IP67 led driver. They can matched well with ASTUTE led strip lights.
Related Products
|

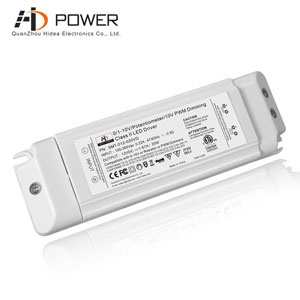

 This IP20 UL listed driver is 0-10v dimmable led driver to be used in 12vdc and the output power is 20w.
Mode：SMT-012-020VD
Dimming Mode : 0-10V Dimming
Output Power : 20W
input voltage：100~265V AC
Size：140*45*28MM （L*W*H）
|
