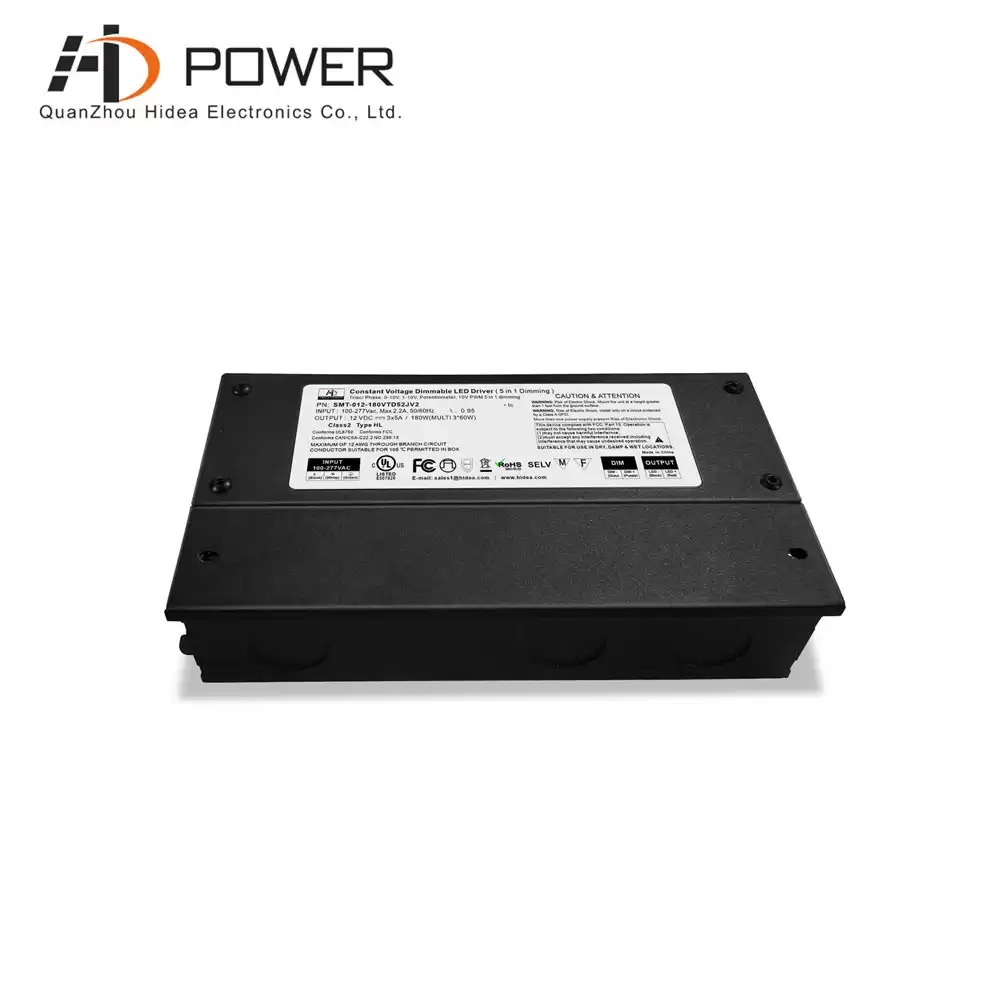

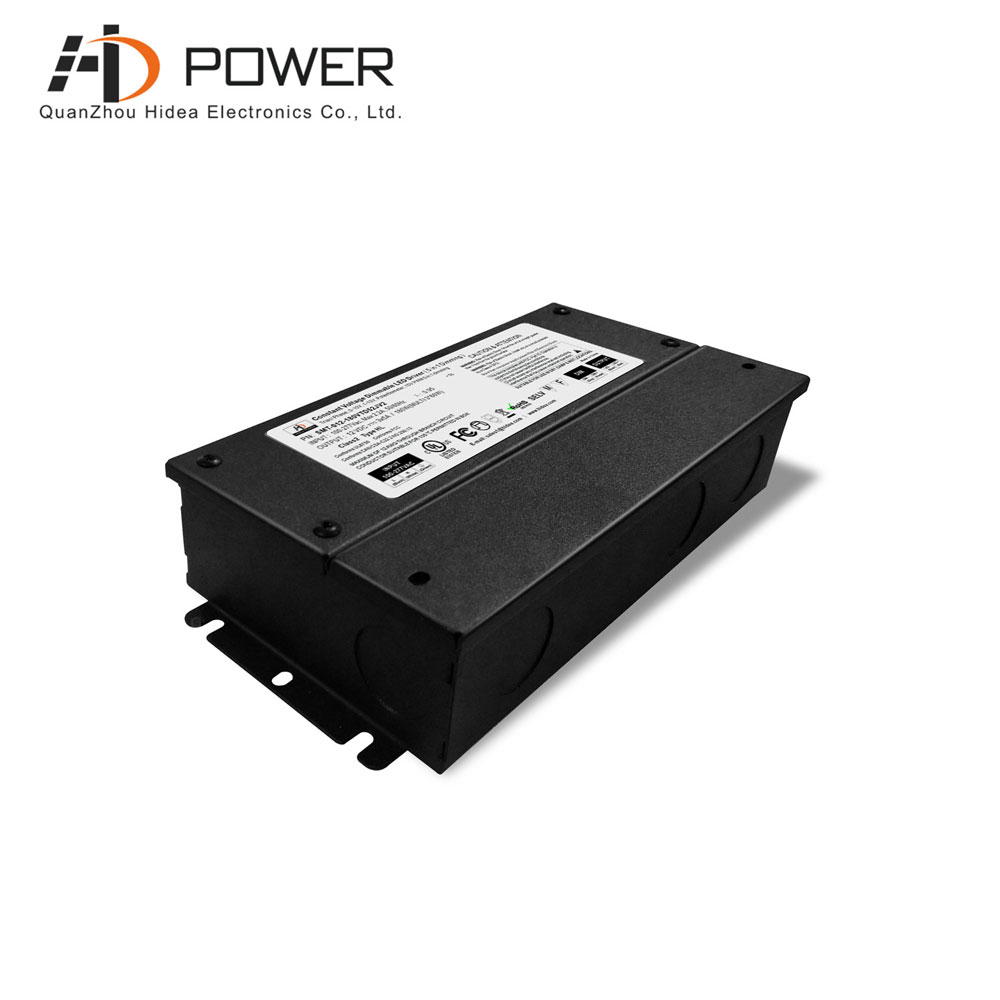

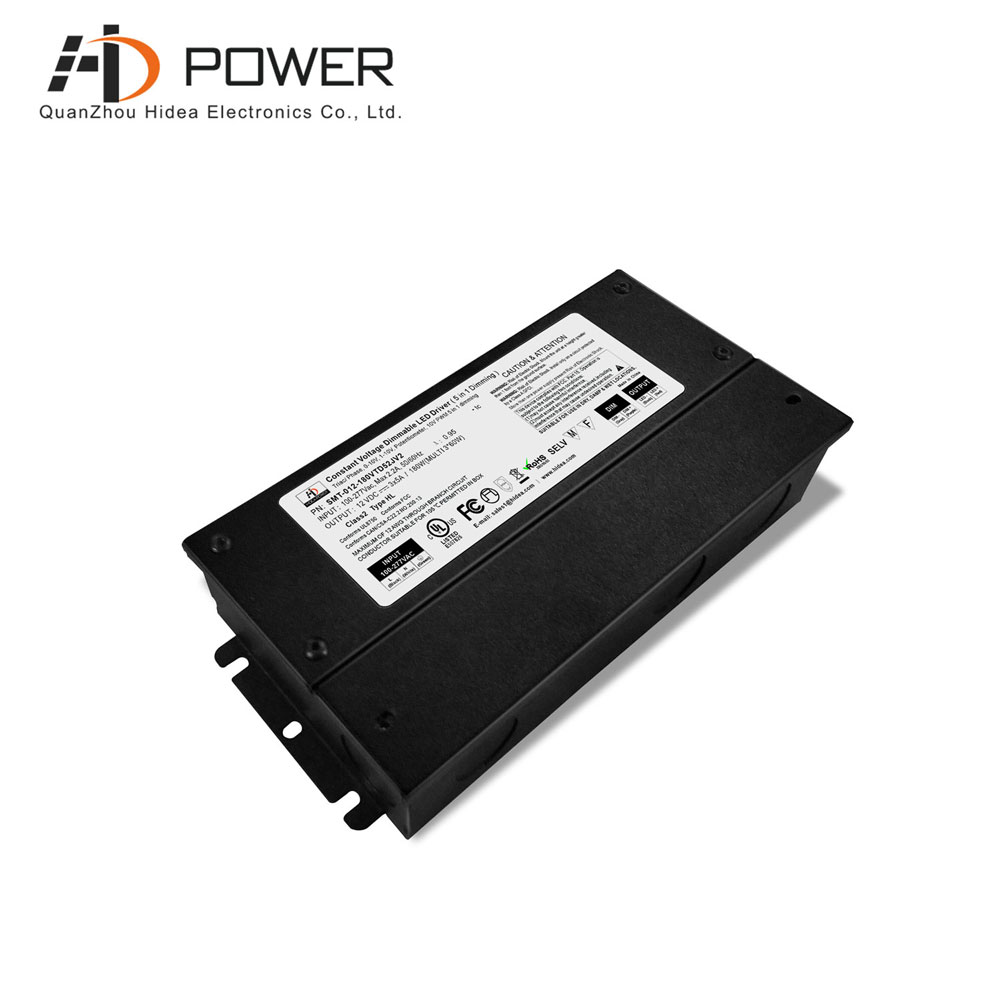

12VDC 180w class 2 led driver triac/0-10v dimmable led driver
When choosing an triac dimmable LED driver, it is important to understand the level of safety standard compliance to create the safest possible LED lighting management system. Our triac/0-10v dimmable led driver 5 in 1 dimmable type would be better for your lighting solution.
Specification
|
Model
|
SMT-012-180VTD52JV2 (1.0 version)
SMT-012-180VTD52JWV2 (2.0 version)
|
SMT-024-192VTD52JV2 (1.0 version)
SMT-024-192VTD52JWV2 (2.0 version)
|
|
Output
|
DC Voltage
|
12V
|
24V
|
|
Voltage Tolerance
|
±0.5V
|
|
Voltage Regulation
|
±0.5%
|
|
Voltage Tolerance
|
±0.5V
|
|
Load Regulation
|
±1%
|
±1%
|
|
Rated current
|
3*5A
|
2*4A
|
|
Rated power
|
180W(3*60W)
|
192W (2*96W)
|
|
Input
|
Voltage Range
|
100-277VAC
|
|
Frequency Range
|
47~63HZ
|
|
Power Factor(Typ.)@full load
|
0.99@120VAC 0.94@277VAC
|
0.99@120VAC 0.94@277VAC
|
|
THD(Typ.)@full load
|
<20%
|
|
Full Load Efficiency(Typ.)
|
86%@120VAC , 88%@277VAC
|
87%@120VAC , 89%@277VAC
|
|
AC Current(Typ.)
|
2.2A@100VAC
|
2.3A@100VAC
|
|
Inrush Current (Typ.)
|
19A (twidth=1.3ms) @120VAC ; 38A (twidth=960us) @277VAC
|
19A (twidth=1.3ms) @120VAC ; 38A (twidth=960us) @277VAC
|
|
Leakage current
|
<0.50mA
|
|
Protection
|
Short Circuit
|
shut down o/p voltage, re-power on to recover after fault condition is removed
|
|
Over loading
|
≤120% constant current limiting, auto-recovery
|
|
Over temperature
|
100℃±10℃ shut down o/p voltage, automatically recover after cooling.
|
|
Over Current
|
≤1.4*I out
|
|
Environment
|
Working TEMP.
|
-40~+60℃
|
|
Working Humidity
|
20~90%RH,non-condensing
|
|
Storage TEM.,Humidity
|
-40~+80℃,10~95%RH
|
|
TEMP.coefficient
|
±0.03%/℃(0~50℃)
|
|
Vibration
|
10~500Hz 2G 10min./1 cycle,period for 60min.each along X,Y,Z axes
|
|
Safety&EMC
|
Safety standards
|
UL8750+UL1310
|
|
Withstand voltage
|
I/P-O/P: 1.88KVAC
|
|
Isolation resistance
|
I/P-O/P:100MΩ/500VDC/25℃/70%RH
|
|
EMC EMISSION
|
FCC Part 15 B
|
|
Others
|
Weight
|
2.3Kg
|
|
Size
|
1.0version:278*110*45mm/2.0version:278*130*45mm(L*W*H)
|
|
packaging
|
340*210*245mm/8pcs /CTN G.W.:19.50KG/CTN (1.0 version) 385*335*200mm 20PCS/CTN
|
|
Notes
|
1. All parameters NOT specially mentioned are measured at 110V & 277VAC input , rated load and 25℃of ambient temperature.
|
|
2..Tolerance:includes set us tolerance,line regulation and load regulation.
|
Compatible Light Type

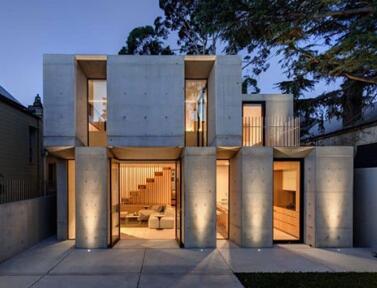

The accent ligting provides an area with overall illumination with 0 10v dimmable driver enabling one to see and walk about safely.
Related Products
|

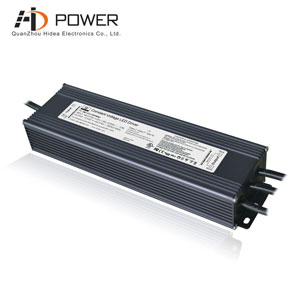

 The class 2 led driver 12vdc 180w is non dimmable type led driver with class 2 led driver standard. There are 3 output cables at 5A each, which is make the led driver connection to be class 2 standard.
Mode：SMT-012-180VWN2
Dimming Mode : Non Dimming
Output Power : 180W
intput voltage：100-277VAC
Size：276*78*47MM （L*W*H）
|
