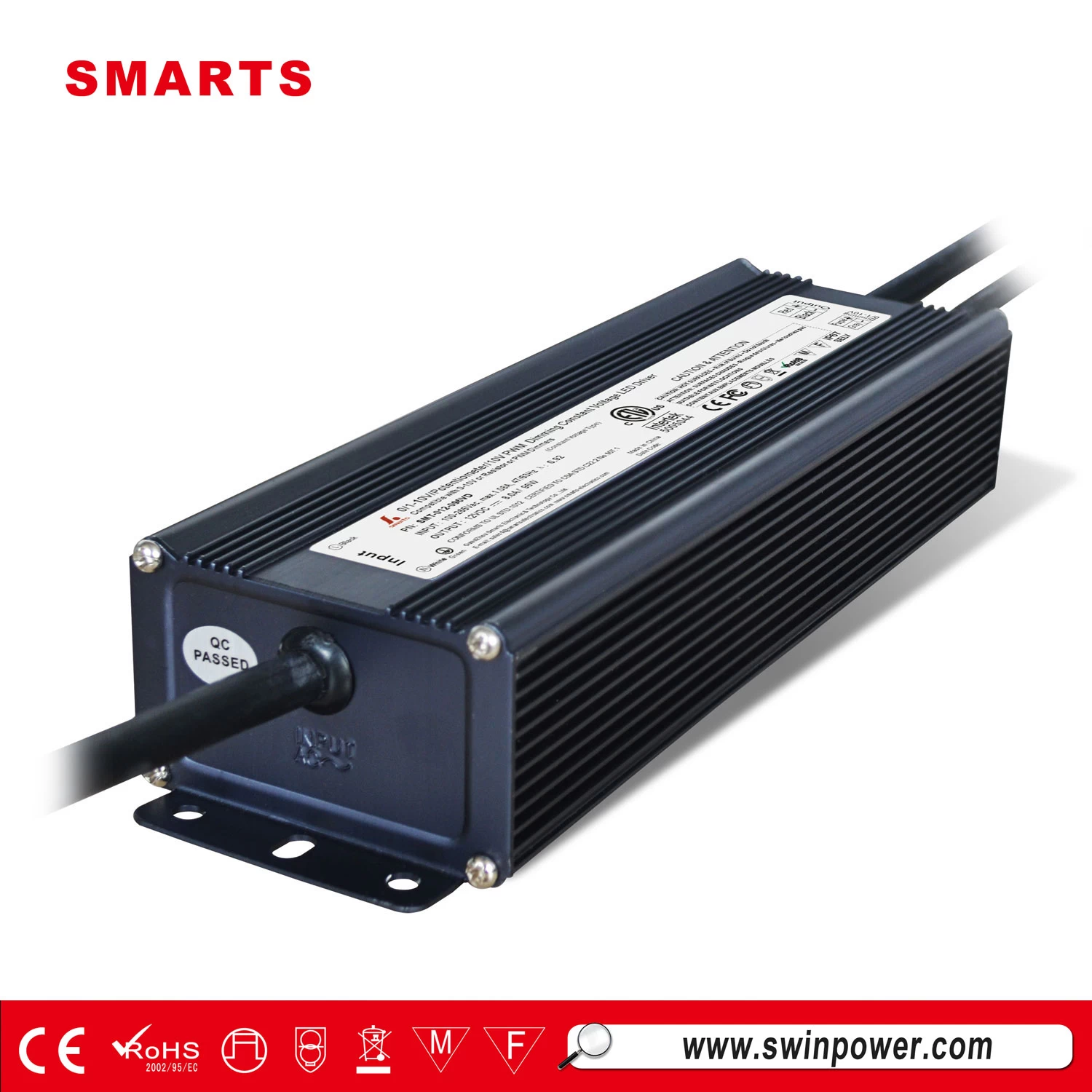

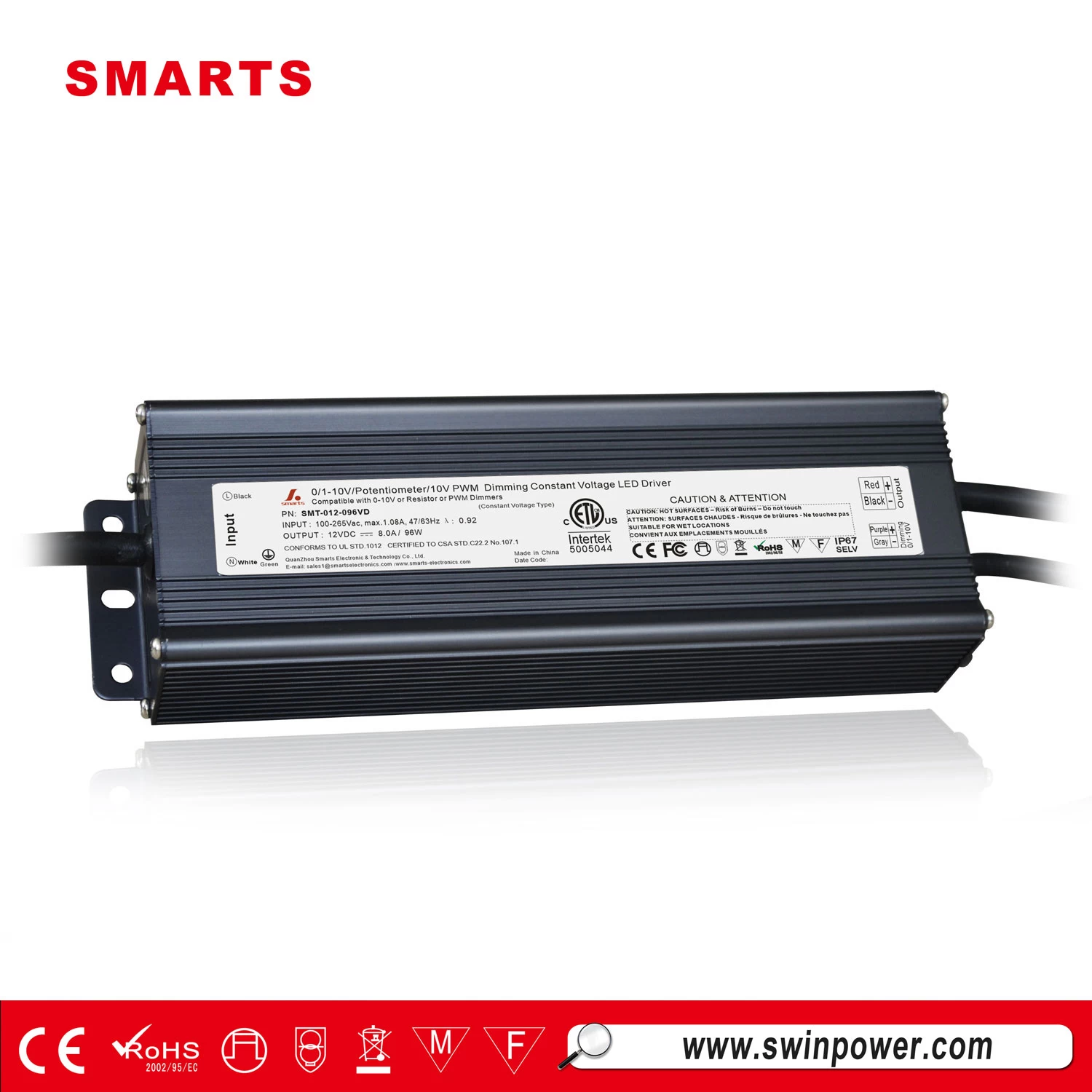

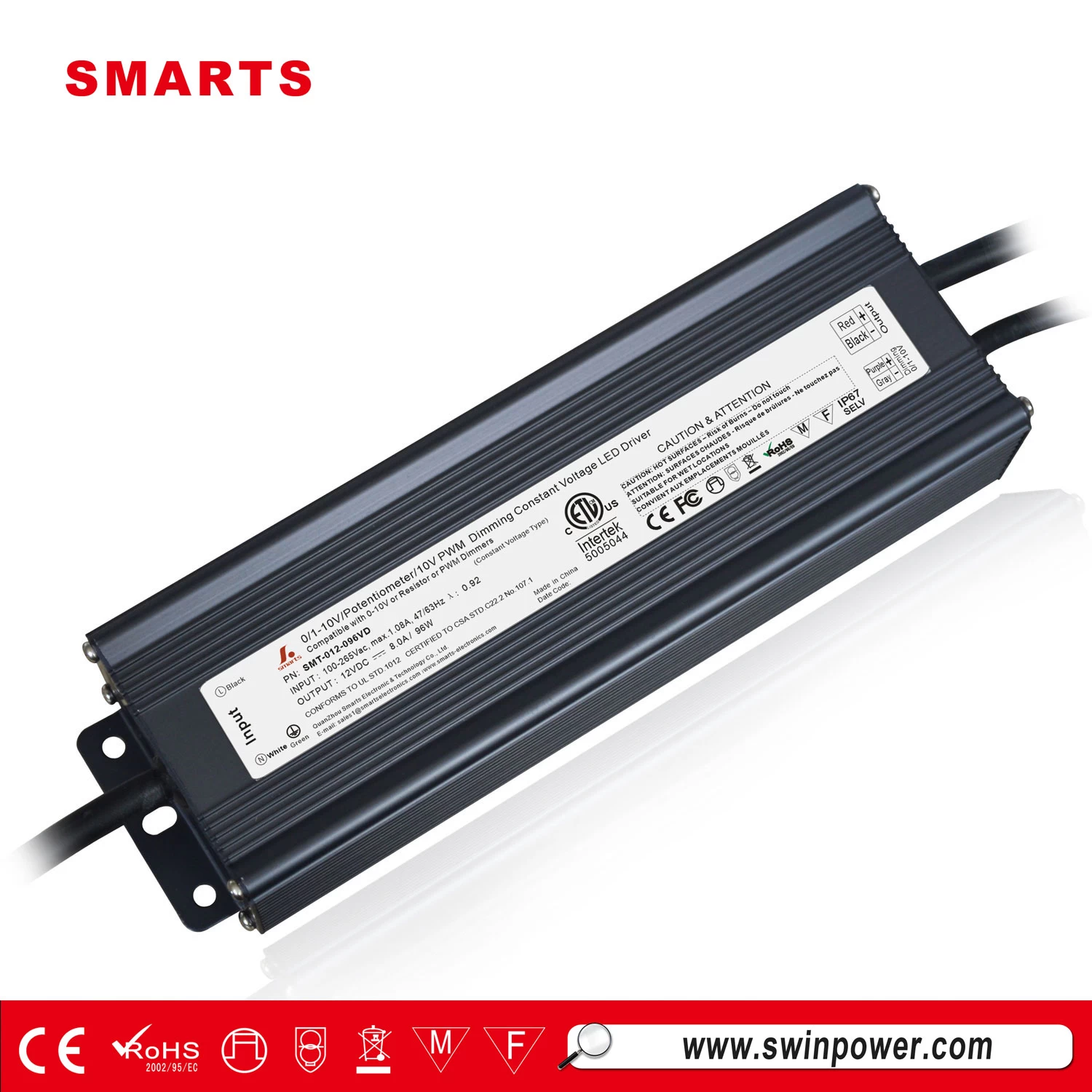

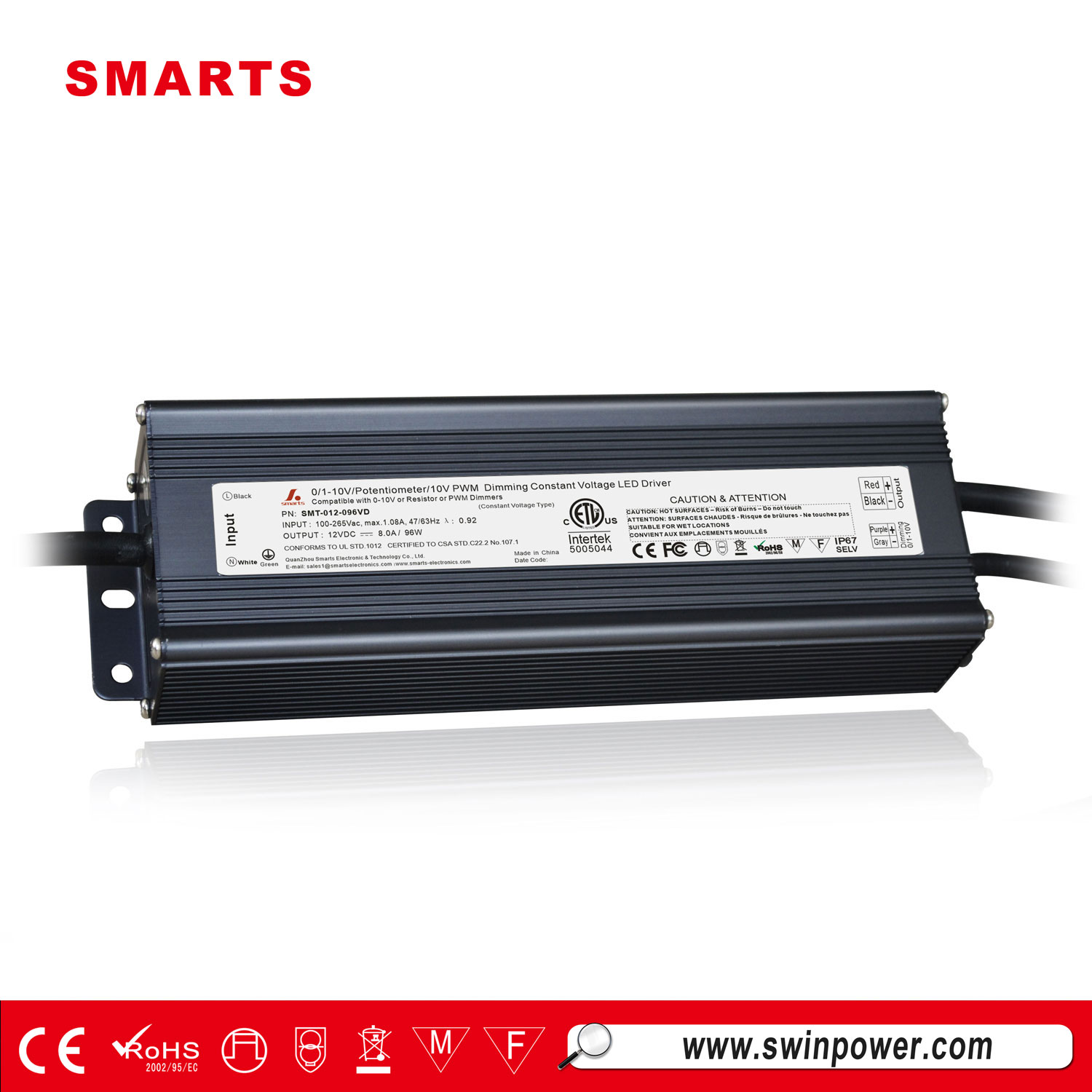

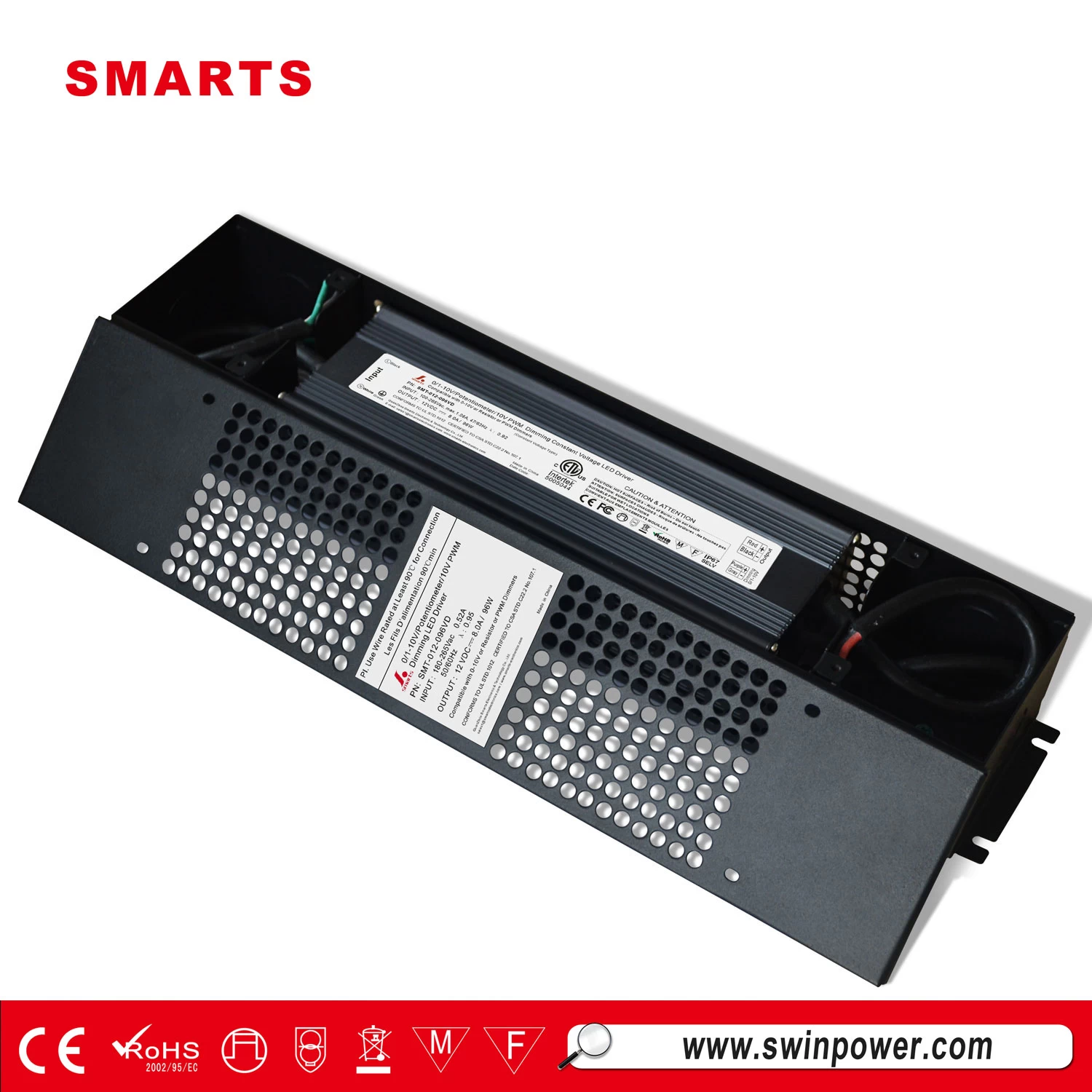

12vdc 96w 0-10v dimmable constant voltage led driver

0/1-10V Potentiometer/10V PWM(3 in 1) Constant voltage Dimmable 96w 12v ac-dc constant voltage led driver (IP67);voltage power supply


  • Input Voltage100-265vac
  • Output Voltage12vdc
  • Output Current8amp
  • Working Modeconstant voltage
  • Dimming mode0-10v dimming
  • Size230*68*45mm
  • CertificationCE,ETL ,FCC,RoHS

12vdc 96w 0-10v dimmable constant voltage led driver



SMT-012-096VD is 0/1-10V Potentiometer/10V PWM(3 in 1)  Dimmable 96w IP67 12 volt lighting power supply.High efficiency&high reliability&long lifetime.It's ETL/FCC/CE/Rohs listed with 5 years warranty.


Specification

Model

SMT-012-096VD

SMT-024-096VD

Output

DC Voltage

12V

24V

Voltage Accuracy

±0.5V

Rated current

8A

4A

Rated power

96W

96W

Ripple&noise Max.

200mVp-p

350mVp-p

350mVp-p

250mVp-p

400mVp-p

Input

Voltage Range

100~265VAC

Frequency Range

47~63HZ

Power Factor ( Typ.)

>0.92

>0.92

Full Load Efficiency(Typ.)

88%

86%

87%

88%

88%

AC Current(Typ.)

1.5A/120VAC  1.2A/170VAC  0.88A/220VAC  0.73A/265VAC

Leakage current

<0.25mA/110V,220VAC

Others

Weight

1.32Kg

Size

240*66*53mm(L*W*H)

packing

329*279*176mm/10pcs


Feature of 12v 96w led dimmable driver:

·Output constant voltage

·range :100-265VAC
·Built-in PFC function

·Efficiency >88% /  PF>0.9

·Protections:short circuit/over current/over voltage/over temperature

·Cooling by free air convection

·IP67 design for indoor or outdoor installations .

·Dimming function:0-10V/ 1-10V/ 10VPWM signal or resistance .

·Suitable for LED lighting and moving sign applications

·Compliance to worldwide safety regulations for lighting

·Suitable for dry/damp/wet locations

·5 years warranty

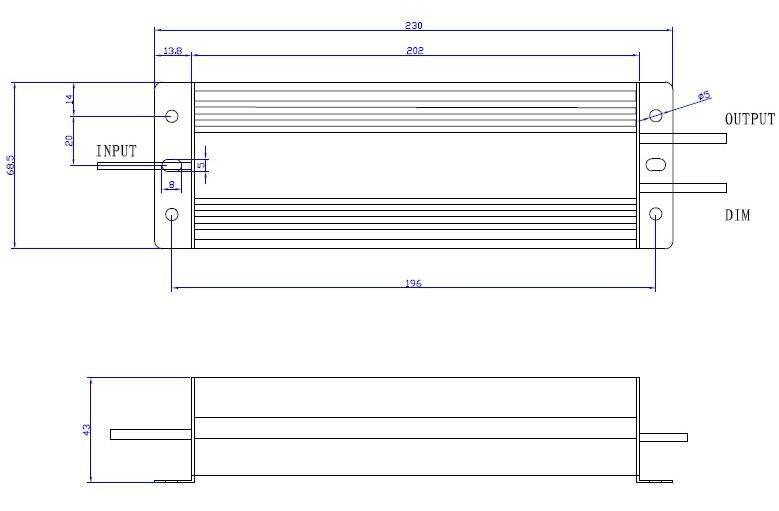

96w dimmable led driver Mechanical Specification:

 12 volt lighting power supply

**Input 18AWG*3C,the green/yellow cable connect with (FG),Brown with AC (L),Blue with AC(N)

**Signal 18AWG*2C,Red is(DIM+),Black is(DIM-)

**Output 18AWG*2C,Blown is output(V+),Blue is output(V-)

**Note: Any other requests we can customized.



Dimming Operation

**Built-in 3 in 1 dimming function, I67 rated .Output constant current level can be adjusted through output cable by connection a resistance or 1-10V DC or 10V PWM signal between DIM+ and DIM-

**Reference resistance value for output current adjustment (Typical)

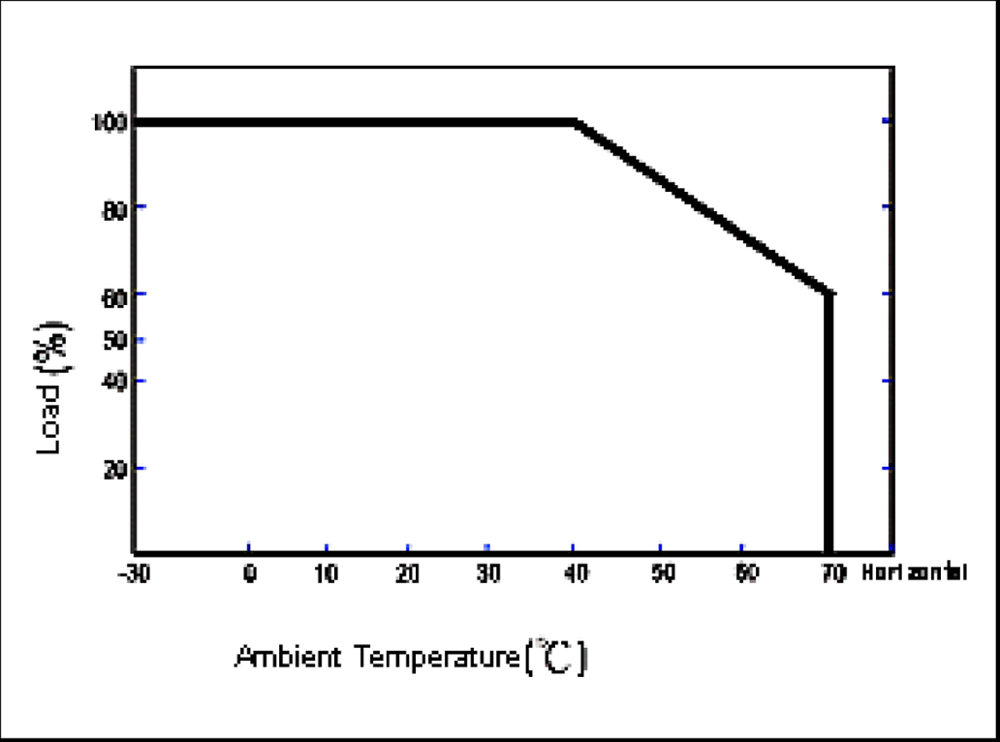

Derating Curve

  12 volt lighting power supply

**Load carried in accordance with the load derating curve, according to the ambient temperature derating, in order to extend the working life.
