Product Name:13.3 Inch Ecological Smart Mirror，Intelligent Linkage Household Appliances, Can Easily Control Lights, Music, Air And Hot Water Through Touch Or Voice
Feature
●Smart housekeeper, please whatever you want. In addition to the password, you can also log in with "Voice" and say "Hello, Magic Mirror" to the magic mirror to log in to the account immediately, which is convenient and you don't have to worry about forgetting the password.
● Health management and intimate care. Get on data analysis of blood pressure, blood sugar, sleep band, physique, smart toothbrush.
● One mirror, multifaceted life. At rest, like a normal mirror, you can dress it up. When awakened, he transforms into an intelligent interaction center and becomes a little assistant in family life.
● The future of wisdom is at your fingertips, and the mystery in the mirror is instantly triggered. Magic mirror experience, touch your fingertips to open thousands of worlds, satisfy all your imagination of life.
● Experience scene of ecological smart mirror,Used for dressing table, bathroom, kitchen, balcony and entrance.

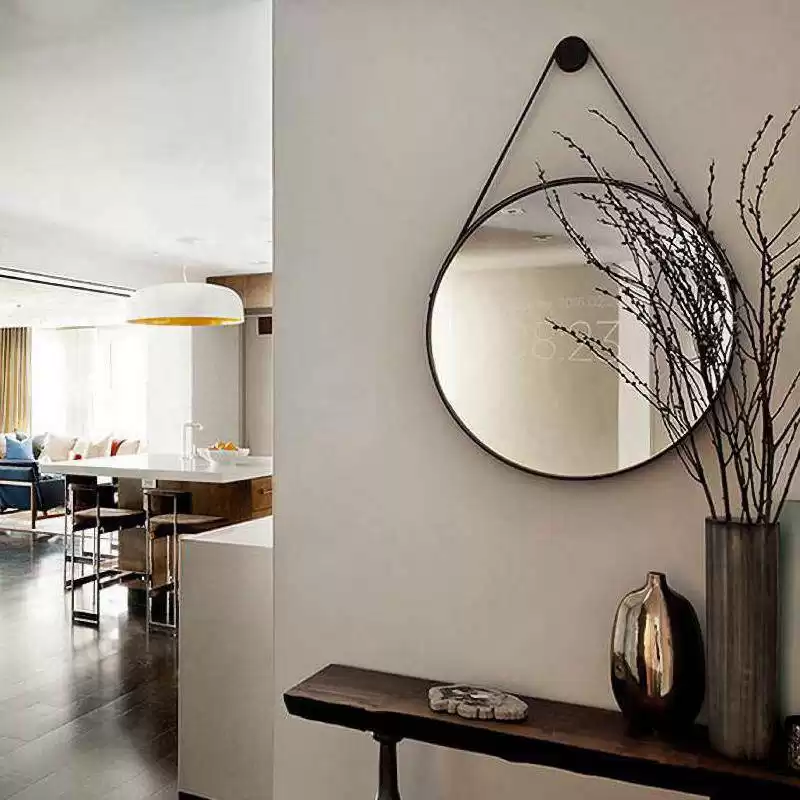

●Intelligent entrance mirror, used in family living room.Enter intelligent control center, information display center, road condition query, weather forecast, video call.

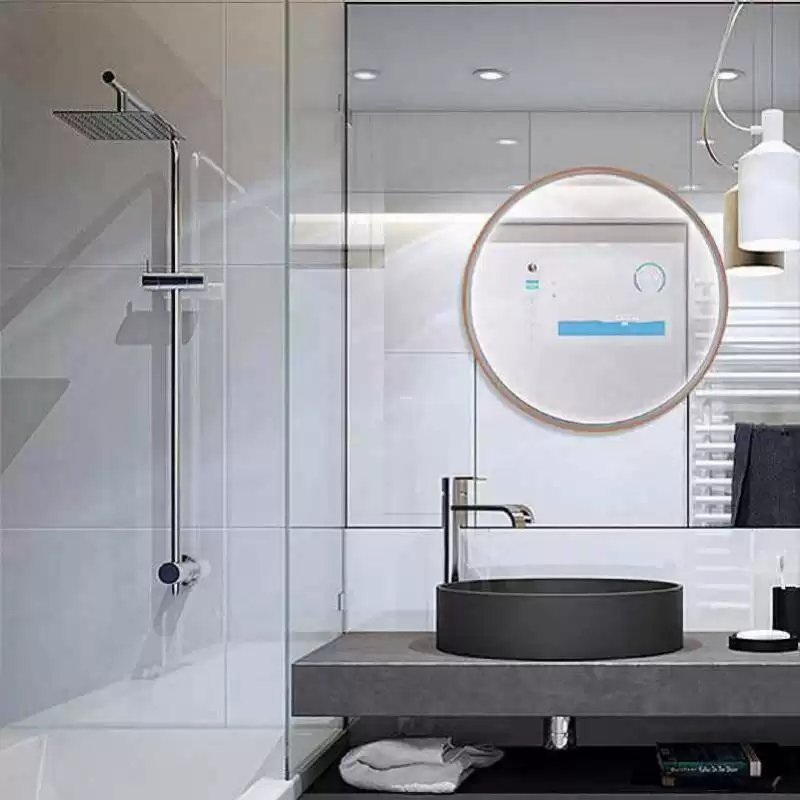

●Smart bathroom mirror, used in residential, hotel and public spaces.Enter smart bathroom control platform, schedule management, weather forecast, travel information management, real-time news and health services.
● Smart beauty mirrors, used in home dressers and beauty institutions.Enter beauty tutorials, virtual trials, skin management, intelligent skin beauty equipment aggregation, cloud platform data analysis, skin care beauty makeup e-commerce.
● Equipped with "intelligent voice control", from on-demand music, video, news to controlling home appliances, all voice control can be achieved.
● Intelligent linkage, smart life. Linking smart home appliances in the home, you can easily control lights, music, air and hot water through touch or voice.
● Life housekeeper and intelligent assistant. News, weather, road conditions, and schedules can be seen on the magic mirror at a glance, and can be displayed in real time and warmly reminded of matters needing attention.
Parameter
|
Model
|
ANSDEN EAP-MAP133-01
|
|
Smart Mirror
|
|
Software and hardware configuration
|
|
CPU
|
Rockchip 3288
|
|
Main frequency
|
Quad-core Cortex A17 1.8GHz
|
|
GPU
|
Mali-T764
|
|
Image processing
|
Support OPENGL,ES1.1/2.0/3.0,OPEN VG1.1,OPENCL,Directx11
|
|
Embedded high-performance 2D/3D acceleration hardware
|
|
Support 4K, H.265 hard decoding 10bits color depth
|
|
Support 1080P multi-format video decoding 1080P video encoding
|
|
Support H.264, VP8 and MVC image enhancement processing
|
|
RAM
|
2GB
|
|
Flash memory
|
8GB (64G optional)
|
|
Wifi
|
2.4G/5G dual-band 802.11a/b/g/n
|
|
Bluetooth
|
Bluetooth 4.0
|
|
Operating system
|
Android 5.1.X
|
|
Capacitive touch screen
|
Supports two or more points of touch
|
|
Speaker
|
2*2 W
|
|
Power switch (touch)
|
Have
|
|
Distance sensing
|
Have (sensing distance 20~80cm)
|
|
Zigbee module
|
optional
|
|
Interface
|
USB 1
|
|
USB(OTG) 1
|
|
LAN(RJ45) 1
|
|
Power/power consumption
|
|
Power input (built-in switching power supply)
|
AC 100-240V 2AMax 50/60Hz
|
|
Power consumption
|
≤36W
|
|
Standby power consumption
|
≤0.5W
|
|
LCD panel
|
|
Display size
|
13.3"
|
|
Display type
|
IPS
|
|
Aspect ratio
|
16:9
|
|
Resolution
|
1920 * R.G.B * 1080
|
|
Brightness
|
350 CD/m2 (original brightness)
|
|
Contrast ratio
|
1000:1 (according to the specifications)
|
|
Viewing angle
|
178°(H) * 178°(V) (according to the specifications)
|
|
Display color
|
16.7M
|
|
Response time
|
16 ms
|
|
Working life
|
≥15000H
|
|
Working storage temperature and humidity
|
|
Operating temperature and humidity range
|
0-50℃/20-90%RH
|
|
Storage temperature and humidity range
|
-20-60℃/5-90%RH
|
|
Appearance/Material/Craft
|
|
Host appearance
|
Φ500mm
|
|
Body thickness
|
36mm
|
|
Panel glass
|
Imported (non-conductive) diamond grade nano-coated glass
|
|
Material/process
|
Aluminum frame, plastic back shell, etc.
|
|
Dust proof and waterproof rating
|
IP65
|
|
Net weight
|
5.9KG
|
|
Gross weight (carton)
|
7.4KG
|
|
Appearance size
|
Φ500mm*134mm
|
|
Carton size
|
575mm*575mm*134mm
|
|
*Product characteristics and specifications may change, and each country or region may have different product performance requirements. For the latest information, please refer to the actual product.
|

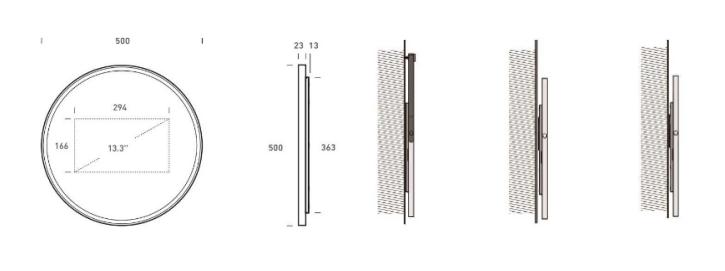

Dimension
One mirror, multifaceted life. At rest, like a normal mirror, you can dress it up. When awakened, he transforms into an intelligent interaction center and becomes a little assistant in family life.
Application
Equipped with "intelligent voice control", from on-demand music, video, news to controlling home appliances, all voice control can be achieved.
