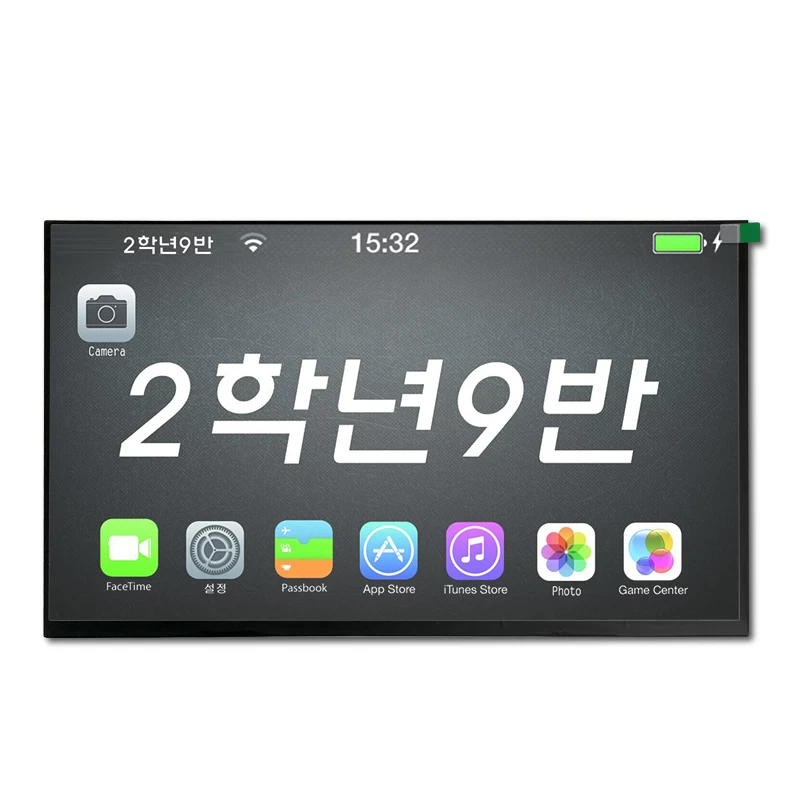

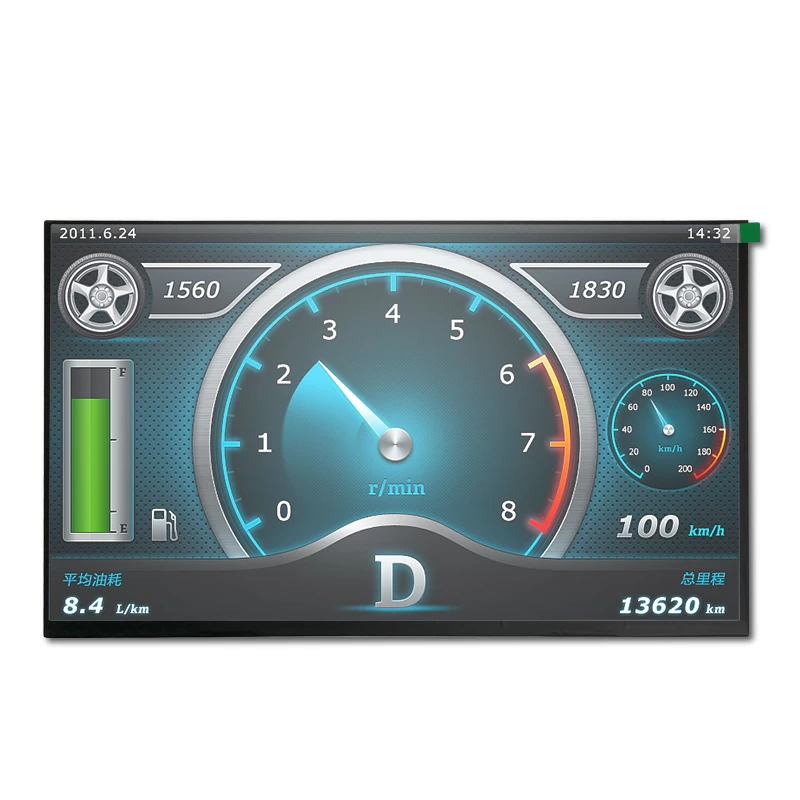

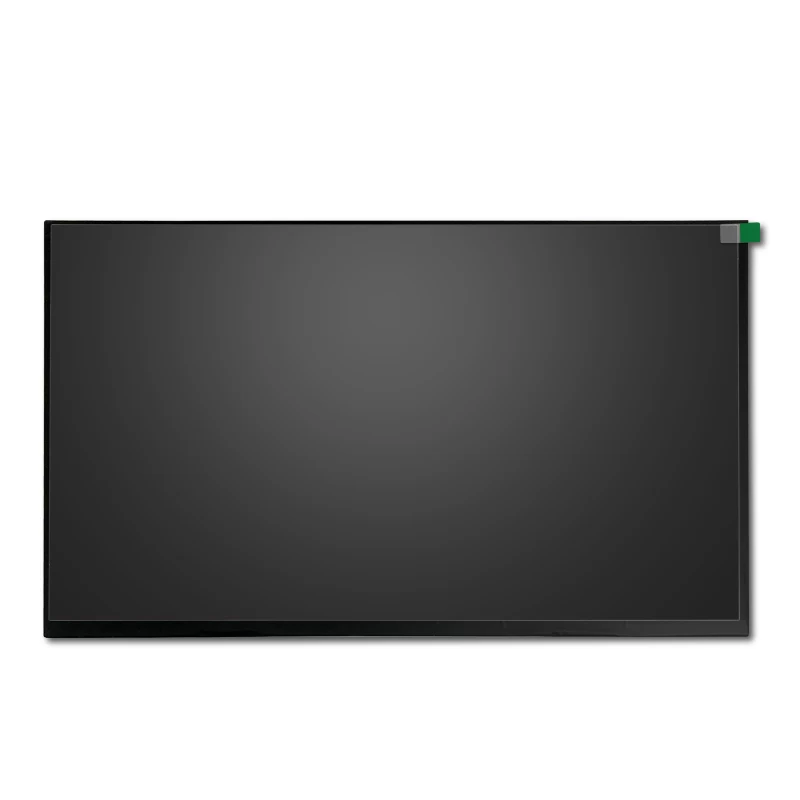

13.3 inch full HD 1920×1080 resolution IPS TFT LCD Display 200 nits with EDP
| Specification | |||
| Part No. |
13.3 inch IPS TFT |
||
| Outline Dimension(mm) |
306.20x190.62x2.50 |
||
| Active Area(mm) |
|
||
| Resolution(dots) | 1920*RGB*1080 | ||
| Operating temperature(°C) | -20-70 | ||
| Storage temperature(°C) | -30-80 | ||
| Number of Pixel(pixels) | 1920RGB(H)xRGBx1080(V) | ||
| Touch panel |
without/customization |
||
| Dot Pitch | 0.0642(W)x0.1790(H) | ||
| Pixel arrangement | RGB Vertical stripe | ||
| Display mode | Normal black,IPS, 13.3 inch TFT | ||
| Surface treatment | Antiglare | ||
| View direction |
ALL |
||
| Weight(g) | TBD | ||
| Power Consumption(w) | Panel | 0.226(Typ.) | |
| B/L system | 1.674(Typ.) | ||
| Interface | Digital | ||
| Module lifetime(Hours) | 50,000-100,000 | ||
