13.56 Mhz RFID FM08 Chip OPP Membership Discount Cards
FM11RF08 chip is also belong to ISO14443 Type A developed by Shanghai FuDan Company. the EEPROM is 1K × 8bits. The maximum communication rage between the reader and contactless card is approximately around10cm, it is fully compatible original N X P S 50 RFID Chip. FM08 also has a very high security performance with the encryption and communication circuit, and is a true multi-application smart card with the functionality of a processor card realized with hardware logic. Here is some special mainly features in the following :
1，1 Kbyte, organized in 16 sectors with 4 blocks of 16 bytes each (one block consists of 16 byte)
2，User definable access conditions for each memory block
3， Mutual three pass authentication (ISO/IEC DIS 9798-2)
4，Individual set of two keys per sector (per application) to support multi-application with key hierarchy
5，4Bytes Unique serial number
6， Contactless transmission of data and supply energy (no battery needed)
7，Operating distance: Up to 100mm (depending on antenna geometry)
8，Operating frequency: 13.56 MHz
9，Data transfer: 106 kbit/s
10, Data integrity: 16 Bit CRC, parity, bit coding, bit counting

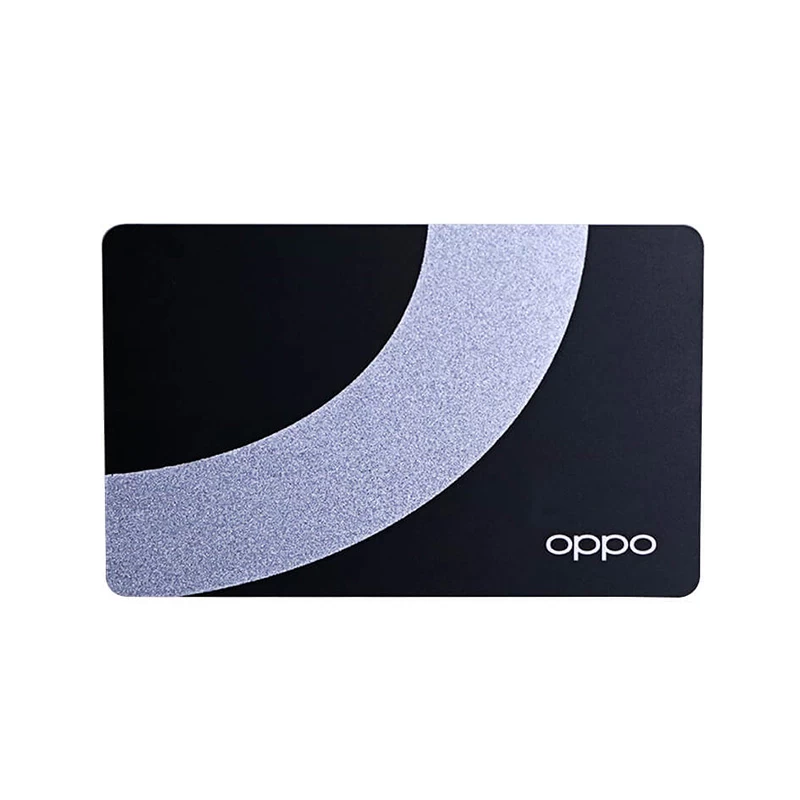

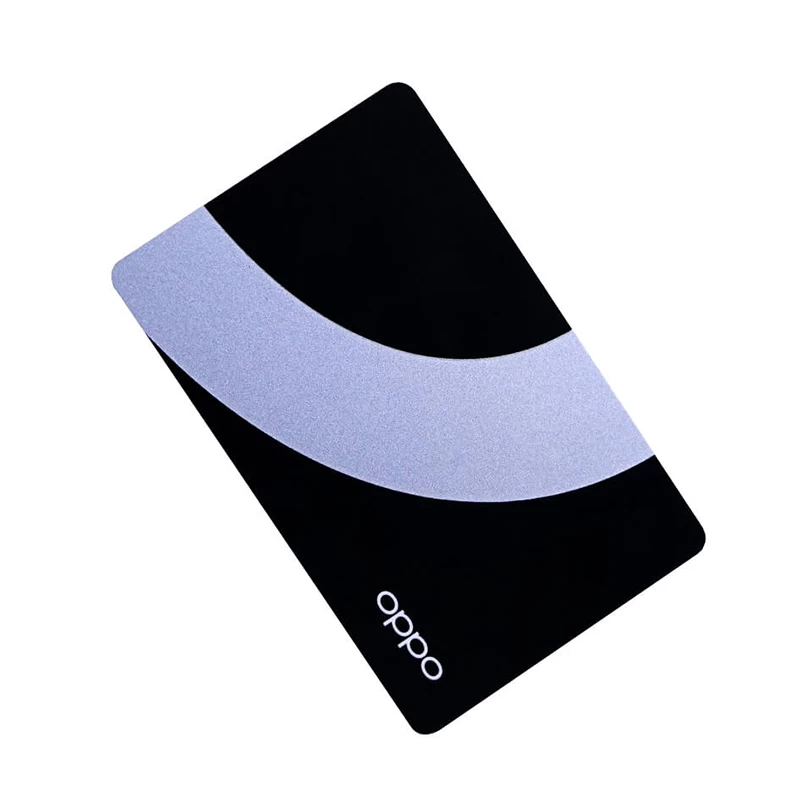

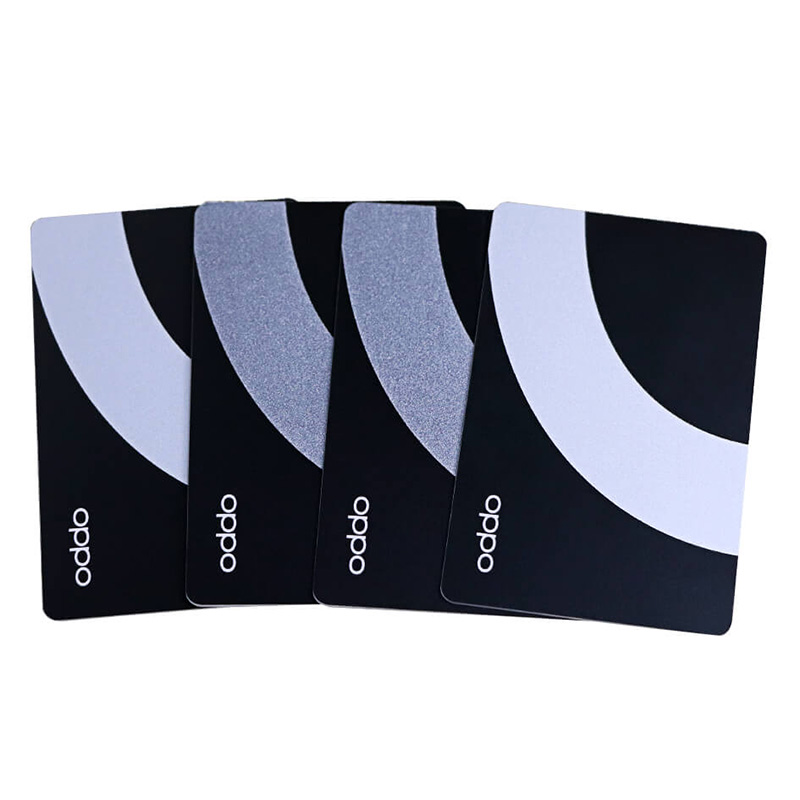

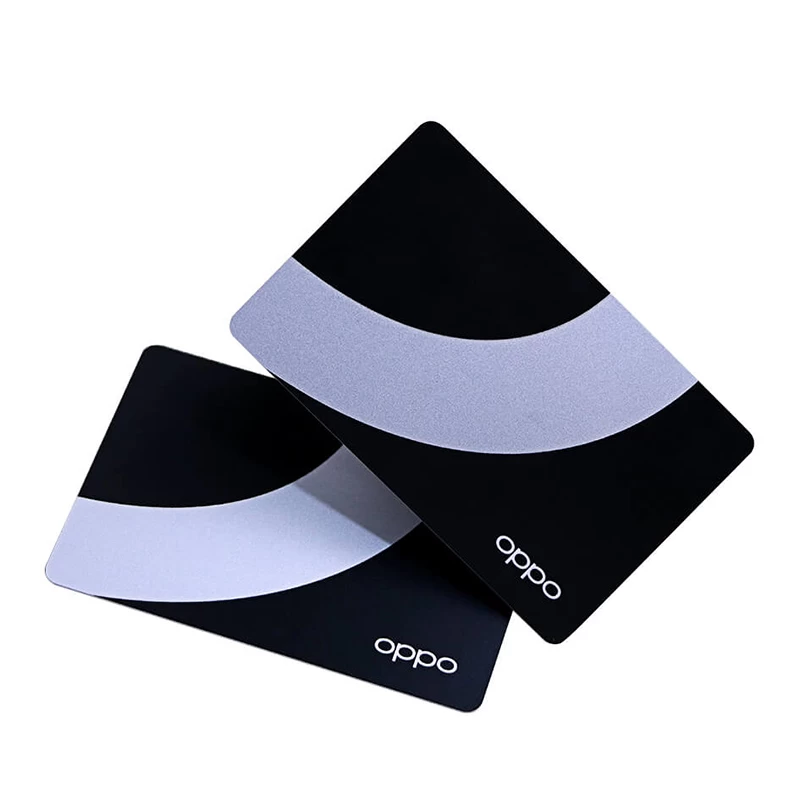

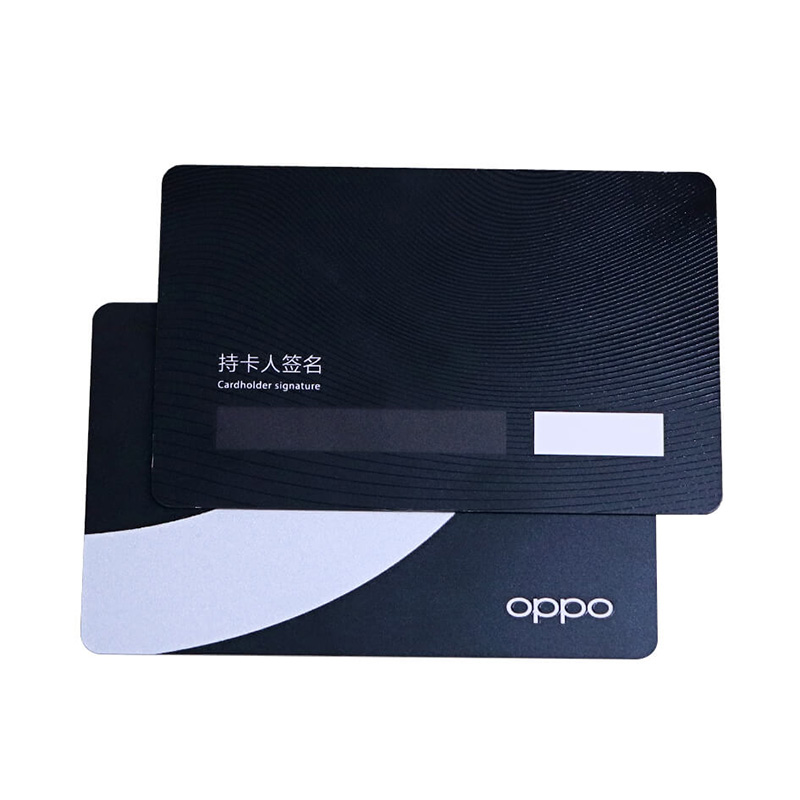

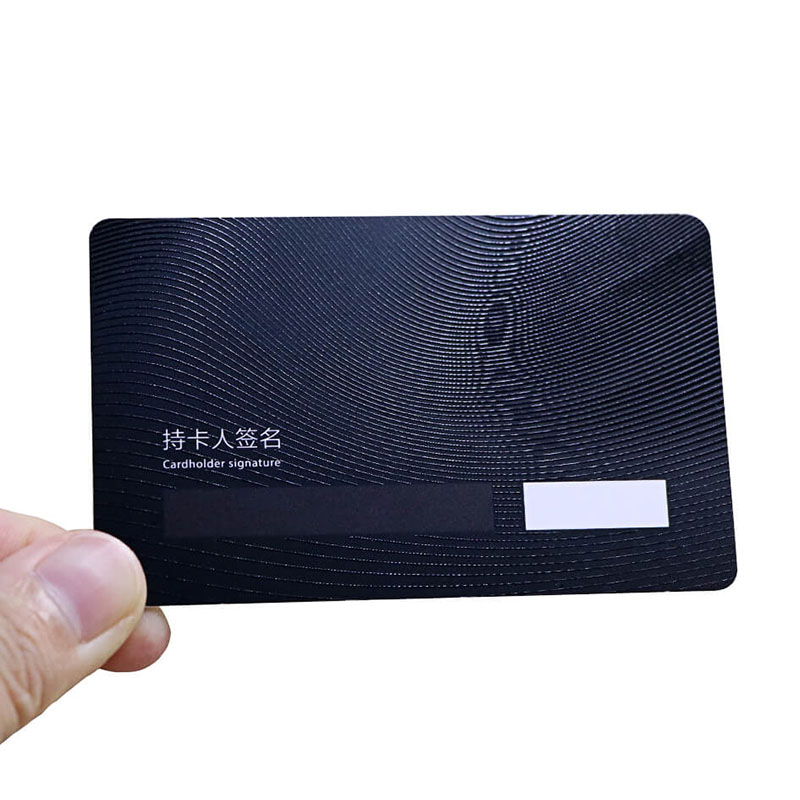

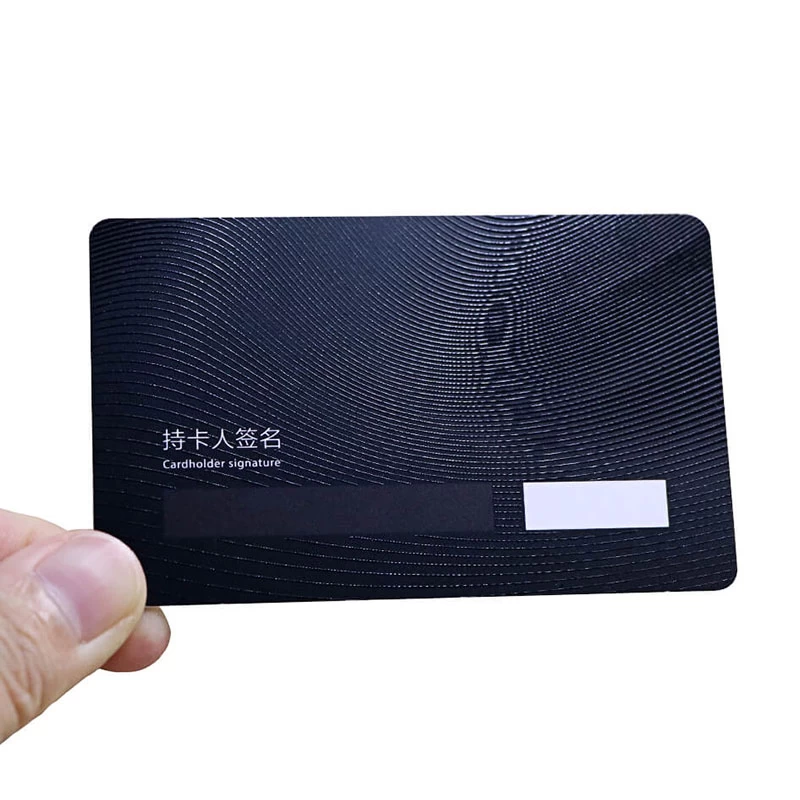

Products Display：
Specifications:
Print: CMYK Offset Printing , Silkscreen Printing
Finish : Matte, Glossy ,Frosetd
Material: PVC / ABS / PET / PP
Card Surface: Glossy, Matte or Frosted
Size: CR80 Standard Size 85.5*54 MM or Customized
Thickness: Standard thickness 0.76mm，0.84MM，0.87MM，0.9MM or demand.
Personazation or special craft:
Signature panel , magnetic stripe , scratch off , UV spot , hot foil ( gold / silver /rainbow foil etc.), barcode , engraving serial numbering , DOD etc.
Applications:
public transportation, access management, access control, school and campus cards, employee
cards, healthcare, security systems, membership cards.
Fudan 1K Technical Specification：
Chip: Fudan 1K (FM08)
Memory: 1K bytes organized in 16 sectors with 4 blocks each with 16 bytes
Frequency: 13.56MHz
Read and write distance: up to 10 cm
Read and write speed: 1 ~ 5 ms
Working temperature: -20 °C to +55 °C
Chip life: > 100,000 times
Data storage: > 10 years
Protocol: ISO/IEC 14443 A
Notes:
Due to the light and screen setting difference, the item's color may be slightly different from the pictures.
Please allow slight dimension difference due to different manual measurement.
Package:
200PCS / Box , 2000PCS / Carton , 13Kg
