13.56mhz FM08 Small NFC RFID Wet Inlay
RFID wet inlay comprises the chip and aluminum, copper or silver antenna bonded to a PET layer or Paper layer with adhesive.
DAFTags can offer various HF, UHF or NFC inlays in PET or in Paper in different sizes or shapes. As a professional factory with R&D, we can custom RFID inlays according to customers' requirements.
Product details：
Chip: FM1108
Color: white,printable
Material: coated paper
Protocol: ISO14443A
Reading distance: 1-10cm
Other RFID Specifications
|
Frequency (MHz):
|
13.56MHz
|
IC Type:
|
Mifare Classic 1K , Ultralight , etc.
|
ICODE SLIX, ICODE SLIX2, etc
|
Protocols Standards:
|
ISO14443A
|
ISO15693
|
User Memory:
|
Depend on IC
|
Physical and Environmental Specifications
|
Substrate:
|
PET
|
Antenna Material:
|
Aluminium Etched
|
Dry Inlay Size(mm):
|
Ø27 [Antenna]
|
Wet Inlay Size(mm):
|
Ø30
|
Storage:
|
[-10°C to +75°C]
10% to 60% RH
|
Operating:
|
[ +0°C to +30°C]
10% to 25% RH
|
Shelf Life:
|
2 years at [+25°C]
@40%RH
|
Dimension
|
Round: 15/18/20/22/23/25/29/30/32/38/40/50mm etc
|
Square: 19/25/29/30/35/38/50mm etc
|
Rectangle: 15*20,24*34,25*38,30*35,42*26,44*55,50*80,54*85.5,55*85(mm)
|
Micro size: 8.7*8.7mm, round 9mm, round 15mm, 10*17mm, 8*15mm, 12*12mm, 7.7*14.88mm, 8*14mm, 8*18.5mm, 5.4*19mm, 8*19.5mm, 9.8*16.45mm etc or customized
|
Crafts
|
Number printing (Serial No & Chip UID etc), QR, Barcode etc
Chip program/encode/lock/encryption will be available as well (URL ,TEXT ,Number and Vcard)
Epoxy, Customize size and shape, Hole punch etc
|
Package ：

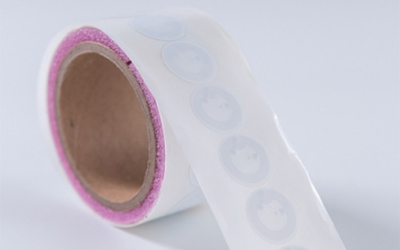

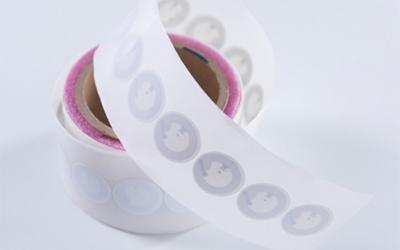

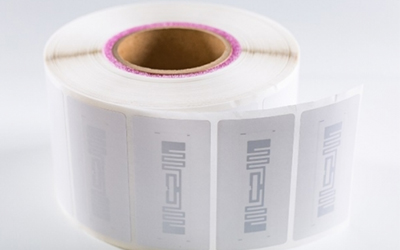

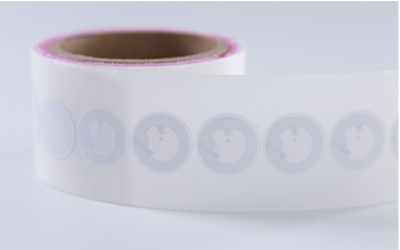

Delivery Form: In Roll
Inlays per Roll: 5000 Nominal
