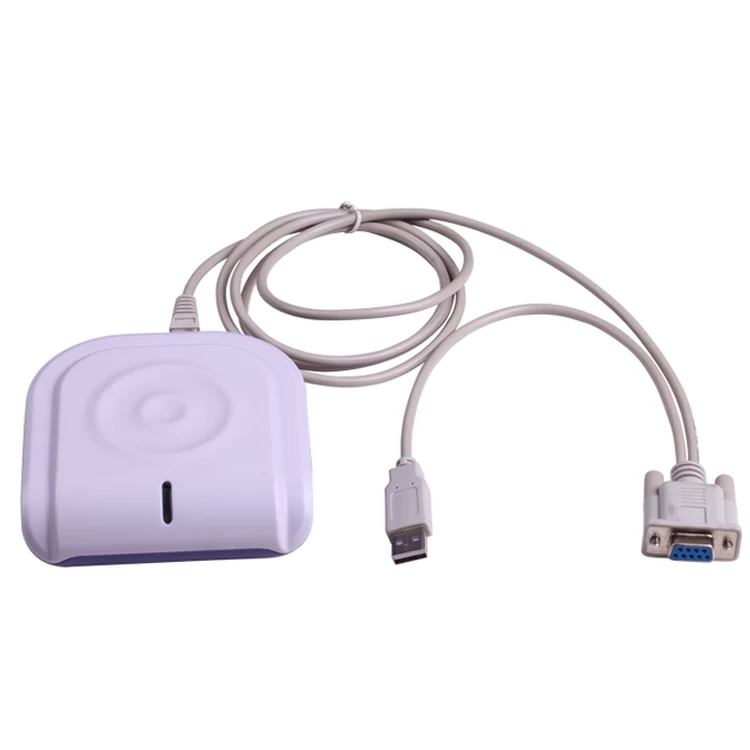

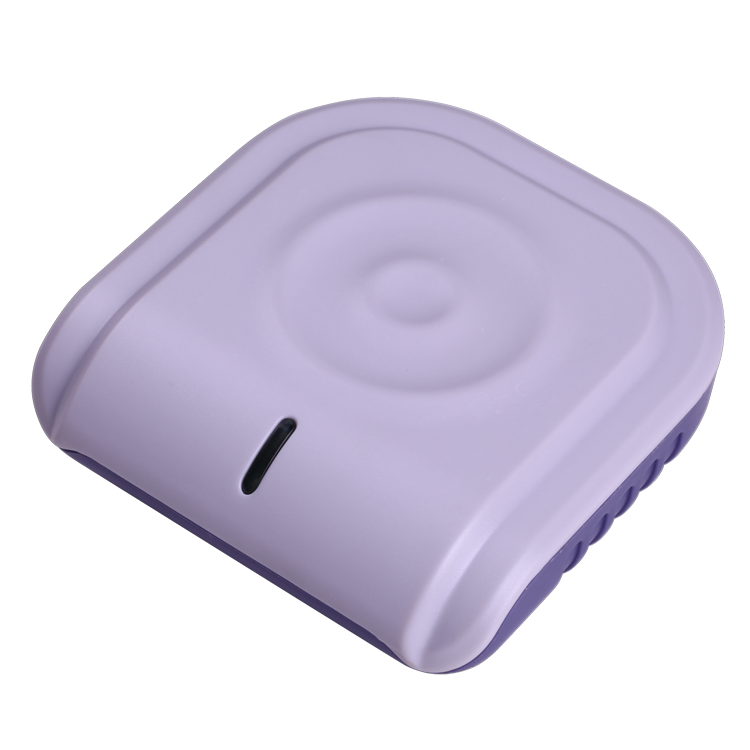

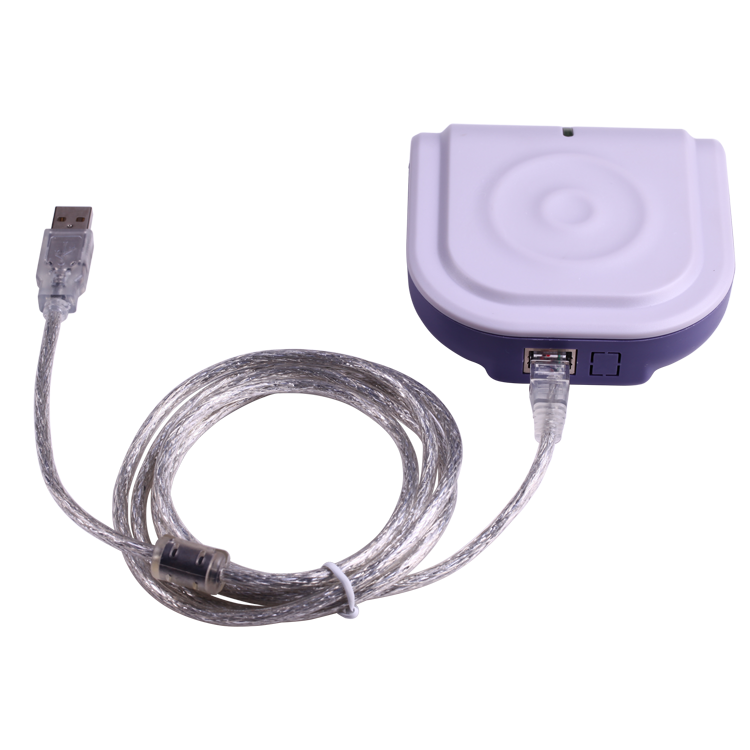

13.56MHZ ISO14443A&B NFC RFID Desktop Reader and Writer

JTM002 series of contactless reader/writer support read/write ISO14443A/B, ISO15693, ISO18092 standard cards. It connects with the PC machine and device through RS232, USB, TCP/IP or wireless WIFI interface. Free Software Development Kit will be provided for second integration.

JTM002 series of reader/writer is a necessary front-end processing device for developing contactless card related application products and system integration. It is widely used in the smart card management systems  fields.


Facebook Twitter Pinterest LinkedIn 分享

Features：

  • Support  P2P functions and NFC
  • ISO14443A/B, ISO15693, ISO18092 compliant
  • USB, RS232 interface
  • Support WIFI + TCP / IP (POE)
  • 2xLED indicator lights and A buzzer


Performance Parameters:

  • Access control /Time attendance
  • Production authentication
  • Guest registration system
  • System login/logoff
  • Returnable transit items
  • Logistic systems
  • Express parcel management


Performance Parameters:

Standard
 ISO/IEC 14443-A/B, ISO/IEC 15693, ISO 18092
Supporting Card
 NFC. Mifare S50/S70/Ultralight, Mifare Pro,  AT88RF020, 66CL160S, SR176,  SRIX4K, I-code 2, TI RFID Tag-it HF-I,etc
Interface
 RS232, USB-UART, USB-HID, TCP/IP(POE)+WIFI
Power Supply
 5V
Read Distance
 ＞5cm（Depend on tags）
Baud Rate
 9600-115200bit/s(Configurable, default 9600)
Operating Temperature
 -10℃ ~ 70℃
Sheathing Material
 ABS
Dimension
 100*100*27mm
Weight
 220g

Communication Interface:

Interface
 Protocol
TCP/IP+WIFI
 ISO14443A
TCP/IP+WIFI
 ISO14443A&B+ISO18092(NFC)
USB-HID(plug and play)
 ISO14443A&B+ ISO15693
USB-UART(USB virtual)
 ISO14443A&B+ ISO15693
USB-UART(USB virtual)
 ISO14443A&B+ISO18092(NFC)
RS232
 ISO14443A&B+ISO18092(NFC)
RS232
 ISO14443A&B+ISO18092(NFC)
