1300*1000 Co2 Laser Cutting Machine 150W for Acrylic and Wood Cutting
Model : AS-1310
|
Brand
|
Baisheng LASER
|
|
Model
|
AS-1310
|
|
Laser Type
|
Sealed CO2 laser Glass Tube
|
|
Laser power/brand
|
80W,100W.150W 120w CDWG Reci brand
|
|
Gross Power
|
<1300W
|
|
Net Weight
|
320KG
|
|
Gross wight
|
370KG
|
|
Processing Area
|
1300mm*1000mm
|
|
Machine Dimension
|
191*150*118
|
|
Packing Dimension
|
205*165*120
|
|
Minimum sharping character
|
Chinese Character 2mm/ letter 1mm
|
|
Power supply
|
220V±10% 50 HZ±10HZ (customizable)
|
|
Cutting/engraving Speed
|
0-64m/min
|
|
X/Y Positioning Accuracy
|
0.025mm
|
|
X/Y Repeated Positioning Accuracy
|
≤±0.01mm
|
|
Laser Control System
|
China Ruida or Topwisdom co2 laser control
system
|
|
Data Transfer Port
|
PC cable ,USB port
|
|
Design software
|
Coreldraw AutoCAD Photoshop…AI
|
|
Graphic File Formats Supported
|
AI,DXF,PLT,DST,DSB,BMP,GIF,JPG,PNG,ICO
|
|
Operating temperature
|
0-45℃
|
|
Accessories
|
Exhaust fan/pipe. Air Compressor .air duct/water pipes ,
/user manual. Water
Pump,Reflective mirrors ,len,wheels.one of 3
platforms(Metal honeycomb,
knife edge Aluminum bars, Grid )…
|
|
optional
|
Red dot pointer positioning system/ CW water chiller/the
other 2 platform
|
|
Consumable
parts(recommend to be spared)
|
Laser tube, Mirrors, lens. power supply
|
Baisheng Co2 Laser Cuting Machine Features:
1.Machine body made of high quality steel plate .
2.Machine equipped with parts of well-known brands
3.Fully tested and calibration before delivery.
4.thousands of thousand co2 laser machines stable running around the world.

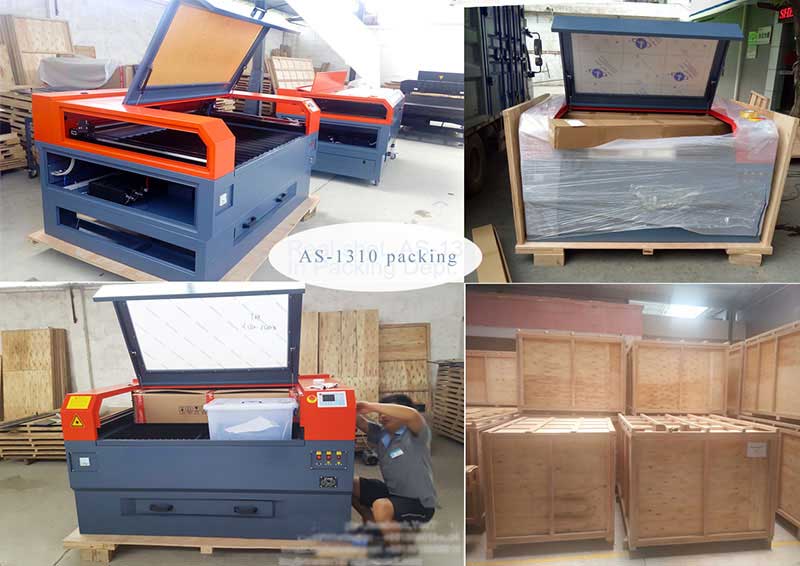

Closeup views of co2 laser cutting machine AS-1310
