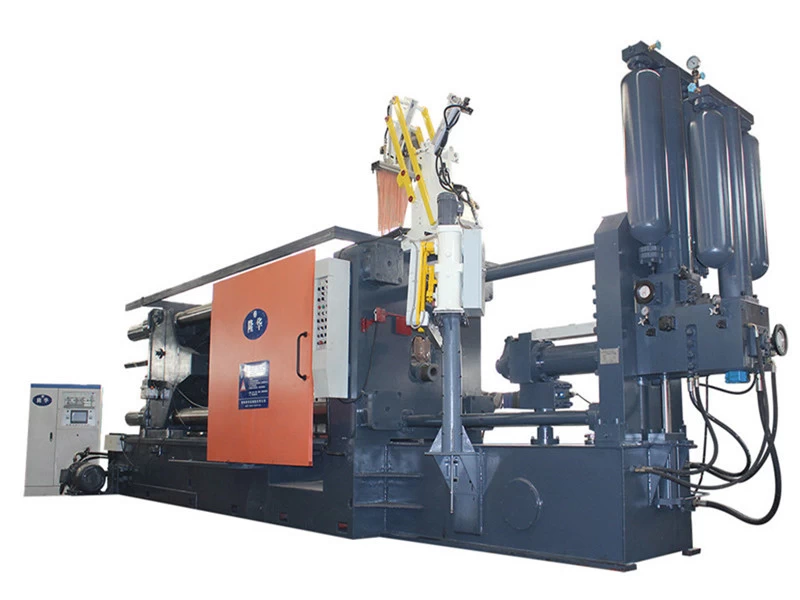

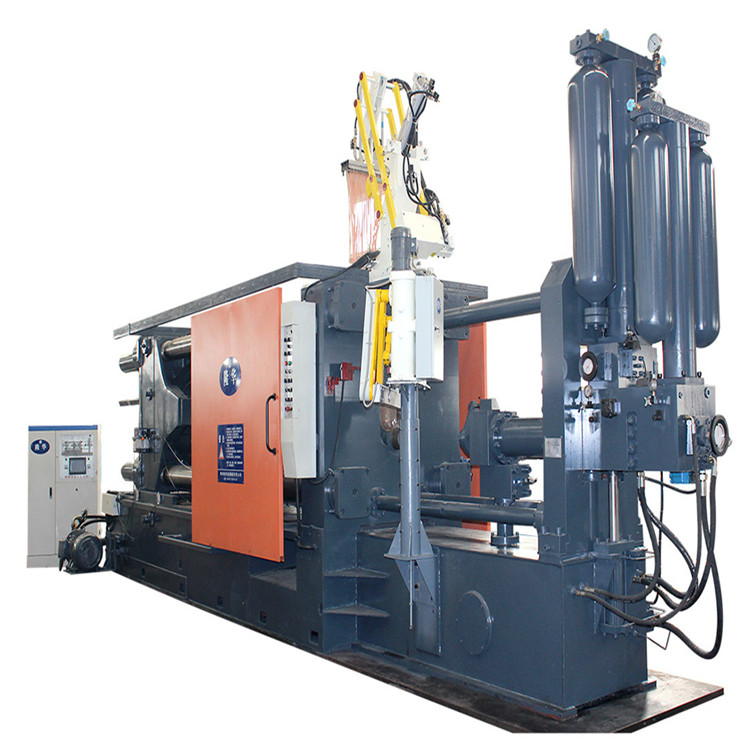

1300T High speed Cold Chamber LED street light shell die casting machine
Aluminum alloy die casting machine advantages
1.Aluminum alloy die casting machine advantages
2.Aluminum alloy die casting machine in operating process and the comparison to the other die-casting machine performance will have their own advantages.
3.The development of aluminum alloy die casting machine has been going on, the equipment technology has been mature, the characteristics of the aluminum alloy die casting machine because of its high pressure rapid solidification makes is often accompanied by the improvement of the performance of the die casting aluminum alloy mechanical casting process to reduce the performance of this particular, aluminum alloy die casting machine are being widely used.
1300T die casting machineparameter
|
Items
|
Unit
|
Specification
|
|
Hydraulic Working Pressure
|
MPa
|
16
|
|
Clamping Force
|
KN
|
13000
|
|
Space Between Tie Bars
|
mm
|
1100*1100
|
|
Tie Bar Diameter
|
mm
|
￠230
|
|
Die Opening Stroke
|
mm
|
1000
|
|
Injecction Force(intensify)
|
KN
|
1075
|
|
Plunger launch distance
|
mm
|
320
|
|
Injection position
|
mm
|
--160 --320
|
|
Plunger Diameter
|
mm
|
￠100----￠140
|
|
Injection Stroke
|
mm
|
880
|
|
Casting pressure (intensify)
|
MPa
|
137---70
|
|
Casting Fiange Protrusion
|
mm
|
25
|
|
Casting Fiange Diameter
|
mm
|
240
|
|
(40Mpa) Max Casting Area Under40Mpa
|
CM2
|
3125
|
|
lnjection Weight(Al)
|
Kg
|
25.4
|
|
Die Height(Min--Max)
|
mm
|
450～1180
|
|
Ejector Force
|
KN
|
570
|
|
Ejector Steoke
|
mm
|
200
|
|
Motor Capacity
|
Kw
|
30*2
|
|
Machine Dimensions (L*W*H)
|
m
|
11.8*3.7*4.2
|
|
Referential Machine Weight For Uplifting
|
T
|
75
|
|
Oil Tank Capacity
|
L
|
2800
|
WE reserve the right to make any technical improvement without further notice
Company profile:
Longhua Die Casting Machine, founded in Bengbu, Anhui Province of China ,in 1982, is a professional high-tech enterprise engaged in the design, manufacture and sale of cold chamber die casting machine, die casting peripheral equipment, oil field equipment and new energy equipment (natural gas, nitrogen, wellhead, casing, raw materials, liquefied petroleum gas, special gas, compressor).
